Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x Trinity i845DDRS2095motherboard

1x 34-Pin floppy drive cable

1x Ultra-DMA-100/66/33 IDE cable

1x Trinity i845DDR user’s manual

1x TYAN driver CD

1x I/O shield with 1 LAN/Audio port(optional)

If any of these items are missing, please contact your

vendor/dealer for replacement before continuing with the

installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.1 Congratulations!

You’re now the owner of one of the most compelling Intel processor solutions –Trinity i845DDR.

Based on the Intel i845 B-stepping chipset, the Trinity i845DDR offers you all the latest features

and stability of a cutting-edge Intel chipset along with the blistering performance of Double Data

Rate memory. Supporting Intel Pentium 4 processors, the Trinity i845DDR delivers an

unprecedented experience for Pentium 4 users. In critical situations where stability is paramount,

but performance cannot be sacrificed, the Trinity i845DDR delivers performance you can trust.

Trinity i845DDR is an integrated motherboard with features such as dual channel UltraATA-100,

optional 10/100Mbit Ethernet and optional AC’97 audio.

Offering features that supercede the competition, Trinity i845DDR enables connectivity right out of

the box. Using the optionally equipped 10/100Mbit Ethernet port, you’re able to get connected in

no time at all. Whether connecting to the Internet or a LAN, or listening to your favorite tunes via

the optional onboard sound, the Trinity i845DDR has you covered in virtually all directions.

The Trinity i845DDR supports up to 2GB of PC2100/1600 DDR SDRAM.

Remem ber to visit TYAN’s Website at http://www.tyan.com. There you can find information on all

of TYAN’s products with FAQs, distributors list and BIOS setting explanations.

1.2 Hardware Specifications

Processor

•Single PGA478 ZIF socket

•Supports one Intel Pentium 4 Processor

•Onboard VRM

•Front-Side Bus support for 400MHz

Chipset

•Intel i845 B-stepping

•Intel 82845 MCH and 82801BA ICH2

•Winbond W83627HWLPCI/O ASIC

Memory

•Two 2.5v 184-pin DDR DIMM sockets

•Supports up to 2GB of PC2100/1600 DDR

RAM

•SupportsUnbuffered memory

Expansion Slots

•One AGP slot supporting 4X cards (1.5v slot

design)

•Six 32-bit 33MHz (5-volt) v2.2 PCI slots

•Total of seven usable slots

Integrated PCI IDE

•Dual-channel UItraATA-100

•Up to four E-IDE drives

•Support for PIO/DMA/ATAPI devices

Integrated I/O

•One floppy connector supports up to two

drives

•Two 9-pin 16550-based serial ports

•One 25-pin SPP/ECP/EPP parallel port

•Four USB ports (two via optional cable)

•PS/2 keyboard and mouse ports

•Audio (Out, Mic, In) ports (optional)

•One RJ-45 LAN port with LEDs (optional)

Integrated LAN (Optional)

•Intel 82562 LAN controller

•10/100Mbps max data rate

•Wake-on-LAN (WoL) support

Integrated Audio (Optional)

•AC’97 Codec

•Line-In, Line-Out, Mic-In ports

•CD-In, Aux-In ports

http://www.TYAN.com

Form Factor

•ATX footprint 12” x 9.6” (304.8mm x

243.8mm)

•20-pin ATXpower connector

•Two Serial ports

•One Parallel Port

•Stacked USB (two) ports

•One RJ-45 LAN port with LEDs (optional)

Hardware Monitoring

•Winbond W83627HF hardware monitoring

ASIC

•CPU Temp, voltage and fan monitoring

BIOS

•AwardPlug-N-Play 4Mb BIOS Flash ROM

•Supports APM v1.2 and ACPI v1.0

•Auto-configure IDE drive types

•User settings for hardware monitoring

•Multiple boot options

•DMI 2.0 compliant

Regulatory

•FCC DoC (declaration of Conformity)*

•European Community of CE (declaration of

Conformity)*

*Pending at time of print. Please check the

TYAN website for updates –www.tyan.com

1.3 Software Specifications

OS (Operating System) Support

•MicrosoftWindows98

•Microsoft Windows ME

•MicrosoftWindowsNT4

•Workstation

•Server

•MicrosoftWindows2000

•Professional

•Server

•Advanced Server

•Datacenter

•Microsoft Windows XP

•Home

•Professional

The following OSes have not been tested with

thismotherboard:

Any distribution of Linux (RedHat, Suse, etc)

Any distribution of UNIX

Any distribution of BSD (FreeBSD, etc)

Sun MicrosystemsSolaris

MicrosoftWindows3.x

Microsoft Windows NT 3.x

BeBeOS

While any of the OSes abovemay work with

this motherboard, TYAN doesnot and will not

support issues with this motherboard if any or

all of the above OSes are used.*

*TYAN reserves the right to add support or

discontinue support for any OS with or without

notice.

http://www.TYAN.com

Chapter 2: Board Installation

Installation

You are now ready to install your motherboard. The mounting hole pattern of the Trinity i845DDR

matches the ATX system board specifications. Your chassis should support a standard ATX

motherboard form factor.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information which will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch the power supply.

For the safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board.

(3) Avoid touching the motherboard components, IC chips, connectors, and leads.

(4) Avoid touching memorymodule contacts and IC chips

(5) Place the motherboard on a grounded antistatic surface or on the antistatic bag from

which it came in.

Having reviewed the precautions above, the next step is to take the motherboard out of the

cardboard box and static bag, hold it by its edges and place it on a grounded antistatic surface,

component side up. Inspect the board for damage.

The following pages will detail for you on how to install your motherboard into your chassis, install

processor(s), memory, hard drive and floppy cables/drives and heatsinks.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.tyan.com

2.0 –Board

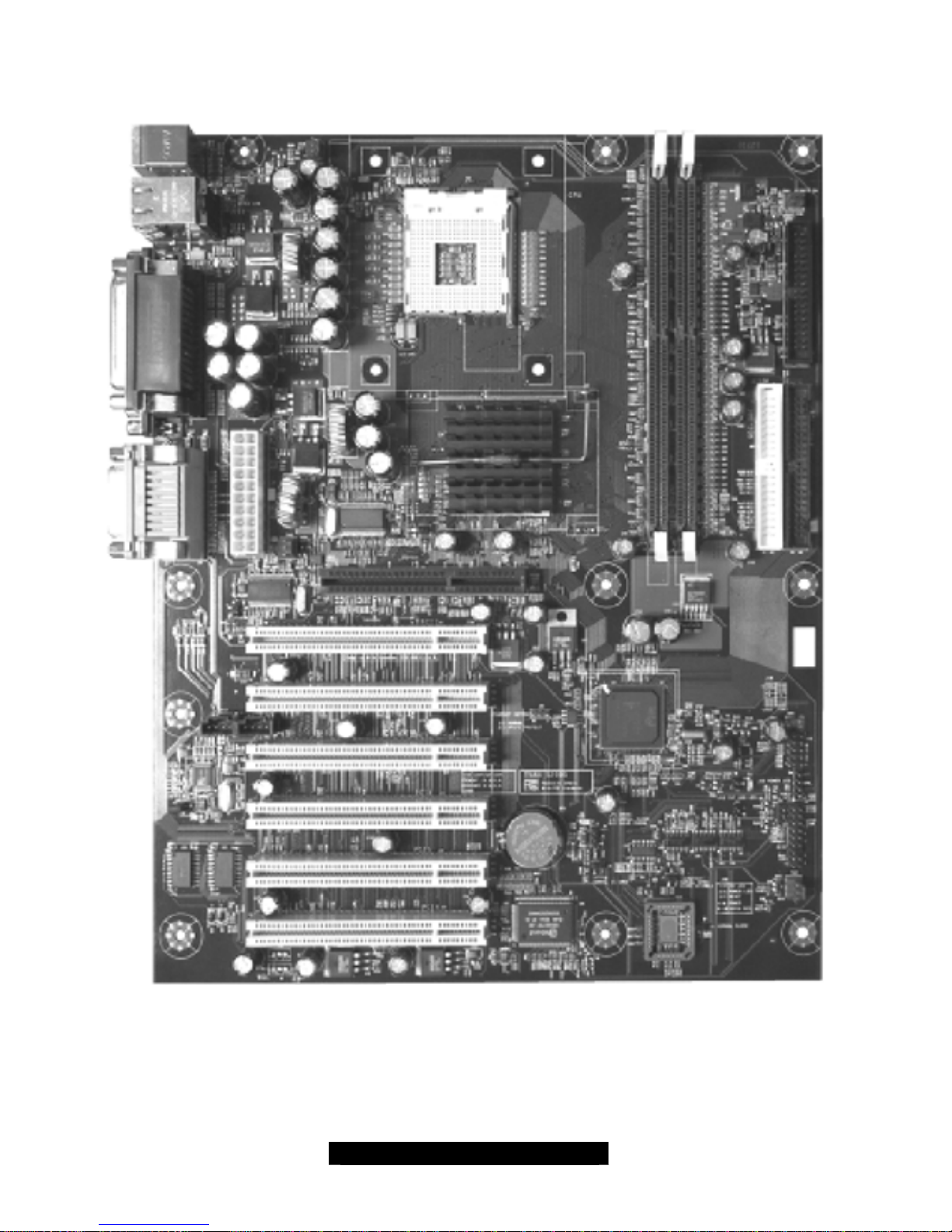

The following is an image of the S2095 Trinity i845DDR.

The above photograph is only a representation of the actual board. Because boards tendto

be updated and go through different revisions, certain components may change and or be

repositioned. The picture above may or may not look exactly like the board you received.

The following page will detail vital components of this board.

http://www.tyan.com

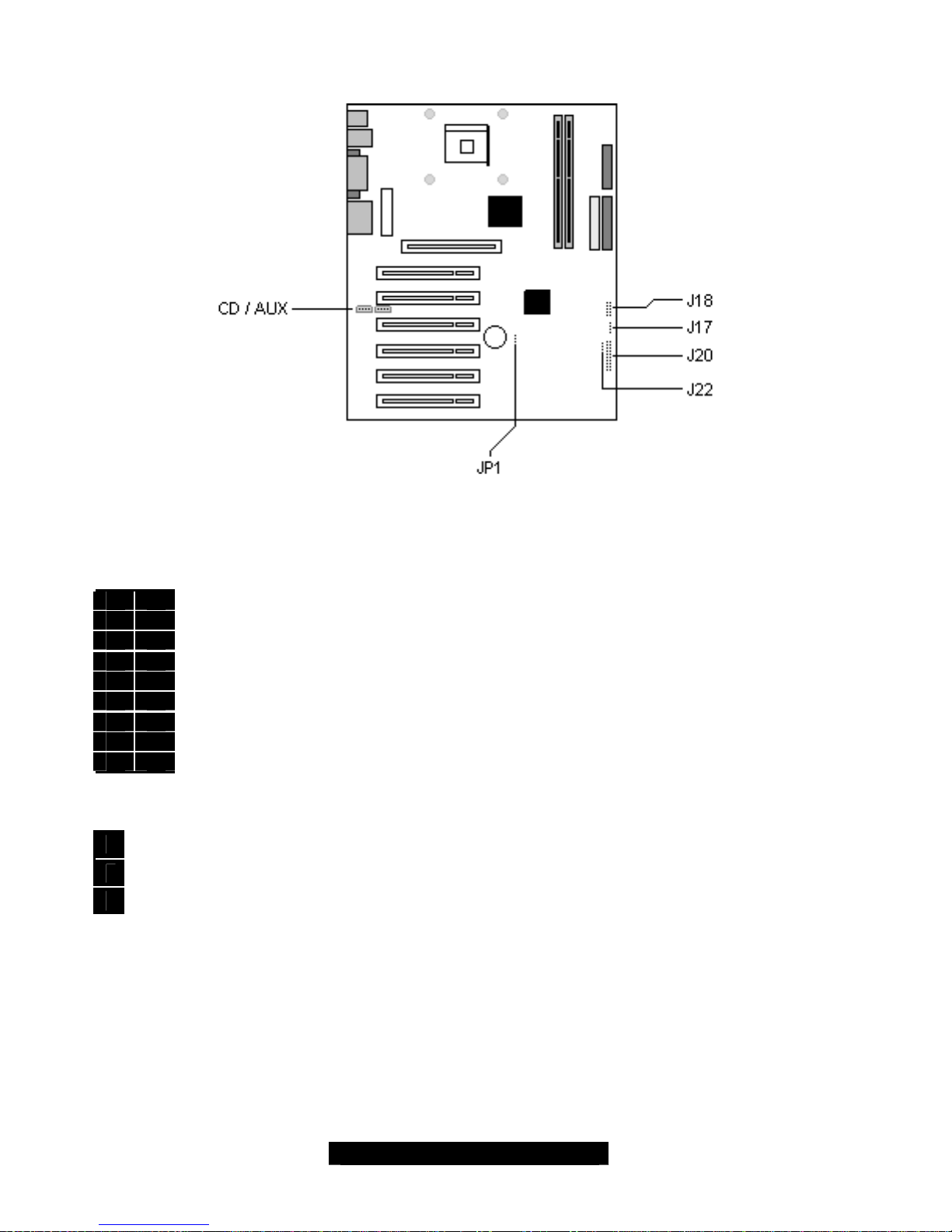

2.1: Board Jumpers

2.2 Front Panel Connector (J20)

Your chassis will usually come with connectors to install onto the motherboard, such as HDD and

Power LEDs. The Front Panel Connector (J20) has been implemented for such purposes.

910

11 12

13 14

15 16

17 18

1,3: Hard drive LED

2,4: Power LED

5,7: Reset Switch

6,8: Power Switch

9,11,13,15: InfraRed

2.3 –CMOS Reset (JP1)

1,2: Default

2,3: Clear CMOS

Connect pins 2 and 3 together to reset the CMOS settings in case an incorrect setting

causes system instability or you have forgotten your system/setup password or have

just flashed your BIOS.

Power off the system and disconnect the power supply.

Close pins 2 and 3 on JP1

-Wait about 5 seconds

-Close pins 1 and 2 on JP1

-Reconnect the power supply and power on the system

http://www.tyan.com

2.4 –Power LED (J22, optional)

Use this connector to attach the front panel Power LED(if your Power LED cable is

3-pin).

2.5–PC Speaker (J17)

Use this connector for your chassis’ internal PC speaker. With it, the motherboard can

report to you using sequences of beeps to identify any errors that you may encounter.

2.6–Secondary USB connector (J18)

Use this connector to attach a rear panel or front chassis USB ports. Front chassis USB

ports are dependant on the chassis used and the manufacturer that makes them. Check

your chassis manufacturer’s website for models that include front USB ports.

TIP: For convenience, look for a compatible chassis that also includes USB connectors. This will

provide a convenience if you should ever need to connect devices like digital cameras or other

USB devices.

http://www.tyan.com

2.7–Mounting the Motherboard

Before installing your motherboard, make sure your chassis has the necessary motherboard

support studs installed. These studs are usually metal and are gold colored. Usually, the chassis

manufacturer will preinstall the support studs in ATX form factor. While this ensures general

compatibility, your TYAN product is specialized and may require you to install a few extra studs. If

you’re not sure which stud goes where, simply lay the motherboard inside the chassis, aligning the

screw holes of the motherboard to the studs inside the case. If there are any studs missing, you’ll

know right away since the motherboard will not be able to be securely installed.

Some chasses include plastic studs instead of metal ones. These ones are also usable but TYAN

recommends using metal studs with screws to make sure the motherboard does not get jarred

during shipping or lots of movement.

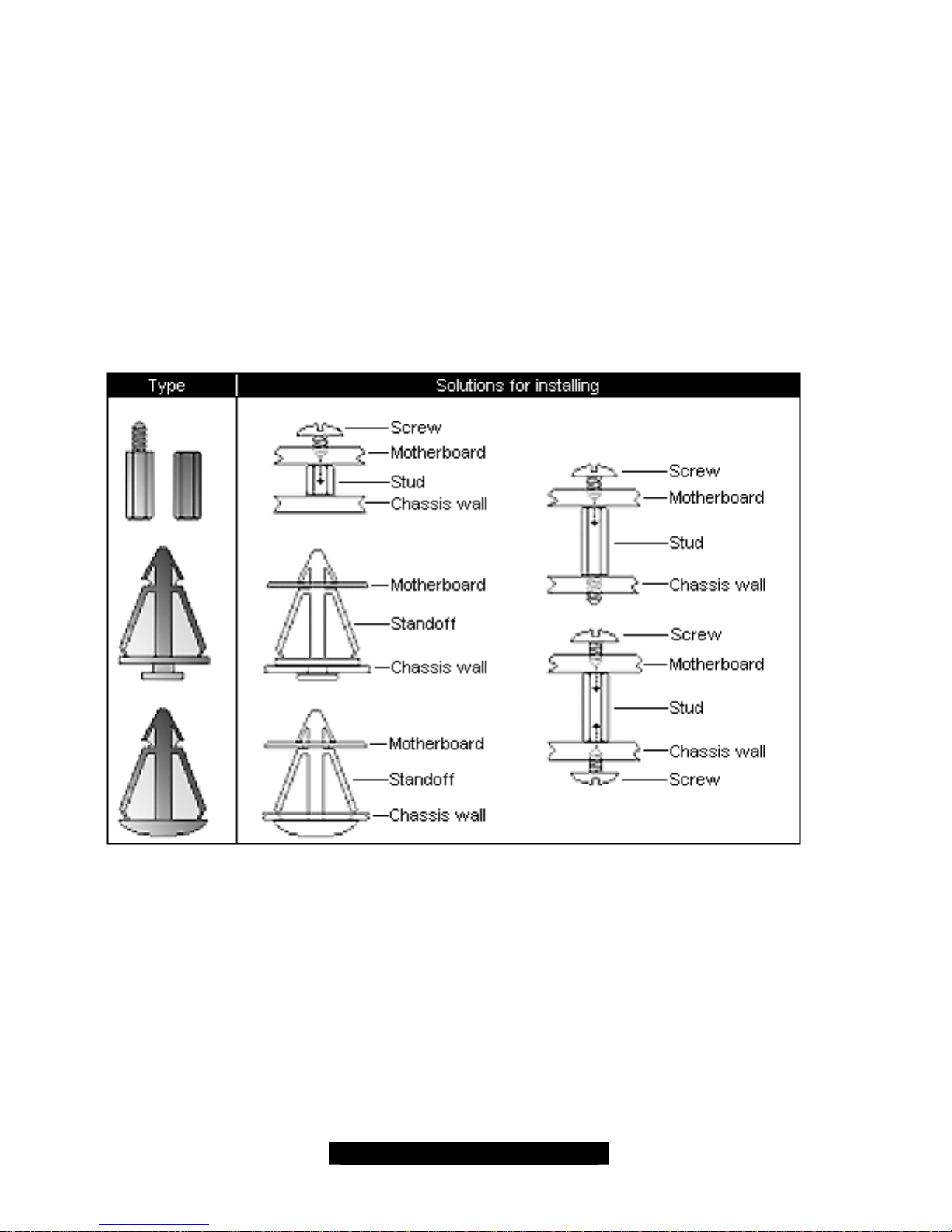

Below is a chart detailing what the most common motherboard studs look like and how they

should be installed.

TIP: Use metal studs if possible, as they hold the motherboard into place more securely than

plastic standoffs.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TYAN Scheda madre

TYAN

TYAN THUNDER 2400 Manuale utente

TYAN

TYAN Tempest i5000XT S2696 Manuale utente

TYAN

TYAN TAHOE-A ATX Manuale utente

TYAN

TYAN TOMCAT I7221A Manuale utente

TYAN

TYAN Tiger i7525 Manuale utente

TYAN

TYAN AST2150 IPMI Manuale utente

TYAN

TYAN Trinity ATX Motherboard Tyan S1598 Manuale utente

TYAN

TYAN THUNDER K8SD PRO Manuale utente

TYAN

TYAN Triumph i7520 (S6623) Manuale utente

TYAN

TYAN Thunder i7500 Pro S2721 Manuale utente

TYAN

TYAN THUNDER I7501 XTREME Manuale utente

TYAN

TYAN S5549 Manuale utente

TYAN

TYAN THUNDER K8WE Manuale utente

TYAN

TYAN Thunder n3600M (S2932) Manuale utente

TYAN

TYAN S7105 Manuale utente

TYAN

TYAN S1854 Trinity 400 Manuale utente

TYAN

TYAN THUNDER K8SE Manuale utente

TYAN

TYAN Tomcat n3400B S2925 Manuale operativo e di manutenzione

TYAN

TYAN THUNDER K7 Manuale utente

TYAN

TYAN S5532 Manuale utente

TYAN

TYAN TOMCAT I845GL Manuale utente

TYAN

TYAN S7106 Manuale utente

TYAN

TYAN S5548 Manuale utente

TYAN

TYAN S8253 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
