TYAN THUNDER K8SD PRO Manuale utente

http://www.TYAN.com

Thunder K8SDPro ///

S2882-D

Revision 1.00

manual may be reproduced or translated without prior written consent from TYAN

Computer Corp.

All registered and unregistered trademarks and company names contained in this manual

are property of their respective owners including, but not limited to the following.

TYAN, Thunder K8SDPro are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

AMI, AMIBIOS8 are trademarks of American Megatrends Inc.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark ofSuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Broadcom®is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and Rage XL are trademarks of ATI Corporation

Silicon Image is a trademark of Silicon Image, Inc.

Information contained in this document is furnished by TYAN Computer Corporation and

has been reviewed for accuracy and reliability prior to printing. TYAN assumes no liability

whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of

TYAN products including liability or warranties relating to fitness for a particular purpose

or merchantability. TYAN retains the right to make changes to product descriptions and/or

specifications at any time, without notice. In no event will TYAN be held liable for any

direct or indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin…Page 4

Chapter 1: Introduction

Congratulations Page 5

Hardware Specifications Page 5

Software Specifications Page 6

Chapter 2: Board Installation

2.00 Board Image Page 8

2.01 Block Diagram Page 9

2.02 Board Parts,Jumpers and Connectors Page 10

2.03 Gigabit LAN_1Front Panel LED Header (J1) and Gigabit LAN_2

Front Panel LED Header (J2) Page 12

2.04 Front Panel Connector (J6)Page 12

2.05 Clear CMOS Jumper (J8)Page 13

2.06 SMBus_0 Connector (J11) Page 13

2.07 USB Connector Headers(J12)Page 14

2.08 10/100 LAN front Panel LED Header (J17) Page 14

2.09 Chassis Intrusion Connector (J19) Page 15

2.10 ZCR Connector (J22) Page 15

2.11 COM2 Header (J23) Page 16

2.12 PCI-X Bridge B (PCI 1 & PCI 2) PCI-X Speed Select Jumper (J24 /

J39)Page 16

2.13 PCI-X Bridge A(PCI 3 & PCI 4) force PCI Mode Jumper (J41)Page 17

2.14 Keylock Enable/Disable Jumper (J42) Page 17

2.15 PCI-X Bridge A(PCI 3 & PCI 4 & SCSI7902 & BCM5704) PCI-X

Speed Select Jumper (J43)Page 18

2.16 SMDC Connector (J45)Page 18

2.17 Onboard VGA Enable / Disable Jumper (J46) Page 19

2.18 Onboard Gigabit Ethernet Enable / Disable Jumper (J52) Page 19

2.19 Onboard 10/100 Ethernet Enable / Disable Jumper (J60) Page 20

2.20 ZCR Card Connector Select Jumper (J61) Page 20

2.21 CPU_1 Fan Connector (P1_FAN) (J5) Page 21

2.22 CPU_2 Fan Connector (P2_FAN) (J47) Page 21

2.23 FAN 1 Chassis Fan Connector (J44) Page 22

2.24 FAN 2 Chassis Fan Connector (J48) Page 22

2.25 FAN 3 Chassis Fan Connector (J4) Page 23

2.26 FAN 4 Chassis Fan Connector (J9) Page 23

2.27 FAN 5 Chassis Fan Connector (J3) Page 24

2.28 OEM Reserved Connectors and Jumpers Page 24

2.29 Installing the Processor(s) Page 25

2.30 Heatsink Retention Frame Installation Page 26

2.31 Thermal Interface Material Page 27

2.32 Heatsink Installation Procedures Page 28

2.33 Finishing Installing Heatsink Page 29

2.34 Tips on Installing Motherboard in Chassis Page 30

2.35 Installing the Memory Page 31

2.36 Attaching Drive Cables Page 33

2.37 Installing Add-In Cards Page 35

2.38 PCI Riser Cards Supported on Thunder K8SDPro Page 36

2.39 Connecting External Devices Page 36

2.40 Installing the Power Supply Page 37

2.41 Finishing Up Page 38

http://www.TYAN.com

Chapter 3: BIOS

3.00 BIOS Setup Utility Page 39

3.01 BIOS Menu Bar Page 40

3.02 BIOS Legend Bar Page 40

3.03 BIOS Main Menu Page 41

3.04 BIOS Advanced Menu Page 42

3.05 BIOS PCI/PnP Menu Page 56

3.06 BIOS Boot Settings Menu Page 58

3.07 BIOS Security Menu Page 64

3.08 BIOS Chipset Setting Menu Page 65

3.09 BIOS Power Menu Page 71

3.10 BIOS Exit Menu Page 72

Chapter 4: Diagnostics Page 73

Appendix I: Glossary Page 74

Appendix II: SMDC Information Page 79

Technical Support Page 80

http://www.TYAN.com

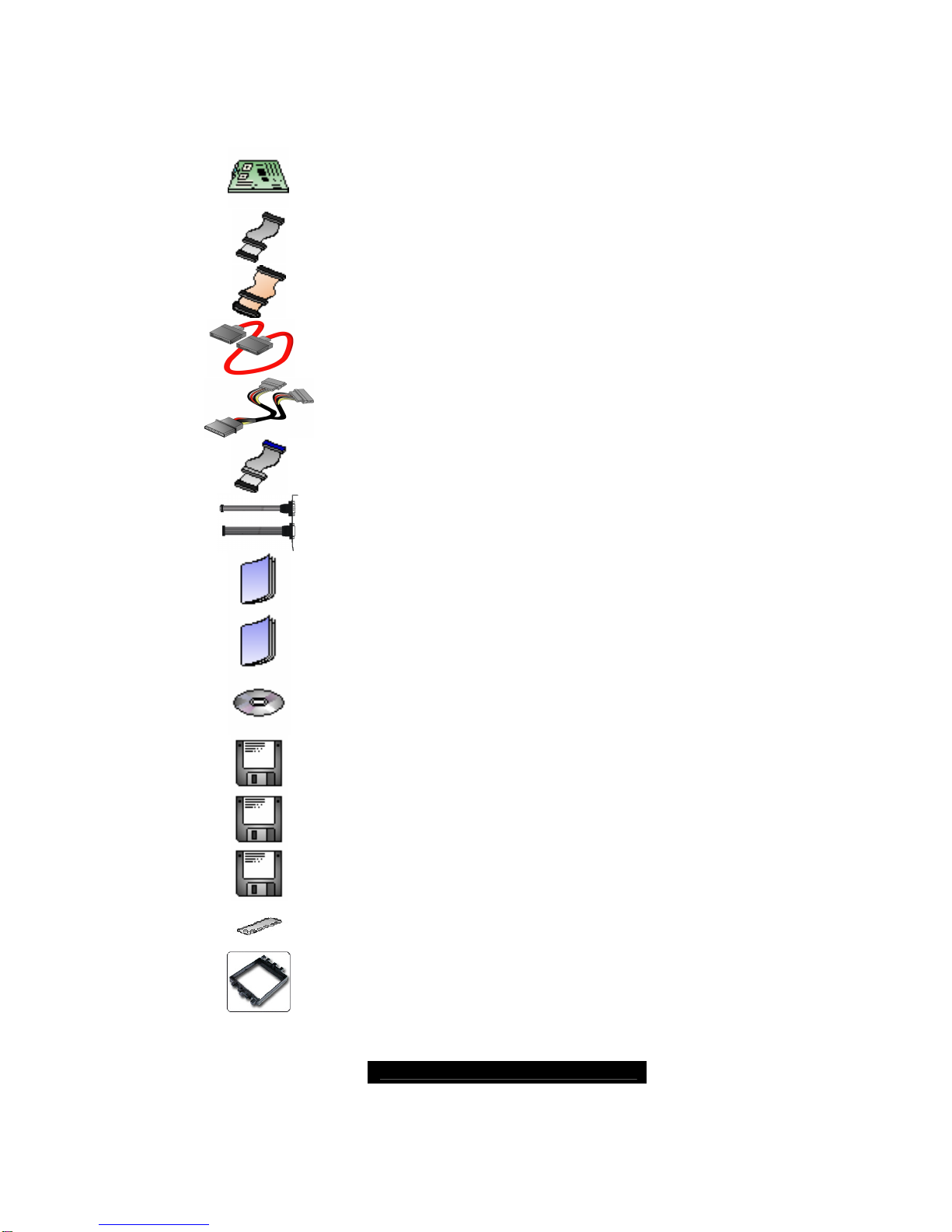

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder K8SDPro motherboard

1x 34-Pin floppy drive cable

1x LVD SCSI cable (if optional SCSI included)

4x SATA cable

2 x SATA Drive Power Adapter

2 x Ultra-DMA-133/100/66 IDE cable

1x Cable set: 9-pin Serial and 25-pin Parallel

1x Thunder K8SDPro user’s manual

1x Thunder K8SDPro Quick Reference guide

1x TYAN driver CD

1x SCSI driver diskette (if optional SCSI included)

1x Silicon Image SiI3114 SATA RAID driver diskette

1x Silicon Image SiI3114 IDEdriver diskette

1x I/O shield

2 x CPU Retention Frame

If any of these items are missing, please contact your vendor/dealer for replacement

before continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

Congratulations

You are now the owner of the ideal solution for rackmount servers, large computer

clusters, or pedestal server needs. The Tyan Thunder K8SDPro features support for Dual

AMD Opteron processor(s), twochannel Gigabit Ethernet, one 10/100 Ethernet and Serial

ATA (SATA).

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS upgrades.

Hardware Specifications

Processor

? Dual µPGA 940-pin ZIF sockets

? Supports up to two AMD Opteron™200

Series processors (including dual core

processors)

? 128-bit DDR dual-channel memory

controller integrated in CPU

Chipset

? AMD-8131™ HyperTransport™PCI-X

Tunnel

? AMD-8111™HyperTransport™I/O Hub

? Winbond W83627HF Super I/O chip

? Analog Devices ADM1027 Hardware

Monitoring IC

Memory

? 128-bit DDR dual-channel memory bus

? Total eight 184-pin 2.5-Volt DDR DIMM

sockets (4 on CPU1 and 4on CPU2)

? Registered, ECC modules supported

? Supports PC2100, PC2700,

and PC3200*DDR

? Supports up to 16GB of Single/Dual

Rank and 32GB** of Quad Rank

memory

*With Opteron 246 C-stepping CPUand

above

** Not validated at the time of release

Integrated LAN Controllers

? Two Broadcom®BCM5704C dual-

channel Gigabit Ethernet controller

? Two RJ-45 LAN connectors with LEDs

? Connected to PCI-X Bridge A

? Three Front Panel LED headers

? One Intel®82551QM10/100 Ethernet

controller(Optional)

? Stacked USB 1.1 (two) ports and RJ45

LAN port on top

Integrated Enhanced IDE

Controller

? Provides two IDE dual-drive ports

for up to four IDE devices

? Supports up to ATA-133 IDE

devices

Integrated I/O

?One floppy, Two serial (one

header and one connector), and

one parallel header

? PS/2 KB/Mouse connectors

? Total four USB connections (2 I/O

panel, rear connectors and 2 USB

headers)

SystemManagement

? Total six 3-pin fan headers with

tachometer monitoring

? Threefan headerswith PWM

control

? 2-pin Chassis Intrusion header

? Temperature, voltage and fan

monitoring

Integrated SATA Controller

? Silicon Image SiI3114 SATA RAID

? Supports SATA 1.0 Specification

? Supports 4 channel SATA port for

up to four SATA devices

? Supports RAID 0, 1, 10

? Connected to legacy32-bit 33MHz

PCI bus

Integrated PCI Graphics

? ATIRageTM

XL PCI graphics

controller

? 8MB Frame Buffer of video

memory

http://www.TYAN.com

Expansion Slots

? 2 Independent PCI-X buses from AMD-

8131

−PCI-X bridge Asupports 64-bit

100 / 66 /33 MHzwith two 3.3-Volt

PCI-X slots

−PCI-X bridge B supports 64-bit 133 /

100 /66 /33 MHzwith two 3.3-Volt

PCI-X slots

? One legacy 32-bit 33MHz PCI slot (5v)

from AMD-8111

? Total offiveusableslots

Intelligent Platform Management

Interface Header

? Tyan Server Management Daughter

cards (optional); supports features

listed belowvia IPMI header

? QLogic™ Zircon Baseboard

Management Controller (BMC) based

on powerful ARM7 technology

? Tailored for IPMI highest 1.5 Spec.

? Supports KCS and BT styles

? Flexible Windows or Linux Management

Solution

? Supports RMCP and SNMP protocols

? Supports ASF standard and EMP

? I2C serial multi-master controllers and

UARTs

? Built-in IPMB connector

? Remote power on/off and reset support

(IPMI-over-LAN)

Integrated Dual Channel SCSI

(manufacturingoption)

? Adaptec AIC7902W Dual-

Channel U320 SCSIcontroller

? Connects to PCI-X Bridge A

? AdaptecZero Channel RAID

ready

BIOS

? AMI®BIOS 8.0 on 4Mbit LPC

Flash ROM

? Supports ACPI 1.0b & 2.0

? PnP, DMI2.0, WfM2.0 Power

Management

? Power Management S1, S4 and

S5 support

Form Factor

? Extended ATX footprint

(13” x 12” 330.2 x304.8 mm)

? EPS12V (24pin + 8pin) power

connectors

? 4-pin auxiliary power connector

? Serial (one) and VGA (one)

connectors

? Stacked USB 1.1 (two) ports and

RJ45 LAN port on top

? Stacked PS/2 keyboard and

mouse connectors

? Two RJ-45side-by-side LAN

connectors with LEDs

Regulatory

? FCC Class B (Declaration of

Conformity)

? European Community CE

(Declaration of Conformity)

Software Specifications

OS (Operating System) Support

WinNT, Win2k Pro, Win2k Server, Win2k Adv., WinXP Pro, Win Server 2003 (32-bit),

RedHat (x64) EL3.0 Update 1, 2, 3, Fedora Core Linux 1, SCO v.5.0.5, Novell 6.5

SuSE Linux (x32) 8.1, 8.2, 9.0, 9.1, SuSE (x64) 9.0, SCO Unix 5.0, Solaris 9.0

TYAN reserves the right to add support or discontinue support for any OS with or

withoutnotice.

http://www.TYAN.com

Chapter 2: Board Installation

Precaution:The Thunder K8SDPro supports EPS12V power supplies (24-pin/8-pin) and

will not operate with any other types.

DO NOT USE ATX 2.x, ATX12V or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information

that will make configuration and setup much easier. Here are some precautions you

should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic

bag. Unplug the power from your computer power supply and then touch a

safely grounded object to release static charge (i.e. power supply case). For the

safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or

flex the board in anyway.

(3) Avoid touching the motherboard components, IC chips, connectors, memory

modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag

that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis,

as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

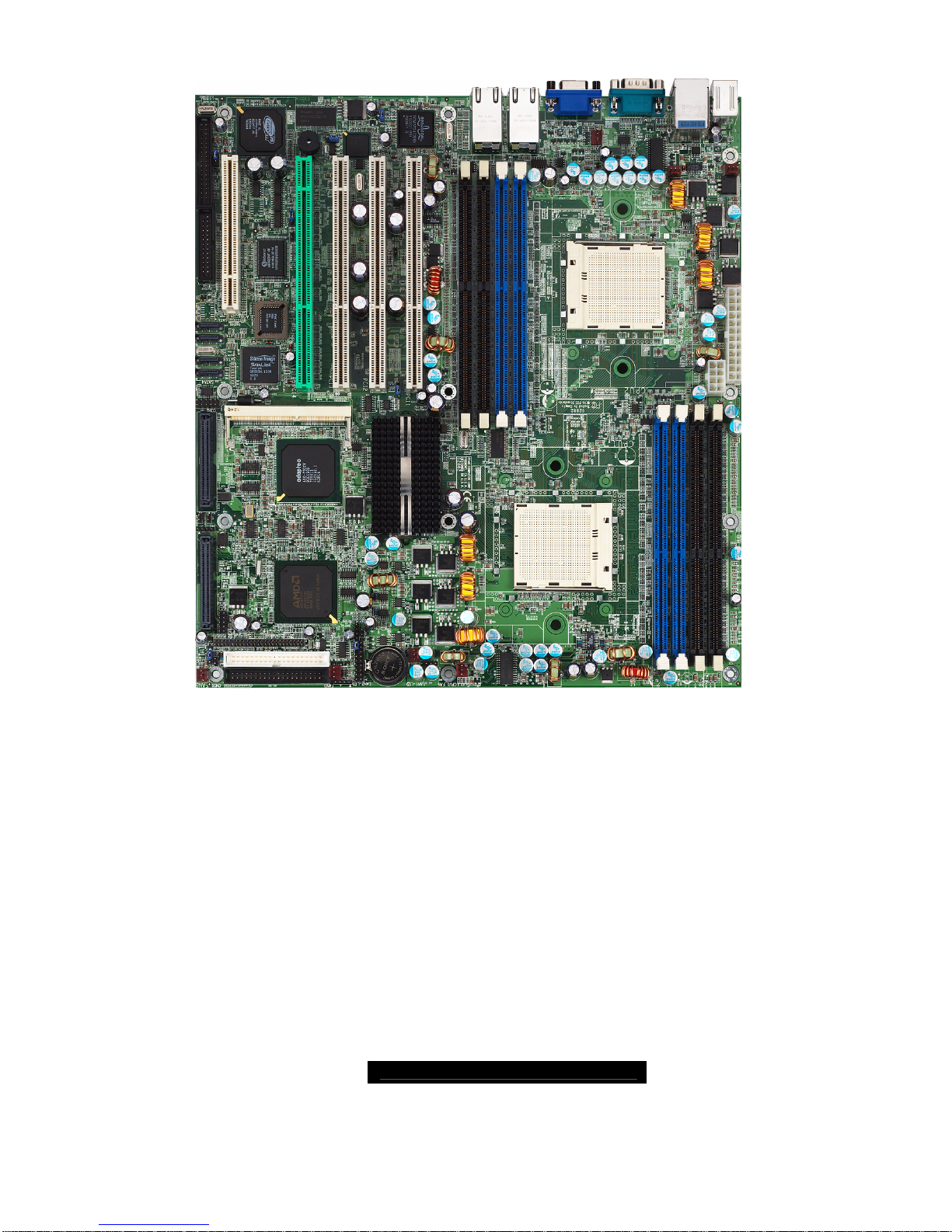

2.00 –Board Image

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

The following page includes details on the vital componentsof this motherboard.

http://www.TYAN.com

2.01 –Block Diagram

Thunder K8SD Pro S2882-DBlock Diagram

AMD

Opteron

Processor

AMD

AMD-8131

AMD

AMD-8111

Winbond

W83627F/HF

LPC Super I/O

Floppy Disk Drive

Intel-82551

10/100

(Optional)

16x16 Hyper Transport@1600MT/s

AMD Chipset

LPC

AMD

Opteron

Processor

32-Bit/33MHz

ATI RAGE XL

8MB

Silicon Image

SiI3114

16x16 Hyper Transport@1600MT/s

PCI

Slot

ADM1027

Hardware

monitor

LPC

ROM

PS/2 Keyboard &

Mouse

Parallel Port x 1

EIDE(ATA/133)x2

USB 1.1 x2

LINK 0B

OUT

LINK 0A

LINK 1

8x8 ncHyper Transport@400MT/s

IN OUT

2 to header

200-333MT/s

144-Bit

184 pin

DIMM0 184 pin

DIMM1184 pin

DIMM2 184 pin

DIMM3

Adaptec

AIC-7902SCSI

BCM5704C

Gigabit LAN

64-Bit/100/66MHz

PCI-X Slot PCI-X Slot

(PCI4 / ZCR)

SO-DIMM144

(ZCR)

PCI-XSlots

184 pin

DIMM2 184pin

DIMM1 184pin

DIMM0

184 pin

DIMM3

144Bit

USB 1.1 x 2

USB Ports: 2 to backplane

200-333MHz

4 X Serial ATA

RAID Ports

150MB/s

Serial Port x 2

64-Bit/133/100MHz

*ZCR support with Adaptec

PCI or SO-DIMM ZCR card

(Optional)

http://www.TYAN.com

2.02 –Board Parts, Jumpers and Connectors

J55

KB-MS

J54

USB1

CPU2_FAN

J29

FAN5

BIOS

AMD

AMD-8111

PRI-IDE

SEC-IDE

Winbond

W83627HF

BT1

AMD

AMD-8131

CPU1DIMM3

CPU1DIMM2

CPU1 DIMM1

CPU1DIMM4

Silicon


SiI3114

USB1 (Bottom)

LAN3 (Top)Optional KB(Bottom)

Mouse(Top)

LAN1_LED

USB2

SATA4

SATA3

Intel

82551

10/100

LAN

CPU2

PCIX-A

PCI5

CMOS

CH-A

J47

J12

J50

LAN2

J58

LAN1 J57 (COM1)J56(VGA)

CPU2 DIMM2

CPU2 DIMM3

CPU2 DIMM4

CPU2 DIMM1

CPU1

J44FAN1

LAN

BCM5704

SATA2

SATA1

LAN3

ATI

RAGE XL

LPT1

FDD

SCSI

7902

COM2

SCSI-A SCSI-B

FAN4

INTRUDER

LAN3_LED

CH-B

LAN2_LED

CPU1_FAN

J48

FAN2

KEYLOCK

PCIX-A

PCIX-B

ZCR J22

1J45

SMDC

Bz1

J23

FAN3

J17

J19

J24

J39

J46

J43

J11

J60

PCI4 PCI3 PCI2 PCI1 J25

(Optional)

J41

J61

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TYAN Scheda madre

TYAN

TYAN S5512 Manuale utente

TYAN

TYAN S5532 Manuale utente

TYAN

TYAN TIGER 230 Manuale utente

TYAN

TYAN TSUNAMI AT Manuale utente

TYAN

TYAN THUNDER X Manuale utente

TYAN

TYAN S1570 AT Manuale utente

TYAN

TYAN Thunder n3600W S2935 Manuale utente

TYAN

TYAN S5630 Manuale utente

TYAN

TYAN THUNDER K7 Istruzioni per l'installazione e il funzionamento

TYAN

TYAN TOMCAT K8E Manuale utente

TYAN

TYAN TOMCAT I815EF Manuale utente

TYAN

TYAN S5620 Manuale utente

TYAN

TYAN TEMPEST I5000PW Manuale utente

TYAN

TYAN TITAN TURBO PLUS ATX Manuale utente

TYAN

TYAN THUNDER TOMCAT H1000E Manuale utente

TYAN

TYAN TIGER I7520SD Manuale utente

TYAN

TYAN TRINITY I875P Manuale utente

TYAN

TYAN S8032 Manuale utente

TYAN

TYAN THUNDER N3600S Manuale utente

TYAN

TYAN Toledo i965R (S5180AG2N) Manuale utente

TYAN

TYAN S1846 Tsunami ATX Manuale utente

TYAN

TYAN S7055 Manuale utente

TYAN

TYAN TIGER I7501S Manuale utente

TYAN

TYAN S5510 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
