Ultrasound Ultraprobe 10,000 Instructions
Pumps and Cavitation Inspection
Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES
2-5 min UE Systems Training
*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*
Needed: Ultraprobe 10,000 and CF card;
Stethoscope Module; Rubber Focusing Probe;
Headphones
1Possible Accessories: Remote Magnetic
Transducer; Extension Rods for Stethoscope
Module
2
Move Cursor to Function Bar by Pushing
Sens.Knob 2X and Press Enter for Setup Menu
3If Using a Route, move Route to Flash Card, then
load to Ultraprobe by using Data Transer. Refer to
Instructions "Loading Route."
4
Page 1 of
6
TQC Work Verify
Ultrasound Ultraprobe 10,000 Instructions
Pumps and Cavitation Inspection
Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES
2-5 min UE Systems Training
*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*
If baselining the route, have Instrument Setup in
Manual. If route is established and baselined, have
Inst.Setup in Auto.

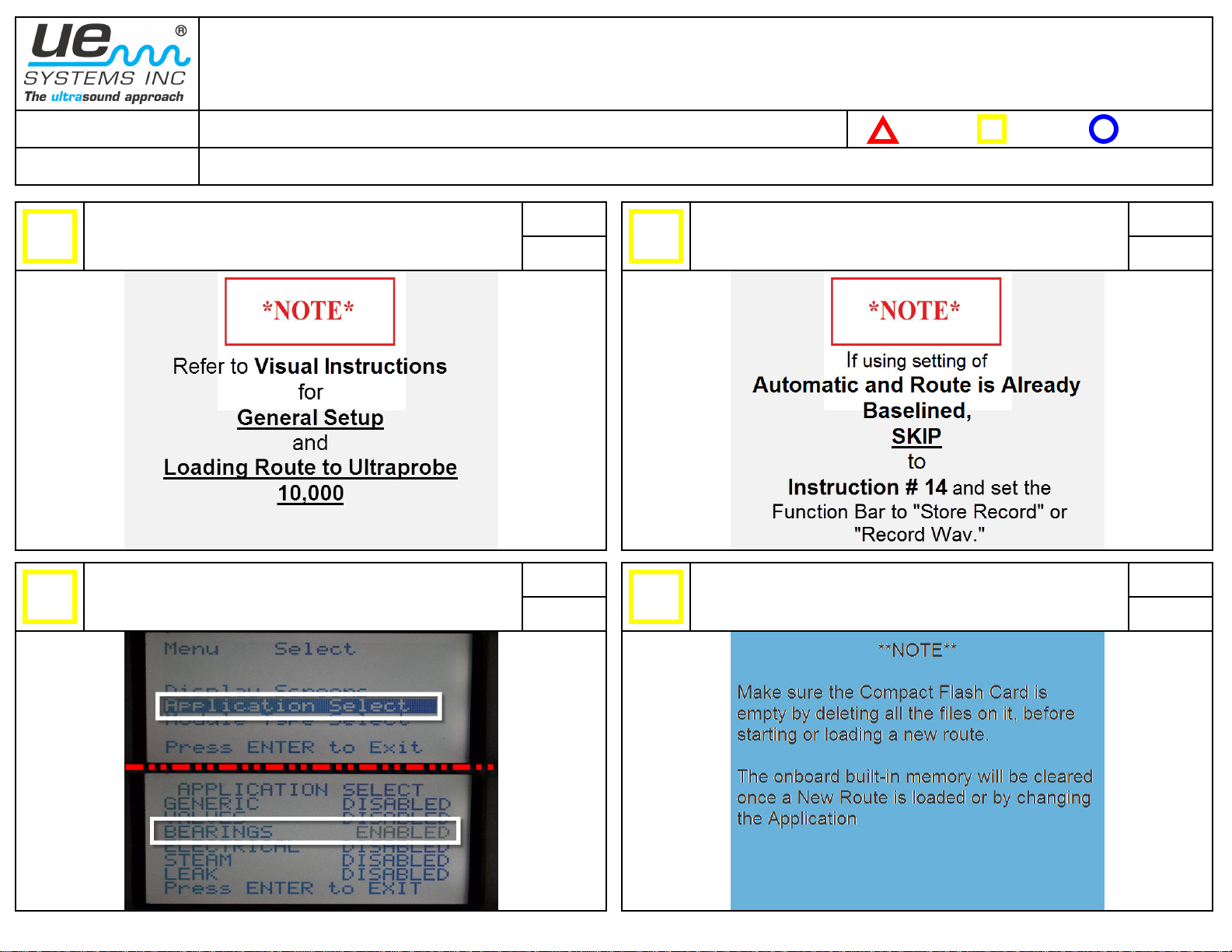

5If you are PERFORMING the BASELINE Readings,
proceed to NEXT INSTRUCTION, if not READ the
Picture Below.
6
Rotate for Application Select, Push Sens.Knob.
Rotate to Bearings or Generic, push Sens.Knob
(Enable Bearings). Press Enter to Exit.
7A clean memory is a must to keep files organized.
It is Normal to Delete Records when changing
apps.
8
Page 2 of
6
TQC Work Verify
Ultrasound Ultraprobe 10,000 Instructions
Pumps and Cavitation Inspection
Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES
2-5 min UE Systems Training
*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*
Rotate to Module Type Select, push Sens.Knob.
Rotate to Stethoscope (STM) or Remote Magnet
(RMT); Push Sens to Select/Exit
9Rotate to Instrument Setup, Push Sens.Knob.
Rotate for "Manual", Push Sens.Knob to Select/Exit
10
Rotate to Enter Inspector ID [under "More" in Setup
Menu], push Sens.Knob. Enter 3 Alpha-Numeric
Characters use Sens.Knob.
11 Press Enter 2X to Save/Exit and return to Main
Display.
12
Page 3 of
6
TQC Work Verify
Ultrasound Ultraprobe 10,000 Instructions
Pumps and Cavitation Inspection
Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES
2-5 min UE Systems Training
*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*
Push Sens.Knob 1X to move cursor to Frequency.
Rotate to 30 kHz (or Frequency Tune for better
sound clarity)
13 IF Route has been baselined and established refer
to NOTE. Note does not hold true for
troubleshooting WITHOUT having a route loaded.
14
Push Sens. 1X more [if cursor at S= push 2X]
moving Cursor to Function Bar. Rotate Sens until
Store Record or Record Wav in prep for readings.
15 Push Sens.Knob 1X more to return cursor to S=
(Operational Home Spot for Adjusting Sensitivity).
16
Page 4 of
6
TQC Work Verify
Ultrasound Ultraprobe 10,000 Instructions
Pumps and Cavitation Inspection
Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES
2-5 min UE Systems Training
*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*
NOTE: Choose your test point.
17 Cavitation can be heard anywhere on the pump,
HOWEVER. the Best Test Point is at the Dishcarge
of The Pump.
18
[Store Record: Adjust Sens. for dB] OR [Record
WAV: Adjust Sens (dB) AND Intensity Meter (2-4
Bars)]
19 Visual Instructions exist for Storing a Record or
Recording a Sound WAV.
20
Page 5 of
6
TQC Work Verify
Ultrasound Ultraprobe 10,000 Instructions
Pumps and Cavitation Inspection
Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES
2-5 min UE Systems Training
*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*
Once Finished with Storing Record or Recording
Wav, move to next test point. Unit Returns to Main
Display advanced to next point.
21 ALWAYS WEAR the HEADPHONES.
22
Page 6 of
6
