UTL260

INSTRUCTION MANUAL

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

•Read the safety precautions associated with the equipment being

tested and seek assistance or advice when performing

unfamiliar tasks.

• Keep your fingers away from the test lead metal probe contacts

and bus-bars when making measurements. Always grip the

instrument and test-leads behind the hand guards (molded into

the probes).

•In the event of electrical shock, ALWAYS bring the victim to

the emergency room for evaluation, regardless of the victim’s

apparent recovery. Electrical shock can cause an unstable heart

rhythm that may need medical attention.

International Symbols

C o n t r ols and Indicators

1. Transformer jaws

2. Protection ring

3. Jaw opening trigger

4. Light key

5. LCD display

6. COM t erm inal

7. VΩterm i nal

8. Power key

9. R o t a ryswitch

10. Hold key

Introduction

The UTL260 has all the features andmeasurement functions that appliance

technicians need. It’s ruggedized and slim compact design makesfor easy

one handed use.

Features include

• AC current 2A/20A/200A

• AC/DC voltage 600V

• Resistance 2kΩ

• Audible continuity

• LCD display with MAX reading 1999

• Automatic indication of functions and symbols

• Sample rate: 2 times/sec for digital data

• Backlit display for use in low light application

Safety Notes

Before using this meter, read all safety information carefully. In

this manual the word "WARNING" is used to indicate conditions

or actions that may pose physical hazards to the user. The word

"CAUTION" is used to indicate conditions or actions that may

damage this instrument.

WARNING!

Exceeding the specified limits of this meter is dangerous and can

expose the user to serious or possibly fatal injury.

•DO NOT attempt to measure any voltage that exceeds 600 volts

with this meter - UEi offers numerous alternatives for measuring

high voltage and current

• Voltages above 60 volts DC or 30 volts AC may constitute a

serious shock hazard

•DO NOT attempt to use this meter if either the meter or the test

leads have been damaged. Send unit in for repair by a qualified

repair facility

• Test leads must be fully inserted prior to taking measurements

•Always turn off power to a circuit (or assembly) under test before

cutting, unsoldering or breaking the current path. Even small

amounts of current can be dangerous

•Always disconnect the live test lead before disconnecting the

common test lead from a circuit

•When measuring high voltage, disconnect the power source before

making test lead connections. Connect the test leads to the meter

first then to the circuit under test. Reapply power

•If any of the following indications occur during testing, turn

off the power source to the circuit under test:

•Arcing

•Flame

•Smoke

•Extreme Heat

•Smell of Burning Materials

•Discoloration or Melting of Components

UTL260-MAN P. 1

6 7

DC Voltage Measurement

WARNING!

Maximum input voltage of DC V range is 600V DC. Do not attempt to

take any voltage measurement that exceeds 600V DC to avoid electrical

shock and/or damage to the instrument.

1. Set the rotary switch to the 600V “ “ range.

2. Connect the black and red test leads to the “COM” and “VΩ”

terminals respectively.

3. Connect the test leads to the circuit being measured and read

the displayed value (Fig 2).

LCD Display Functional Description

1. Low battery indicat i o n

2. Hold data indicat ion

3. C o n t i n u i tyf unction indicatio n

4. Ohm measurement indication

5. Voltage measurement indication

6. Current measurement indicat i o n

7. DC input indication

8. AC input indicat i on

9. Po l a r i tyindication

Operating Instructions

If the current under measurement is higher than the selected value for a

long period, overheating may take place, compromising the safety and

operation of inner circuits.

WARNING!

DO NOT measure currents on high-voltage conductors (>600V) to avoid

risk of discharge and/or incorrect readings.

AC Current Measurement

WARNING!

Make certain that all test leads are disconnected from the

meter terminals.

1. Set the rotary switch to the desired A~range.

2. Clamp the current transducer (jaw) around one of the conductors

under test. Make sure that the clamp jaw is closed (Fig 1).

3. Read the display value.

4. When only the figure “1” is displayed, it indicates over-range

situation and the higher range has to be selected.

UTL260-MAN P. 2

1 2 3

(Fig 1)

(Fig 2)

Continuity Measurement

WARNING!

Before taking any in-circuit resistance measurements, remove power

from the circuit being tested and discharge all capacitors.

1. Set the rotary switch to “ Ω“ range.

2. Connect the black and red test leads to the “COM” and “VΩ”

terminals respectively.

3. Connect the test leads to the resistance in the circuit being

measured (Fig 5).

4. When the test lead to the circuit is below 50Ω, it will be indicated

by a continuous beeping.

NOTE: Continuity test is available to check open/short of the circuit.

AC Voltage Measurement

WARNING!

Maximum input voltage of AC V range is 600Vrms. Do not attempt to

take any voltage measurement that exceeds 600Vrms to avoid electrical

shock hazard and/or damage to the instrument.

1. Set the rotary switch to the 600V~range.

2. Connect the black and red test leads to the “COM” and “VΩ”

terminals respectively.

3. Connect the test leads to the circuit being measured and read

the displayed value (Fig 3).

Resistance Measurement

WARNING!

Before taking any in-circuit resistance measurements, remove power

from the circuit being tested and discharge all capacitors.

1. Set the rotary switch to the 600V~range.

2. Connect the black and red test leads to the “COM” and “VΩ”

terminals respectively.

3. Connect the test leads to the circuit being measured and read

the displayed value (Fig 4).

UTL260-MAN P. 3

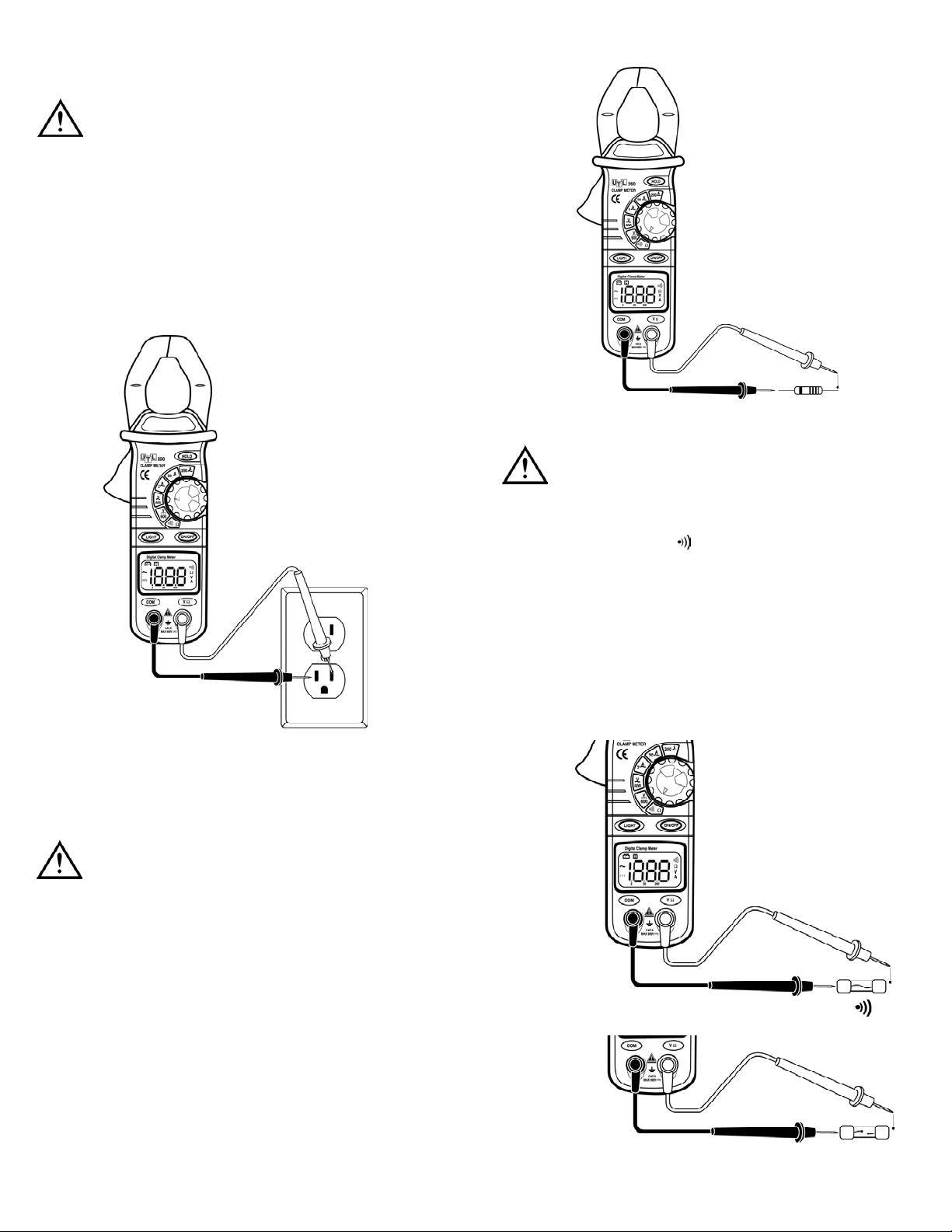

(Fig 3)

(Fig 4)

Beeper

Short Circuit

Open Circuit

WARNING!

Under NO circumstance should you expose batteries to extreme heat or

fire as they may explode and cause injury.

3. Place a fresh 9V battery inthe compartment.

NOTE: If you do not plan to use the meter for a month or more,

remove the battery and store it in an area that won’t be damaged by a

leaking battery.

4. Reattach the battery compartment cover to the meter and

reinstall the screw.

S p e c i f i c a t i o n s

M a i n t e n a n c e

Periodic service

WARNING!

Repair and service of this instrument is to be performed by qualified

personnel only. Improper repair or service could result in physical

degradation of the meter. This could alter the protection from

electrical shock and personal injury this meter provides to the

operator. Perform only those maintenance tasks that you are

qualified to do.

These guidelines will help you attain long and reliable service from

your meter:

1. Calibrate your meter annually to ensure it meets original

performance specifications.

2. Keep your meter dry. If it gets wet, wipe it dry immediately. Liquids

damage electronic circuits.

3. Whenever pra c t i cal, keep the meter away from dust and dirt, which

can cause premature wear.

4. Although your meter is built to withstand the rigors of daily use, it

can be damaged by severe impacts. Use reasonable caution when

using and storing the meter.

Cleaning and Decontamination

Periodically clean your meter’s case using a damp cloth. DO NOT use

abrasives, cleaning solvents or strong detergents, as they may damage

the finish or affect the reliability of the structural components.

Battery Replacement

Always use a fresh replacement battery of the specified size and type.

Immediately remove the old or weak battery from the meter and dis-

pose of it in accordance with your local disposal regulations. Old or

defective batteries can leak chemicals that corrode electronic circuits.

WARNING!

To avoid electric shock, be sure to turn off the meter’s power and

disconnect both test leads from any equipment before you remove

or install batteries.

To install a new battery, follow these procedures:

1. Remove the screw from the battery compartment cover on the

back of the meter and lift the cover.

2. Remove and discard the old battery. Always dispose of old batteries

promptly in a manner consistent with local disposal regulations.

UTL260-MAN P. 4

Environment conditions Installation categories II, 600V max. to earth

Pollution degree 2

Altitude < 2000 m

Operating temperature 0˚~40˚C (<80% RH)

Storage temperature -10˚~60˚C (<70% RH, battery removed)

Max. Voltage between 600 V rms

terminals and earth ground

Operating principal Dual slop integration

Sample rate 2 times/sec for digital data

Display 3-1/2 digits LCD display with max. Reading 1999

Automatic indication of functions and symbols

Range selection Manual

Over range indication LCD will display “1”. If measure value is over

2000V the LCD will display “1” (AC V & DC V range)

Low battery indication The “ “ is displayed when the battery is under

the proper operation range

Power source DC 3VX3, CR2032

Polarity indication “-” displayed automatically

Jaw opening diameter cables 28mm

Maximum conductor size 28mm

Dimensions 194 (L) x 72 (W) x 35 (H) mm

Weight 200g. Approx. (battery included)

Accessories Manual

Test leads

Carrying case

Audible Continuity

Open circuit voltage: less than 700mV

Overload protection: 250V DC or 250V AC rms

Measurement Specifications

*Alignment marks

Position the conductor within the jaws at the intersection of the

indicated marks as much as possible in order to meet this meter’s

accuracy specifications.

If the conductor is positioned elsewhere within the jaws, the max.

additional error resulted is 1.5%.

*Accuracy: ±(% of reading + number of digits) at 64˚ to 82˚F (18˚ to

28˚C) with relative humidity to 80%.

AC Current

Frequency response: 50/60Hz

DC Voltage

Input impedance: 10MΩ

Maximum input voltage: 600V DC or 600V AC rms

AC Voltage

Input impedance: 10MΩ

Frequency response: 40~400Hz

Maximum input voltage: 600V DC or 600V AC rms

Resistance

Open circuit voltage: less than 700mV

Overload protection: 250V DC or 250V AC rms

UTL260-MAN P. 5

Range Resolution Accuracy

2A 0.001A

20A 0.01A ±(2%+5)

200A 0.1A

Range Resolution Accuracy

600V 1V ±(1%+5)

Range Resolution Accuracy

600V 1V ±(1.5%+5)

Range Continuity beeper

< approximately 50Ω

Range Resolution Accuracy

2kΩ1Ω±(1%+5)

MARK

CONDUCTOR

MARK

Limited Warranty

The UTL260 is warranted to be free from defects in materials and workmanship for a period

of one year from the date of purchase. If within the warra n ty period your instrument should

become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.

This warra n ty covers normal use and does not cover damage which occurs in shipment or

failure which results from alteration, tampering, accident, misuse, abuse, neglect or improper

maintenance. Batteries and consequential damage resulting from failed batteries are not

covered by warra n ty.

Any implied warranties, including but not limited to implied warranties of merchantability

and fitness for a particular purpose, are limited to the express warranty. UEi shall not be

liable for loss of use of the instrument or other incidental or consequential damages,

expenses, or economic loss, or for any claim or claims for such damage, expenses or

economic loss. A purchase receipt or other proof of original purchase date will be required

before warra n ty repairs will be rendered. Instruments out of warra n ty will be repaired (when

re pa irable) for a service charge. Return the unit postage paid and insured to:

This warranty gives you specific legal rights. You may also have other rights which vary from

state to state.

UTL260

Digital Clamp-On Meter

PLEASE

RECYCLE

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

Indice

Altri manuali UTL Strumento di misura

UTL

UTL UTL261 Manuale utente

UTL

UTL S8 Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
