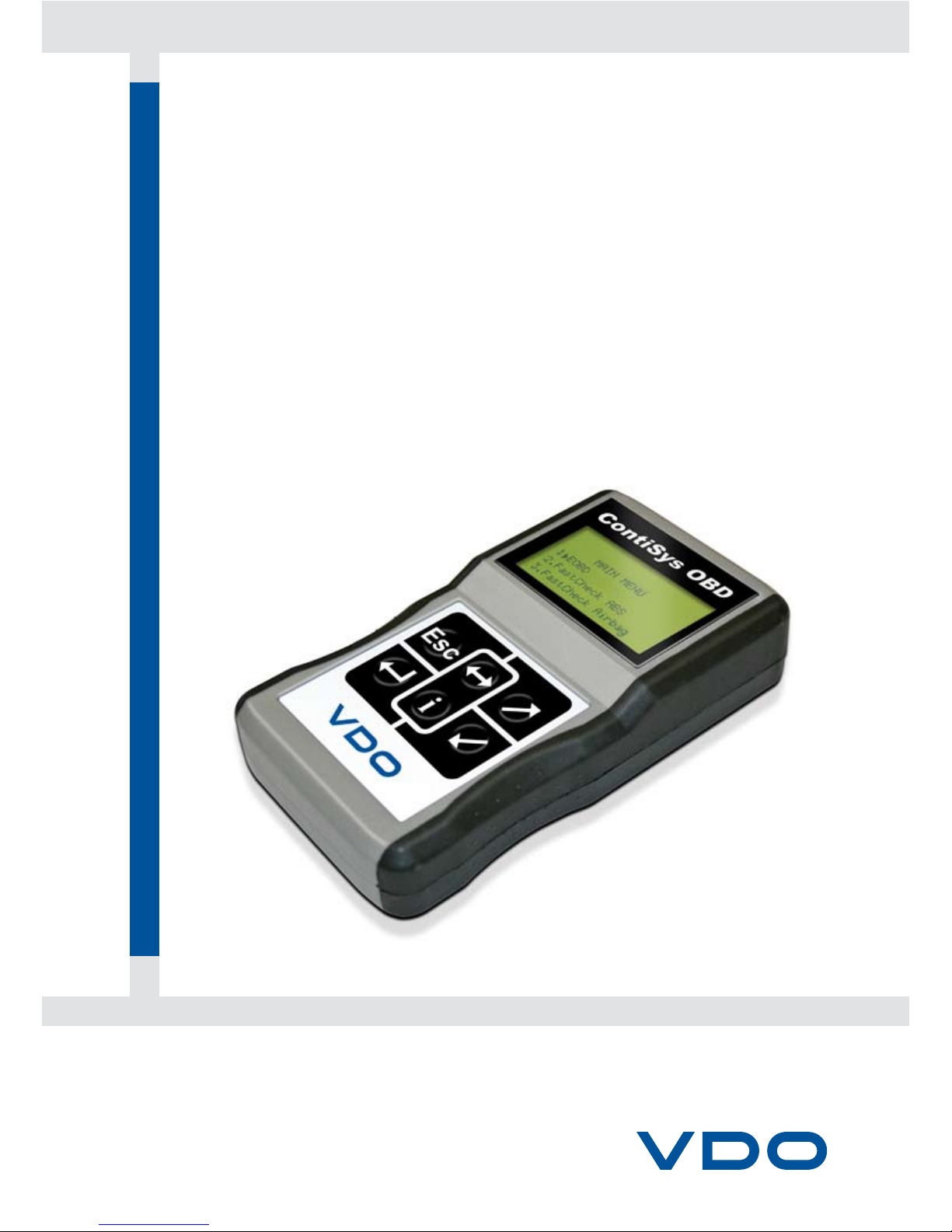

VDO CONTISYS OBD - Manuale utente
Quick Reference Guide
Beknopte handleiding
Guide de référencement rapide
Schnelleinstieg
Guida di riferimento rapido
Guia de Referência Rápido
Guía de Consulta Rápida
ContiSys OBD
12/2009 (3.0)
3
English............................................... 5
Nederlands...................................... 13
Français........................................... 21
German............................................ 29
Italiano............................................. 37
Português........................................ 45
Español ........................................... 53
ContiSys Quick Guide.book Page 3 Thursday, December 17, 2009 4:20 PM
5
Contents
Quick Reference Guide
Introduction ............................................................... 6
Overview.................................................................... 6
ContiSys OBD Service Tool........................................ 8
Cable identification..................................................... 9
ContiSys Quick Guide.book Page 5 Thursday, December 17, 2009 4:20 PM
Quick Reference Guide
6
English
Quick Reference Guide
Introduction
Congratulations on choosing the
ContiSys OBD Service Tool.
This Quick Reference Guide will outline
the components of ContiSys OBD and
how to connect and use the service tool.
Before using this service tool refer to the
Operating Instructions on the enclosed
CD ROM.
Registration of service tool
To register the service tool, log on to
www.contisys-service.com
Further support can be obtained by
calling +44 (0) 870 949 3606.
For product support via email please
send details of your query to:
hotline@contisys-support.com
Getting started
Connect the cable to the service tool and
secure the fixing screws.
Connect the service tool to the vehicle
via the diagnostic socket. Refer to the
Operating Instructions on the enclosed
CD-ROM and vehicle manufacturer's
information for the exact location of the
diagnostic socket.
Power for the service tool is provided by
the diagnostic socket. When connected
to the diagnostic socket, the service tool
will perform an internal self test and then
the screen will display the date of the
current software version.

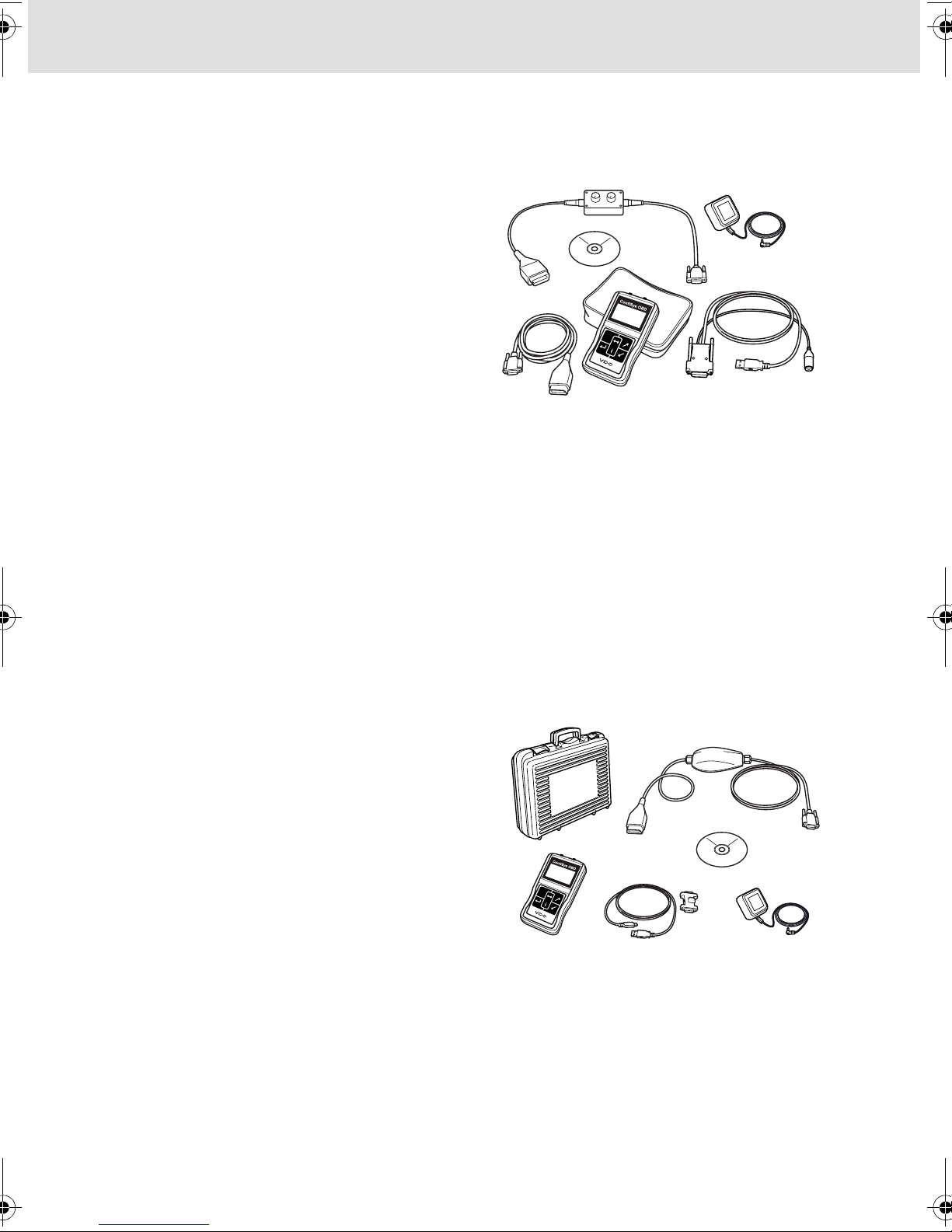

Overview
ContiSys OBD - Kit
The kit includes:
1. Service tool
2. EOBD cable
3. Carry case
4. CD ROM containing the Operating
Instructions and Application list
5. EOBD pin-switchable cable
6. EU power supply
7. USB software update cable
ContiSys OBD Professional - Kit
The kit includes:
1. Service tool
2. Multiplexer cable
3. Carry case
4. CD ROM containing the Operating
Instructions and Application list
5. EU power supply
6. USB software update dongle
CON0016s
1
2
3
4
5
6
7
112
4
3
2
10
11 AL
D
C
B
I
J
K
Esc
1
32
6
5
4
Esc
CON0098s
ContiSys Quick Guide.book Page 6 Thursday, December 17, 2009 4:20 PM
Quick Reference Guide
7

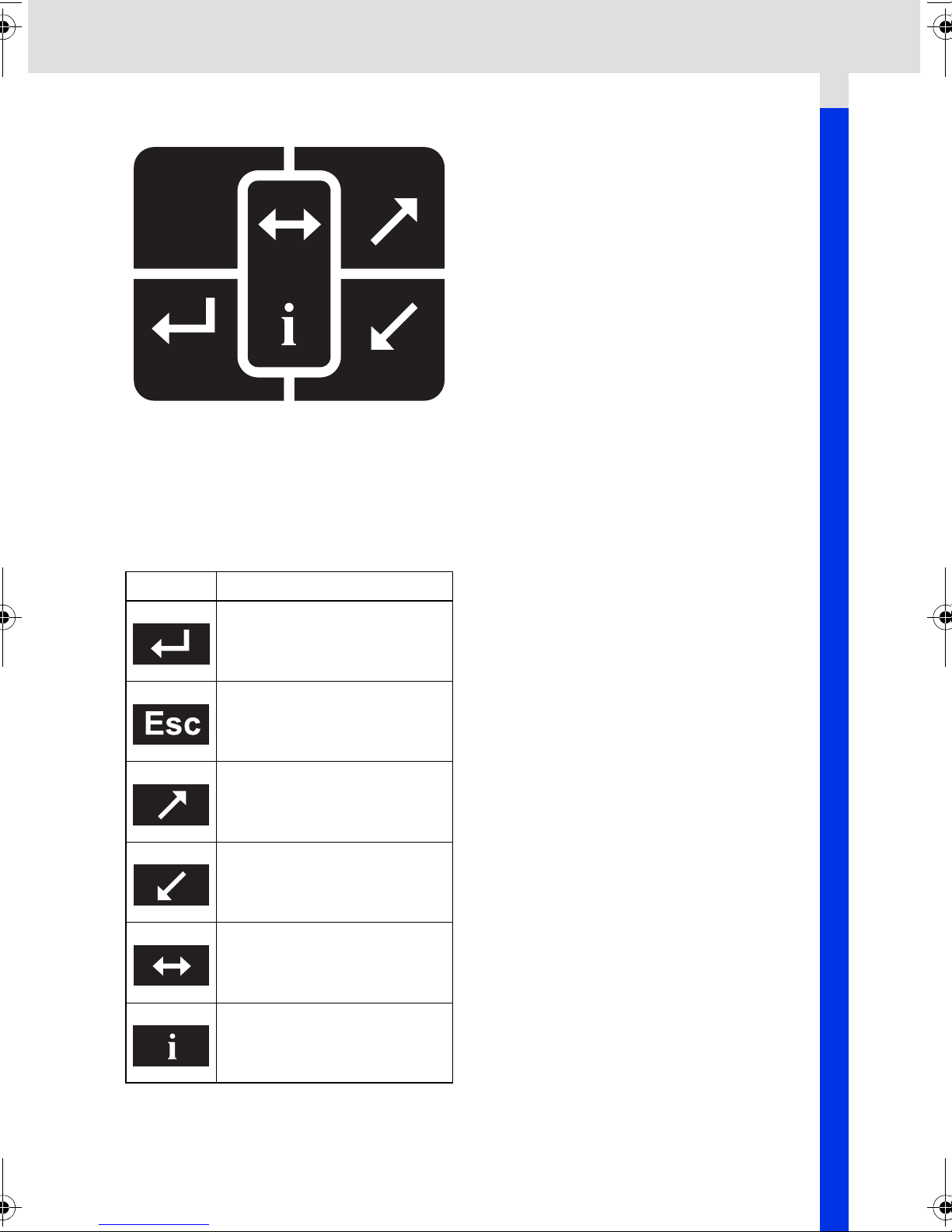

Keypad
The service tool is operated via the 6-
button keypad.
The table below details the keypad
buttons and their functionality.
Key Function
Select a menu option,
Continue or Yes.
Exit a menu or No.
Scroll up within a menu or
text.
Scroll down within a menu or
text.
Scroll left and right.
Provide context sensitive
help (where available).
Esc
CON0018s
ContiSys Quick Guide.book Page 7 Thursday, December 17, 2009 4:20 PM
Quick Reference Guide
8
ContiSys OBD Service Tool
Introduction
The functions listed in the main menu are
dependent on the software version
loaded on the tool. For further details on
available functions, please visit
www.contisys-service.com

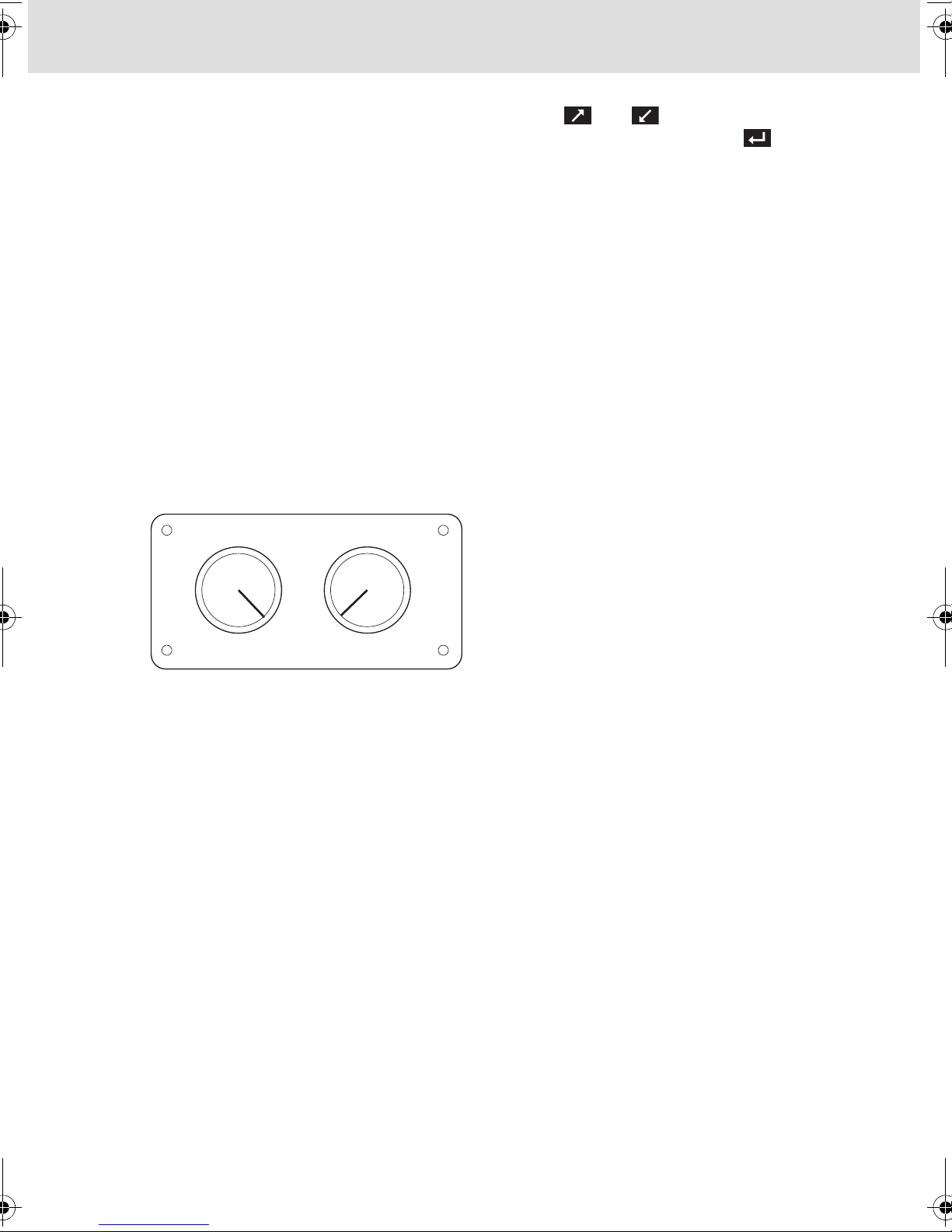

Connection
Connection to the specific system is via
either the vehicle's EOBD (J1962)
diagnostic socket or by a system specific
connector. Refer to the 'Vehicle
Application List' on the enclosed CD
ROM to determine the correct cable.
If using the EOBD (J1962) pin-switchable
cable (A2C59512072), ensure the
settings on the switch box correspond to
the settings listed for the vehicle and
system being tested.
WARNING: Incorrect settings on the
switch box may cause irreparable
damage to the vehicle’s electrical
system.
Connect the appropriate cable between
the service tool and the vehicle's
diagnostic connector. Once connected,
the current software version number is
displayed before displaying the main
menu.
Use the and keys to select the
required menu function. Press to
confirm the selection and then follow the
on-screen instructions.
If there is a connection problem, the
'Please Wait' screen will be replaced with
help screens.
Refer to the 'Operating Instructions' and
‘Vehicle Applications List’ on the
enclosed CD ROM for more detail.
Note: The latest version of the vehicle
application list can be downloaded from
www.vdo.com
A
B
C
D
EFG
H
I
J
K
L1
2
3
4
5
67
8
9
10
11
12
CON0017s
ContiSys Quick Guide.book Page 8 Thursday, December 17, 2009 4:20 PM
Quick Reference Guide
9

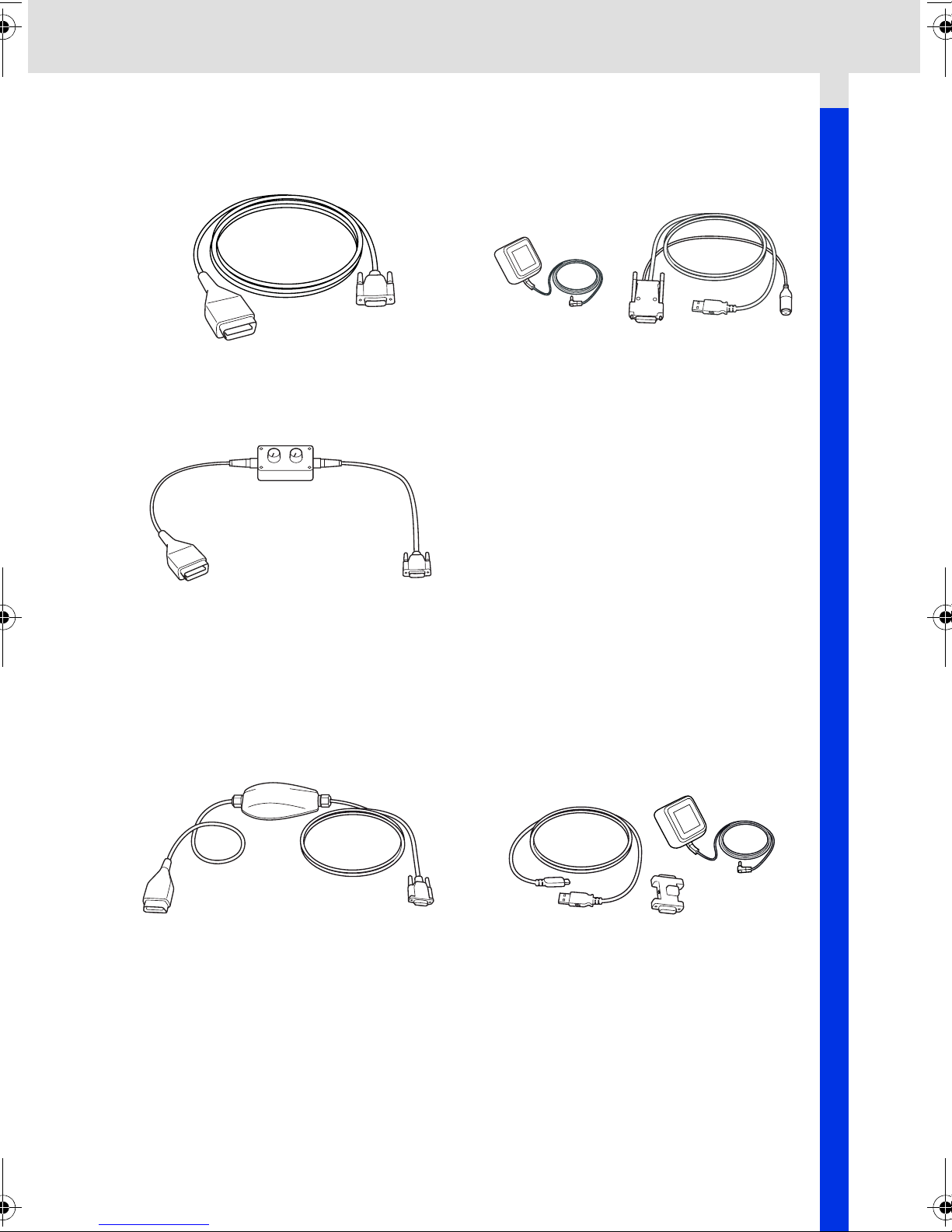

Cable identification
ContiSys OBD - Cables
A2C59512072 - EOBD cable (supplied with
ContiSys OBD).
A2C59512073 - EOBD Pin-switchable cable
(supplied with ContiSys OBD).
A2C59512076 - Updater cable.
Contisys OBD Professional - Cables
A2C59512985 - Multiplexer cable (supplied
with ContiSys OBD Professional).
A2C59513377 - Updater dongle.
CON0020s
CON0021s
112
4
3
2
10
11 AL
D
C
B
I
J
K
CON0097
CON0099s CON0100s
ContiSys Quick Guide.book Page 9 Thursday, December 17, 2009 4:20 PM
Quick Reference Guide
10

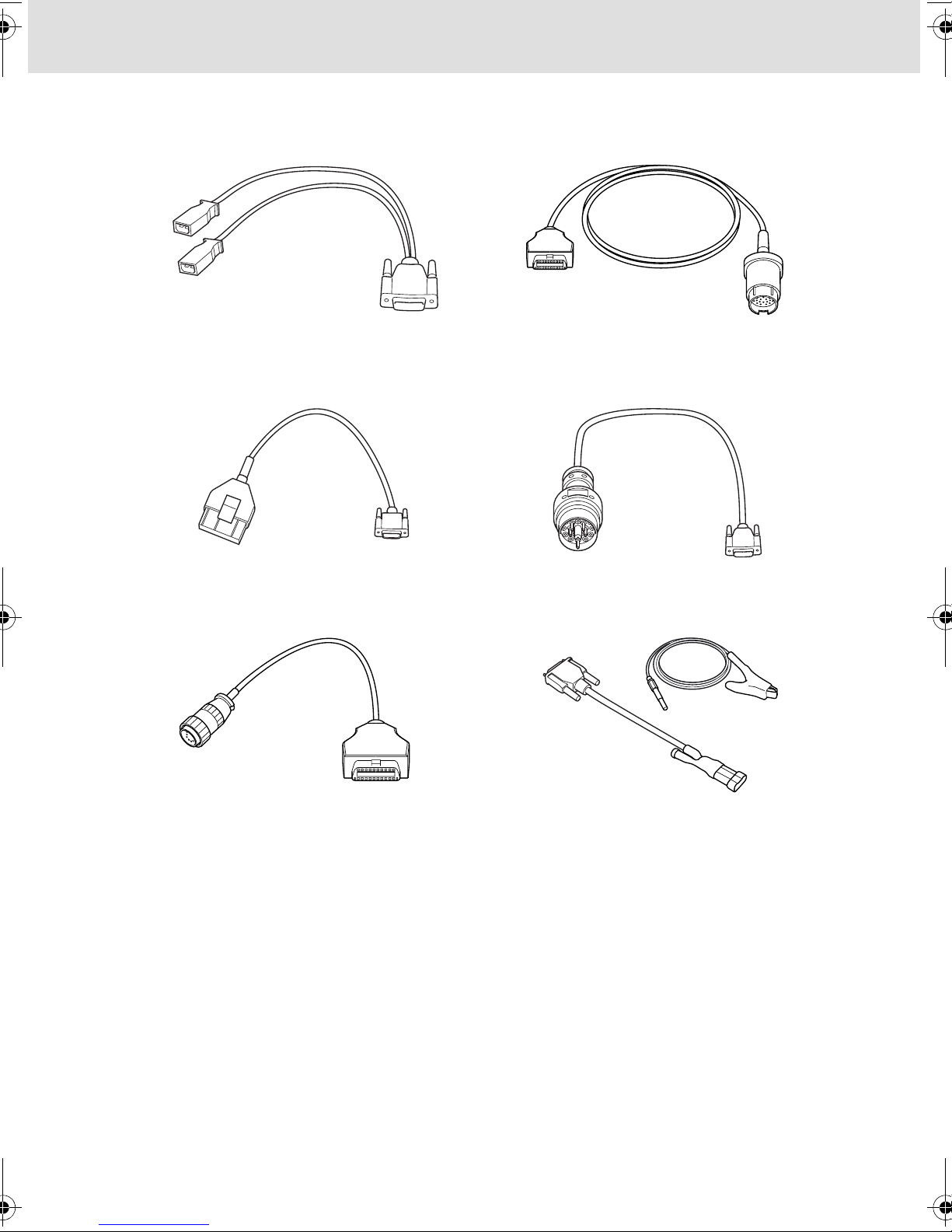

Optional Cables
A2C59512060 - VAG 2 x 2-pin cable
(optional).
A2C59512061 - PSA cable (optional).
A2C59512065 - Mercedes Sprinter cable
(optional).
A2C59512066 - Mercedes 38-pin cable
(optional).
A2C59512067 - BMW cable (optional).
A2C59512069 - Fiat/Alfa Romeo/Lancia
(optional).
CON0022s
CON0023s
CON0008
CON0009
CON0024s
CON0025s
ContiSys Quick Guide.book Page 10 Thursday, December 17, 2009 4:20 PM
Quick Reference Guide
11

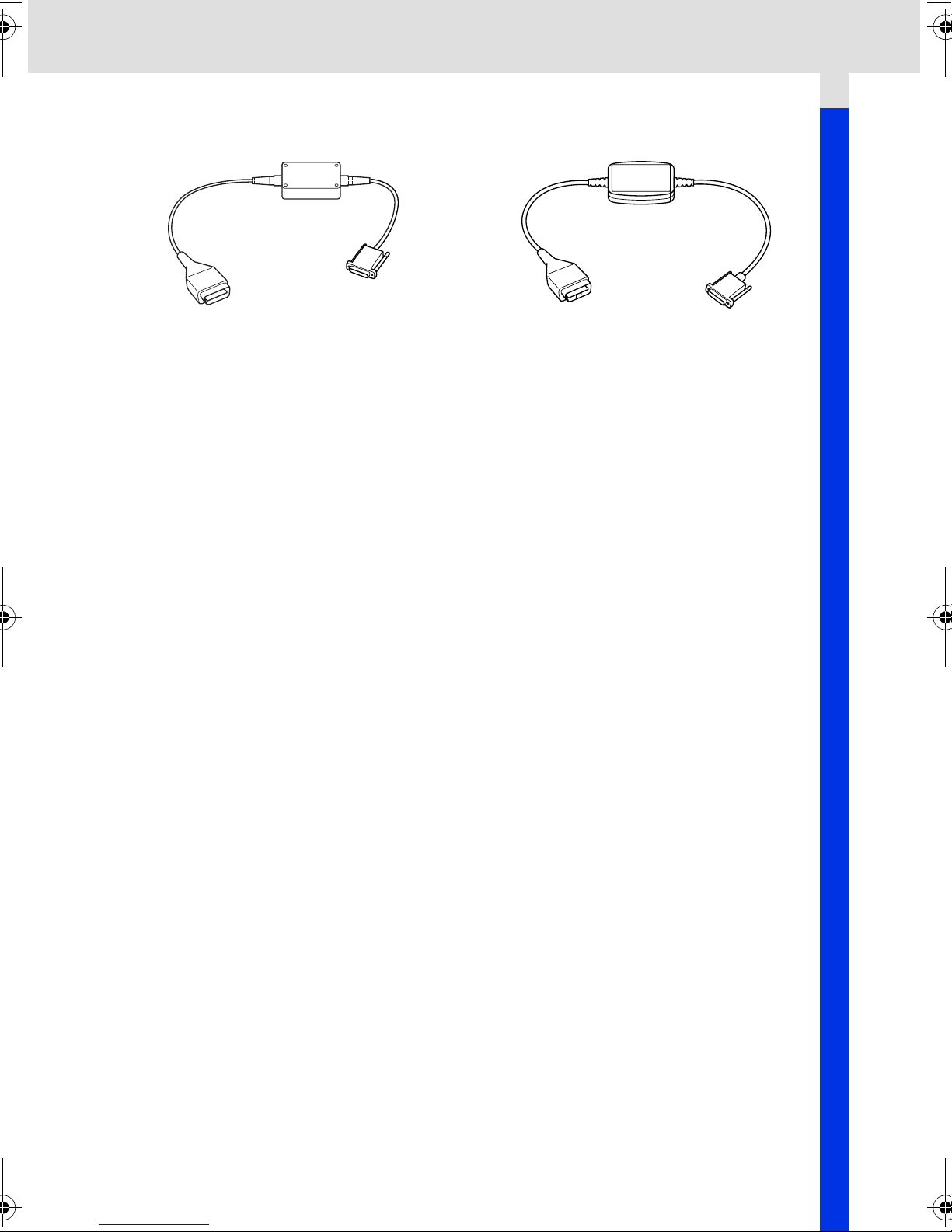

Optional cables - ContiSys OBD only
A2C59512070 - Fiat/Alfa Romeo/Lancia (LS
CAN) (optional).
A2C59512664 - CAN converter cable
(optional).
CON0026s CON0027s
ContiSys Quick Guide.book Page 11 Thursday, December 17, 2009 4:20 PM
Quick Reference Guide
12
Description VDO Part No. ATE Long Part
No. ATE Short
Part No.
ContiSys OBD kit A2C59512059 03.9301-2000.4 782000
ContiSys OBD Professional kit A2C59513375 03.9301-2002.4 782002
Accessories
- ContiSys OBD and OBD
Professional
ContiSys OBD - BMW cable A2C59512067 03.9301-2015.1 782015
ContiSys OBD - Fiat/Alfa Romeo/
Lancia cable
A2C59512069 03.9301-2017.1 782017
ContiSys OBD - Mercedes cable A2C59512066 03.9301-2014.1 782014
ContiSys OBD - Mercedes Sprinter
cable
A2C59512065 03.9301-2013.1 782013
ContiSys OBD - PSA cable A2C59512061 03.9301-2011.1 782019
ContiSys OBD - VAG cable A2C59512060 03.9301-2010.1 782010
Accessories
- ContiSys OBD only
ContiSys OBD - CAN Adapter cable A2C59512664 03.9301-2012.1 782012
ContiSys OBD - Fiat/Alfa Romeo/
Lancia CAN cable
A2C59512070 03.9301-2018.1 782022
ContiSys OBD - Multiplexer cable A2C59512985 03.9301-2021.1 782021
ContiSys OBD - Carry case A2C59512097 03.9301-2020.1 782020
Software update service
ContiSys Update-Plus (Annual
software update licence)
A2C59512077 03.9301-2105.1 782105
ContiSys Quick Guide.book Page 12 Thursday, December 17, 2009 4:20 PM
