Velleman DCM100 Manuale utente

DCM100

CAT III 600 V

USER MANUAL 3

HANDLEIDING 13

MODE D'EMPLOI 24

MANUAL DEL USUARIO 35

BEDIENUNGSANLEITUNG 46

INSTRUKCJA OBSŁUGI 58

MANUAL DO UTILIZADOR 70

DCM100

V. 04 –25/02/2020 2 ©Velleman nv

DCM100

V. 04 –25/02/2020 3 ©Velleman nv

USER MANUAL

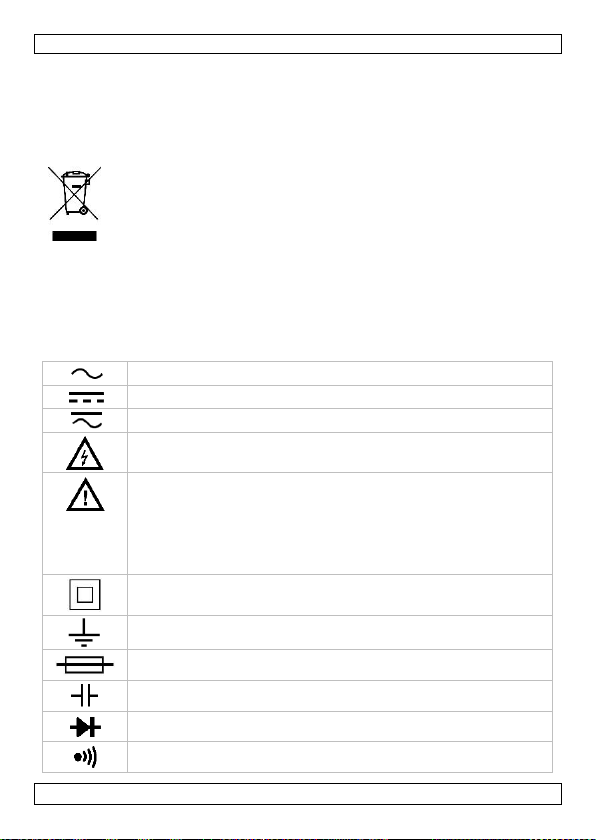

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal

of the device after its lifecycle could harm the environment. Do

not dispose of the unit (or batteries) as unsorted municipal

waste; it should be taken to a specialized company for recycling.

This device should be returned to your distributor or to a local

recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before

bringing this device into service. If the device was damaged in transit, do

not install or use it and contact your dealer.

2. Used Symbols

AC (Alternating Current)

DC (Direct Current)

Both AC and DC

Risk of Electric shock. A potentially hazardous voltage is

possible.

Caution: risk of danger, refer to the user manual for safety

information.

Warning: a hazardous condition or action that may result in

injury or death

Caution: condition or action that may result in damage to the

meter or equipment under test

Double insulation (class 2-protection)

Earth

Fuse

Capacitor

Diode

Continuity

DCM100

V. 04 –25/02/2020 4 ©Velleman nv

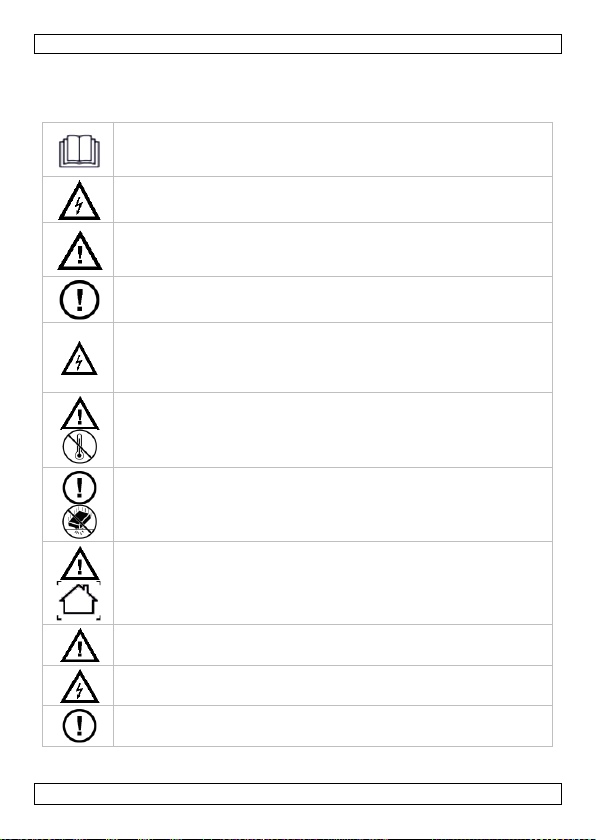

3. General Guidelines

Refer to the Velleman®Service and Quality Warranty on the last pages of

this manual.

This symbol indicates: Read instructions

Not reading the instructions and manual can lead to damage,

injury or death.

This symbol indicates: Danger

A hazardous condition or action that may result in injury or death

This symbol indicates: Risk of danger/damage

Risk of a hazardous condition or action that may result in

damage, injury or death

This symbol indicates: Attention; important information

Ignoring this information can lead to hazardous situations.

WARNING: To avoid electrical shock always disconnect the test

leads prior to opening the housing. To prevent fire hazards, only

use fuses with the same ratings as specified in this manual.

Remark: refer to the warning on the battery compartment

Avoid cold, heat and large temperature fluctuations. When the

unit is moved from a cold to a warm location, leave it switched

off until it has reached room temperature. This to avoid

condensation and measuring errors.

Protect this device from shocks and abuse. Avoid brute force

when operating.

Pollution degree 2-device. For indoor use only. Keep this device

away from rain, moisture, splashing and dripping liquids. Not for

industrial use. Refer to §8 Pollution degree.

Keep the device away from children and unauthorised users.

Risk of electric shock during operation. Be very careful when

measuring live circuits.

There are no user-serviceable parts inside the device.

Refer to an authorized dealer for service and/or spare parts.

DCM100

V. 04 –25/02/2020 5 ©Velleman nv

This is an installation category CAT III measuring

instrument. Refer to §7 Overvoltage/installation category.

Read this addendum and the manual thoroughly. Familiarise

yourself with the functions of the device before actually using it.

All modifications of the device are forbidden for safety reasons.

Damage caused by user modifications to the device is not

covered by the warranty.

Only use the device for its intended purpose. Using the device in

an unauthorized way will void the warranty. Damage caused by

disregard of certain guidelines in this manual is not covered by

the warranty and the dealer will not accept responsibility for any

ensuing defects or problems.

Application around and removal from UNINSULATED HAZARDOUS

LIVE conductors is permitted.

The current sensor must not be used on UNINSULATED

conductors.

4. Maintenance

There are no user-serviceable parts inside the device.

Refer to an authorized dealer for service and/or spare parts.

Before performing any maintenance activities, disconnect the test leads

from the jacks.

For instructions on replacing battery or fuse, refer to §11 Battery and fuse

replacement.

Do not apply abrasives or solvents to the meter. Use a damp cloth and mild

detergent for cleaning purposes.

5. During Use

Risk of electric shock during operation. Be very careful when

measuring live circuits.

•Never exceed the limit value for protection. This limit value is listed

separately in the specifications for each range of measurement.

•Do not touch unused terminals when the meter is linked to a circuit,

which is being tested.

•Never use the meter with CAT III installations when measuring voltages

that might exceed the safety margin of 600 V above earth ground.

•Set the range selector at its highest position if the intensity of the

charge to be measured is unknown beforehand.

DCM100

V. 04 –25/02/2020 6 ©Velleman nv

•Disconnect the test leads from the tested circuit before rotating the

range selector in order to change functions.

•When carrying out measurements on a TV set or switching power

circuits, always remember that the meter may be damaged by any high

amplitude voltage pulses at test points.

•Always be careful when working with voltages above 60 VDC or 30 VAC

rms. Keep your fingers behind the probe barriers at all times during

measurement.

•Never perform resistance, diode or continuity measurements on live

circuits. Make sure all capacitors in the circuit are depleted.

•Always hold the device behind the finger guard (see General

Description, nr. 12).

•Comply with the local and national safety regulations. Use personal

protective equipment, such as approved rubber gloves, face protection

and flame-resistant clothing, to prevent shock and arc blast injury

where hazardous live conductors are exposed.

•Do not use this device to measure a current with a frequency

above 1 kHz.

•Only use this device as specified in this manual in order not to

compromise the protection supplied by the device.

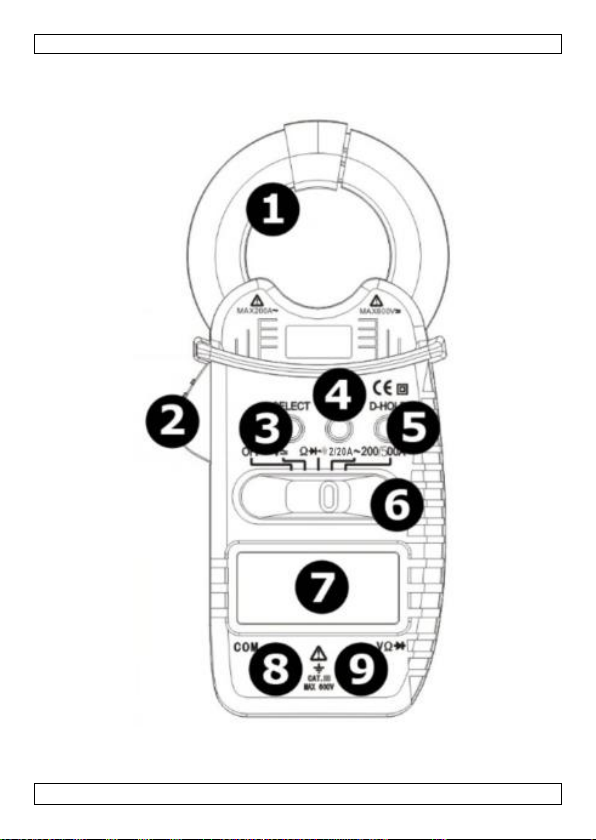

6. General Description

Refer to the illustration on page 2 of this manual:

1. Clamp jaws

2. Clamp trigger

3. Selection button

4. M-hold button

5. D-hold button

6. Selection switch

7. Display

3 ½ digits

8. “COM” jack

Insert the black (negative) test lead.

9. “V”jack

Insert the red (positive) test lead in this connector to measure voltage,

resistance and frequency.

7. Overvoltage/Installation Category

DMMs are categorized depending on the risk and severity of transient

overvoltage that might occur at the point of test. Transients are short-lived

bursts of energy induced in a system, e.g. caused by lightning strike on a

power line.

DCM100

V. 04 –25/02/2020 7 ©Velleman nv

The existing categories according EN 61010-1 are:

CAT I

A CAT I-rated meter is suitable for measurements on protected

electronic circuits that are not directly connected to mains power, e.g.

electronics circuits, control signals…

CAT

A CAT II-rated meter is suitable for measurements in CAT I-

environments and mono-phase appliances that are connected to the

mains by means of a plug and circuits in a normal domestic

environment, provided that the circuit is at least 10 m apart from a

CAT III- or 20 m apart from a CAT IV-environment. E.g. household

appliances, portable tools…

CAT

III

A CAT III-rated meter is suitable for measurements in CAT I- and

CAT II-environments, as well as for measurements on (fixed) mono-

or poly-phased appliances which are at least 10 m apart from of a

CAT IV-environment, and for measurements in or on distribution level

equipment (fuse boxes, lighting circuits, electric ovens).

CAT

A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II- and

CAT III-environments as well as on the primary supply level.

Note that for all measurements on equipment for which the supply

cables run outdoors (either overhead or underground) a CAT IV

meter must be used.

Warning:

This device was designed in accordance with EN 61010-1 installation

category CAT III 600 V. This implies that certain restrictions in use apply

that are related to voltages and voltage peaks which can occur within the

environment of use. Refer to the table above.

This device is only suitable for measurements up to 600 V in

CAT III

8. Pollution Degree

IEC 61010-1 specifies different types of pollution environments, for which

different protective measures are necessary to ensure safety. Harsher

environments require more protection, and the protection against the

pollution which is to be found in a certain environment depends mainly on

the insulation and the enclosure properties. The pollution degree rating of

the DVM indicates in which environment the device may be used.

Pollution

degree 1

No pollution or only dry, nonconductive pollution occurs. The

pollution has no influence. (only to be found in hermetically

sealed enclosures)

Pollution

degree 2

Only nonconductive pollution occurs. Occasionally, temporary

conductivity caused by condensation is to be expected.(home

and office environments fall under this category)

DCM100

V. 04 –25/02/2020 8 ©Velleman nv

Pollution

degree 3

Conductive pollution occurs, or dry nonconductive pollution

occurs that becomes conductive due to condensation that is

to be expected.

(industrial environments and environments exposed to

outside air - but not in contact with precipitation)

Pollution

degree 4

The pollution generates persistent conductivity caused by

conductive dust or by rain or snow. (exposed outdoor

environments and environments where high humidity levels

or high concentrations of fine particles occur)

Warning: This device was designed in accordance with EN 61010-1

pollution degree 2. This implies that certain restrictions in use apply that

are related to pollution which can occur within the environment of use. Refer

to the table above.

This device is only suitable for measurements in Pollution

degree class 2 environments.

9. Specifications

This device is not calibrated when purchased!

Regulations concerning environment of use:

Use this meter only for measurements in CAT I, CAT II and CAT III

environments (see §7).

Use this meter only in a pollution degree 2 environment (see §8).

Ideal working conditions include:

temperature: 0 °C to 40 °C (32 °F to 104 °F)

relative humidity: max. 80 %

altitude: max. 2000 m (6560 ft)

voltage ........................................................................... 600 V

power supply ....................................... 3 x 1.5 V AAA/LR03 (incl.)

display............................................................ LCD, 1999 counts

display dimensions ...................................................18 x 39 mm

over-range ..........................................................................yes

continuity buzzer..................................................................yes

diode test............................................................................yes

low-battery indication ...........................................................yes

ranging mode ......................................................... auto/manual

data hold ............................................................................yes

backlight ................................................................................ -

auto power-off .....................................................................yes

dimensions................................................131.5 x 61 x 24.8 mm

weight (with battery) .........................................................135 g

storage environment

temperature ................................................. -20 °C to 60 °C

humidity ............................................................ < 90 % RH

test lead probe....... CAT III 1000 V / CAT IV 600 V, 10 A; L = 84 cm

DCM100

V. 04 –25/02/2020 9 ©Velleman nv

9.1 AC + DC VOLTAGE

Do not measure circuits that may contain voltages

> 600 V AC or DC

range

resolution

accuracy

200 mV

0.1 mV

± (0.8 % + 3)

2 V

1 mV

± (1.5 % + 3)

± (1.2 % + 3)

20 V

10 mV

200 V

0.1 V

600 V

1 V

± (1.5 % + 5)

Impedance: 10 MΩ

Frequency range: 40 Hz-400 Hz, 40 Hz-100 Hz on 600 V range

9.2 AC CURRENT

Do not measure circuits that may contain voltages

> 600 V AC or DC

range

resolution

accuracy

2 A

0.001 A

± (4.0 % + 10)

20 A

0.01 A

± (2.5 % + 5)

200 A

0.1 A

500 A

1 A

Average sensing, calibrated to rms of sine wave

Frequency response: 50 Hz-60 Hz

Overload protection: 600 A rms within 60 sec

9.3 RESISTANCE

Do not conduct resistance measurements on live

circuits

range

resolution

accuracy

200 Ω

0.1 Ω

± (1.0 % + 2)

2 kΩ

1 Ω

± (1.5 % + 2)

20 kΩ

10 Ω

200 kΩ

0.1 kΩ

2 MΩ

1 kΩ

20 MΩ

0.01 MΩ

± (2.0 % + 3)

Overload protection: 250 V DC or AC rms

DCM100

V. 04 –25/02/2020 10 ©Velleman nv

9.4 DIODE + AUDIBLE CONTINUITY

Do not conduct diode and continuity measurements on

live circuits

range

function

built-in buzzer sounds if resistance < 70 Ω ± 30 Ω

testing current ± 0.6 mA

open-circuit voltage ± 1.5 V

Overload protection: 250 V DC or AC rms

10. Operation

10.1 VOLTAGE MEASUREMENT

Do not measure circuits that may contain voltages > 600 V AC or DC

Use extreme caution when measuring voltages higher than 60 VDC

or 30 VAC rms.

Always place your fingers behind the protective edges of the test

probes while measuring!

1. Connect the black test lead to the “COM” jack and the red test lead to

the “V” jack.

2. Set the selection switch to the desired “” position.

3. Press the selection button to choose the AC or DC voltage

measurement.

4. Connect the test leads across the source under measurement.

5. Read the voltage value on the LCD display.

10.2 AC CURRENT MEASUREMENT

Do not measure circuits that may contain voltages > 600 V AC or DC

Use extreme caution when measuring voltages higher than 60 VDC

or 30 VAC rms.

1. Set the selection switch to the desired “20A” or “200/500A” position.

2. Open the clamp by pressing the clamp trigger and insert the cable

(one cable only) to be measured into the jaw.

3. Close the clamp and read the current value on the LCD display.

Indice

Lingue:

Altri manuali Velleman Strumento di misura

Velleman

Velleman Personal Scope HPS10 Manuale utente

Velleman

Velleman DCM97K Manuale utente

Velleman

Velleman 3472BPN Manuale utente

Velleman

Velleman DVM805 Manuale utente

Velleman

Velleman DVM322DI Manuale utente

Velleman

Velleman DVM030 Manuale utente

Velleman

Velleman DEM500 Manuale utente

Velleman

Velleman AVM2050 Manuale utente

Velleman

Velleman Personal Scope HPS50 Manuale utente

Velleman

Velleman PEREL E305EM6 Manuale utente

Velleman

Velleman 055405 Manuale utente

Velleman

Velleman DVM125 Manuale utente

Velleman

Velleman DCM140 Manuale utente

Velleman

Velleman SHE16 Manuale utente

Velleman

Velleman DVM8928 Manuale utente

Velleman

Velleman DVM870 Manuale utente

Velleman

Velleman HQ-Power ORBITER VDP201GLD Manuale utente

Velleman

Velleman DVM895 Manuale utente

Velleman

Velleman DVR4H3 Manuale utente

Velleman

Velleman VM200 Manuale utente

Velleman

Velleman CAMSETW10 Manuale utente

Velleman

Velleman DEM501 Manuale utente

Velleman

Velleman INAA002 Manuale utente

Velleman

Velleman OFK1RC Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
