Veratron OceanLink Manuale utente
B000856
PROFESSIONAL RUDDER
ANGLE INDICATOR
OPERATING INSTRUCTIONS
rev. AB
EN
DE
IT
FR
ES
PT
B000856
LANGUAGE PAGE
ENGLISH 3
DEUTSCH 18
ITALIANO 34
FRANÇAIS 50
B000856
PROFESSIONAL RUDDER
ANGLE INDICATOR
OPERATING INSTRUCTIONS
rev. AB
EN
DE
IT
FR
ES
PT
CONTENT
B000856
CONTENT
Content ............................................................................... 2
Introduction ....................................................................... 3
Packaging Content .................................................................... 3
Sa ety In ormation ............................................................ 4
Safety during Installation ......................................................... 4
Safety after Installation .............................................................5
Electrical Connection ...............................................................5
Mechanical Installation ................................................... 6
Before the ssembly ................................................................. 6
Installation with Spinlock ......................................................... 7
Flush Mounting ............................................................................ 8
Electrical Installation ....................................................... 9
Pinout ............................................................................................... 9
Connections Diagrams ...........................................................10
Con iguration ................................................................... 11
Default Sensor Calibration .................................................... 11
Calibration djustment ........................................................... 11
Technical Data ................................................................. 13
Datasheet...................................................................................... 13
Supported NME 0183 Data............................................... 13
Accessories ...................................................................... 14
INTRODUCTION
B000856
INTRODUCTION
PACKAGING CONTENT
1x Rudder Angle
Indicator gauge
B00067401
1x Wire Harness
2C1507870001
1x Mounting
Spinlock
2C1376090001
1x Sa ety Instructions
B000100
SAFETY INFORMATION
B000856
SAFETY INFORMATION
WARNING
•No smoking! No open fire or heat sources!
•The product was developed, manufactured
and inspected according to the basic safety
requirements of EC Guidelines and state-of-
the-art technology.
•The instrument is designed for use in grounded
vehicles and machines as well as in pleasure
boats, including non-classified commercial
shipping.
•Use our product only as intended. Use of the
product for reasons other than its intended use
may lead to personal injury, property damage
or environmental damage. Before installation,
check the vehicle documentation for vehicle
type and any possible special features!
•Use the assembly plan to learn the location of
the fuel/hydraulic/compressed air and
electrical lines!
•Note possible modifications to the vehicle,
which must be considered during installation!
•To prevent personal injury, property damage or
environmental damage, basic knowledge of
motor vehicle/shipbuilding electronics and
mechanics is required.
•Make sure that the engine cannot start
unintentionally during installation!
•Modifications or manipulations to veratron
products can affect safety. Consequently, you
may not modify or manipulate the product!
•When removing/installing seats, covers, etc.,
ensure that lines are not damaged and plug-in
connections are not loosened!
•Note all data from other installed instruments
with volatile electronic memories.
SAFETY DURING INSTALLATION
•During installation, ensure that the product’s
components do not affect or limit vehicle
functions. void damaging these components!
•Only install undamaged parts in a vehicle!
•During installation, ensure that the product
does not impair the field of vision and that it
cannot impact the driver’s or passenger’s head!
• specialized technician should install the
product. If you install the product yourself,
wear appropriate work clothing. Do not wear
loose clothing, as it may get caught in moving
parts. Protect long hair with a hair net.
•When working on the on-board electronics, do
not wear metallic or conductive jewellery such
as necklaces, bracelets, rings, etc.
•If work on a running engine is required, exercise
extreme caution. Wear only appropriate work
clothing as you are at risk of personal injury,
resulting from being crushed or burned.
•Before beginning, disconnect the negative
terminal on the battery, otherwise you risk a
short circuit. If the vehicle is supplied by
auxiliary batteries, you must also disconnect
the negative terminals on these batteries!
Short circuits can cause fires, battery
explosions and damages to other electronic
systems. Please note that when you disconnect
the battery, all volatile electronic memories
lose their input values and must be
reprogrammed.
•If working on gasoline boat motors, let the
motor compartment fan run before beginning
work.
•Pay attention to how lines and cable harnesses
are laid so that you do not drill or saw through
them!
•Do not install the product in the mechanical
and electrical airbag area!
•Do not drill holes or ports in load-bearing or
stabilizing stays or tie bars!
SAFETY INFORMATION
B000856
•When working underneath the vehicle, secure
it according to the specifications from the
vehicle manufacturer.
•Drill small ports; enlarge and complete them, if
necessary, using taper milling tools, sabre saws,
keyhole saws or files. Deburr edges. Follow the
safety instructions of the tool manufacturer.
•Use only insulated tools if work is necessary on
live parts.
•Use only the multimeter or diode test lamps
provided, to measure voltages and currents in
the vehicle/machine or boat. Use of
conventional test lamps can cause damage to
control units or other electronic systems.
•The electrical indicator outputs and cables
connected to them must be protected from
direct contact and damage. The cables in use
must have enough insulation and electric
strength and the contact points must be safe
from touch.
•Use appropriate measures to also protect the
electrically conductive parts on the connected
consumer from direct contact. Laying metallic,
uninsulated cables and contacts is prohibited.
SAFETY AFTER INSTALLATION
•Connect the ground cable tightly to the
negative terminal of the battery.
•Reenter/reprogram the volatile electronic
memory values.
•Check all functions.
•Use only clean water to clean the components.
Note the Ingress Protection (IP) ratings (IEC
60529).
ELECTRICAL CONNECTION
•Note cable cross-sectional area!
•Reducing the cable cross-sectional area leads
to higher current density, which can cause the
cable cross-sectional area in question to heat
up!
•When installing electrical cables, use the
provided cable ducts and harnesses; however,
do not run cables parallel to ignition cables or
to cables that lead to large electricity
consumers.
•Fasten cables with cable ties or adhesive tape.
Do not run cables over moving parts. Do not
attach cables to the steering column!
•Ensure that cables are not subject to tensile,
compressive or shearing forces.
•If cables are run through drill holes, protect
them using rubber sleeves or the like.
•Use only one cable stripper to strip the cable.
djust the stripper so that stranded wires are
not damaged or separated.
•Use only a soft soldering process or
commercially available crimp connector to
solder new cable connections!
•Make crimp connections with cable crimping
pliers only. Follow the safety instructions of the
tool manufacturer.
•Insulate exposed stranded wires to prevent
short circuits.
•Caution: Risk of short circuit if junctions are
faulty or cables are damaged.
•Short circuits in the vehicle network can cause
fires, battery explosions and damages to other
electronic systems. Consequently, all power
supply cable connections must be provided
with weldable connectors and be sufficiently
insulated.
•Ensure ground connections are sound.
•Faulty connections can cause short circuits.
Only connect cables according to the electrical
wiring diagram.
•If operating the instrument on power supply
units, note that the power supply unit must be
stabilized and it must comply with the following
standard: DIN EN 61000, Parts 6-1 to 6-4.
MECHANICAL INSTALLATION
B000856
MECHANICAL INSTALLATION

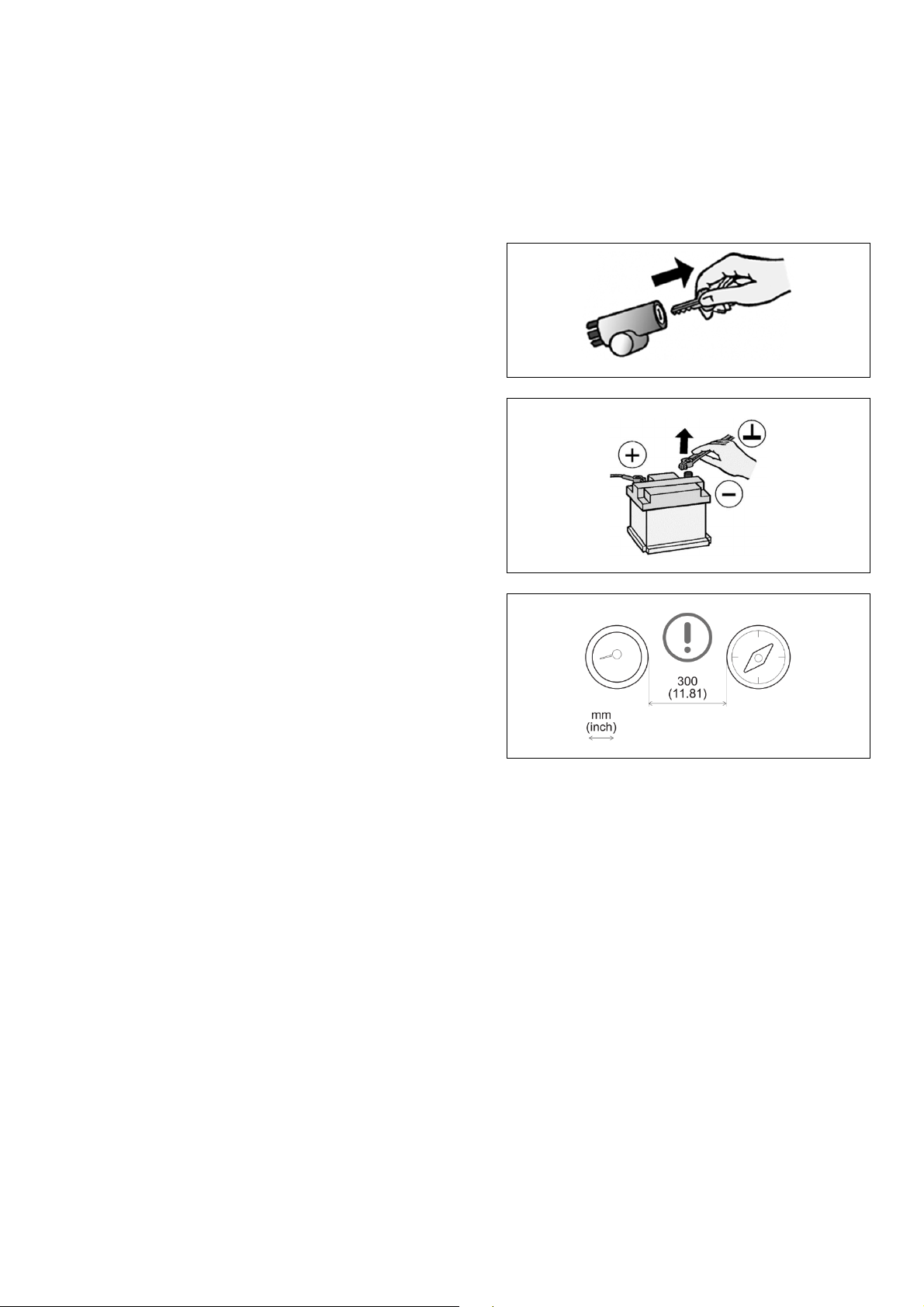

BEFORE THE ASSEMBLY
1.
Before beginning, turn off the ignition and remove
the ignition key. If necessary, remove the main circuit
switch
2. Disconnect the negative terminal on the battery.
Make sure the battery cannot unintentionally restart.
3. Place the device at least 300 mm away from any
magnetic compass.
MECHANICAL INSTALLATION
B000856
INSTALLATION WITH SPINLOCK
1. Create a circular hole in the panel considering
the device dimensions. [ ]
2. Remove the spinlock and insert the device
from the front. [B]
3. djust the spinlock ad shown in picture [C]
according to the panel thickness
4. Carefully screw in the spinlock by hand at
least two turns and install the connector.
A B
C
MECHANICAL INSTALLATION
B000856
FLUSH MOUNTING
1. Create a circular hole in the panel considering
the device dimensions. [ ]
2. Remove the spinlock.
3. Remove the bezel using slip joint pliers. [B]
Note: the bezel cannot be used after removal
since it can be damaged.
4. Insert the instrument into the drill hole from
the back. [C]
5. djust the instrument so that the gauge is
level and fasten it to the stud bolts on the rear
side of the panel, using the assembly kit
accessories. [D]
6. Insert the connector
A B
C
D
