VIA Technologies KT400A Manuale utente

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.1

October 09, 2003

VIAVIA

VIA KT400AKT400A

KT400AKT400A

KT400A mainboardmainboard

mainboardmainboard

mainboard

for AMD Socket A processorfor AMD Socket A processor

for AMD Socket A processor

User’User’

User’ss

ManualManual

Manual

60000028K9A11

DISCLAIMER OF WARRANTIES:

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE

DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED

WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS

PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL

APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE

COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW OR

LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

Table of Contents

Section 1 Introduction

Package Contents ................................................1-1

Overview

AthlonTM Processors............................................1-2

Accelerated Graphics Port ................................... 1-3

UltraATA66/100/133 ............................................1-3

Hardware Monitoring ...........................................1-3

LAN(Optional)..................................................... 1-3

Serial ATA ............................................................ 1-3

Mainboard Form-Factor .......................................1-4

I/O Shield Connector ............................................1-5

Power-On/Off(Remote) ........................................ 1-5

SystemBlockDiagram.......................................... 1-6

Section 2 Features

Mainboard Features ............................................. 2-1

Section 3 Installation

Mainboard Layout ............................................... 3-2

Easy Installation Procedure

CPU Insertion ......................................................3-3

Jumper Settings ................................................... 3-5

System Memory Configuration ............................3-6

Expansion Slots .................................................... 3-8

Device Connectors...............................................3-10

STR (Suspend To RAM) Function.......................3-16

CPU Overheating Protection ................................3-17

Page

Section 4 BIOS Setup

Main Menu...........................................................4-1

Standard CMOS Setup .........................................4-2

Advanced BIOS Features..................................... 4-3

Advanced Chipset Features ................................4-7

Integrated Peripherals ..........................................4-12

Power Management Setup ...................................4-17

PNP/PCI Configuration Setup .............................. 4-21

PC Health Status ..................................................4-23

Power BIOS Features............................................ 4-25

Defaults Menu .....................................................4-27

Supervisor/User Password Setting ...................... 4-28

ExitSelecting ........................................................ 4-29

Section 5 S-ATA RAID Configuration

Introduction .........................................................5-1

Key Features ........................................................5-3

BIOS Configuration Utility ...................................5-4

Section 6 Driver Installation

Easy Driver Installation ........................................6-1

Realtek Sound Manager Quick User-guide ..........6-2

Appendix Appendix A

Realtek Media Player User’s Guide ...................... A-1

Appendix B

Update Your System BIOS ................................... B-1

Appendix C

EEPROM BIOSRemover ..................................... C-1

Introduction

Page 1-1

USER’S

MANUAL E

Section 1

INTRODUCTION

Package Contents

Contents

A.Mainboard

B. User’s manual

C. Floppy drive cable

D. HDD ribbon cable

E. CD (drivers and utilities)

F. I/O Shield

Optional Items

G. Game port cable

H. S-ATA data and power cables

I. Extra USB2.0 port cable

J. S/PDIF Module

If you need the optional item, please

contact your dealer for assistance.

Introduction

Page 1-2

AthlonTM Processors

The AMD AthlonTM is a seventh-generation micro architecture with an integrated

L2 cache, which is powerful enough to support the bandwidth requirements of a

large range of applications, hardware, graphics, and memory technologies. These

processors implement advanced design techniques such as:

 Socket A (PGA 462)

200/266/333MHz system interface based on the Alpha™ EV6 bus protocol.

 Three out-of-order, superscalar, pipelined Multimedia Units.

 Three out-of-order, superscaler, pipelined Integer Units.

 Fixed-sized internal instruction formats (MacroOPs).

 72-entry Instruction Control Units.

 AMD enhanced 3DNow!™ technology

 L1 and L2 caches.

 Dynamic branch prediction.

Socket A is the name for AMD’s new socketed interface designed to support AMD

AthlonTM processors. This innovation is made possible by integrating the L2 cache

memory on chip with the processor. Socket A will help enable smaller enclosures,

and ultimately result in a wider variety of solutions in the market.

The AthlonTM processors in the Socket A format continue to deliver the ultimate

performance for cutting-edge applications. They bring to desktop systems running

industry-standard x86 software superscalar RISC performance. Being provided in

the Socket A format they are the world’s most powerful x86 processors. They easily

deliver the highest integer, floating-point, and 3D multimedia performance for

applications running on x86 platforms around.

It features full-speed, on-chip cache memory, a 200/266/333MHz front side system

bus, and enhanced 3DNow!™ technology. The AMD AthlonTM processor is

targeted at the performance segment, and as such will have more cache memory and

higher clock speeds.

Introduction

Page 1-3

Accelerated Graphics Port (AGP)

The AGP slot on the board is compliant with the new AGP 3.0 specification. This

new specification enhances the functionality of the original AGP specification by

allowing 8X data transfers ( 8 data samples per clock) resulting in maximum band-

width of 2.1GB/s. In addition, it defines 1.5 volt power supply operation. Complying

with this specification, this board supports external AGP-8X/4X cards with Fast

Write Transactions. Only 1.5V AGP cards are supported.

Ultra ATA/66/100/133

This mainboard provides two independent ATA133 IDE controllers, supporting

standard programmable input/output (PIO) and Direct Memory Access (DMA)

mode operations, as well as UltraDMA-133/100/66/33 standards for a maximum data

transfer rate of 133MB/sec per channel.

Hardware Monitoring

Hardware monitoring enables you to monitor various aspects of the system operation

and status. The features include CPU temperature, voltage and fan speed in RPMs.

LAN (Optional)

This mainboard is optionally mounted with a LAN chipset. It allows the mainboard to

connect to a local area network by means of a network hub.

Serial ATA

The evolutionary serial ATA interface replaces the standard parallel ATA physical

storage interface. The serial ATA specification provides scalability and allows

future enhancements to the computing platform. Serial technology overcomes

performance limits of parallel interface architecture, meeting the escalating need for

faster data throughput in servers and storage devices.

Serial ATA is completely software compatible with parallel ATA, requiring no

modification to your operating system. The serial ATA interface cable requires lower

voltages and uses smaller cable connectors, providing ease of installation. You can

easily upgrade storage devices that are compatible with the serial ATA interface

specification.

Introduction

Page 1-4

Mainboard Form-Factor

This board is designed with ATX form factor - the latest industry standard for

chassis design. The ATX form factor is essentially a Baby-AT baseboard rotated

90 degrees within the chassis enclosure and a new mounting configuration for

the power supply. With these changes the processor is relocated away from the

expansion slots, allowing them all to hold full length add-in cards. ATX defines a

double height aperture to the rear of the chassis which can be used to host a

wide range of onboard I/O. Only the size and position of this aperture is defined,

allowing PC manufacturers to add new I/O features (e.g.; TV input, TV output,

joystick, modem, LAN, audio, etc.) to systems. This will help systems integrators

differentiate their products in the marketplace, and better meet your needs.

• By integrating more I/O down onto the board and better positioning the hard

drive and floppy connectors, material cost of cables and add-in cards are

reduced.

• By reducing the number of cables and components in the system, manufac-

turing time and inventory holding costs are reduced and reliability will

increase.

• By using an optimized power supply, it's possible to reduce cooling costs

and lower acoustical noise. An ATX power supply, which has a side-

mounted fan, allows direct cooling of the processor and add-in cards making

a secondary fan or active heatsink unnecessary in most system applications.

PCI slots

ExpandableI/O

Figure 2: Summary of ATX chassis features

CPU socket

Single chassis

fan for system

ATX

Power

Supply ATX power connector

IDE connectors

AGP slot

3 1/2-inch

Bay

5 1/4-inch

Bay

Floppy

connector

Introduction

Page 1-5

Power-On/Off (Remote)

This board has a 20-pin ATX power supply connector (Figure 4). For power

supplies that support the Remote On/Off feature, this should be connected to the

mainboard front panel PW_ON connector for the computer power On/Off button.

This board has been designed with “Soft Off" function. You can turn off the system

in two ways: by pressing the front panel power On/Off button or using the "Soft

Off" function that can be controlled by an operating system such as Windows®XP/

ME/2000/98.

Note: For maintaining the DDR SDRAM power during STR (ACPI S3) function, it is

strongly recommended to use power supplies that have a +5VSB current of (>

=) 2A. Please check the 5VSB’s specification printed on the power supply’s

outer case.

Note: The board requires a minimum of 250 Watt power supply to operate. Your

system configuration (amount of memory, add-in cards, peripherals, etc.) may

exceed this minimum power requirement. To ensure that adequate power is

provided, use a 300 Watt (or higher) power supply.

I/O Shield Connector

The board is equipped with an I/O back panel (Figure 3). Ensure that your computer

case has the appropriate I/O cutout.

Figure 3: I/O ports

PW-ON

Case (chassis) Power ON/OFF button (PW-ON)

Figure 4: Simple ATX power ON/OFF controller

20-pin POWER SUPPLY

COM1

Parallel Port

COM2

RJ-45 LAN

(Optional)

USB2.0

ports USB2.0

ports

PS/2

Mouse

PS/2

Keyboard Mic-in/Center&Subwoofer (Pink)

Line-out/Front out (Lime)

Line-in/Rear out (Light blue)

Introduction

Page 1-6

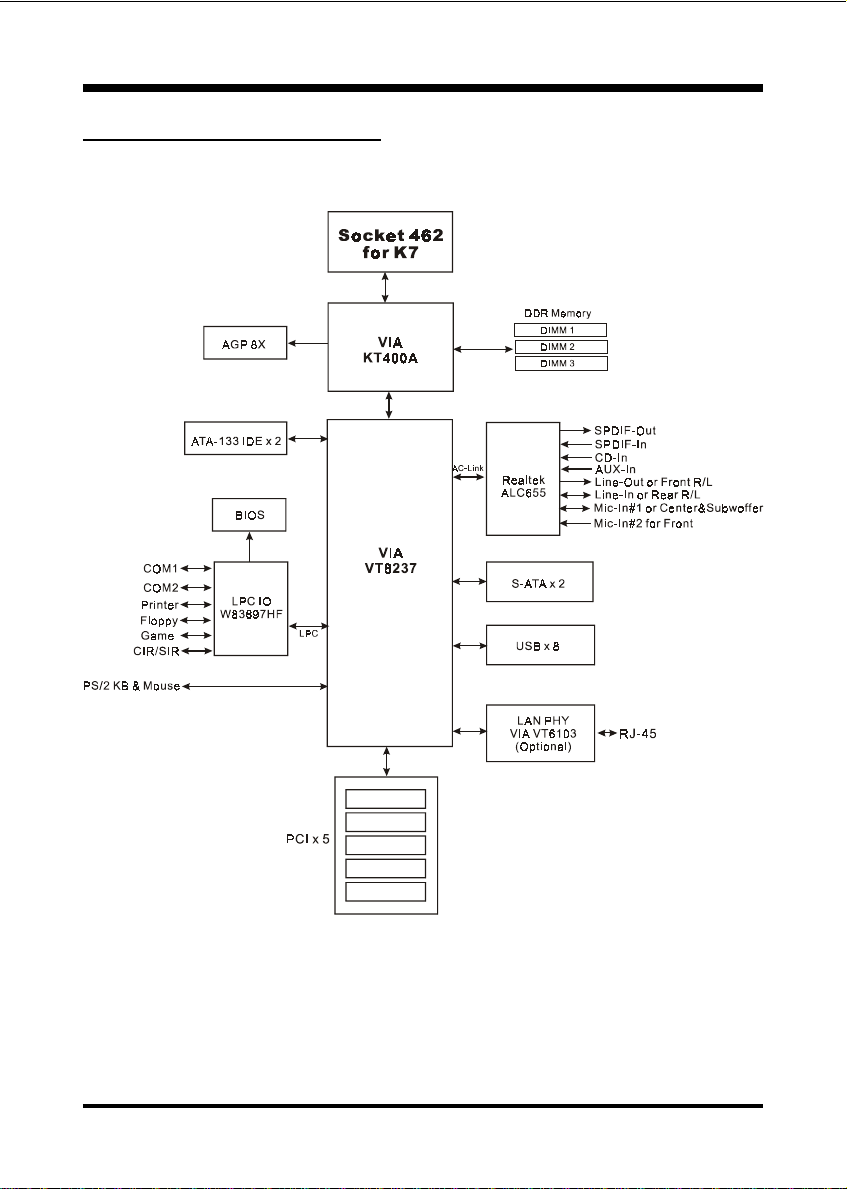

Figure 5: System Block Diagram

System Block Diagram

Indice

Altri manuali VIA Technologies Scheda madre

VIA Technologies

VIA Technologies EPIA V-Series Manuale di istruzioni

VIA Technologies

VIA Technologies EPIA-SP8000E - VIA Motherboard - Mini ITX Manuale utente

VIA Technologies

VIA Technologies EPIA-N800 Manuale utente

VIA Technologies

VIA Technologies EPIA LN-Series Manuale utente

VIA Technologies

VIA Technologies P4XB-MA Manuale utente

VIA Technologies

VIA Technologies Mini-ITX Mainboard EPIA-MII Manuale utente

VIA Technologies

VIA Technologies EPIA-EN12000EG - VIA Motherboard - Mini ITX Manuale utente

VIA Technologies

VIA Technologies EPIA-PE Manuale utente

VIA Technologies

VIA Technologies Board Manuale utente

VIA Technologies

VIA Technologies VAB-950 Guida di sicurezza

VIA Technologies

VIA Technologies EPIA-EN15000G - VIA Motherboard - Mini ITX Manuale utente

VIA Technologies

VIA Technologies EPIA-NX Manuale utente

VIA Technologies

VIA Technologies P4M266A Manuale utente

VIA Technologies

VIA Technologies G03-NC73-F Manuale utente

VIA Technologies

VIA Technologies EPIA NL-Series Manuale utente

VIA Technologies

VIA Technologies EPIA-P720 Manuale utente

VIA Technologies

VIA Technologies VT310-DP Manuale utente

VIA Technologies

VIA Technologies VB7009 Manuale utente

VIA Technologies

VIA Technologies K8T800 Manuale utente

VIA Technologies

VIA Technologies VAB-820 Manuale utente

VIA Technologies

VIA Technologies VB7002 Manuale utente

VIA Technologies

VIA Technologies EPIA-P820 Manuale utente

VIA Technologies

VIA Technologies VIA P4PB 266E Manuale utente

VIA Technologies

VIA Technologies EPIA-M840 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
