VIA Technologies VAB-820 Manuale utente
1.00-06282016-105400
IMAGE INSTALLATION GUIDE
VAB-820
Linux EVK v3.0.2
Copyright
CopyrightCopyright
Copyright
Copyright © 2016 VIA Technologies Incorporated. All rights reserved.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language,
in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise without the prior written
permission of VIA Technologies, Incorporated.
Trademarks
TrademarksTrademarks
Trademarks
All brands, product names, company names, trademarks and service marks are the property of their respective holders.
Disclaimer
DisclaimerDisclaimer
Disclaimer
VIA Technologies makes no warranties, implied or otherwise, in regard to this document and to the products described in this
document. The information provided in this document is believed to be accurate and reliable as of the publication date of this
document. However, VIA Technologies assumes no responsibility for the use or misuse of the information (including use or
connection of extra device/equipment/add-on card) in this document and for any patent infringements that may arise from the use of
this document. The information and product specifications within this document are subject to change at any time, without notice
and without obligation to notify any person of such change.
VIA Technologies, Inc. reserves the right the make changes to the products described in this manual at any time without prior notice.
VAB
VABVAB
VAB-
--
-820 Linux EVK v
820 Linux EVK v820 Linux EVK v
820 Linux EVK v3.0.2 Image Installation Guide
3.0.2 Image Installation Guide3.0.2 Image Installation Guide
3.0.2 Image Installation Guide
iii
Revision History
Version
VersionVersion
Version
Date
DateDate
Date
Remarks
RemarksRemarks
Remarks
1.00 6/16/2016 Initial release
VAB
VABVAB
VAB-
--
-820 Linux EVK v
820 Linux EVK v820 Linux EVK v
820 Linux EVK v3.0.2 Image Installation Guide
3.0.2 Image Installation Guide3.0.2 Image Installation Guide
3.0.2 Image Installation Guide
iv
Table of Contents
1.
1.1.
1. Introduction
IntroductionIntroduction
Introduction ................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
..................................
....
.. 1
11
1
1.1.
Package Contents............................................................................................................................ 1
1.2.
Version Information and Supported Features .......................................................................... 2
2.
2.2.
2. Image Development
Image DevelopmentImage Development
Image Development ................................
................................................................
................................................................
................................................................
................................................................
................................................................
...................................................
......................................
................... 3
33
3
2.1.
Booting from a Micro SD Card .................................................................................................... 3
VAB
VABVAB
VAB-
--
-820 Linux EVK v
820 Linux EVK v820 Linux EVK v
820 Linux EVK v3.0.2 Image Installation Guide
3.0.2 Image Installation Guide3.0.2 Image Installation Guide
3.0.2 Image Installation Guide
1
1.
1.1.
1. Introduction
IntroductionIntroduction
Introduction
This Image Installation Guide explains how to boot the Linux EVK system image on the
VAB-820 board in order to begin evaluating the platform.
The VAB-820 Linux EVK v3.0.2 is developed based on the NXP fsl-yocto-3.14.28_1.0.0
(Yocto 1.7 Dizzy) and enables the hardware features of the VAB-820 board.
1.1. Package Contents
The via
viavia
via-
--
-image
image-
--
-gui
guigui
gui-
--
-imx6qvab820.sdcard
imx6qvab820.sdcardimx6qvab820.sdcard
imx6qvab820.sdcard is the SD card image containing a precompiled
OpenEmbedded file system.
VAB
VABVAB
VAB-
--
-820 Linux EVK v
820 Linux EVK v820 Linux EVK v
820 Linux EVK v3.0.2 Image Installation Guide
3.0.2 Image Installation Guide3.0.2 Image Installation Guide
3.0.2 Image Installation Guide
2
1.2. Version Information and Supported Features
•U-Boot version: 2014.04
•Kernel version: 3.14.28
•Evaluation image: OpenEmbedded-core built with Yocto 1.7 Dizzy
•Development based on NXP fsl-yocto-3.14.28_1.0.0 (Yocto 1.7 Dizzy)
•Supports SPI with eMMC or Micro SD boot (default)
•Supports HDMI and LVDS display
•Supports HDMI audio output
•Supports AUO LVDS capacitive touch panels (through USB interface)
AUO 10.4” G104XVN01.0 (1024×768)
AUO 7” G070VW01 V0 (800×480)
•Supports S-video and CVBS
•Supports COM1 DTE mode, COM2 as debug port
•Supports 2 FlexCAN TX/RX
•Supports Gigabit Ethernet
•Supports Line-in, Line-out, Mic-in
•Supports VNT9271 USB Wi-Fi dongle
•Supports EMIO-1541 miniPCIe Wi-Fi module
•Supports EMIO-2550 miniPCIe Mobile Broadband module
•Supports Watchdog, GPIO and RTC
VAB
VABVAB
VAB-
--
-820 Linux EVK v
820 Linux EVK v820 Linux EVK v
820 Linux EVK v3.0.2 Image Installation Guide
3.0.2 Image Installation Guide3.0.2 Image Installation Guide
3.0.2 Image Installation Guide
3
2.
2.2.
2. Image Development
Image DevelopmentImage Development
Image Development
This section explains the setup requirements for booting from a Micro SD card.
2.1. Booting from a Micro SD Card
The via
viavia
via-
--
-image
image-
--
-gui
guigui
gui-
--
-imx6qvab820.sdcard
imx6qvab820.sdcardimx6qvab820.sdcard
imx6qvab820.sdcard image allows the board to run entirely from the
Micro SD card.
The first step is to copy this image onto a Micro SD card. Insert a card into your Linux host
machine and make sure it is not mounted. Copy the image onto the Micro SD card with the
command below, replacing <device name> with the correct value for the card, for
example “sdb”.
Important:
Important:Important:
Important: Make sure you are writing to the correct device or the host system environment
could be damaged.
$ sudo dd if=via-image-gui-imx6qvab820.sdcard of=/dev/<device name> bs=1M conv=fsync

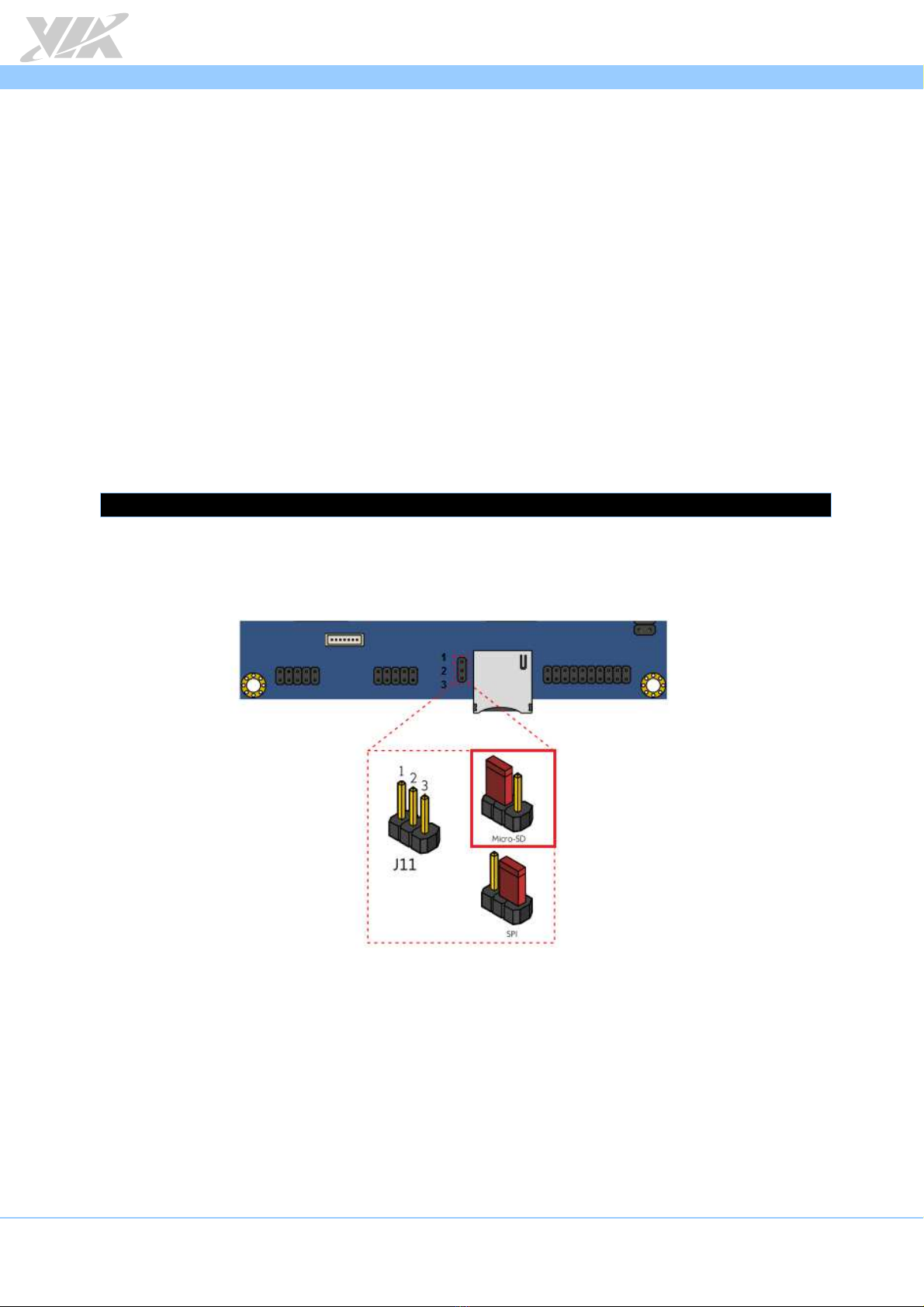

Next, on the VAB-820, set the J11 boot select jumper to the Micro SD position shown
below.
J11 boot select jumper diagram
J11 boot select jumper diagramJ11 boot select jumper diagram
J11 boot select jumper diagram
Insert the prepared Micro SD card into the VAB-820, connect an HDMI display, and power
on the device to initiate the boot process.
When the boot process is completed, you will see the OpenEmbedded desktop.
1F, 531 Zhong-Zheng Road
Xindian, Taipei, 23148
Taiwan
TEL: 886.2.2218.5452
FAX: 886.2.2218.5453
Email: [email protected]
Taiwan Headquarters
940 Mission Court
Fremont, CA 94539
USA
TEL: 1.510.683.3300
FAX: 1.510.687.4654
Email: [email protected]
USA
Tsinghua Science Park Bldg. 7
No. 1 Zongguancun East Road
Haiden District, Beijing, 100084
China
TEL: 86.10.59852288
FAX: 86.10.59852299
Email: [email protected]
China
3-15-7 Ebisu MT Bldg. 6F
Higashi, Shibuya-ku
Tokyo 150-0011
Japan
TEL: 81.3.5466.1637
FAX: 81.3.5466.1638
Email: [email protected]
Japan
Email: [email protected]
Europe
