Viavi Certifier40G Manuale utente

CERTIFIER40G

Fiber Certification Testing

User Manual

Certifier Series (C40G)

Notices

No part of this manual may be reproduced in any form or by any means (including electronic storage

and retrieval or translation into a foreign language) without prior agreement and written consent from

Viavi Solutions as governed by international copyright Laws.

Warranty

The material contained in this document is provided “as is,” and is subject to being changed, without

notice, in future editions. Further, to the maximum extent permitted by applicable law, disclaims

all warranties, either express or implied, with regard to this manual and any information contained

herein, including but not limited to the implied warranties of merchantability and fitness for a

particular purpose. Viavi Solutions shall not be liable for errors or for incidental or consequential

damages in connection with the furnishing, use, or performance of this document or of any

information contained herein. Should Viavi Solutions and the user have a separate written

agreement with warranty terms covering the material in this document that conflict with these

Terms, the warranty terms in the separate agreement shall control.

WARNING

A CAUTION notice denotes a hazard.

It calls attention to an operating procedure, practice, or the like that, if not correctly

performed or adhered to, could result in damage to the product or loss of important

data. Do not proceed beyond a CAUTION notice until the indicated conditions are

fully understood and met.

CAUTION

Operating procedure, practice, if not correctly performed or adhered to, could result

in personal injury or death. Do not proceed beyond a WARNING notice until the

indicated conditions are fully understood and met.

General Safety Information

WARNING

Do not use the device if it is damaged. Before you use the device, inspect the casing. Look for cracks

or missing plastic. Do not operate the device around explosive gas, vapor, or dust.

Always use the device with the cables provided.

Observe all markings on the device before establishing any connection.

When servicing the device, use only the specified replacement parts.

Do not operate the device with the cover removed or loosened.

Use only the power adapter provided by the manufacturer to avoid any unexpected hazards.

CAUTION

If the device is used in a manner not specified by the manufacturer, the device protection may be

impaired.

Always use dry cloth to clean the device. Do not use ethyl alcohol or any other volatile liquid to clean

the device.

Do not permit any blockage of the ventilation holes of the device.

Environmental Conditions

This instrument is designed for indoor use and in an area with low condensation. The table below

shows the general environmental requirements for this instrument

Environmental conditions Requirements

Operating Temperature 0 °C to 40 °C

Operating humidity 20% to 85% RH non-condensing

Relative humidity 10% to 80%

NOTE

The CERTIFIER40G, CERTIFIER10G complies with the following Safety and Regulatory requirements.

DIN EN 55024, Edition:2003-10 (IEC/CISPR 24:1997, modified + A1:2001 + A2:2002); EN 55024:1998 +

A1:2001 + A2:2003

DIN EN 55022; VDE 0878-22:2008-05 (IEC/CISPR 22:2005, modified + A1:2005); EN 55022:2006 +

A1:2007

Regulatory Markings

The CE mark is a registered trademark of the

European Community. This CE mark shows

that the product complies with all the

relevant European Legal Directives.

Manufacturer‘s Name

Psiber Data Pte. Ltd

Manufacturer’s Address

3 Science Park Drive #03-08,

The Franklin Singapore Science Park 1,

Singapore 118223

Declares under sole responsibility that the product as originally delivered

Description

Cable Certification Tester Kit

Equipment

Cable Certifier

Complies with the essential requirements of the following applicable European Directives and

carries the CE marking accordingly:

DIN EN 55024, Edition:2003-10 (IEC/CISPR 24:1997, modified + A1:2001 + A2:2002); EN

55024:1998 + A1:2001 + A2:2003

DIN EN 55022;

VDE 0878-22:2008-05 (IEC/CISPR 22:2005, modified + A1:2005);

EN 55022:2006 + A1:2007

Signature

Arvind C Patel

Quality Management

Psiber Data Pte. Ltd.

www.psiberdata.com

Date :

December 14, 2010

Declaration of Conformity

Contents

Chapter 1: Getting Started ..................................................................................................................8

Unpacking the box

....................................................................................................................... 8

Chapter 2: Configuring Certifier.......................................................................................................10

Certifier User Interface

................................................................................................................ 10

Touch Screen Layout.............................................................................................................. 10

The One Touch Access Buttons ............................................................................................... 12

Chapter 3: Setting Reference............................................................................................................21

Chapter 4: Configuring an AUTOTEST............................................................................................30

Testing Guide for Dual-Ended Testing ...................................................................................... 31

Testing Guide for Single-Ended Loopback Testing...................................................................... 32

Chapter 5: Performing an AUTOTEST .............................................................................................34

Managing test result(s) .......................................................................................................... 35

Exporting test results into J-Report PC Software........................................................................ 36

Chapter 1: Getting Started

Unpacking the box

Single Mode Fiber

Single Mode Adapters

SC-SC Duplex Reference Cords

Mating Coupler

Multi Mode Fiber

Multi Mode Adapters

SC-SC Duplex Reference Cords

Mating Coupler

Encircled Flux Compliant Multi Mode Fiber

EF Compliant MM Adapters

FC-SC Modally Transparent

Reference Cords SC-SC Tail

Cords

Mating Coupler

Optional SM/MM/MMEF LC Cord Kits available.

Chapter 2: Configuring Certifier

Certifier User Interface

Touch Screen Layout

The Graphical User Interface (GUI) in version 7.0’s firmware has been updated with a more

responsive system and quick-access menus.

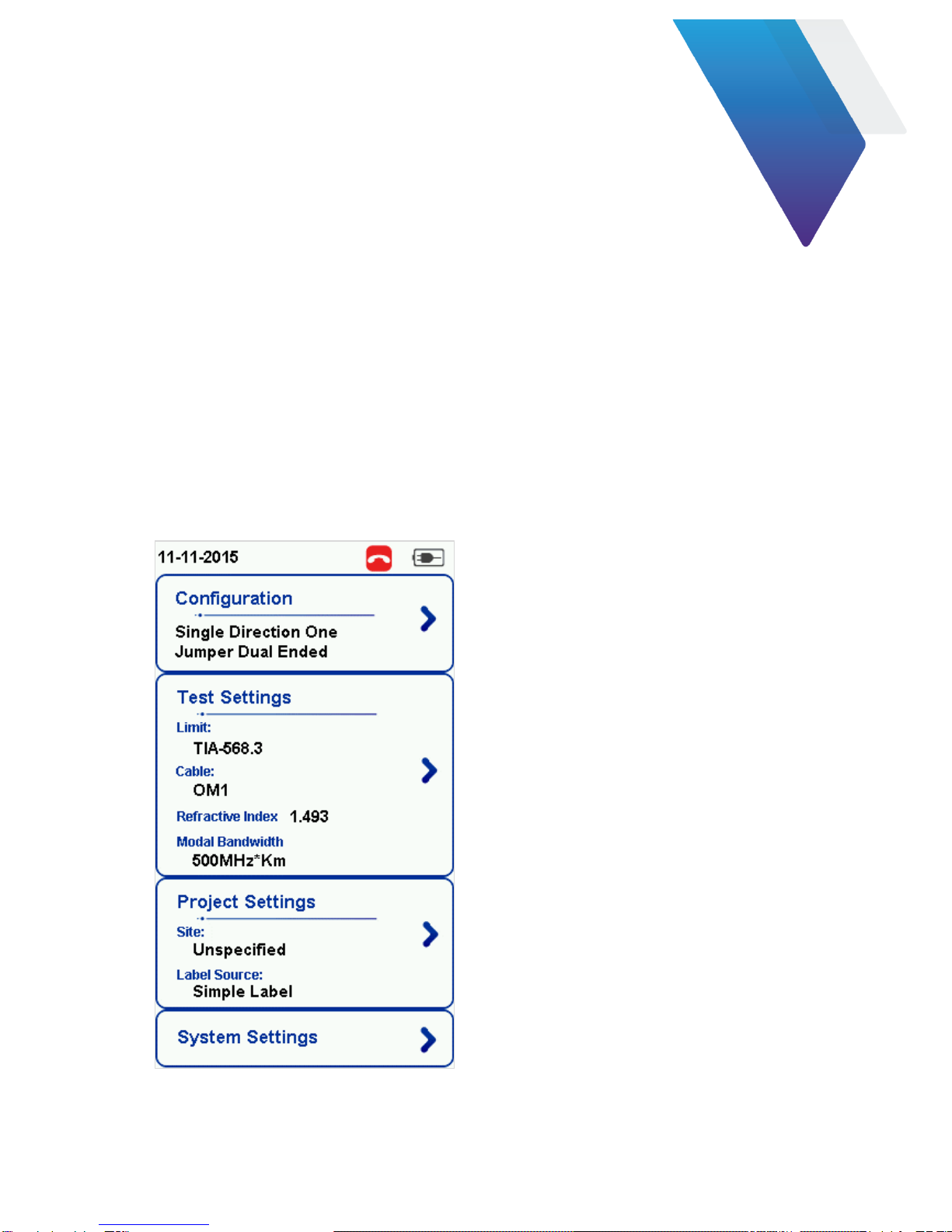

Certifier boots up to the SETUP screen. It is categorised into 5 groups:

1. Status bar

2. Configuration group

3. Test Settings group

4. Project Settings group

5. System Settings group
