Vivo MOUNT-PC04L Manuale utente
Large Heavy Duty Under Desk PC Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-pc04l
SKU: MOUNT-PC04L
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

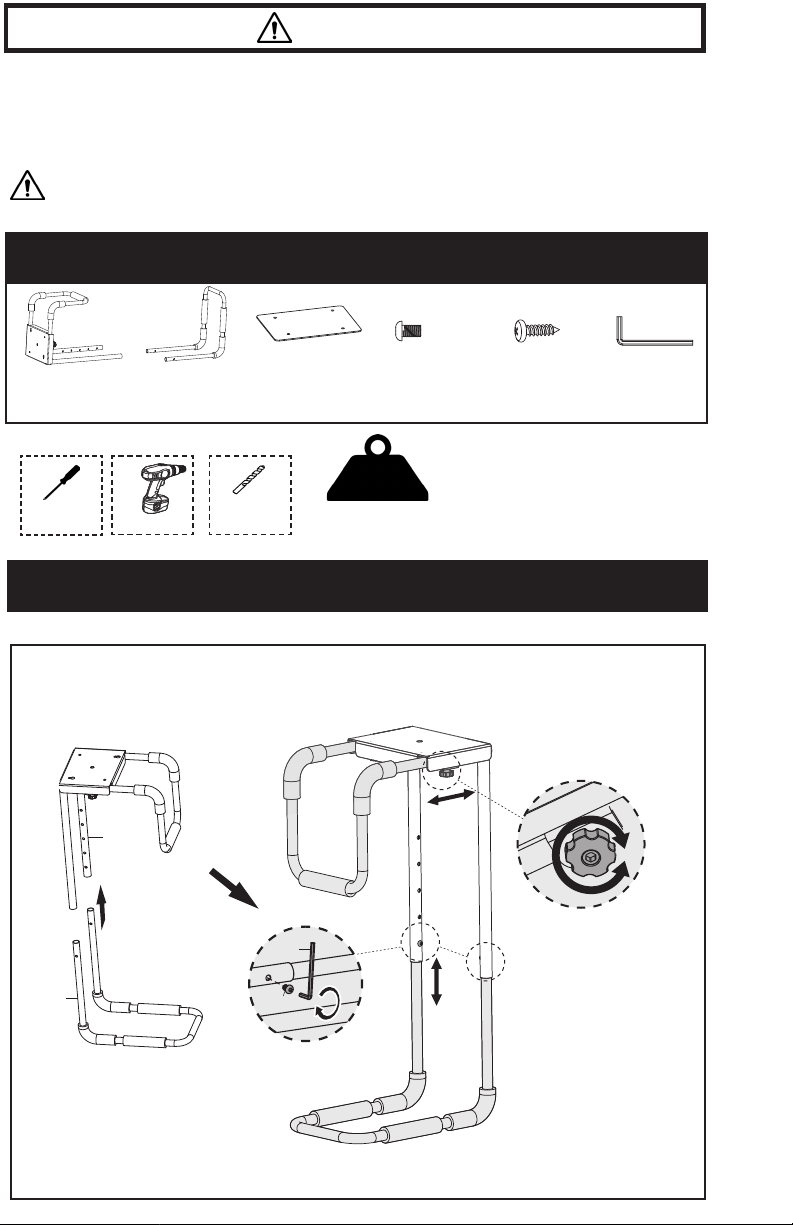

ASSEMBLY STEPS
STEP 1
PACKAGE CONTENTS
A (x1)
Mount Top
B(x1)
Support Bar
C(x1)
Template
S-A (x2)
M6x10mm
Screw
S-B (x4)
ST5.5x19mm
Screw
T-A (x1)
4mm Allen
Wrench
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect
assembly or inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
66lbs
(30kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
TOOLS NEEDED
Phillips
Screwdriver Drill
4mm Drill
Bit
B
A
Connect Mount Top (A) to Support Bar (B). Place your PC into the assembled mount and loosen the
knobs on the top of the PC mount to adjust to the desired width. Install M6x10mm Screws (S-A) when
at desired height. Tight knobs.
T-A
S-A
3
STEP 4 STEP 5
STEP 2 STEP 3
STEP 6
Using Template (C), mark drilling locations on the
underside of the desktop in the desired location.
Slide assemlbed mount into place using the
keyhole slots on the top plate and fully secure
the ST5.5x19mm Screws (S-B) using a Phillips
screwdriver.
Screw in the remaining ST5.5x19mm Screws (S-B)
using phillips head screwdriver.
Use a 5/32 (4mm) drill bit to drills holes 0.6”
(16mm) deep. Screw in ST5.5x19mm Screws (S-B)
inline with the keyhole slots on the mount, using
a phillips head screwdriver, leaving ⅛” (3mm) of
space between the desktop and the screw head.
C
S-B
S-B
Place CPU tower in mount. Adjust support bars if needed.
S-B
LAST UPDATED: 05/08/2023
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
