Vivo PP-DK12B Manuale utente
Black Clamp-on Desk Back Panel & Accessory Holder
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/pp-dk12b
SKU: PP-DK12B
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or
inappropriate use.

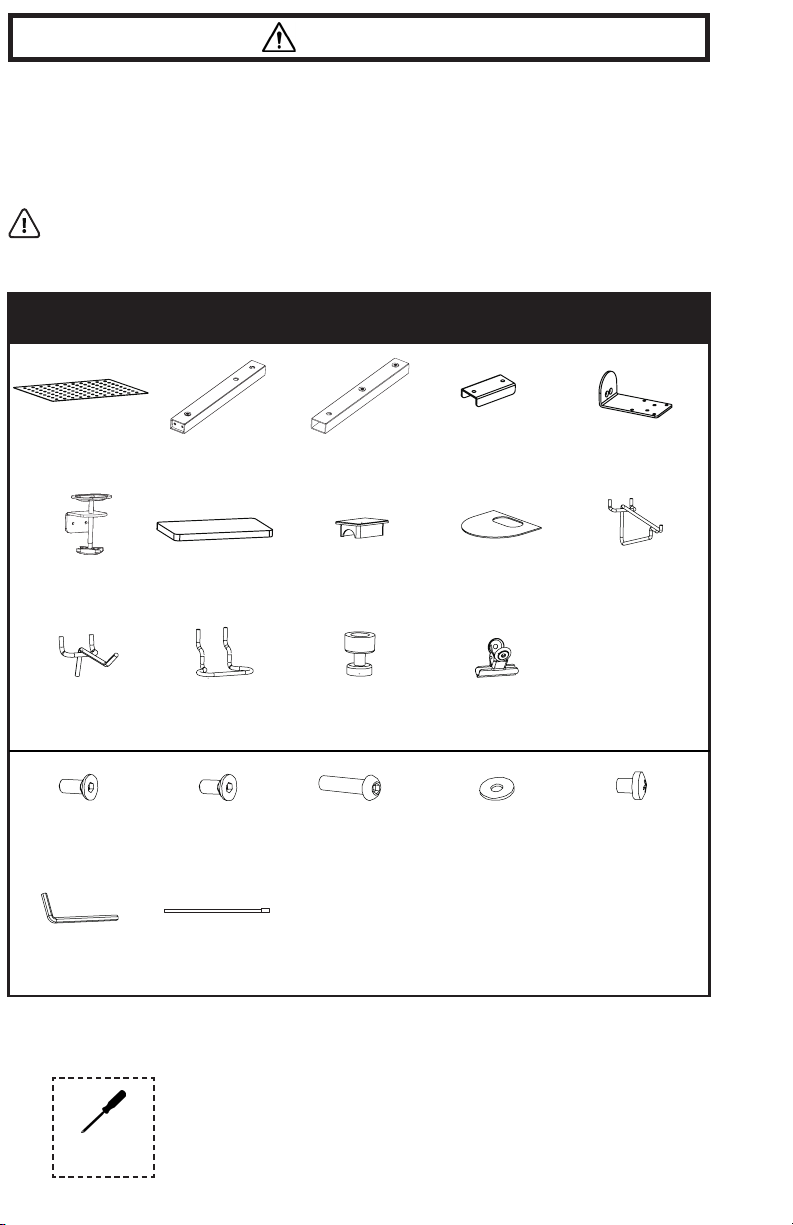

PACKAGE CONTENTS
WARNING!
A (x2)
Peg Board
TOOLS NEEDED
Phillips
Screwdriver
B (x1)
Lower Pole
D (x1)
Connecting
Bracket
S-A (x2)
M6x16mm
Screw
S-C (x5)
M6x25mm
Screw
C (x1)
Upper Pole
S-B (x2)
M6x8mm
Screw
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
S-E (x4)
M6x5mm
Screw
S-D (x5)
M6 Washer
G (x1)
Shelf
F (x1)
Clamp
E (x1)
Clamp Brace
T-A (x1)
4mm Allen Wrench
T-B (x4)
Ziptie
H (x1)
Pole Cap
I (x1)
Pad
J (x2)
Shelf
Hook
L (x1)
Square Edge
Hook
K (x1)
Straight Hook
M (x4)
Magnet
N (x1)
Clip
3
Above Mounting
Single Panel Assembly (pg 3-4)
Double Panel Assembly (pg 3, 5-6)
Above & Under Mounting
Double Panel Assembly (pg 7)
Accessory Placement
All Assembly Options (pg 8-9)
Under Desk Cable Management
Single Panel Assembly (pg 8-9
Double Panel Assembly (pg 8-9)

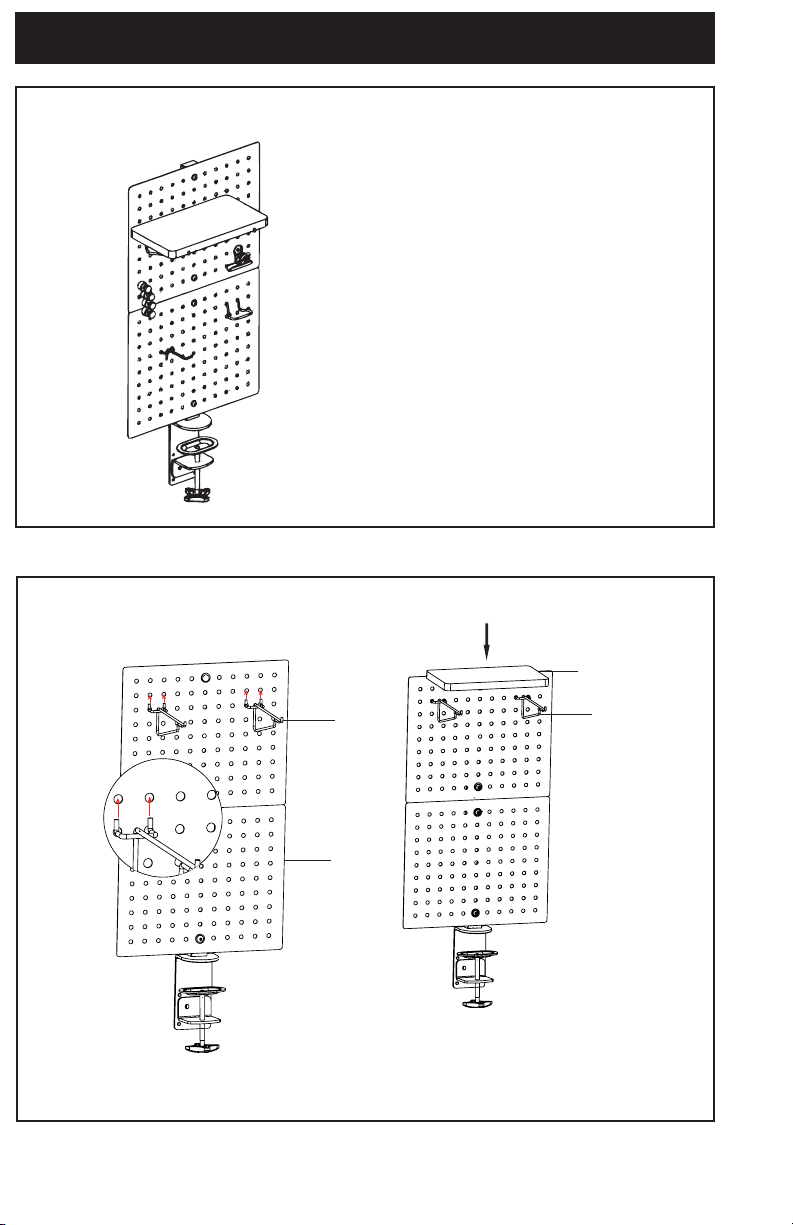

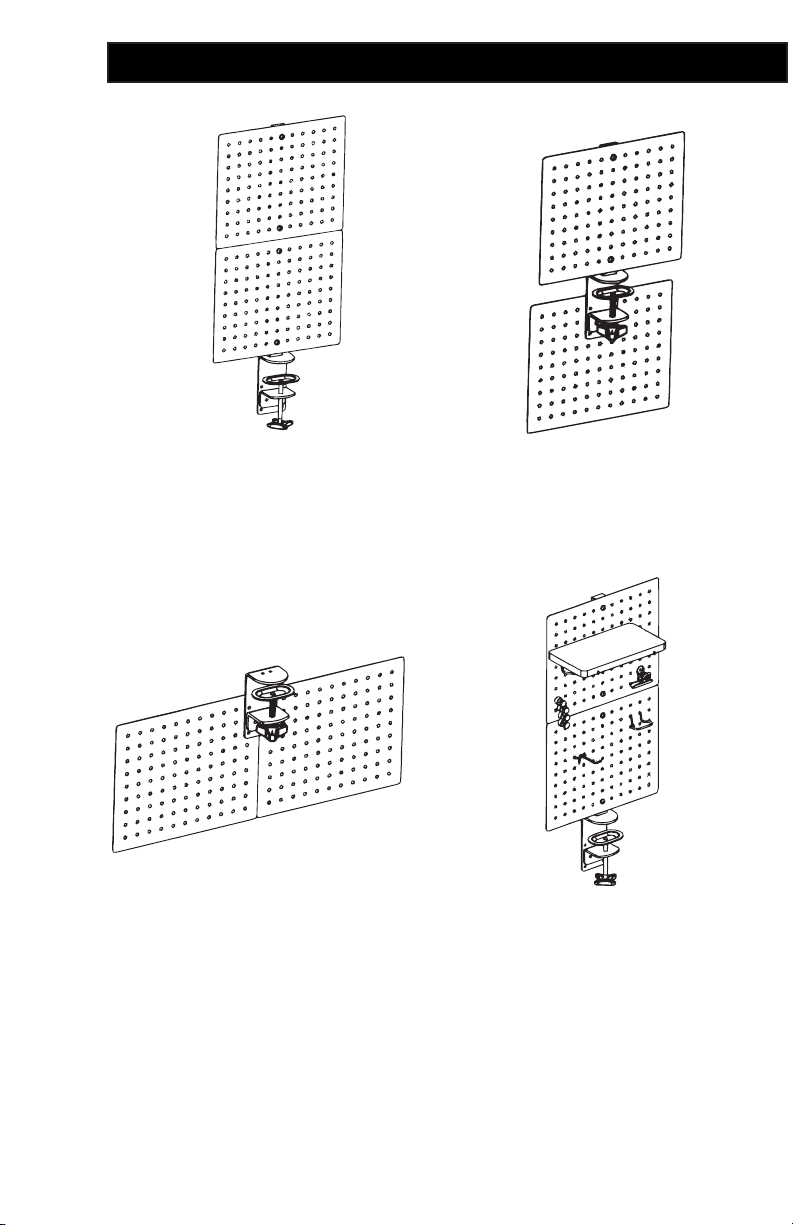

ASSEMBLY OPTIONS:
4

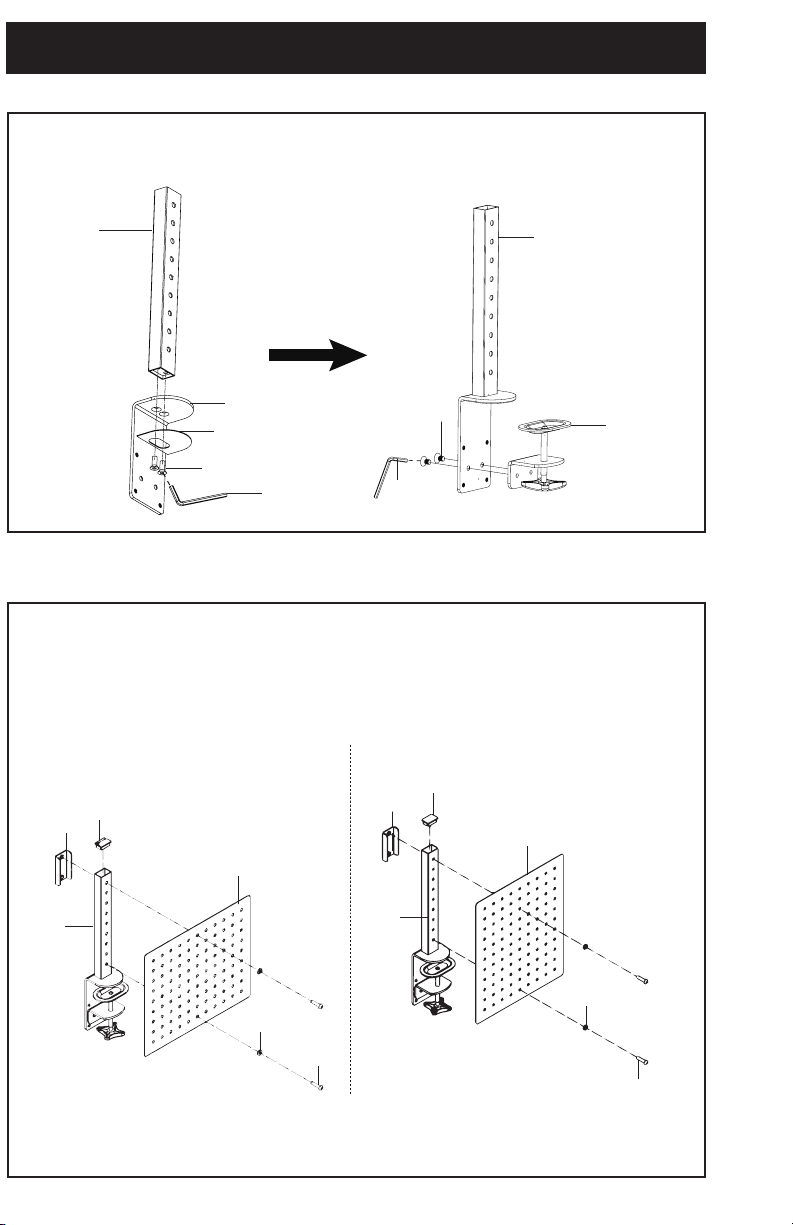

STEP 2a: Single Panel Assembly
HORIZONTAL ORIENTATION
H
D
B
A
S-D
S-C
OR
Choose horizontal or vertical installation orientation and connect Peg Board (A) and Connecting
Bracket (D) to front of Lower Pole (B) using M6x25mm Screws (S-C), M6 Washers (S-D) and 4mm
Allen Wrench (T-A). Place Pole Cap (H) on top of Lower Pole (B).
NOTE: Use the top hole on the Connecting Bracket (D). The bottom hole will not be used
VERTICAL ORIENTATION
H
D
B
A
S-D
S-C
STEP 1
Connect Lower Pole (B) and Pad (I) to Clamp Brace (E) using M6x16mm Screws (S-A) and 4mm Allen
Wrench (T-A). Secure Clamp (F) to Clamp Brace (E) using M6x8mm Screws (S-B) and 4mm Allen
Wrench (T-A). NOTE: Make sure the pegboard holes are facing forward as shown below.
B
E
F
B
T-A
S-B
I
T-A
S-A
ASSEMBLY OPTION A: Above Mounting Only
5
VERTICAL ORIENTATION
VERTICAL ORIENTATION
HORIZONTAL ORIENTATION
HORIZONTAL ORIENTATION
Choose horizontal or vertical installation orientation and connect Peg Board (A) and Connecting
Bracket (D) to Lower Pole (B) using M6x25mm Screws (S-C), M6 Washers (S-D), and 4mm Allen
Wrench (T-A).
Note: Use bottom hole of Connecting Bracket (D).
Connect Upper Pole (C) to Peg Board (A)
and Connecting Bracket (D) using M6x25mm
Screws (S-C), M6 Washers (S-D) and 4mm
Allen Wrench (T-A).
Slide Upper Pole (C) into Connecting Bracket (D).
D
D
C
C
D
D
AA
S-C
S-C
S-D
S-D
STEP 2b: Double Panel Assembly
BB
A
S-C
S-D
6
VERTICAL ORIENTATIONHORIZONTAL ORIENTATION
Connect second Peg Board (A) to Upper Pole (C) using M6x25mm Screws (S-C), M6 Washers (S-D),
and 4mm Allen Wrench (T-A). Attach Pole Cap (H) to top of Upper Pole (C).
STEP 2b: Double Panel Assembly (Continued)
A
S-D
S-D
S-C
S-C
A
H
C
C
H
7
Connect Peg Board (A) and Connecting Bracket (D) to Lower Pole (B) using M6x25mm Screws (S-C),
M6 Washers (S-D) and 4mm Allen Wrench (T-A). Attach other Peg Board (A) to back of Clamp Brace (E)
using M6x5mm Screws (S-E) and a Phillips screwdriver. Place Pole Cap (H) on top of Lower Pole (B).
NOTE: Use the top hole on the Connecting Bracket (D). The bottom hole will not be used
STEP 2
H
D
A
E
S-D S-E
S-C
B

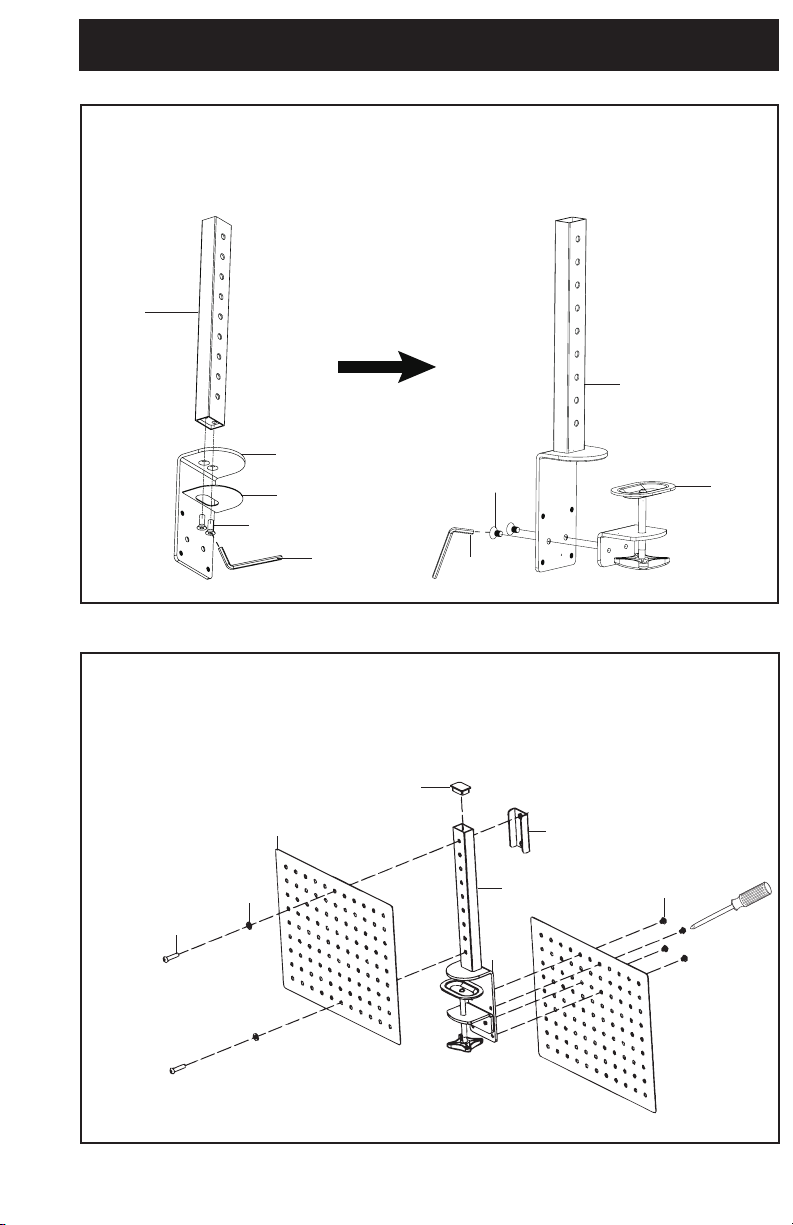

ASSEMBLY OPTION B: Above & Below Mounting
STEP 1
Connect Lower Pole (B) and Pad (I) to Clamp Brace (E) using M6x16mm Screws (S-A) and 4mm Allen
Wrench (T-A). Secure Clamp (F) to Clamp Brace (E) using M6x8mm Screws (S-B) and 4mm Allen
Wrench (T-A).
NOTE: Make sure the pegboard holes are facing forward as shown below.
B
E
F
B
T-A
S-B
I
T-A
S-A
8
ASSEMBLY OPTION C: Under Desk Cable Management
IF
S-B
E
T-A
Secure Clamp (F) and Pad (I) to Clamp Brace (E) using M6x8mm Screws (S-B) and 4mm Allen
Wrench (T-A).
STEP 1
S-E
E
T-B
A
Connect Peg Board (A) to front of Clamp Brace (E) using M6x5mm Screws (S-E) and a Phillips
screwdriver. Use provided Zip Ties (T-B) for managing under desk cables.
STEP 2a: Single Panel
9
S-E
E
T-B
A
Connect Peg Boards (A) to front of Clamp Brace (E) using M6x5mm Screws (S-E) and a Phillips
screwdriver. Use provided Zip Ties (T-B) for managing under desk cables.
STEP 2b: Double Panel
10
ACCESSORY PLACEMENT
Shelf Mounting
Place Shelf Hooks (J) at desired height on Peg Board (A) and then place Shelf (G) on Hooks so that
magnets on edge make contact with Peg Board (A).
Note: Accessories can be placed and used as
desired. The following steps shows one way to
mount/install accessories and uses the double
panel horizontal assembly as an example.
J
A
J
G
