Vivotek AE-252 Manuale utente

IP Surveillance

Installation Guide

Using

AE-251/-252 Outdoor Enclosure,

AE-201/-202 Indoor Enclosure,

AM-114 Pendant Head (outdoor),

AM-116 and AM-117 Pendant Pipes,

AM-221 Gooseneck,

AM-212 Wall-mount bracket,

AM-311 Pole Mount,

AM-411 Corner Mount,

AM-711 Junction Box.

VIVOTEK IP8152 Mini Box Series

Outdoor Enclosure

Rev. 1.0

IP8152_housing_ig_VVTK_v1.0_20121206.indd 1 2013/1/10 下午 01:36:27

AE-251 and AE-252 Outdoor Enclosure Package Contents

Revison History:

Rev. 1.0: Initial release.

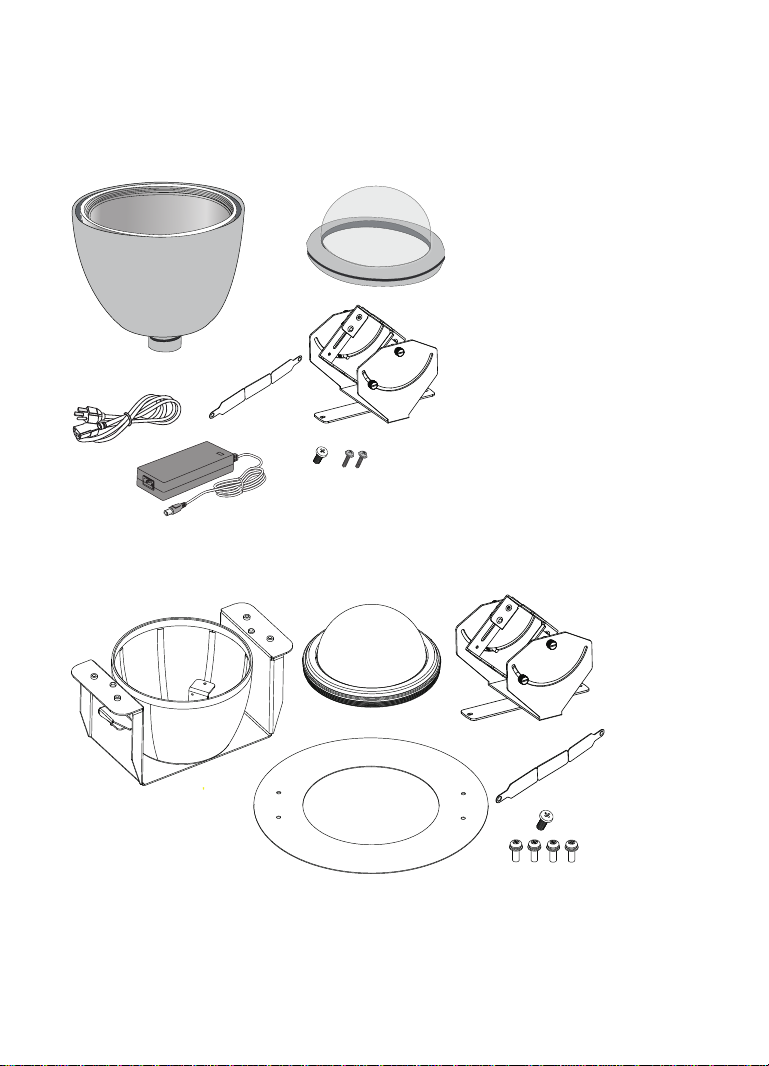

1. Enclosure.

2. Dome cover.

3. Power supply with cable.

4. Camera Mount bracket.

5. Dome clearance

measurement tool.

6. Screws.

AE-201 and AE-202 Indoor Recess Mount Housing Package Contents

1. Enclosure (indoor).

2. Dome cover.

3. Trim ring.

4. Camera Mount bracket.

5. Dome clearance measurement tool.

6. Screws.

IP8152_housing_ig_VVTK_v1.0_20121206.indd 2 2013/1/10 下午 01:36:28

English

Compatible VIVOTEK Cameras

AE-201

AE-202

AE-251

AE-252

IP8152

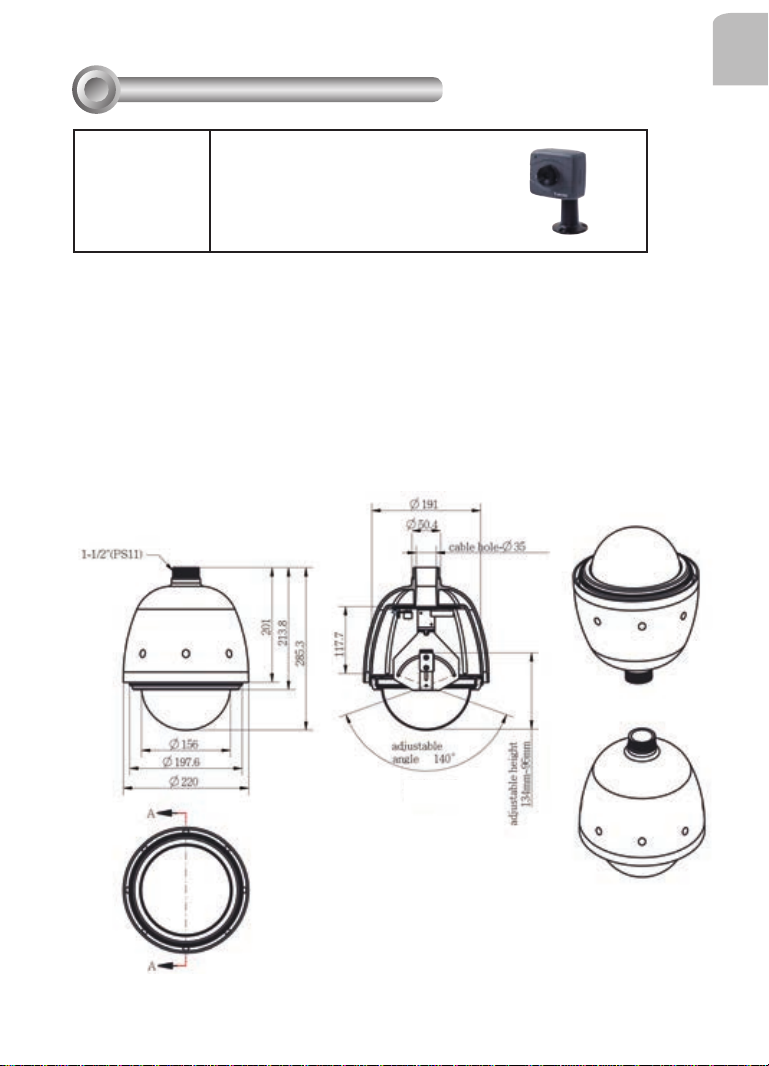

Mechanical Dimensions

IP8152_housing_ig_VVTK_v1.0_20121206.indd 3 2013/1/10 下午 01:36:29

IP8152_housing_ig_VVTK_v1.0_20121206.indd 4 2013/1/10 下午 01:36:34

English

Compatible Accessories (2): AM-311 Pole Mount

Bracket

Compatible Accessories (3): AM-411 Corner Mount Bracket

Compatible Accessories

Warning:

1. Select a suitable location where the camera is free from accidental damage, tampering,

or harsh environmental conditions.

2. Locate a place for the installation where the camera can not be intentionally or

unintentionally interfered.

3. Select a solid and at mounting surface that can support the combined weight of the

camera and associated hardware. Vibration and temperature ranage should also be

taken into consideration.

Compatible Accessories (1-1): AM-221 Gooseneck Bracket

Compatible Accessories (1-2): AM-212

Wall-mount Bracket

IP8152_housing_ig_VVTK_v1.0_20121206.indd 5 2013/1/10 下午 01:36:36

Compatible Accessories (4): AM-711 Junction Box

Compatible Accessories (5-2): AM-116 and AM-117 Pendant Pipe

Compatible Accessories (5-1): AM-114 Pendant Head

IP8152_housing_ig_VVTK_v1.0_20121206.indd 6 2013/1/10 下午 01:36:37

English

Mounting & Cabling with Outdoor Enclosures

3-1. Installing Camera to AE-251 and AE-252 Housing

Below is a general sample procedure using an outdoor enclosure:

1. Use a Phillips screwdriver to loosen the 2 screws on the sides of the camera bracket.

2. Detach the inner bracket by loosening the

four thumb screws on the sides.

IP8152_housing_ig_VVTK_v1.0_20121206.indd 7 2013/1/10 下午 01:36:38

3. The IP8152 supports 4 different lens modules. If you are installing the larger lens [AL-

231(2.8-12mm), and AL-234(5-50mm)], you need to remove the inner bracket and install

it in the opposite direction as shown below. Tighten the hand screws from the sides.

4. Reverse the inner bracket if the larger lens (AL-231 and AL-234) are used. Secure the

inner bracket from the sides as illustrated below.

-- 1

-- 3

-- 5

-- 7

-- 9

-- 11

-- 13

-- 15

2 --

4 --

6 --

8 --

10 --

12 --

14 --

16 --

-- 1

-- 3

-- 5

-- 7

-- 9

-- 11

-- 13

-- 15

2 --

4 --

6 --

8 --

10 --

12 --

14 --

16 --

Smaller lens:

Mounted on the

outer edge of

bracket

Larger lens:

Mounted inside the bracket

IP8152_housing_ig_VVTK_v1.0_20121206.indd 8 2013/1/10 下午 01:36:41

English

5. Secure camera to the bracket assembly by driving a athead screw.

6. Bend the included measurement

tool into a rectangular arch.

Attach the measurement tool

to the top of camera lens to

ensure your lens will not get in

the way when the dome cover

is installed.

The vertical length of the

measurement tool equals the

clearance between the bracket

and the dome cover.

IP8152_housing_ig_VVTK_v1.0_20121206.indd 9 2013/1/10 下午 01:36:42

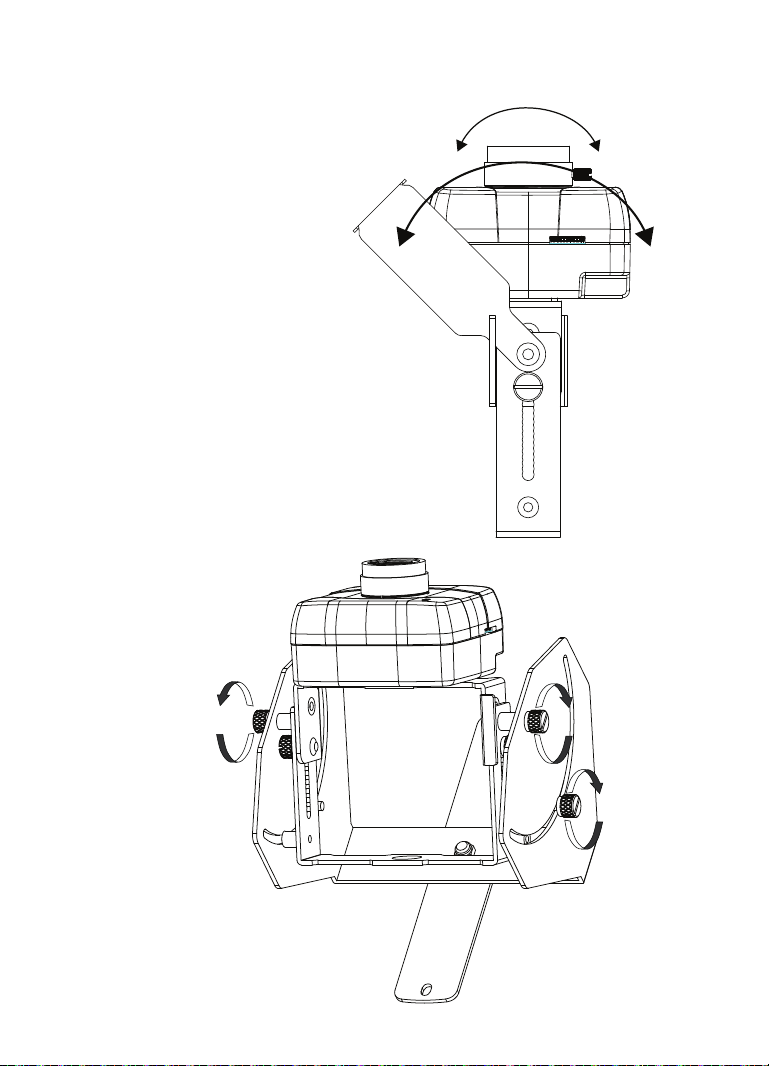

You should also swing the measurement tool and the camera back and forth to make

sure there is enough clearance at different shooting angles. You can make adjustments

by changing the camera's position along the bracket.

7. Secure the camera to the large base bracket by fastening

the 4 thumb screws while you orient your camera's

shooting direction.

IP8152_housing_ig_VVTK_v1.0_20121206.indd 10 2013/1/10 下午 01:36:43
