INTRODUCTION
Before you begin on your journey, a word of caution.
In the comfort of your own home you are about to assemble a robot. This
machine can maim, burn, and electrocute you if you are not careful. Please
do not become the rst VORON fatality. There is no special Reddit air for that.
Please, read the entire manual before you start assembly. As you begin wrenching,
please check our Discord channels for any tips and questions that may halt your progress.
Most of all, good luck!
THE VORON TEAM
WWW.VORONDESIGN.COM
M5 T-Nut
Deck Panel
Front
Back
FLIP PRINTER UPSIDE DOWN
It’s easier working with gravity
than against it. But make sure
the rail carriages are secure
before doing so.
DECK PANEL
NOTCH TO THE BACK
01
WWW.VORONDESIGN.COM
ALIGN T-NUTS WITH HOLES
Position the 4 T-nuts so they are directly
below the 4 holes in the deck panel.
M5x10 BHCS
DIN Rails
DECK PANEL
OPTIONAL
The M5 washer are to be used if there is space
left between the paneling and DIN bars.
If this space were to remain, the paneling and
DIN bars could move.
DIN RAIL SLOTS
If the slots in the rails do not line up with
the t-nut you can shorten the DIN rails
by a few mm.
M5Washer
02
WWW.VORONDESIGN.COM
PRINT BED
03
WWW.VORONDESIGN.COM
Back
Front
Top
Top
Back
Front
Bottom
Top
WHICH SIDE IS WHICH?
The top of the plate has mounting holes with bores that allow
boltheads to sit ush/below the surface.
The plate has additional tapped holes to secure the Protective
Earth (PE) connection and a thermal fuse, those are on the
back side of the plate.
OVERVIEW
04
WWW.VORONDESIGN.COM
MAGNET APPLICATION
Remove any protective film if present on the aluminium
plate.
Clean the plate with isopropyl alcohol or similar cleaner
prior toapplying the magnet.
Use the edge of a plastic object or a small roller to firmly
press the magnet on the plate to get a good bond from
the adhesive backing.
If you have never done this before we recommend you
watch the linked guide.
https://voron.link/rm6tpld
Top
HEATED BED
05
Note:
Slots can be made with a cutter to access the mounting
holes in the aluminium plate.
WWW.VORONDESIGN.COM
HEATER APPLICATION
The heater is installed in the same fashion as the magnet.
Centre it on the bottom side of the build plate and make
sure to rmly press it on the build plate.
Back
Bottom
HEATED BED
06
WWW.VORONDESIGN.COM
M3x12 SHCS

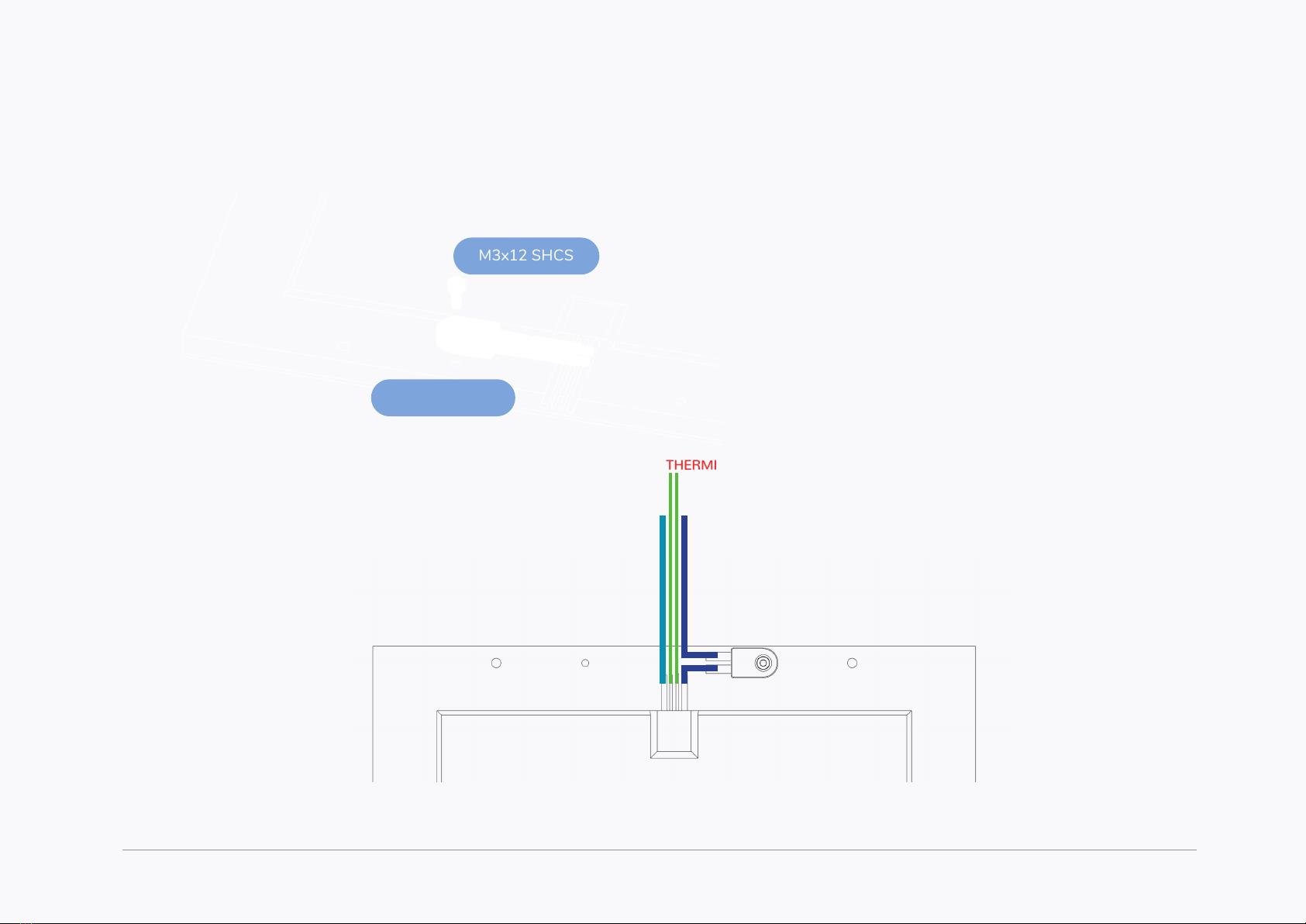

THERMAL FUSE
While not required to operate the printer, a thermal fuse
attached to the build plate adds an additional layer of
protection against potentially dangerous malfunctions.
The thermal fuse is wired in-line with the heater wires.
Depending on the tapped holes in the plate you may
need to use a shorter bolt.
THERMISTOR WIRES
HEATER WIRES
HEATED BED
OPTIONAL:
You can put thermal paste between the fuse and the aluminum printing bed.
Thermal Fuse
07
WWW.VORONDESIGN.COM
M4x6 BHCS
Ring Terminal
PROTECTIVE EARTH (PE)
1mm²(AWG18) or larger
HEATED BED
08
