VORON VORON0 Manuale utente

WWW.VORONDESIGN.COM

VERSION 2021-06-13

VORON0 ASSEMBLY MANUAL

We build space shuttles with gardening tools

so anyone can have a space shuttle of their own.

VORON

WWW.VORONDESIGN.COM

INTRODUCTION

Before you begin on your journey, a word of caution.

In the comfort of your own home you are about to assemble a robot. This

machine can maim, burn, and electrocute you if you are not careful. Please

do not become the rst VORON fatality. There is no special Reddit air for that.

Please, read the entire manual before you start assembly. As you begin wrenching,

please check our Discord channels for any tips and questions that may halt your progress.

Most of all, good luck!

THE VORON TEAM

WWW.VORONDESIGN.COM

TABLE OF CONTENTS

Introduction

Hardware

Frame

A/B Drive

A/B Idler

Z Axis

X Axis

Belts

Print Bed

End Stops

Print Head

Electronics

Skirts & Panels

Top Hat

080

088

098

104

124

142

152

WWW.VORONDESIGN.COM

INTRODUCTION

PART PRINTING GUIDELINES

The Voron Team has provided the following print guidelines for you to follow in order to have the best chance at

success with your parts. There are often questions about substituting materials or changing printing standards, but

we recommend you follow these.

3D PRINTING PROCESS

Fused Deposition Modeling (FDM)

MATERIAL

ABS

LAYER HEIGHT

Recommended: 0.2mm

EXTRUSION WIDTH

Recommended: Forced 0.4mm

INFILL TYPE

Grid, Gyroid, Honeycomb, Triangle or Cubic

INFILL PERCENTAGE

Recommended: 40%

WALL COUNT

Recommended: 4

SOLID TOP/BOTTOM LAYERS

Recommended: 5

PRINT IT FORWARD (PIF)

Often times community members that have issues printing ABS will bootstrap themselves into a VORON using

our Print It Forward program. This is a service where approved members with VORON printers can make you a

functional set of parts to get your own machine up and running.

Check Discord if you have any interest in having someone help you out.

WWW.VORONDESIGN.COM

INTRODUCTION

HOW TO GET HELP

If you need assistance with your build, we’re here to help. Head on over to our Discord group and post

your questions. This is our primary medium to help VORON Users and we have a great community that

can help you out if you get stuck.

https://discord.gg/voron

THIS IS JUST A REFERENCE

This manual is designed to be a simple reference manual. Building a Voron can be a complex endeavour

and for that reason we recommend downloading the CAD les off our Github repository if there are

sections you need clarication on. It can be sometimes be easier to follow along when you have the

whole assembly in front of you.

https://github.com/vorondesign

https://docs.vorondesign.com/

DOCS

WWW.VORONDESIGN.COM

BUTTON HEAD CAP SCREW (BHCS)

Metric fastener with a domed shaped

head and hex drive. Most commonly

found in locations where M3 fasteners

are used.

ISO 7380 -1

SOCKET HEAD CAP SCREW (SHCS)

Metric fastener with a cylindrical head

and hex drive. The most common

fastener used on the Voron.

ISO 4762 / DIN 912

HEX NUT

Hex nuts couple with bolts to create a

tight, secure joint. You’ll see these used in

both M2 and M3 variants throughout this

guide.

ISO 4032 / DIN 934

LOCK NUT

Hex nut with a nylon lled center which

prevents the components from loosening.

ISO 10511 / DIN 982

FLAT HEAD COUNTERSUNK SCREW (FHCS)

Metric fastener with a cone shaped head and

a at top.

ISO 10642

PULLEY

GT2 pulley used on the motion system

of the Voron.

HARDWARE REFERENCE

WWW.VORONDESIGN.COM

HARDWARE REFERENCE

HEAT SET INSERT

Heat inserts with a soldering tip so that

they melt the plastic when installed.

As the plastic cools, it solidies around

the knurls and ridges on the insert for

excellent resistance to both torque and

pull-out.

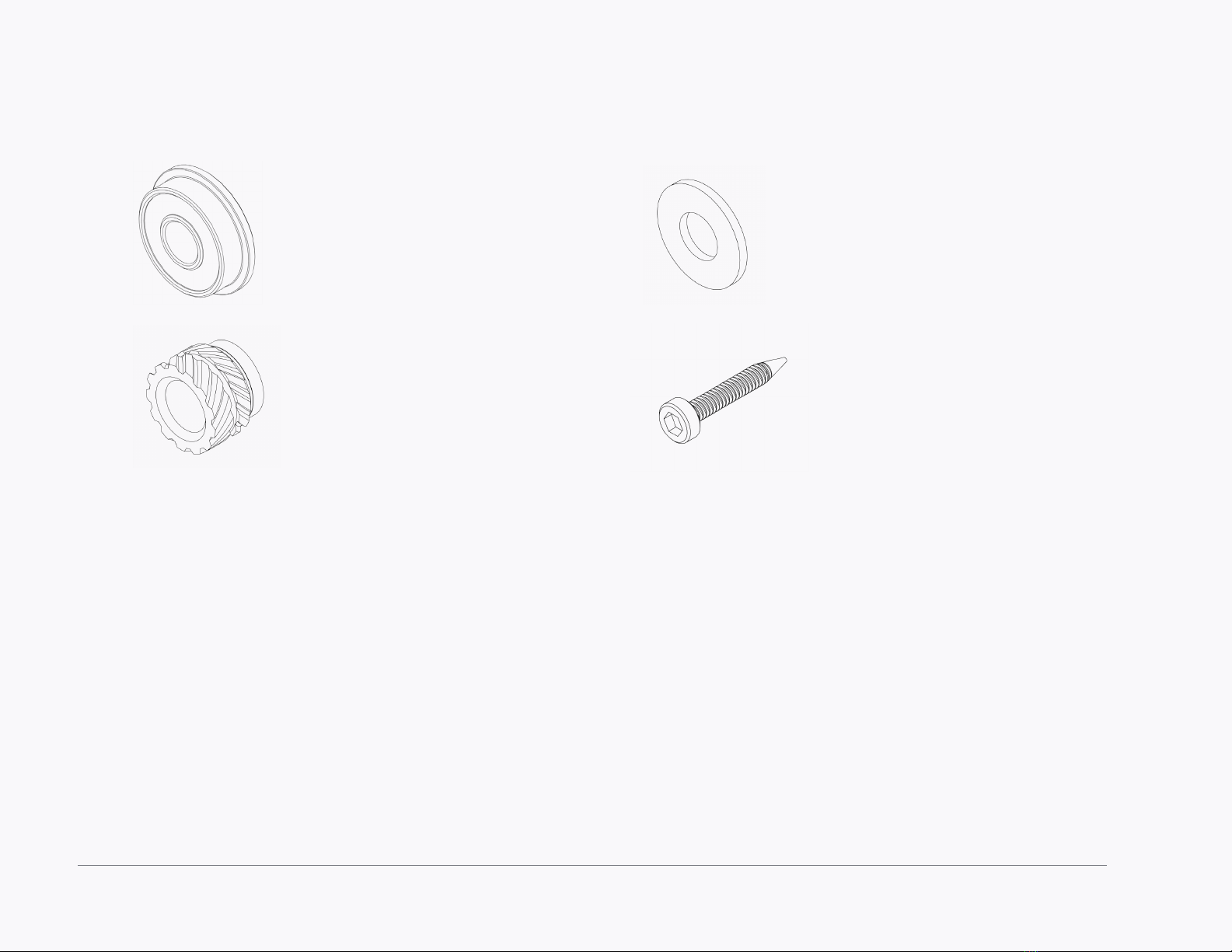

F623 BEARING

A ball bearing with a ange used in

various gantry locations.

SHIM

Not to be confused with stamped

washers. These are used in all M3 call-out

locations in this manual. 3x6x0.5

DIN 988

SELF TAPPING SCREW

Fastener with a pronounced thread

prole that is screwed directly into

plastic.

WWW.VORONDESIGN.COM

INTRODUCTION

BLIND JOINT BASICS

Blind Joints provide a cost effective and rigid assembly method.

The head of the BHCS is slid into the channel of another

extrusion and securely fastened through a small access hole in

the extrusion.

WWW.VORONDESIGN.COM

BALL-END DRIVER

Some parts of this design require the use of a

ball-end hex driver for assembly. We recommend

you get a 1.5mm, 2mm and 2.5mm one.

INTRODUCTION

2MM HEX DRIVER

The 2mm hex driver will see a lot of use in this

build. A quality driver is strongly recommended.

Refer to the sourcing guide for suggestions.

WWW.VORONDESIGN.COM

EXTRUSION REFERENCE

“A EXTRUSION”

Qty 1

“C EXTRUSION”

Qty 2

“D EXTRUSION”

Qty 2

“B EXTRUSION”

Qty 5
