Welcome to Vutility!
We’re glad you’re here. We’ve created the HotDrop™ and
Vutility to help you analyze your power consumption.
e HotDrop installation is simple and it’s as easy as a clip
of the latch. You’ll be gaining valuable data on your energy
consumption in minutes.
is guide will walk you through all the necessary steps to
get your HotDrops installed and transmitting data.
If you have any questions, our support team is always
available to help.
(833) 895-9111 | support@vutility.com
4
Getting Started
1CREATE YOUR VUTILITY ACCOUNT
You’ll receive an e-mail from us to start. Once you receive
the e-mail, create a password and sign-in to Vutility-Pulse.
You’ll use Vutility-Pulse to access HotDrop visualizations.
2DOWNLOAD LINK INSTALLER APP
Download the Vutility-Link app on your mobile phone.
Vutility-Link will help you during the installation process.
The same username and passcode as Vutility-Pulse will be
used for Vutility-Link.
5
vutilittility
• Tap Setup.
• Tap the icon.
• Select the Location button.
• Name the location (HVAC 1,
Lighting 2)
• Set the location type based on your organization’s
structure (Campus, Zone, Building, Floor).
• Save the location.
Identify Locations
1SCOPE NECESSARY LOCATIONS
2INPUT LOCATIONS IN LINK APP
Identify the locations that you would like to
monitor. You can nd more information about
scoping your site in our scoping document.
Once you determine the location, go to step 2. Scoping
Guide
6
Gateway Installation
Now, let’s set up your gateway. The device
should be within a few hundred feet of the
HotDrop, in any direction. The gateway
can transmit via ethernet or cellular data.
Ensure that the gateway can export by
checking the LED indicator light.
If using an ethernet connection:
• Verify left and right LED lights are on and blinking
• Verify gateway is able to access Port-1700
If using cellular data:
• Verify SIM card is activated
• LED blinks when SIM is registered with carrier and
transmitting data.
1INSTALL LoRaWAN GATEWAY
HOTDROP GATEWAY
7
vutilittility
2ONBOARD GATEWAY INTO LINK
If you received a LoRaWAN gateway from Vutility, select
LoRaWAN gateway when prompted. You will need to
select the correct application server for your LoRaWAN
region. This will need to match the application server
selected when you add a HotDrop.

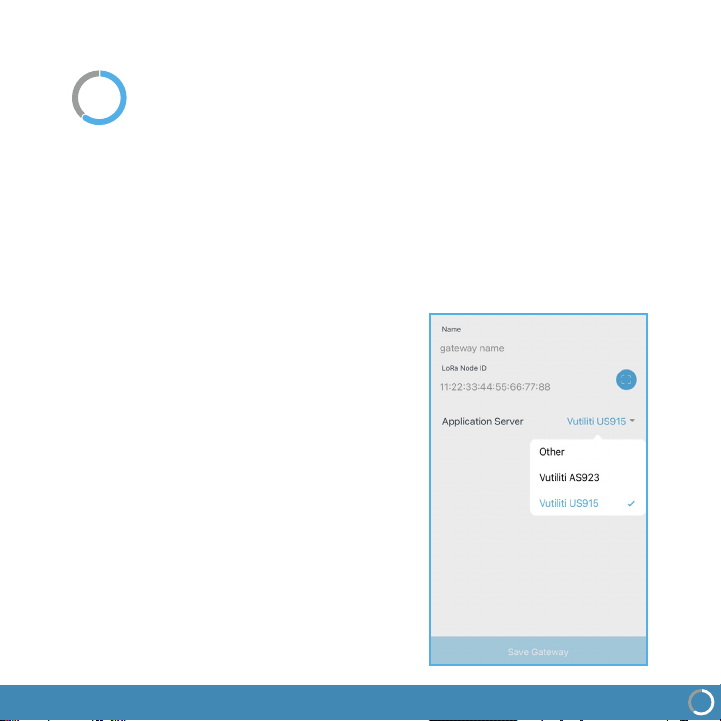

Add a name for the gateway and
input the application server.
• In North America, select "Vutility US915"
• In the APAC Region, select "Vutility
AS923"
• Third-party gateways, select “other”
If you are using another LoRaWAN
gateway and select “other” you will
need to add the HotDrops to the
LoRaWAN provider’s platform.
8
3Check Gateway Status
Make sure Multitech gateway can export data.
If using an ethernet connection:
• Verify left and right LED lights are on and blinking
• Verify gateway is able to access Port-1700
If using cell data backhaul:
• Verify SIM card is activated
• LED blinks when SIM is registered with carrier and
transmitting data.
Status Blinks when operating system is fully loaded
LoRa Lights when LoRa software is active
Cell Cellular models only. Lights when there is power to the radio. Blinks
when the SIM is registrered with the carrier.
WIFI Reserved for future use.
Ethernet
Link
Le LED on the ethernet connector. Blinks when data is sent or received
on the Ethernet link. Steady light when there is a valid etehernet
conenction
Ethernet
Speed
Right LED on the Ethernet connector. Lit when the Ethernet is linked at
100 Mbps. If not, illuminated, the Ethernet is linked at 10 Mpbs.
9
vutilittility
Ensure that the Gateway is online and communicating
with HotDrops.
Vutility Server: Has the gateway seen Vutility devices?
• Online: yes
• Oine: no
AppServer: Is the
gateway connected
to Vutility’s cloud?
• Online: yes
• Oine: no
Server
Gateway not
connected
to cloud
Gateway
connected to
cloud but not
Vutility devices
Gateway
connected to
the cloud and
Vutility devices
Vutility Offline Offline Online
AppServer Offline Online Online
10
Install HotDrops
1LOCATE CIRCUIT BREAKER PANEL
The following steps are for each HotDrop that you will
install.
