VWR V-1200 Manuale utente
VWR Collection Manual ver 1, rel 15.05.2007
V-1200 Spectrophotometer
INSTRUCTION MANUAL
European Catalogue Number(s):
634-6000
Version: 1.0.0
Issued: 07, April 2010
Legal Address of Manufacturer
Europe
VWR International Europe bvba
Researchpark Haasrode 2020
Geldenaaksebaan 464
B 3001 Leuven
Tel.:+ 32 16 385 011
http://www.be.vwr.com
Made in China
Table of Contents
Safety Information 1
Package Contents 1
Unpacking 2
Installation 2
Intended Use 2
Symbols and Conventions 2
Specifications 3
Overview 4
Description of Buttons and Switches 4
Operational Keys 5
Getting Started 6
Important Guidelines 6
General Operating Instructions 7
Operation 8
Photometry 9
Quantitative Mode 10
System Utility 15
Troubleshooting 18
Repair and Maintenance 19
Daily Maintain 19
Spare Parts Replacement 19
Accessories and Spares Parts 24
Technical Service 24
Warranty 25
Equipment Disposal 25
1
Safety Information
Please follow the guidelines below, and read this manual in its entirety to ensure safe
operation of the unit.
VWR recommends against the use of V-1200 Spectrophotometer.
Do not open the device.
Disconnect the device from the mains supply before carrying out
maintenance work or changing the fuses.
The inside of the device is a high-voltage area Danger!
Do not use the device if it is damaged, especially if the main power
cable is in any way damaged or defective.
Repairs may only be carried out by the service technicians from your
local VWR office and authorized contractual partners.
The device must be connected to a power outlet that has a protective
ground connection.
If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not allow any liquid to enter into the device.
Do not operate the device in a hazardous location or potentially
explosive environment.
Package Contents
Description Quantity
Spectrophotometer 1PC
Glass Cuvette 4PCS
Power Cord ( Euro Plug ) 1PC
Power Cord ( UK Plug ) 1PC
Power Cord ( SW Plug ) 1PC
2
Manual 1PC
Unpacking
Open the package, according to carefully check the packaging packing list items, if found
inside the packaging are missing or damaged items please your local VWR office and
authorized contractual partners.
Installation
Placement
Place the instrument on the stable table carefully.
Install printer (Printer is Optional Accessories)
Check to confirm instrument power switch is turned off, connect the printer’s data cable to
the Instrument’s parallel port.
Link the power cord
Check to confirm instrument power switch is turned off, the power cord plug into two
separate power interface and power supply socket apparatus.
Intended Use
V-1200 Spectrophotometer used in Chemistry, Pharmaceuticals, Biochemical, metallurgy,
Light Industry, Textile, Material, Environments, Medical, Education and some other fields. It
is one of the most important instruments in Quality Control and an essential in normal
laboratories.
3
Symbols and Conventions
The following chart is an illustrated glossary of the symbols that are used in this manual.
CAUTION This symbol indicates a potential risk and alerts you to
proceed with caution
CAUTION This symbol indicates the presence of high voltage and
warns the user to proceed with caution
CAUTION This symbol indicates risks associated with hot surfaces
Specifications
Optical System Single Beam
Wavelength Range 325-1000nm
Band Width 4nm
Stray Light ≤0.3%T
Photometric Range 0-200%T,-0.3-3.0A, 0-9999C
Wavelength Accuracy ±2nm
Photometric Accuracy ≤±0.5%T or 0.005A@1A
Stability 0.002A/h @ 500nm
Memory 200 Results & 200 Standard Curves
Language English, French, German, Spanish
Display 128×64 Dots Matrix LCD
Interface USB, Parallel
Measuring Procedure: Photometry
Quantitation
Power Supply AC 110/220V, 50/60Hz
Dimension 490×360×210mm
Weight 12kg
4
This instrument is compliant to the European Directives on
Low Voltage Directive 2006/95/EC
Electromagnetic compatibility 2004/108/EC
Restriction on use of Hazardous Substances RoHS 2002/95/EC
and theirs amandements.
Overview
V-1200 Spectrophotometer has the characters of wide range of wavelength, high sensitivity,
powerful function, easy to use, simple structure and pretty figure. Besides these, the large
LCD, High Precise A/D and easy to store RAM makes the instrument much more superior
than other originals. It is widely used in Chemistry, Pharmaceuticals, Biochemical,
metallurgy, Light Industry, Textile, Material, Environments, Medical, Education and some
other fields. It is one of the most important instruments in Quality Control and an essential
in normal laboratories.
Description of Buttons and Switches

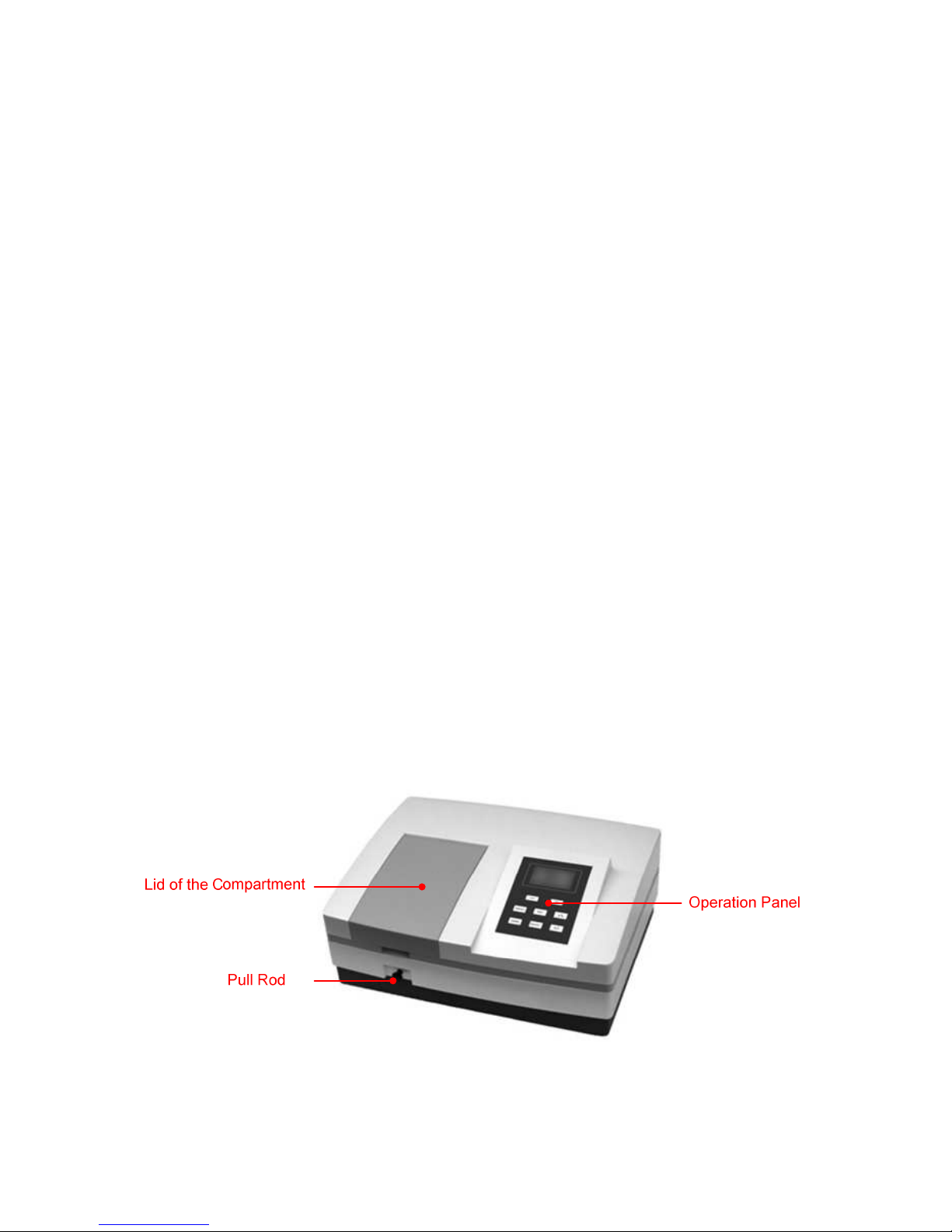

Front View
Rear View
