VWR avantor SSTU Manuale utente
Instruction manual
VWR®SSTU
Safety Shower Test Unit
European Catalogue Numbers: 139-0806
Version 1.0 Issue 09/2022
Instruction Manual SSTU
2 vwr.com I Instruction manual VWR®SSTU
Legal address of Manufacturer
Europe
VWR International bv
Researchpark Haasrode 2020
Geldenaaksebaan 464 B-3001 Leuven
+3216385011
be.vwr.com
UK Importer
VWR International Ltd
Hunter Boulevard, Magna Park
Lutterworth, Leicestershire, LE17 4XN
uk.vwr.com
Country of Origin
POLAND
Instruction Manual SSTU
3 vwr.com I Instruction manual VWR®SSTU
Contents
1. INTENDED USE AND IMPORTANT INFORMATION FOR THE USER .........................4
2. PACKAGE CONTENTS .................................................................................................4
3. OVERVIEW ....................................................................................................................5
4. UNIT OPERATION.........................................................................................................5
5. PRODUCT IDENTIFICATION LABEL............................................................................8
6. TECHNICAL DETAILS...................................................................................................9
7. WARRANTY CONDITIONS............................................................................................9
8. COMPLIANCE WITH LOCAL LAWS AND REGULATIONS..........................................9
9. EQUIMPMENT DISPOSAL ..........................................................................................10
Instruction Manual SSTU
4 vwr.com I Instruction manual VWR®SSTU
1. INTENDED USE AND IMPORTANT INFORMATION FOR THE USER
Emergency showers should be tested at least once a month to check the functionality and required volu-
metric flow of 30 l/min. This mobile test unit offers an extremely practical and simple solution for checking
emergency showers and handheld eyewashers parameters. The large funnel located centrally in the safety
shower can be extended to a height of 2.30 meters, while the smaller funnel is designed to collect water
from handheld eyewashers (min. required flow rate 6 l /min). The amount of collected water can be
checked on the scale of the water tank (0L - 120 l). The integrated electric pump empties the tank in the
shortest possible time.
2. PACKAGE CONTENTS
SSTU is delivered with the following equipment:
•Transparent PVC water tank on castors with brakes
•Integrated electric pump
•Drain hose (2m) for emptying the water tank
•Separate brackets for drain and supply hose
•The large funnel
•The small funnel
•Instruction manual
Instruction Manual SSTU
5 vwr.com I Instruction manual VWR®SSTU
3. OVERVIEW
4. UNIT OPERATION
Safety shower test unit is compatible with every available emergency shower on the market. When placed
under the emergency shower, the large funnel can be adjusted to the height of the shower head (up to
2.3m from the ground).
After test unit is properly installed, the shower can be launched. The outgoing water flows into the trans-
parent water tank where the amount of water can be measured on a scale from 0 to 120 litres. Thanks to
the transparency of the collecting container, the optical quality of the water can also be checked.
When the test is completed, the telescopic large funnel must be shortened to its starting position. The safe-
ty shower test unit can be moved to nearby sink in order to connect outlet hose do drainage system and
electric pump to electric socket. When necessary connections are made, the unit is ready to pump out
gathered water. The pump is mounted inside water tank in the way that allow to remove water up to 2 mm.
Water tank
Pump
Large funel
Small funel
Castors
Drain and supply hoses
Power cable
Instruction Manual SSTU
6 vwr.com I Instruction manual VWR®SSTU
The unit display is not calibrated and shows the value in an approximate range. The tester is made mostly
of polyvinyl chloride and should be treated with the same care as any other polyvinyl chloride products

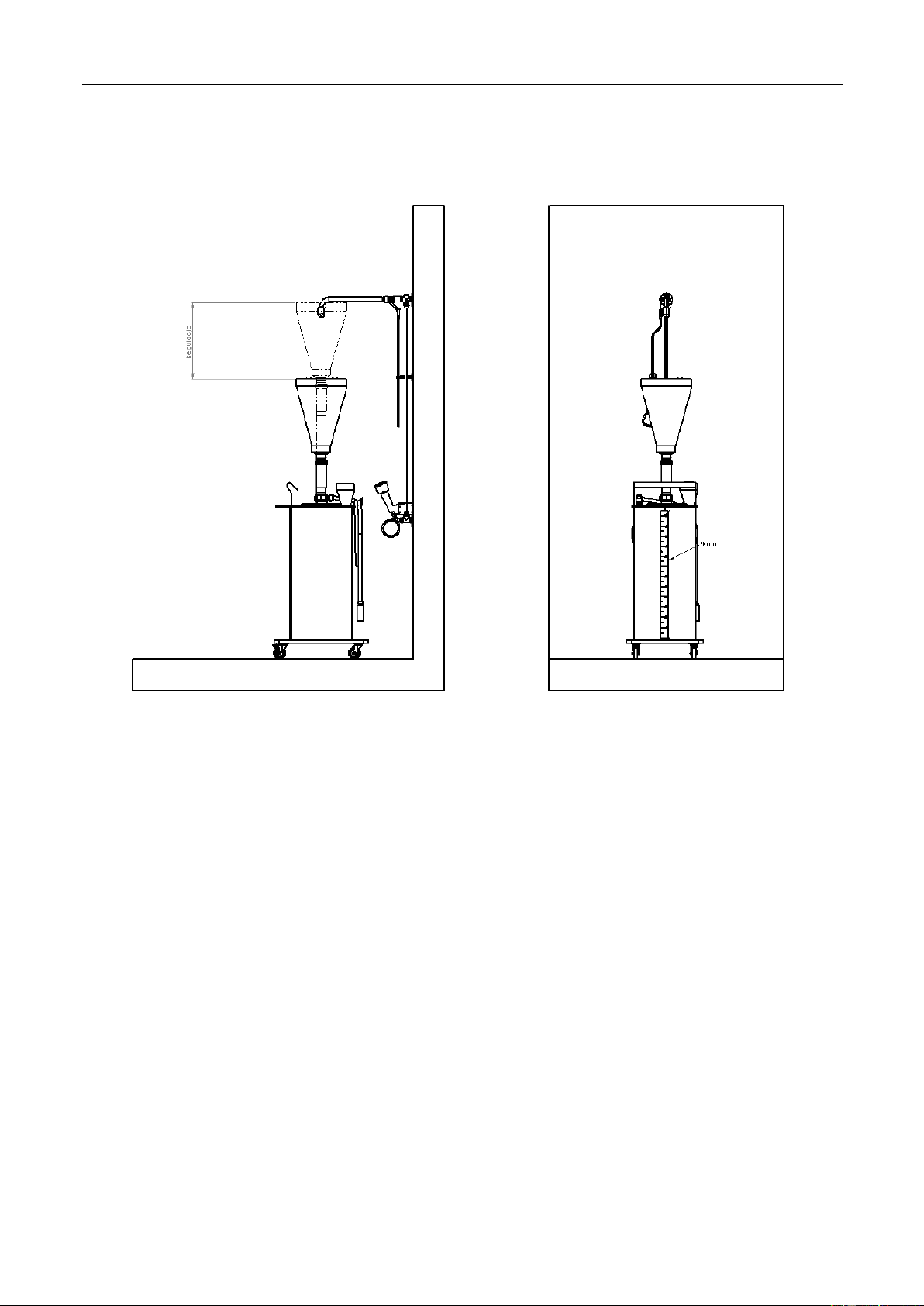

Figure 1: How to use the unit
Instruction Manual SSTU
7 vwr.com I Instruction manual VWR®SSTU

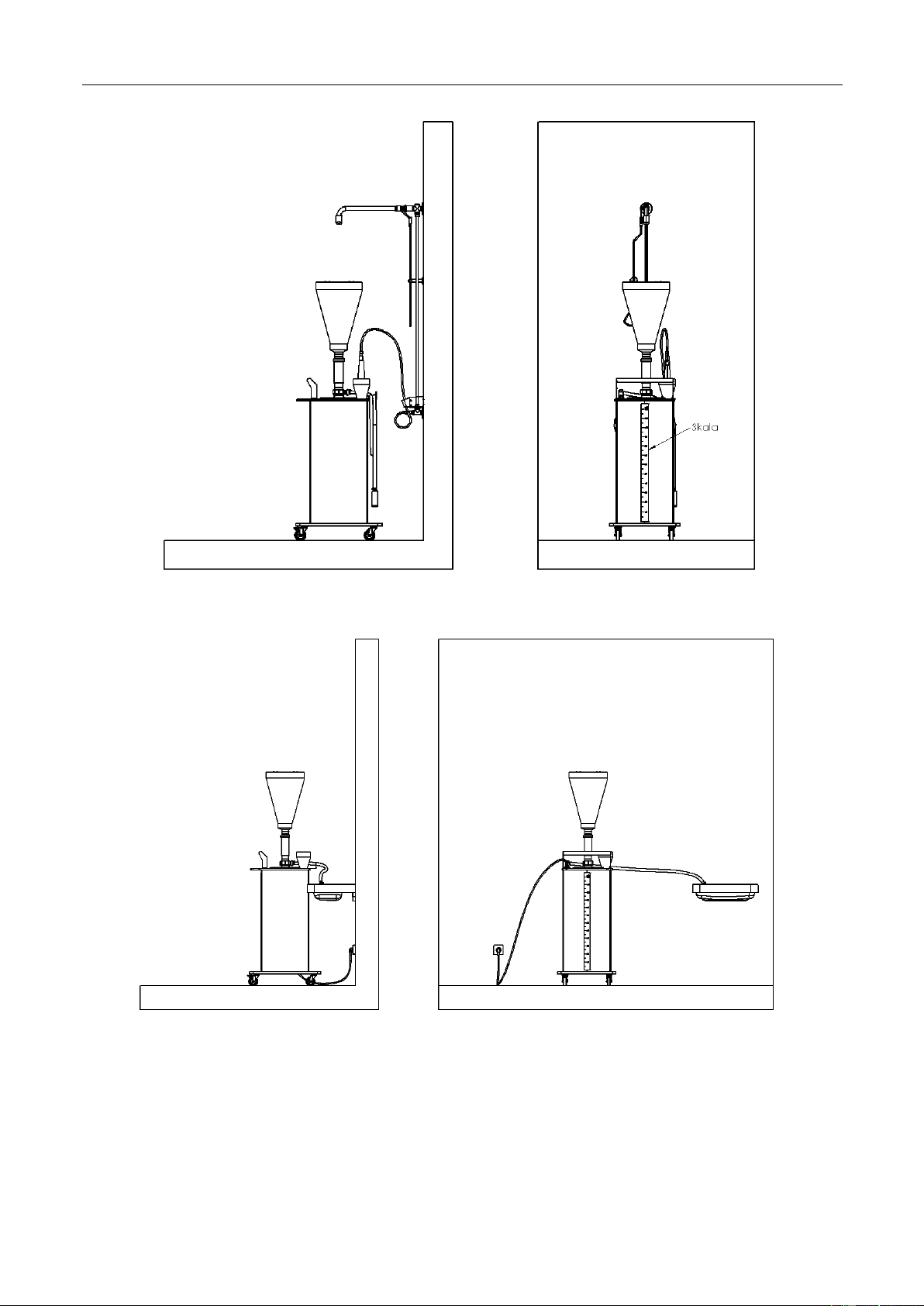

Figure 2: How to use the unit
Figure 3: How to use the unit
Instruction Manual SSTU
8 vwr.com I Instruction manual VWR®SSTU
5. PRODUCT IDENTIFICATION LABEL
The product identification label is located in the upper left corner.
Below there is an example of product identification label:
1. Logo
2. Type of device
3. Catalogue number
4. Serial number
5. CE mark
6. Name and address of manufacturer
7. Bar code
8. UKCA mark and UK Importer
1
2
4
3
5
6
7
Instruction Manual SSTU
9 vwr.com I Instruction manual VWR®SSTU
6. TECHNICAL DETAILS
Parameter:
SSTU
Capacity of transparent PVC water tank [l]
120
The power supply of electric pump [V]
230
Degree of protection (IP)
65
Dimensions [mm]:
Width
600
Depth
500
Height
1780
Diameter of the large funnel entry [mm]
200
Diameter of the small funnel diameter (at its widest point) [mm]
117
Weight [kg]
30
Tested water collection
60l/50s
7. WARRANTY CONDITIONS
VWR International warrants that this product will be free from defects in material and workmanship for a
period of two (2) years from date of delivery. If a defect is present, VWR will, at its option and cost, repair,
replace, or refund the purchase price of this product to the customer, provided it is returned during the war-
ranty period. This warranty does not apply if the product has been damaged by accident, abuse, misuse, or
misapplication, or from ordinary wear and tear. If the required maintenance and inspection services are not
performed according to the manuals and any local regulations, such warranty turns invalid, except to the
extent, the defect of the product is not due to such non-performance.
Items being returned must be insured by the customer against possible damage or loss. This warranty shall
be limited to the aforementioned remedies. IT IS EXPRESSLY AGREED THAT THIS WARRANTY WILL
BE IN LIEU OF ALL WARRANTIES OF FITNESS AND IN LIEU OF THE WARRANTY OF MERCHANTA-
BILITY.
8. COMPLIANCE WITH LOCAL LAWS AND REGULATIONS
The customer is responsible for applying for and obtaining the necessary regulatory approvals or other
authorizations necessary to run or use the Product in its local environment. VWR will not be held liable for
any related omission or for not obtaining the required approval or authorization, unless any refusal is due to
a defect of the product.
Instruction Manual SSTU
10 vwr.com I Instruction manual VWR®SSTU
9. EQUIMPMENT DISPOSAL
This equipment is marked with the crossed out wheeled bin symbol to indicate that this equipment must not
be disposed of with unsorted waste.
Instead it's your responsibility to correctly dispose of your equipment at lifecycle -end by handling it over to
an authorized facility for separate collection and recycling. It's also your responsibility to decontaminate the
equipment in case of biological, chemical and/or radiological contamination, so as to protect from health
hazards the persons involved in the disposal and recycling of the equipment.
For more information about where you can drop off your waste of equipment, please contact your local
dealer from whom you originally purchased this equipment.
By doing so, you will help to conserve natural and environmental resources and you will ensure that your
equipment is recycled in a manner that protects human health.
Thank you!
