Wali MF001 Manuale utente
INSTALLATION MANUAL
75x75/100x100 32’’
MAX 10kg
(22lbs)
RATED
MF001/MF001-W
Single Monitor Desk Stand

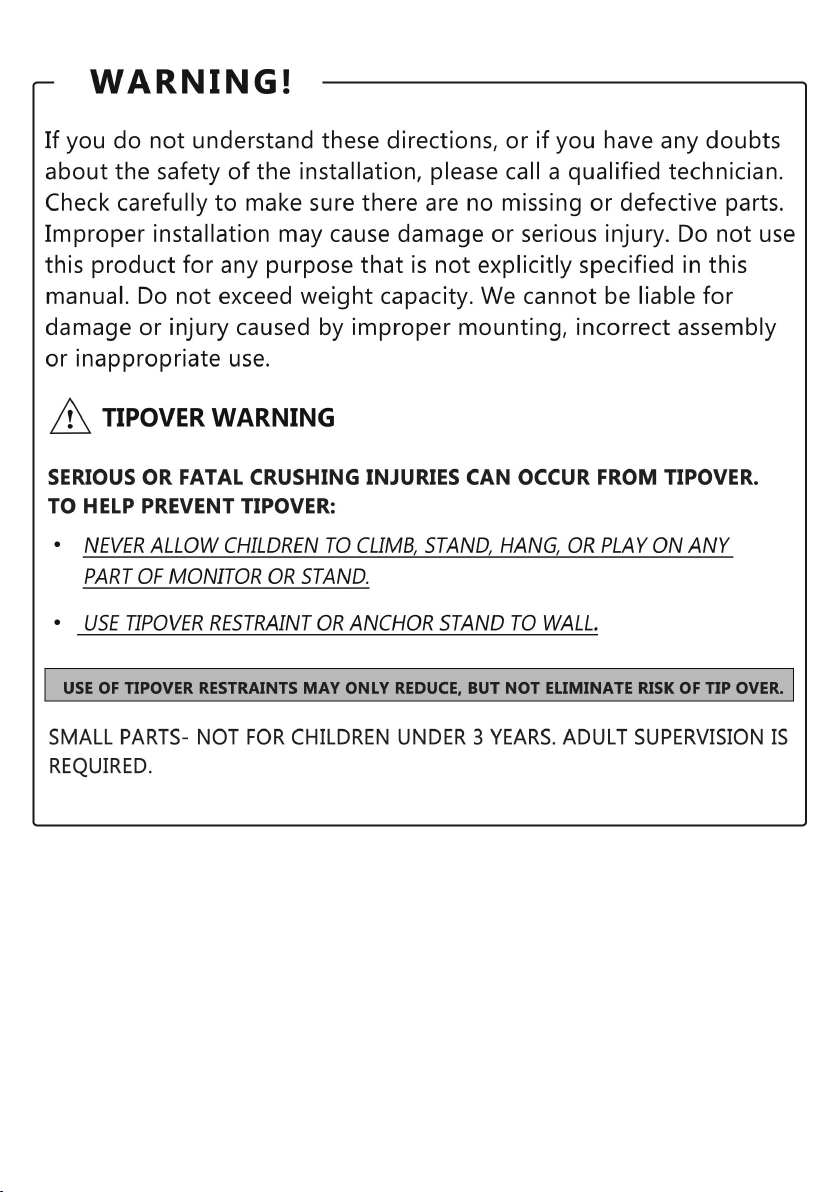

2

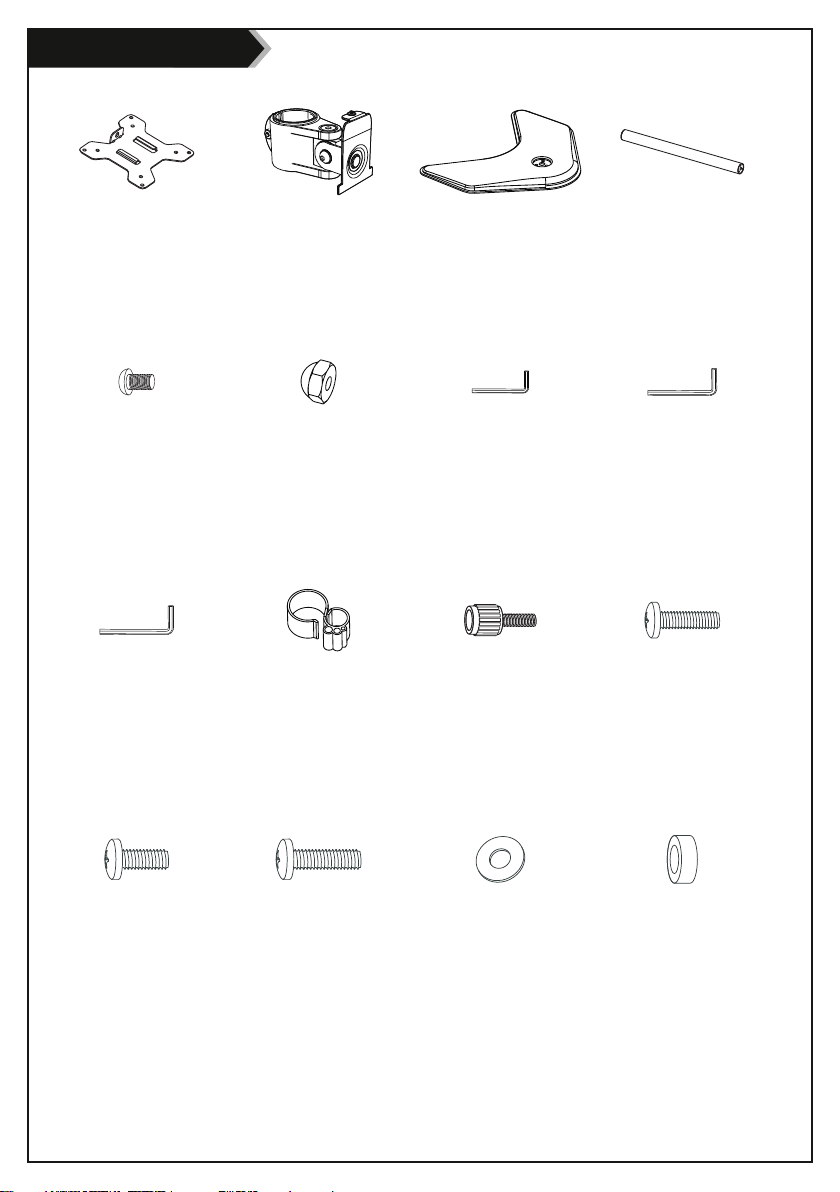

Supplied Parts List
3
D5 Washer
M-E (x4)
Allen Key 5mm
H (x1)
Allen Key 3mm
G (x1)
Spacer
M-F (x4)
Allen Key 6mm
I (x1)
M4x16 Bolt
M-B (x4)
M5x12 Bolt
M-C (x4)
M5x16 Bolt
M-D (x4)
M4x12 Bolt
M-A (x4)
Pole
D (x1)
VESA Plate
A (x1)
Monitor Arm
B (x1)
Weighted Base
C (x1)
Bolt
E (x3)
Nut
F (x1)
Wire Clip
J (x1)
to the Weighted Base using Bolts and tighten with Allen Key 3mm
4
Step 1
Install the Pole D C
E
G.
E
D
G
C
Put the Wire Clip J and Monitor Arm B through the Pole D , adjust the preferred height and tighten using
Allen Key 6mm I .
J B
D
I
5
Step 2
B
J
D
I
6
Step 3
Step 3.3a
Flat Back Monitor
Step 3.3b
Curved Back Monitor
A A
M-D
M-B
Step 3.1
Select TV Screws
Step 3.2
Select Spacers( if needed )
Select M4x16 Bolt M-B or M5x16 Bolt M-D
according to your TV/Monitor, connect VESA Plate A
together with D5 Washer M-E and Spacer M-F into
the mounting holes on the back of TV/Monitor,
tighten with screwdriver. (Screwdriver needed but
not included)
M-E
M-F
M-E
M-E
M-A
M-C
Hand thread screws
into the threaded
insertson the backof
your TVto determine
which screw diameter
(M4or M5) to use.
M4 M5
Select M4x12 Bolt M-A or M5x12 Bolt M-C
according to your TV/Monitor, connect VESA Plate A
together with D5 Washer M-E into the mounting
holes on the back of TV/Monitor, tighten with
screwdriver. (Screwdriver needed but not included)

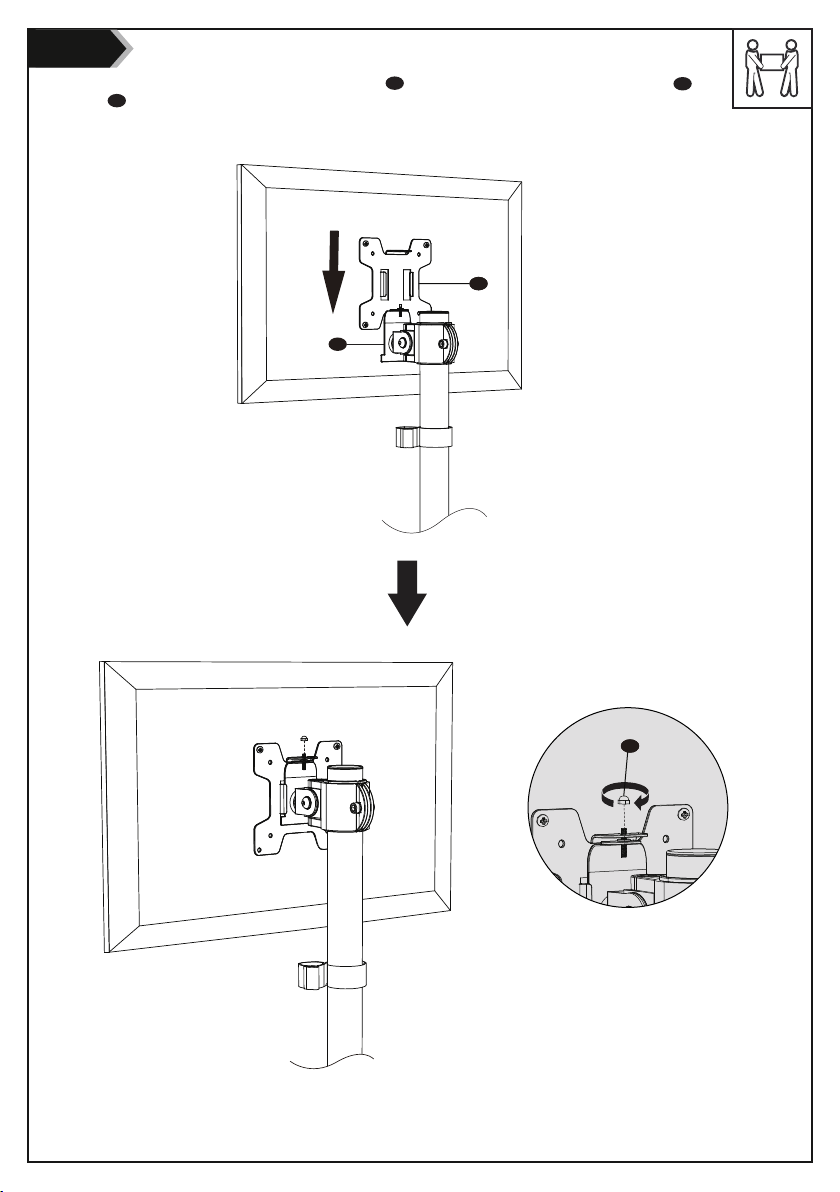

Put the assembled TV/Monitor onto the Monitor Arm B and ensure stability, tighten the VESA Plate A
using Nut f .
7
Step 4
BA
F
B
dA
dF
dH
8
Step 5
Tighten or loosen tilt joint using Allen Key 5mm H
.
Step 6
Guide the cable through the Wire Clip J .
dJ
9
Step 7
Store the Allen Keys in the Wire Clip J .
Step 8
Manually swivel, tilt or rotate the angle for the best operating environment.
45
45
I
H
G J
If you have any questions,please contact us.
We support the technology that brings your home to life.
We offer high quality products, professional customer service,
and extensive technical support.
