WE-EF ETC109 LED Manuale utente

Safety Notice

The manufacturer is discharged from liability when damage

is caused by improper use or installation.

If any luminaire and/or accessory is subsequently modi-

fied, the persons responsible for the modification shall be

considered as manufacturer.

ETC109_270422 / 006-0716

Technical specifications are subject to change.

we-ef.com

WE-EF LIGHTING USA

Tel +1 724 742 0030

[email protected]

WE-EF LIGHTING

Installation and

Maintenance Instructions for

Marker Lights

with Installation Blockout

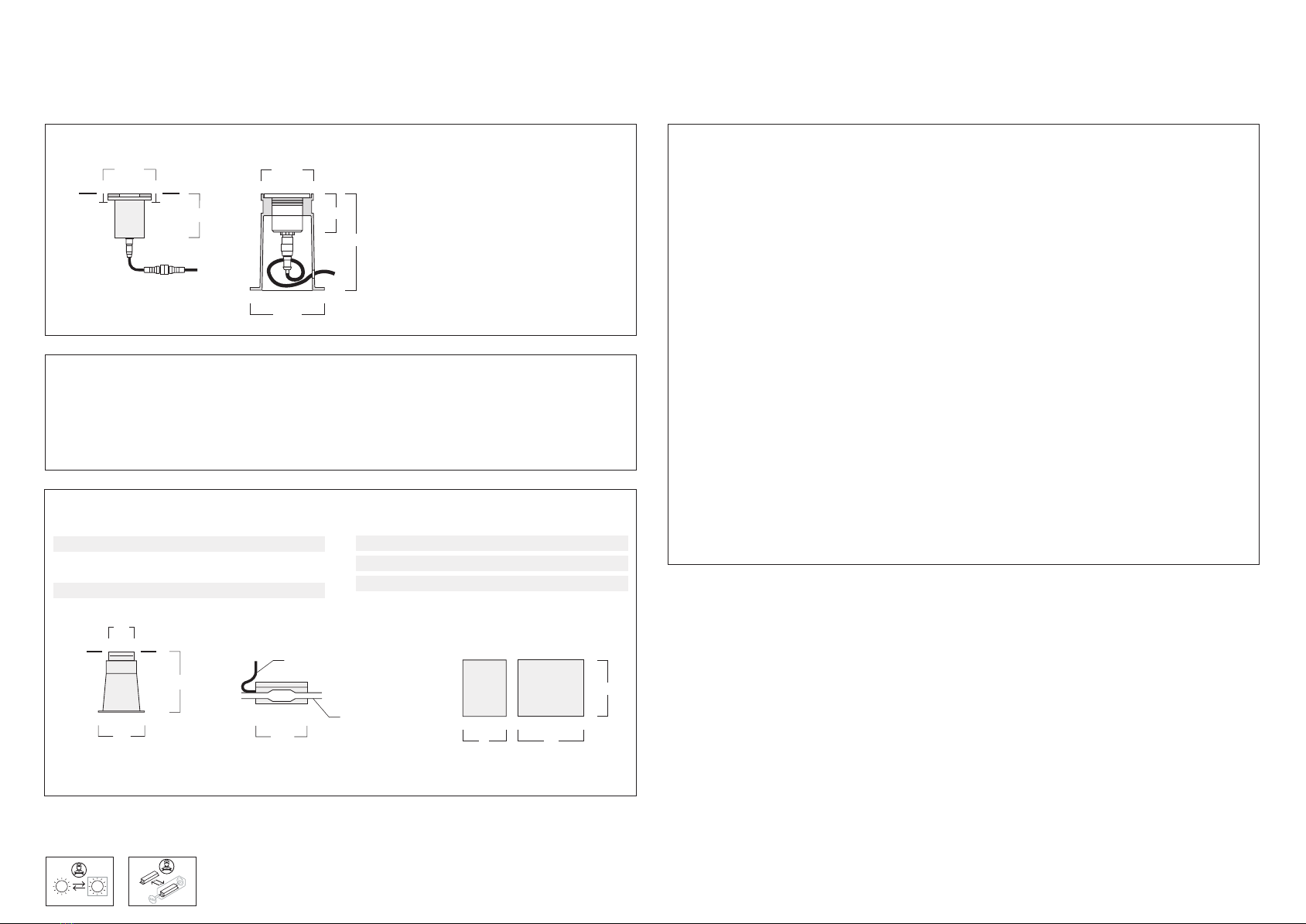

ETC109 LED

ø 3.62

ø 2.56

1.89

4.72

ø 2.56

1.97

BET – 185-1855

TVE – 139-6900 / 139-6901 / 139-6902

ø 0.394 (max.)

ø 0.472 – 0.748

5.75

SJB130 – 185-1624

ETC109

Marker Lights with Installation Blockout

IP68, IK09

Light Source

1 x 4 LEDs ....................... 0,5 VA / 12V DC

unicolour red, green, blue, yellow or white

3 x 4 LEDs ....................... 1,2 VA / 12V DC

tricolour red, green and blue

Class III, ta 35°C

Glass surface temperature approx. 3°C above

ambient temperature

Installation Accessories

Installation Blockout lb

185-1855 D1 = 2.56 / D2 = 3.74 / H = 4.72 0.66

Sealable junction box

185-1624 SJB130 0.88

Electronic converter A B C1

139-6900 TVE-DC – 12V / 12W 9.14 6.38 5.51

139-6901 TVE-DC – 12V / 25.5W 9.14 6.38 5.51

139-6902 TVE-DC – 12V / 60W 11.50 9.92 8.66

Installation

The luminaire should be installed and maintained by a

suitably qualified person in compliance with the latest

construction and electrical regulations and relevant

legislation.

During checking of the installation location the maxi-

mum temperature on the outer lens should be consi-

dered. The temperature is shown on the identification

label.

Suitable for Drive-over at low speeds and high

pressure tires, up to 5 tonnes.

The luminaire should not get covered partially or

completely. Dirt on the lens has to get removed.

Do not open the luminaire in humid conditions or

during rain. This will result in condensation forming

inside the luminaire.

Maintenance

Apart from cleaning the product’s exterior surfaces,

no special maintenance work is required. Do not use

high-pressure cleaners.

Protect our environment: Discard used LEDs in compli-

ance with the most recent environmental legislation.

Notice: If the luminaire is modified by anybody other

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

In case of component failure due to abnormal circum-

stances or at end of life, replacement must be carried

out by a suitably qualified and trained professional.

In case of questions please contact our technical hot-

line at +1 724 742 0030 (Monday - Friday from 08:00

until 16:00 hours).

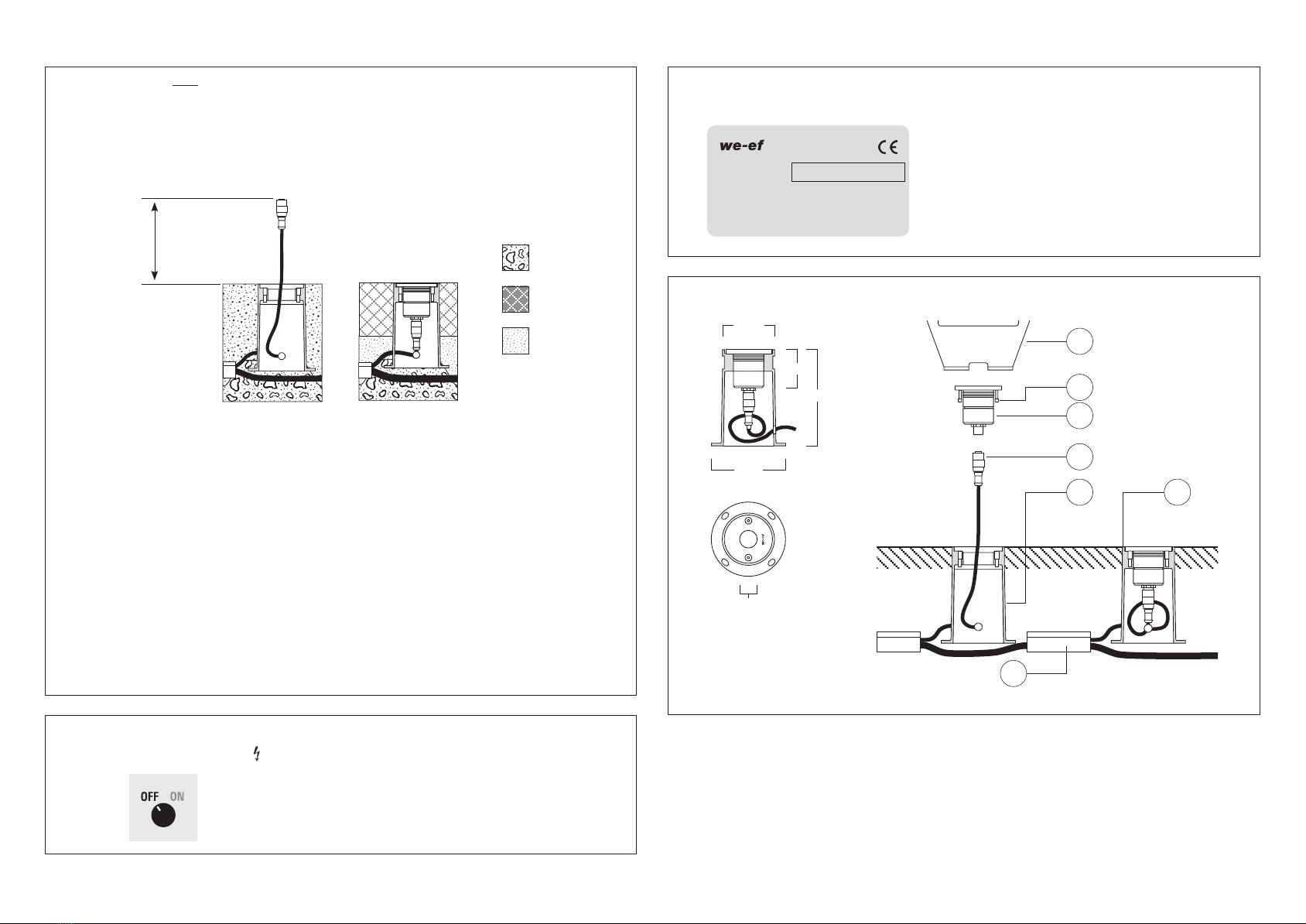

Installation Methods with BET

Ensure that proper drainage is provided for the

shown installation methods.

1) In landscaped areas (soil with gravel base), fig. 1

2) In paved areas (concrete with gravel base), fig. 2

3) Determine position of installation blockout A.

Ensure the following details:

a) the connecting cable Bmust be inserted into

the installation blockout Ain that way, that

the plug can get extracted out of the installa-

tion blockout for approx. 12 in for connection

of luminaire.

b) the upper rim installation blockout Emust be

installed in that way, that it is flush with the

soil, basement or similar.

Attention: In case tiles or paving blocks will

be paved at a later time, a respective admea-

sure has to be considered.

≈12 in

fig. 1 fig. 2

gravel (drainage)

concrete

soil

Phase Two (Electrical connection, aiming)

4) Switch off mains electrical supply.

02/19 IP68

ETC109 12V DC

185-XXXX SOE XXXXXXX

LED 0,5 - 1,5W item no. XXX

5) Check that rating shown on luminaire label

conforms with mains electrical supply.

ø 0.87

ø 3.62

ø 2.56

1.89

4.72

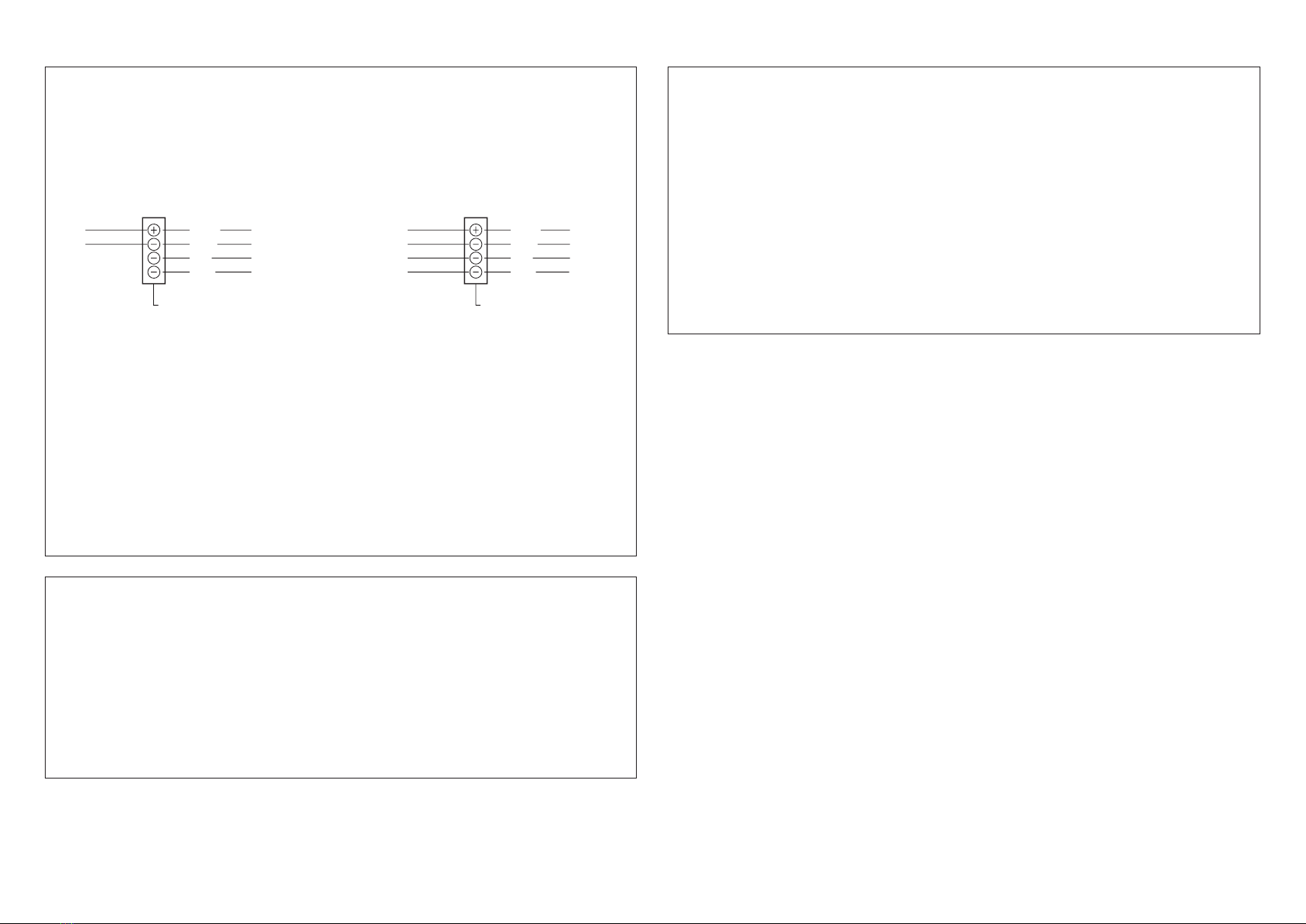

Wiring diagram uni-colour (W/R/R/B/Y)

Power supply

12VDC

brown

white

blue

black

Junction box

- W/R/G/B/

Wiring diagram multicolour (RGB)

Power supply

Junction box

12VDC

brown

white

blue

black

- R

- B

6) Connect the connection cable Boutside of the

installation blockout with a sealable junction

box (WE-EF 185-1624). Hereby the service con-

duit gets connected according wiring diagram.

8) Ensure that installation blockout Ais protected

from damage during continuing earth or masonry

works. To avoid dirt close the blockout with the

provided blanking plug (WE-EF 185-1850). Only

an undamaged blockout guarantees a troub-

le-free installation of inground uplights.

7) Inground uplights with LED can get operated

with the light control WE-EF CONTROL in com-

bination with the control module UDM. Here

the power supply is done via the control module.

The luminaire 185-1562 (RGB) shall get opera-

ted generally with control module UDM!

All cables must get sealed in the junction box D

in any case.

In case a 12V DC power supply is available, no

power unit is necessary.

11)Insert the luminaire into the inground uplight A

in that way, that the fixing screws Flock in posi-

tion inside fixing holes of the inground uplight.

Push luminaire inside installation blockout and

hand tighten the fixing Fscrews.

Phase 3

(Installation of luminaire)

9) Inground uplights are supplied with integrated

circuit board, it is not necessary to open the

luminaire.

10)Remove safety cap from the connection plug

Band connect it to the luminaire C. While

tightening of the plug hold down luminaire at

knurling.

LED Replacement and Maintenance

Warning: Do not open luminaire while in operation

or while mains supply is switched on!

1) Switch off the mains electrical supply.

2) Loosen screws Fand pull luminaire out upwards

with help of a mounting lever G(WE-EF 185-1438).

Disconnect luminaire from connection cable B.

Equip connection cable with a corresponding

plug to protect it from dirt.

3) Open luminaire only in dry condition Disconnect

LEDs from the connection cable and carefully

take them out. Insert new circuit board.

4) Check gaskets of functionality and exchange if

necessary.

5) Close luminaire. Connect it to connection cable

B. Hold down luminaire at the knurling during

connection.

6) Insert luminaire into the installation blockout as

described under phase 3.
