WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Pendant luminaire

ALP534 LED

AOP534 LED

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

IP55, Class I, ta = 25°C

Pendant luminaire

ALP534 AOP534

ø 560

405

M20

ø 560

405

M20

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Installation Procedure

1) Switch off the mains electrical supply.

2) Check that the rating shown on luminaire label

conforms with mains electrical supply.

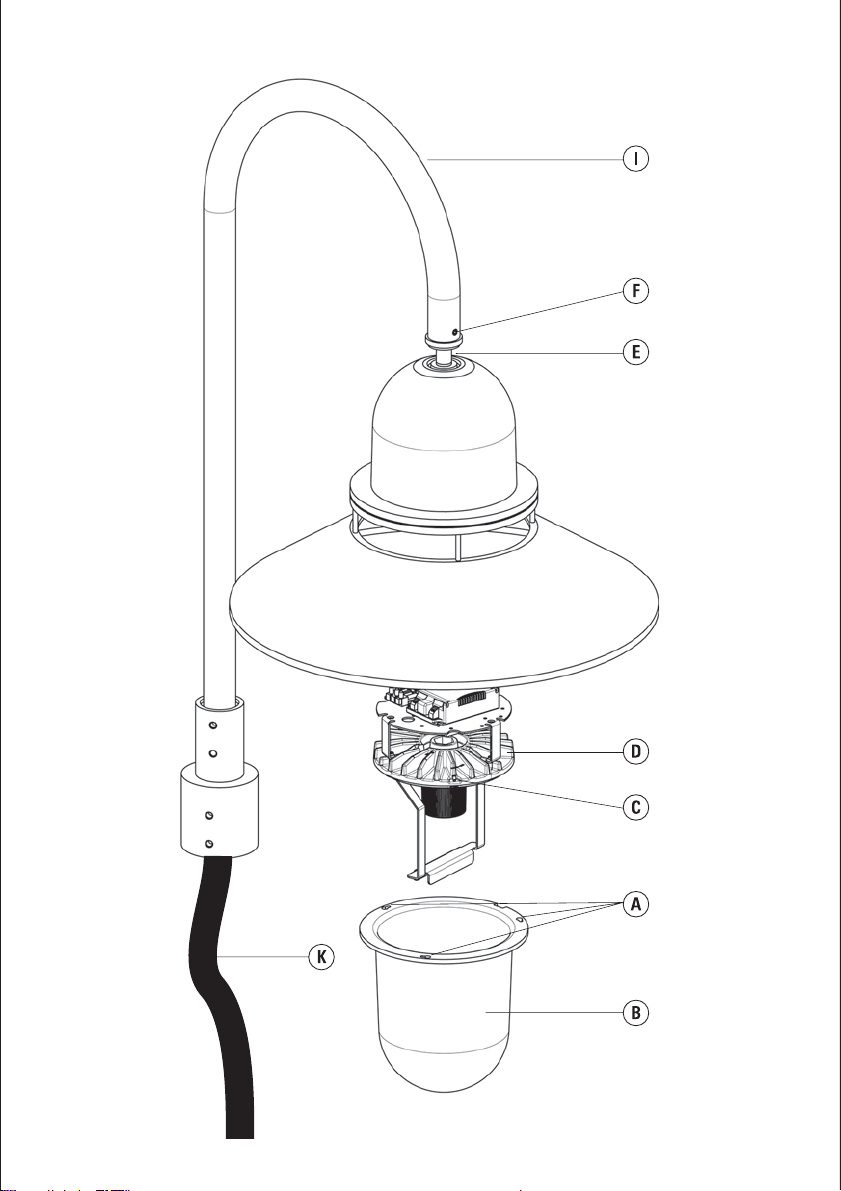

3) Loosen screws Aof the cover B. Twist the cover

gently and unhook downwards.

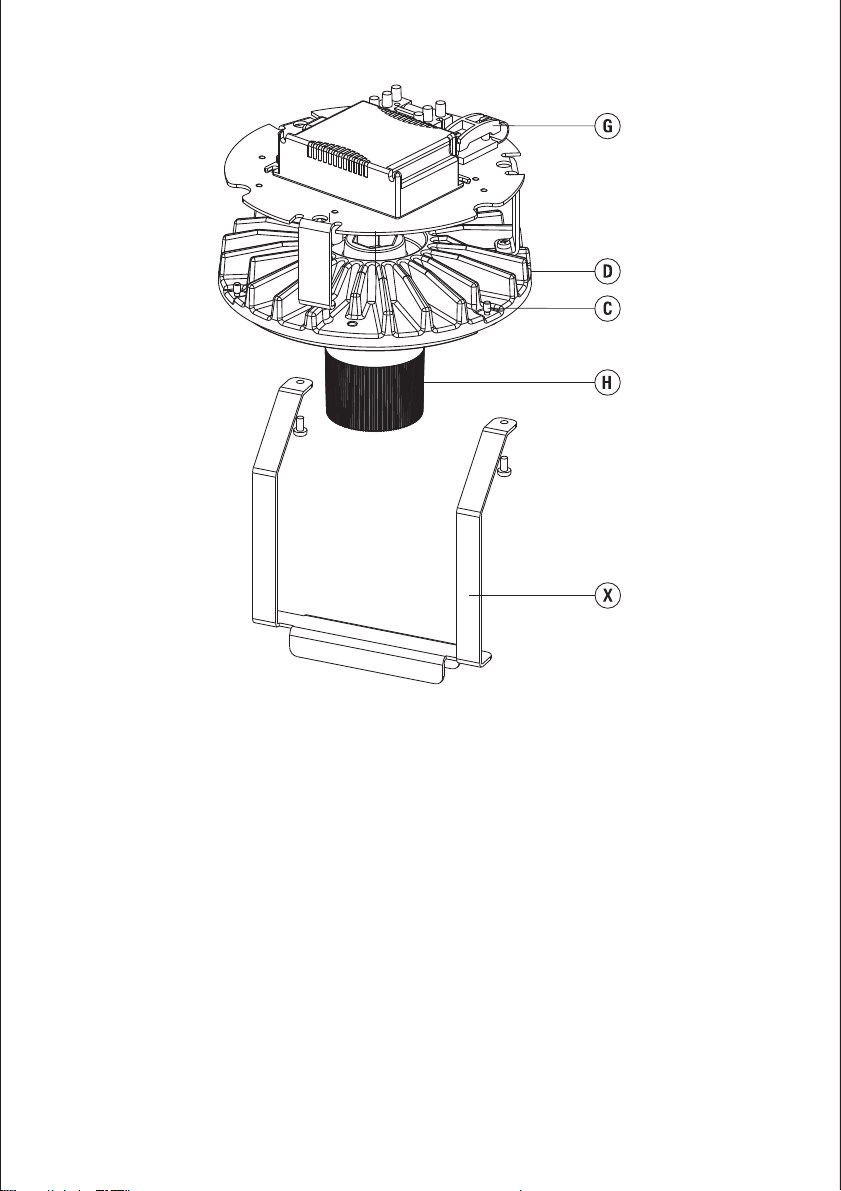

4) Hold the mounting bracket Xand loosen fixing

screws Cof the gear tray. Do not use the lens Has

a handle.

5) Remove the gear tray assembly D.

6) Hand tighten the luminaire with the M20 adaptor

Eto the bracket and with secure set screw F.

7) Feed the mains cable through the luminaire, out

through the bracket Iand into the pole.

8) Insert mains cable through strain relief clamp G

and connect the leads to their respective terminals:

(L = Phase, N = Neutral, = Earthing).

9) Return gear tray assembly Dto luminaire and

tighten fixing screws C.

10)Remove mounting bracket X(please retain).

11)Return the cover Band tighten fixing screws A.

TO9236W0617 © WE-EF 2017

7HFKQLFDOVSHFLƂFDWLRQVDUH

subject to change.
