WE-EF LTM444 Manuale utente

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Light column

LTM440-FT

LTM444

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

IP55, IK09, Class I, ta = 40°C

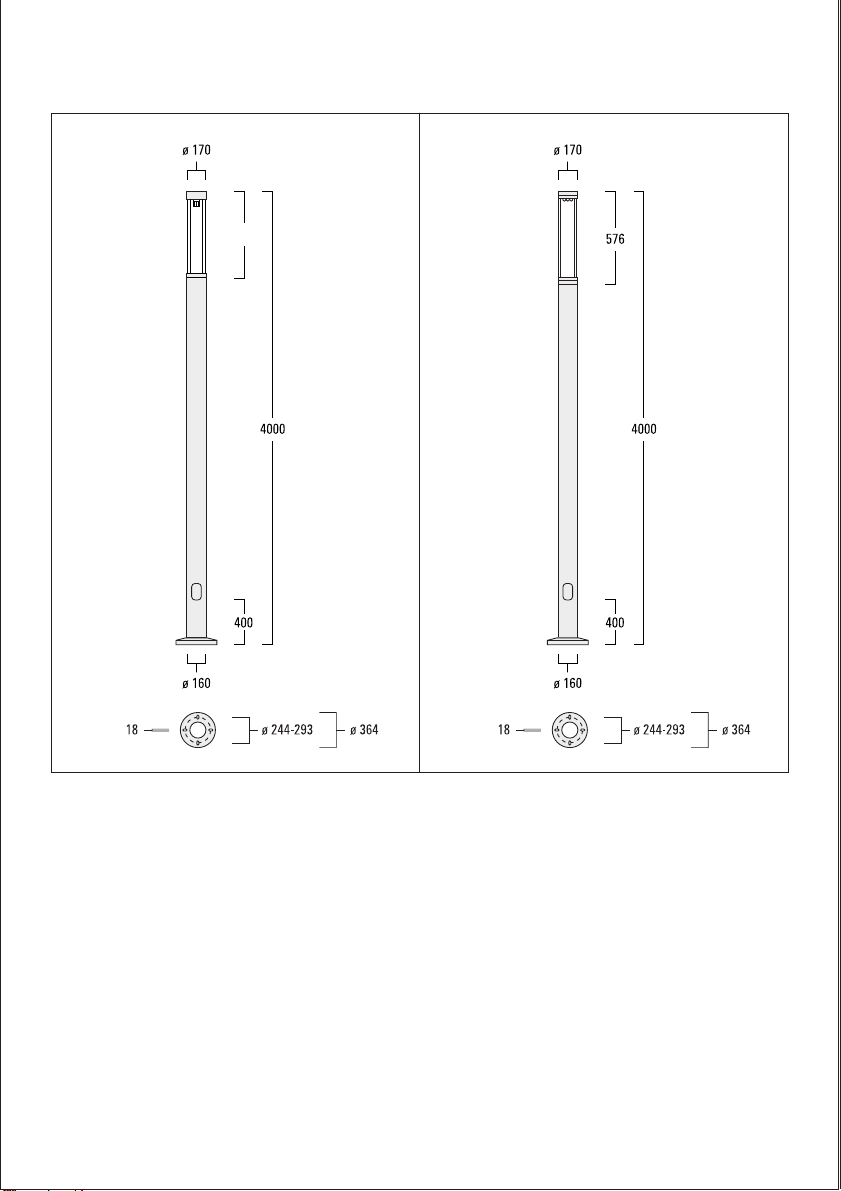

Light column

LTM440-FT LTM444

494

Light Source

LED

Maintenance

Apart from cleaning the outside of the luminaire, no special maintenance is necessary.

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Installation Procedure

It is recommended to incorporate the optional WE-EF

planted root to ensure maximum stability.

1) Switch off mains electrical supply.

2) Check that rating shownonluminairelabelconforms

with mains electrical supply.

3) A suitable recess to be provided for the planted

root A. Ensure that a solid foundation as well as

VXIƂFLHQWPDLQVFDEOHOHQJWKDUHSURYLGHG

4) Remove covers Bfrom cast base Cby loosening

screws D.

5) Set luminaire in position and secure by inserting

and tightening bolts I.

6) Place luminaire head Hover post P, insert plug G

into socket Kand tighten screws Jevenly.

7) Loosen screw Nuntil door Mcan be opened and

removed.

8) Loosen screw Qand remove cover Rof cable con-

necting box L.

9) Connect mains cable Fto terminal connector E,

secure it with strain relief Oand place back coverR.

10)Close door Mand tighten screw N.

Cable connecting box EK70

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

LQIRDVLDSDFLƂF#ZHHIFRP

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

TO9230W0420 © WE-EF 2020

7HFKQLFDOVSHFLƂFDWLRQVDUH

subject to change.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Planted Root

ESV4

ESV2

ESV6

Planted Root

ESV4 300-0461

ESV4 300-0586

ESV2 300-9115

ESV4 300-0464

ESV4 300-0459

ESV6 300-0457

300-0824

Suitability

1. KTX234

2. KTY234-AP

3. ZFY230-AP

4. GRY224-AP

5. Short post

Suitability

1. XRY334-AP

2. XRZ334

3. RRY334-AP

4. RRZ334

Suitability

1. PSY414/424

Suitability

1. CFY259

2. GRY234-AP

3. RRY324-AP

4. RRZ324

5. XRY324-AP

6. XRZ324

Suitability

1. QSI254

Suitability

1. LTM440

2. LTM444

3. AMW-C

4. AMF-C

5. AMF-S

6. AML-C

7. FLA461

Installation Instruction

1) Note: It is the responsibility to installer to

ensure the suitability of the ESV planted root

for any local or national structural requirements

for installation, and that planted root is suitable

IRUVLWHVSHFLƂFFRQGLWLRQV

Instructions are a guideline for installation to

these requirements and provide detail for

installation orientation and mounting details.

4) For ESV2 please orientate planted root as

shown (base plate is parallel to the pathway).

For this installation, use 30 mm long M12

bolts supplied.

2) Please note, ESV4 must be orientated correctly

for different products. In both instances conduit

entry can be rotated to match cable routing.

When the ESV is being installed for following

products: KTY234/KTX234/ZFY230/ CFY259,

please orientate the planted root as shown

(base plate is 45° to the pathway).

For this installation, use the 40 mm long M8

bolts supplied.

3) For all other product that use ESV4 please

orientate planted root as shown (base plate is

parallel to the pathway). For this installation,

use 25 mm long M8 bolts supplied.
