WE-EF KTX234 LED Manuale utente

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

Installation tools

Mounting hardware used on this product

includes fasteners with hexalobular socket

heads (ISO 10664). Installation requires the

use of matching tools.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Bollard

KTX234 LED

KTY234 LED

IP66, IK10, Class I, ta = 40°C

Bollard

ESV4

Weight H kg

for KTX234 270 4.5

for KTY234 600 6.8

for KTY234 1000 8.9

Accessories:

Planted root – Galvanised steel. kg

ESV4 for KTX234/KTY234 300-0461 4.4

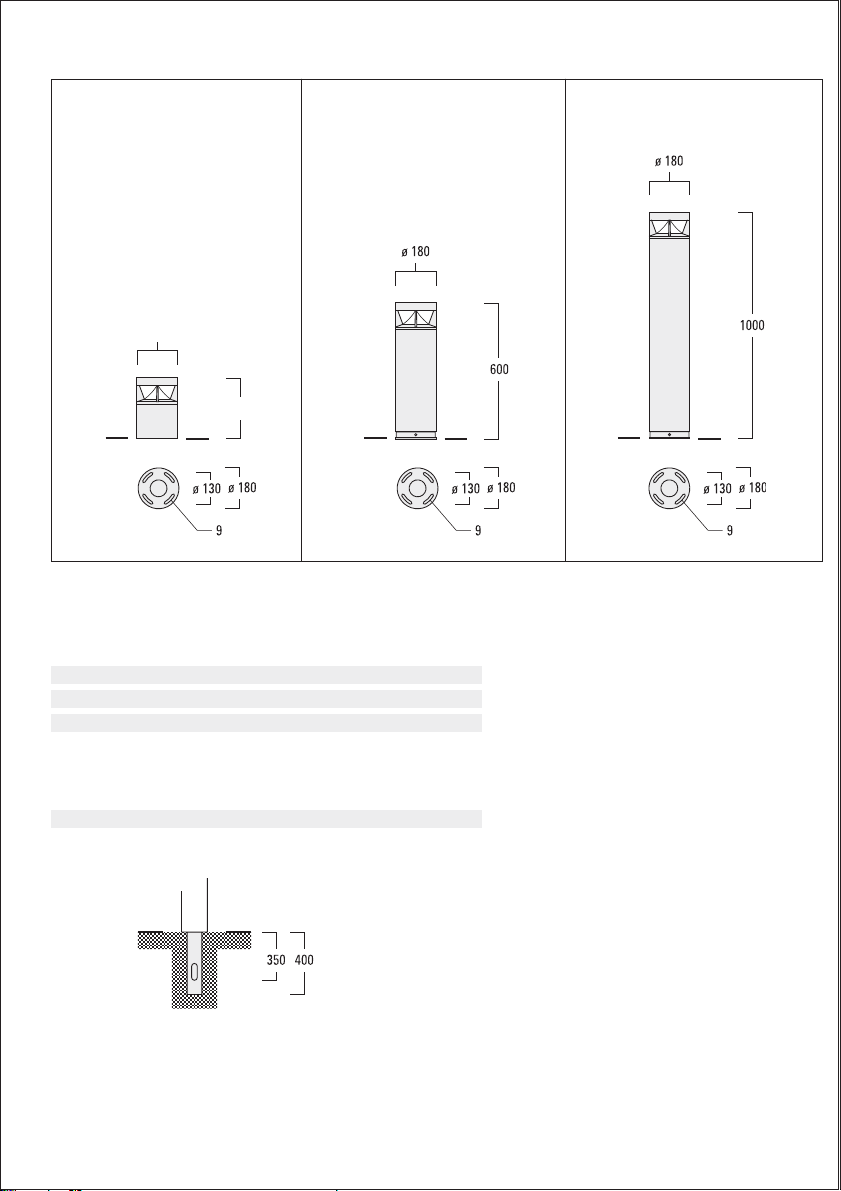

KTY234

H = 600 mm

KTX234

H = 270 mm KTY234

H = 1000 mm

270

ø 180

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

To remove the head of the luminaire during maintenance, loosen screw Jwith Torx T-20 tool and rotate it

anti-clockwise until it can be lifted up.

If the head of the luminaire is returned after maintenance, align it to the bollard post as shown below and

secure by tightening screw J.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

by a suitably qualiƂed and trained professional.

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

suitably qualiƂed professional in compliance with latest

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice: If the luminaire is modiƂed by anybody other

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Attention: The luminaire is factory-sealed and does

not need to be opened during installation.

The installation on site must comply with local and/or

national health and safety regulations.

Installation Procedure

The luminaire is suitable for installation directly on

to an even surface, however it is recommended to

incorporate the optional planted root to ensure

maximum stability.

Installation – KTX

1) Switch off mains electrical supply.

2) Check that rating shown on luminaire label conforms

with mains electrical supply.

3) A suitable recess to be provided for planted root A.

Ensure that a solid foundation as well as sufƂcient

mains cable length are provided.

Note: Planted root installation instruction is

available at the end of this document.

4) Remove head of luminaire Hfrom bollard post B

after loosening screw Jwith Torx T-20 tool and

rotating it anti-clockwise until it can be lifted up.

5) Set bollard post Bin position and secure by insert-

ing and tightening bolts I. The direction of light for

KTX [R65] is opposite the set screw J.

6) Connect luminaire cable Eto mains supply cable F

in watertight terminal connector G(not supplied by

WE-EF):

a) ON/OFF (L = Phase, N = Neutral, = Earthing)

b) 1-10V/DALI (L = Phase, N = Neutral,

= Earthing, DA/DA = DALI control line,

D-/D+ = 1-10V control line).

7) Place watertight terminal connector Gand excess

cable inside bollard post B.

8) Return head of luminaire Hto bollard post Band

secure by tightening screw J.

KTX234

Installation – KTY

1) Switch off mains electrical supply.

2) Check that rating shown on luminaire label conforms

with mains electrical supply.

3) A suitable recess to be provided for planted root A.

Ensure that a solid foundation as well as sufƂcient

mains cable length are provided.

Note: Planted root installation instruction is

available at the end of this document.

4) Remove bollard post Bfrom cast base Cby loosen-

ing countersunk screws Dwith Torx T-40 tool.

5) Set cast base Cin position and secure by inserting

and tightening bolts I.

6) Connect luminaire cable Eto mains supply cable F

in watertight terminal connector G(not supplied by

WE-EF):

a) ON/OFF (L = Phase, N = Neutral, = Earthing)

b) 1-10V/DALI (L = Phase, N = Neutral,

= Earthing, DA/DA = DALI control line,

D-/D+ = 1-10V control line).

7) Place watertight terminal connector Gand excess

cable inside bollard post B.

8) Reposition bollard post Band secure by tightening

screws D. The direction of light for KTY [R65] is

opposite the set screw.

KTY234

Direction of Light for [R65] One-sided

set screw

Torque:

Screw Torque

M4 max. 2.0 Nm

M5 max. 4.0 Nm

M6 max. 6.0 Nm

M8 max. 15.0 Nm

M16 max.100.0 Nm

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

info.asiapaciƂc@we-ef.com

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

TO9241W0520 © WE-EF 2020

Technical speciƂcations are

subject to change.
