WE-EF AFL100 Series Manuale utente

Surge Protection

This product features built-in surge protection circuitry in compliance

with applicable standards.

For comprehensive protection of a luminaire installation against lightning

and electrical surges, it is essential to cover mains supply and data input

lines at the distribution board level, by using respective primary (Type 1)

and secondary (Type 2) surge arrestors in compliance with EN61643-11/

IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and

activated prior to luminaire installation. Also, disconnect luminaires

before operating high-power devices such as, for example, electrical

arc welders.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Post Mounted Luminaires

AFL100 series

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained

in this document for details.

Post Mounted Luminaires

IP66. IK08 [AFL120], IK09 [AFL130]. Class I, II. Ta= 25°C

Tool required

Torx 20, 45

5 mm Allen key

Weight kg

for AFL120 max. 6.95

for AFL130 max. 8.60

Windage area m2

for AFL120 max. 0.146

for AFL130 max. 0.191

Windage area m2

for AFL120 max. 0.146

for AFL130 max. 0.191

Mounting height 3 – 8 m

Installation: horizontal, light output downwards

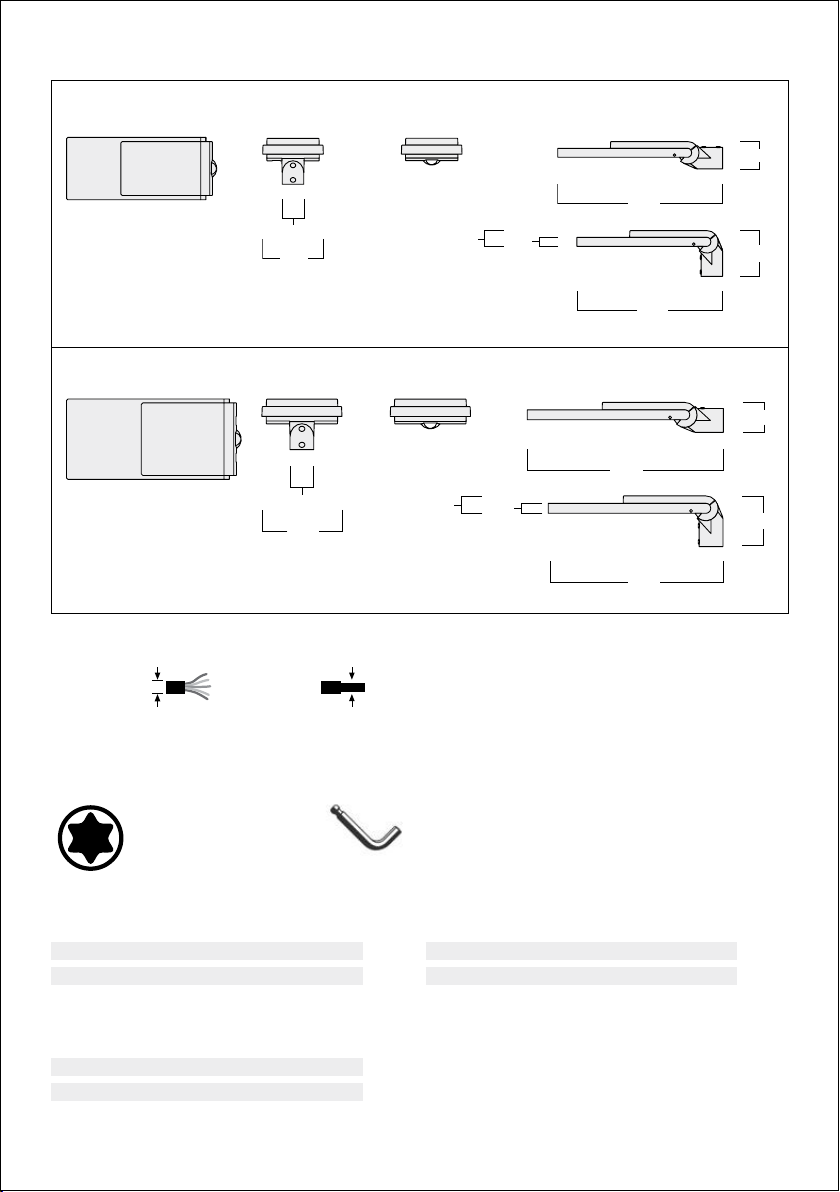

AFL120

AFL130

ø 9 – 14 mm 1 – 2.5 mm2

602

191.5

653

191.

683

111

733

250

ø 89

300

ø 89

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried

out by a suitably qualied and trained professional.

Warning: Do not open luminaire while mains supply is switched on.

Caution: Risk of electric shock!

Installation

The product must be installed and maintained by a suitably qualied professional in compliance

with latest building/construction and/or electrical regulations and relevant legislation.

Warning: Switch o mains electrical supply prior to installing and connecting the luminaire.

Caution: Risk of electric shock!

Notice: If the luminaire is modied by anybody other than the original manufacturer, then the warranty will

no longer be valid and shall become the full responsibility of the modifying person/organisation. Claims

based on defects attributable to improper installation and/or application, and the consequences thereof,

are excluded.

Attention: The luminaire is factory-sealed and does not need to be opened during installation.

The installation on site must comply with local and/or national health and safety regulations.

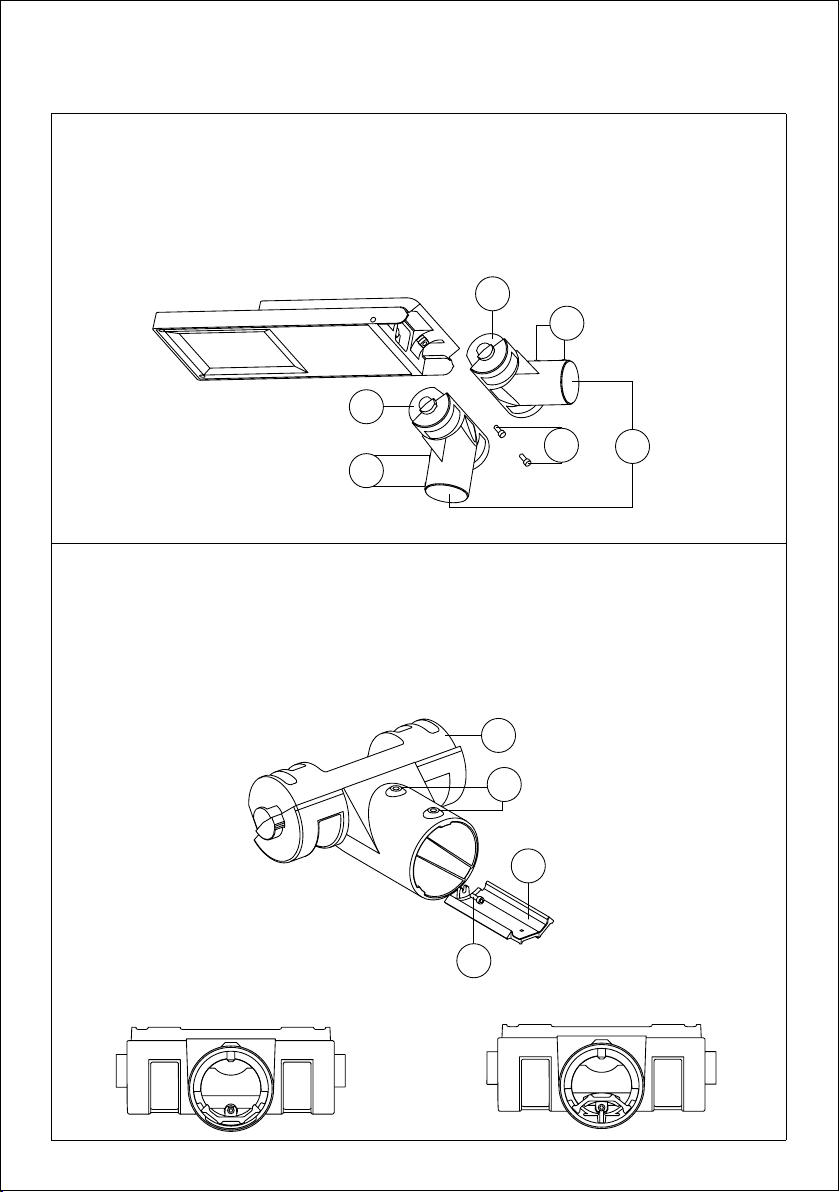

Post top and Side entry

Attachment Mcan be mounted vertically or horizontally. To change position loosen fasteners J,

rotate by 180° and refasten.

For vertical mounting, attachment can be set at 0° or 2.5° by loosening screws J. For horizontal

mounting, attachment can be set at 0°, 2.5°, 5°, 7.5°, 10°, 12.5°, and 15°.

Mounting Position

D = 60 mm

Mounting Position

D = 42 mm

adaptor.

the

fasteners

B M10x10 must be replaced with the

fasteners

B M10x20 supplied with the

Attach adaptor

with the fasteners

See below for position. When using adaptor,

42 mm.

Using adaptor

K(Part No.: 102-0392), diameter can be reduced from 76 mm to 60 mm or

Adaptor (to be ordered separately)

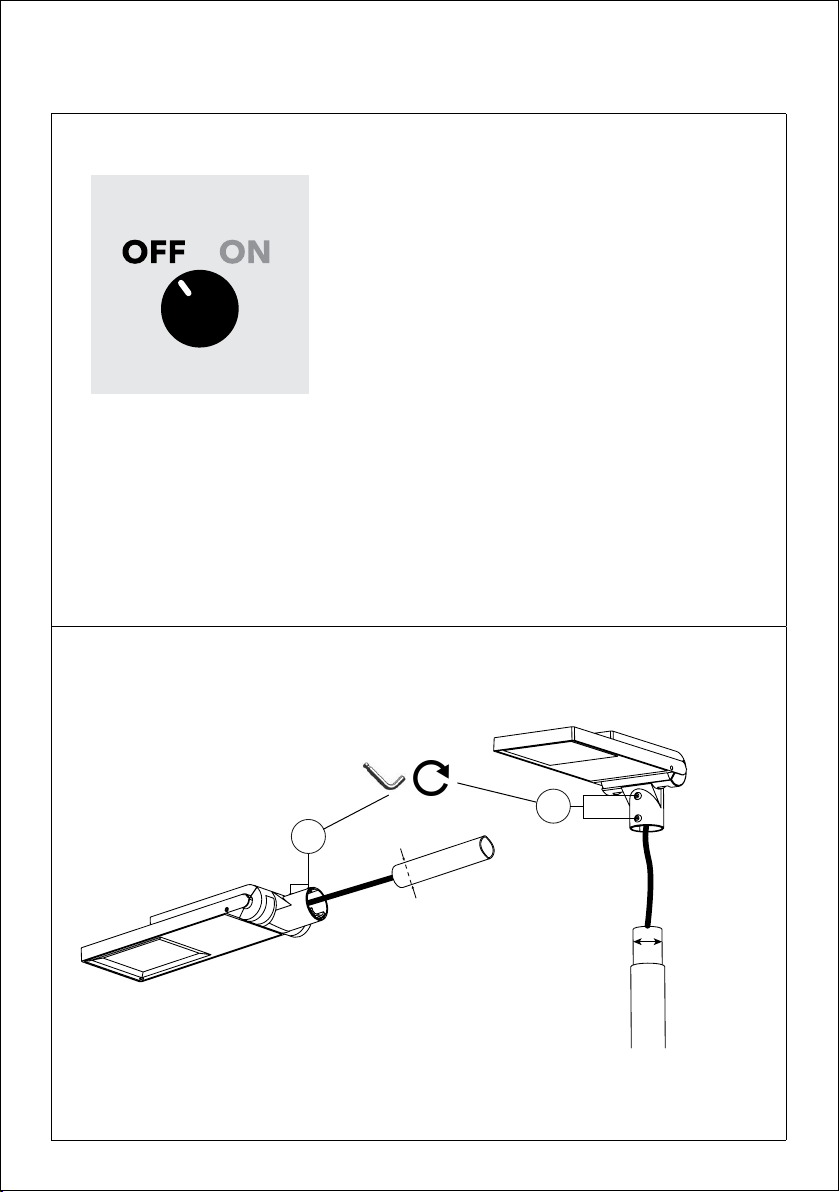

Installation Procedure

2) Pull the connecting cable through the pole. Place the luminaire on top of the pole and tighten

fasteners B, tightening to a torque of 10 Nm.

Side entry Post top

ø 40-60 x 100*

ø 76 x 100

Switch o and isolate mains electrical supply.1)

10 Nm

* ø 60 x 100 adaptor Kis required.

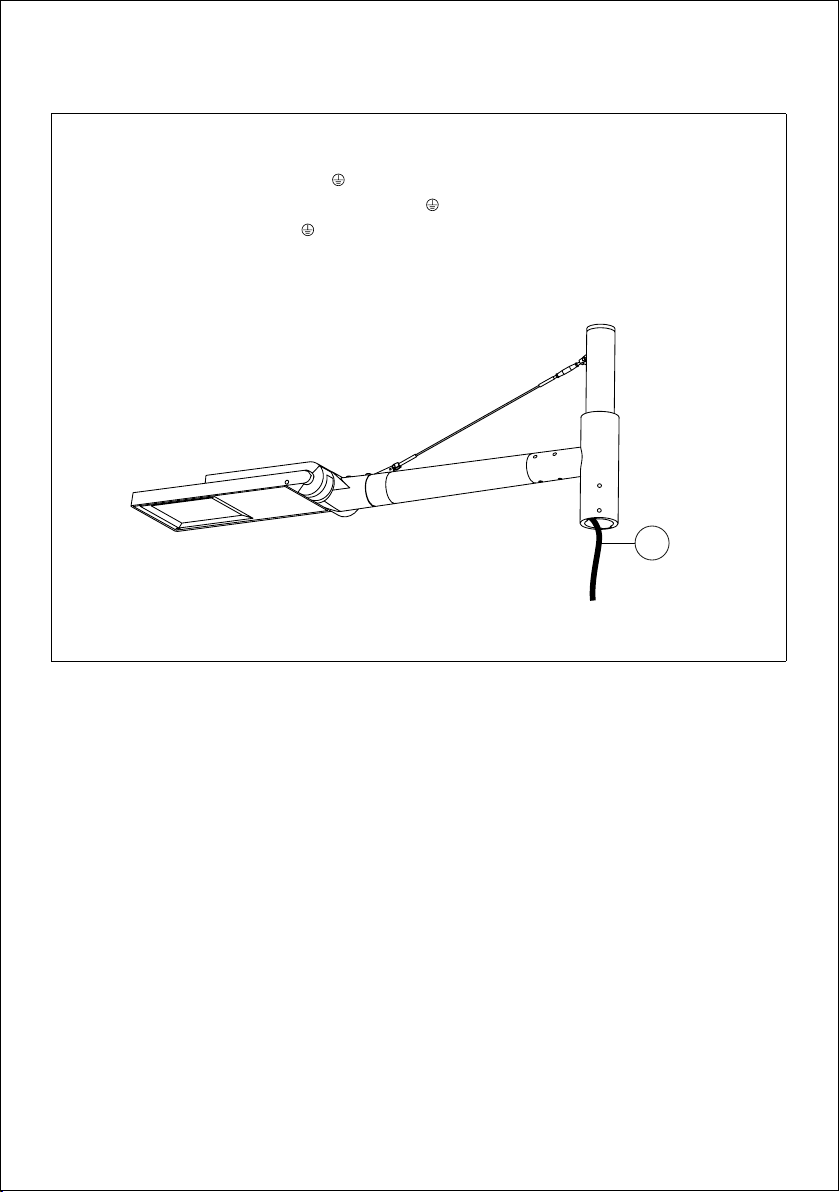

DALI (L = Phase, N = Neutral,

= Earthing, DA/DA = DALI control line)

BASIC (L1 = Phase 1, L2 = Phase 2,N = Neutral,

= Earthing)

ON/OFF (L = Phase, N = Neutral,

= Earthing)

base of the pole:

Trim mains cable

to the desired length and connect the leads to their respective terminals at the

Instructions.

remote SPD behind the door at the base of the pole as per the provided SPD Installation

Unless ordered with an internal SPD, the flex must be connected to the terminals of the provided

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

[email protected]

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

[email protected]

WE-EF SWITZERLAND

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

[email protected]

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

[email protected]

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

[email protected]

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

[email protected]

TO9280W0223 © WE-EF 2023

Technical specifications are

subject to change.
