WE-EF PFL540 Manuale utente

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Pole Mounted Luminaire

PFL540

Pole Mounted Luminaire

PFL540

330

590

867

90 ø 60 x 100

ø 76 x 80

IP66, IK08, Class I, ta = 25°C

* Optional side-entry version for ø 60 x 80 mm spigot, on request

Weight kg

for PFL540 15 Tools required

– 5 mm allen key

– 6 mm allen key

ø 9 - 14 mm

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Attention: The luminaire is factory-sealed and does

not need to be opened during installation.

The installation on site must comply with local and/or

national health and safety regulations.

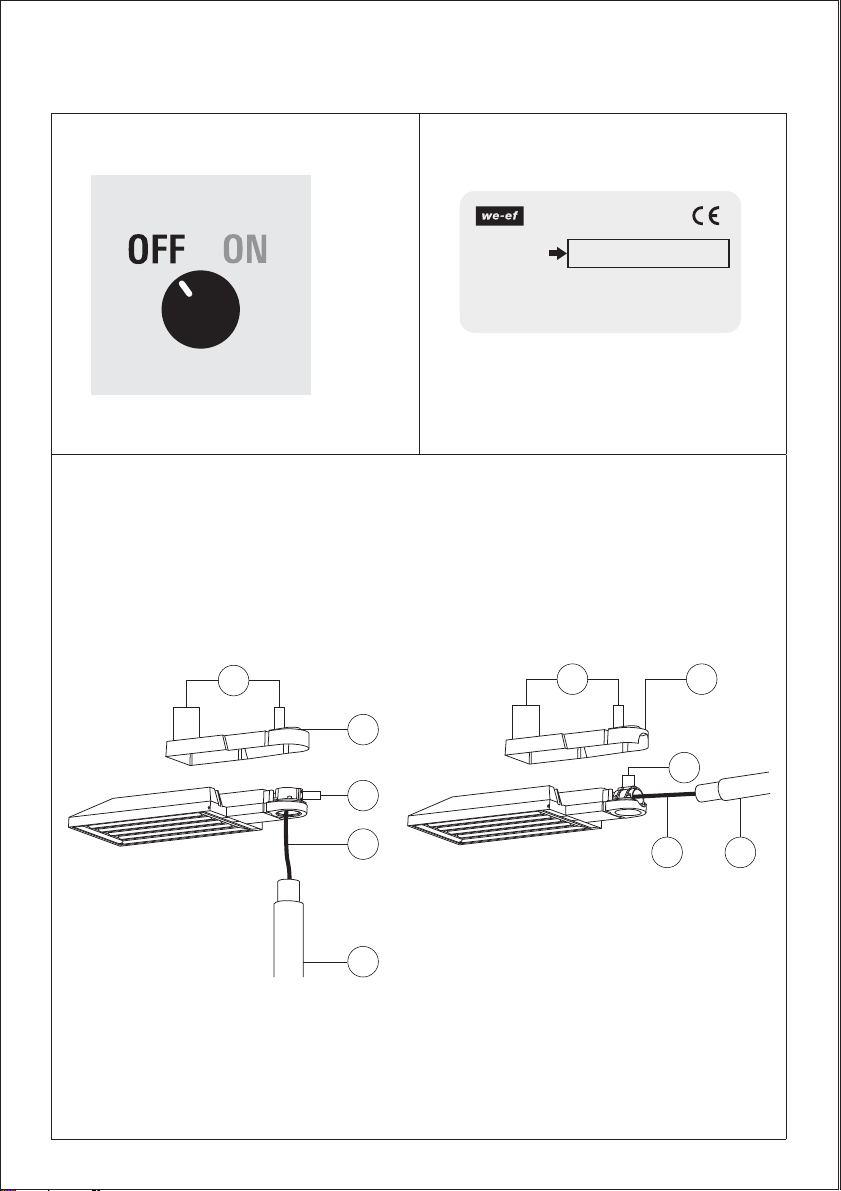

1) Switch off mains electrical supply.

Installation Procedure

3) Loosen screws Band take off cover C. Feed mains cable Ainto column Ewhile placing luminaire

in position. Tighten set screws Fwith a torque of 10 Nm.

4) Reposition cover Cand retighten screws B.

Option 1 Pole mounted Option 2 Side-entry

2) Check that rating shown on luminaire label

conforms with mains electrical supply.

(example)

PFL540 220-240V/50 Hz, 1-10

108-XXXX SOE XXXXXXX

LED 4000K 48W item no. XXX

09/19 IP66

Supply cable

5) Trim mains cable Ato the desired length and connect the leads to their respective terminals at

the base of the pole (L = Phase, N = Neutral, = Earthing)

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

LQIRDVLDSDFLƂF#ZHHIFRP

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

TO9266W0520 © WE-EF 2020

7HFKQLFDOVSHFLƂFDWLRQVDUH

subject to change.
