WE-EF QSI254 Manuale utente

WE-EF LEUCHTEN

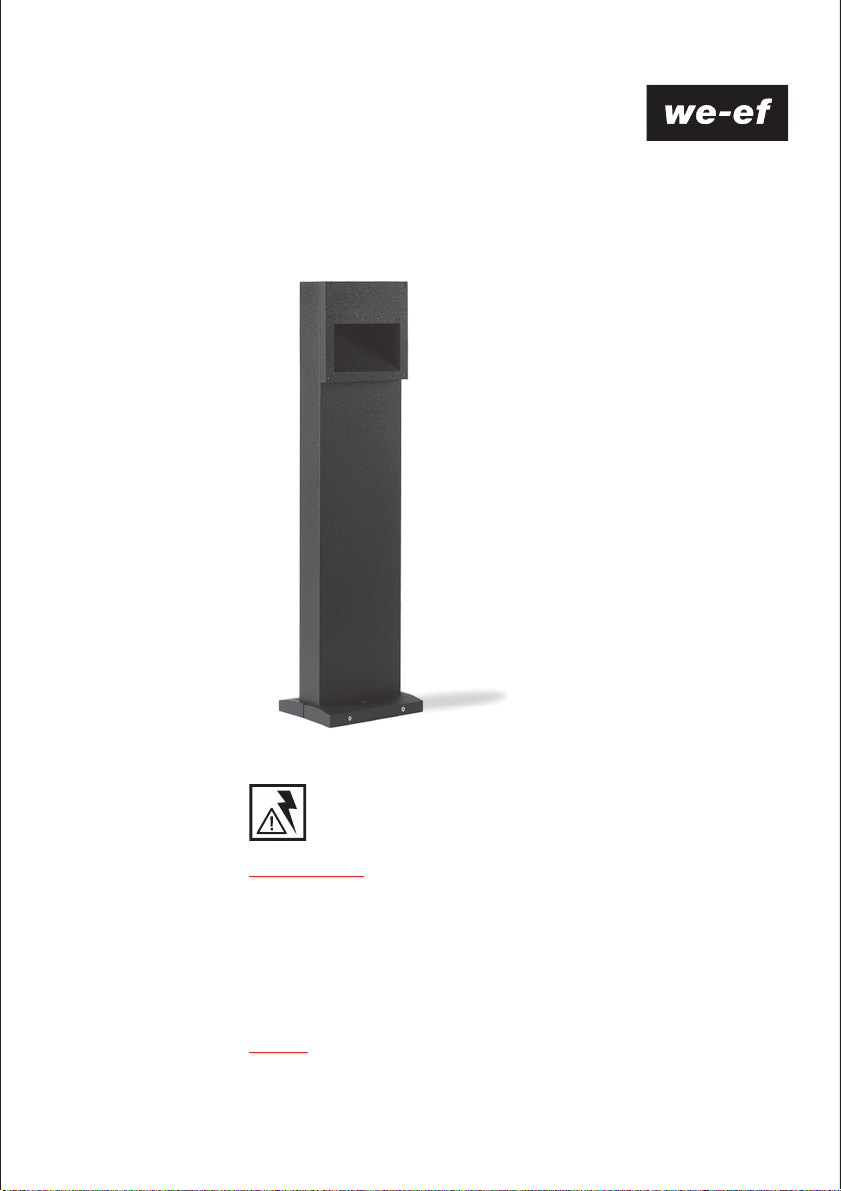

Installation and Maintenance

Instructions

Bollard

QSI254 LED

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

IP55, Class I, ta = 40°C

Bollard

QSI254

Accessories:

Planted root – Galvanised steel. kg

ESV4 for QSI254 300-0459 6.3

ESV4

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

by a suitably qualiƂ ed and trained professional.

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

suitably qualiƂ ed professional in compliance with latest

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice: If the luminaire is modiƂ ed by anybody other

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Installation Procedure

It is recommended to incorporate the optional planted

root A to ensure maximum stability.

1) Switch off mains electrical supply.

2) Check that rating shown on luminaire label conforms

with mains electrical supply.

3) A suitable recess to be provided for planted root A.

Ensure that a solid foundation as well as sufƂ cient

mains cable length are provided.

Note: Planted root installation instruction is

available at the end of this document.

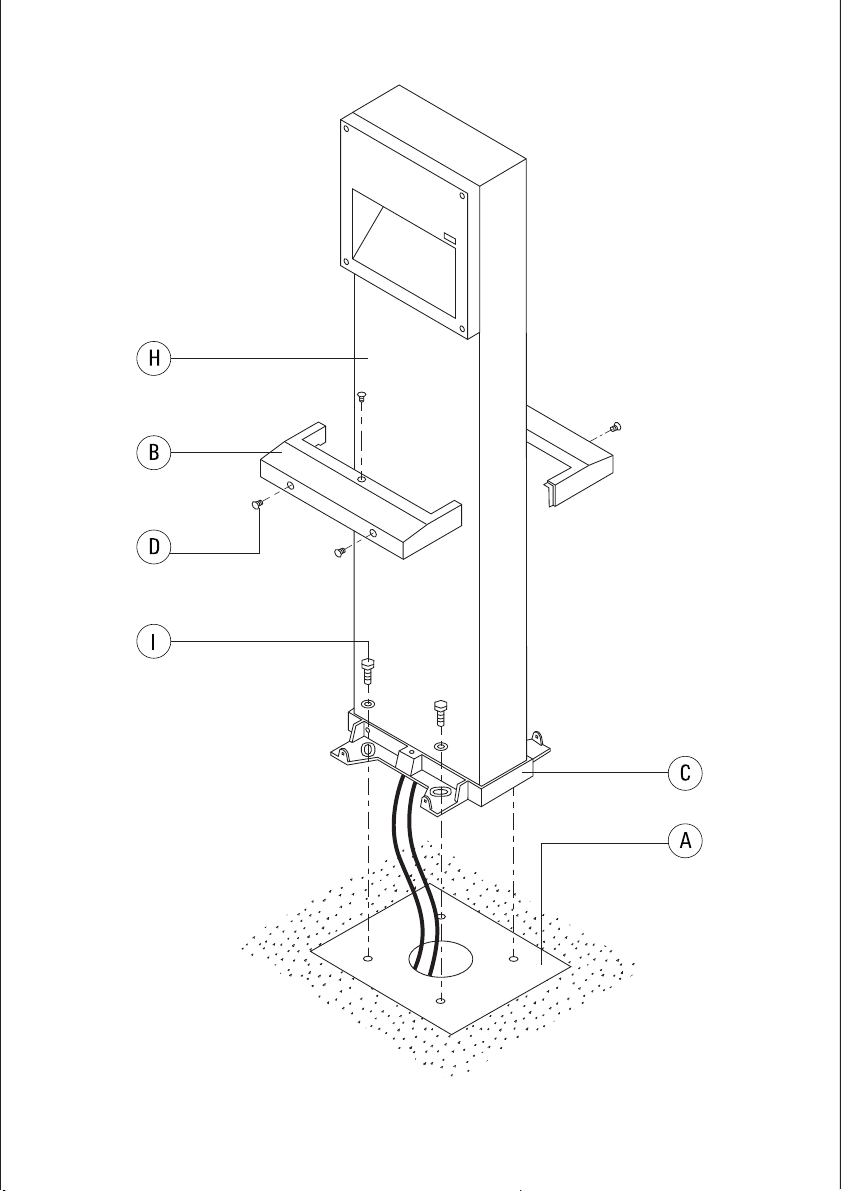

4) Remove cover B from cast base C by loosening

countersunk screws D.

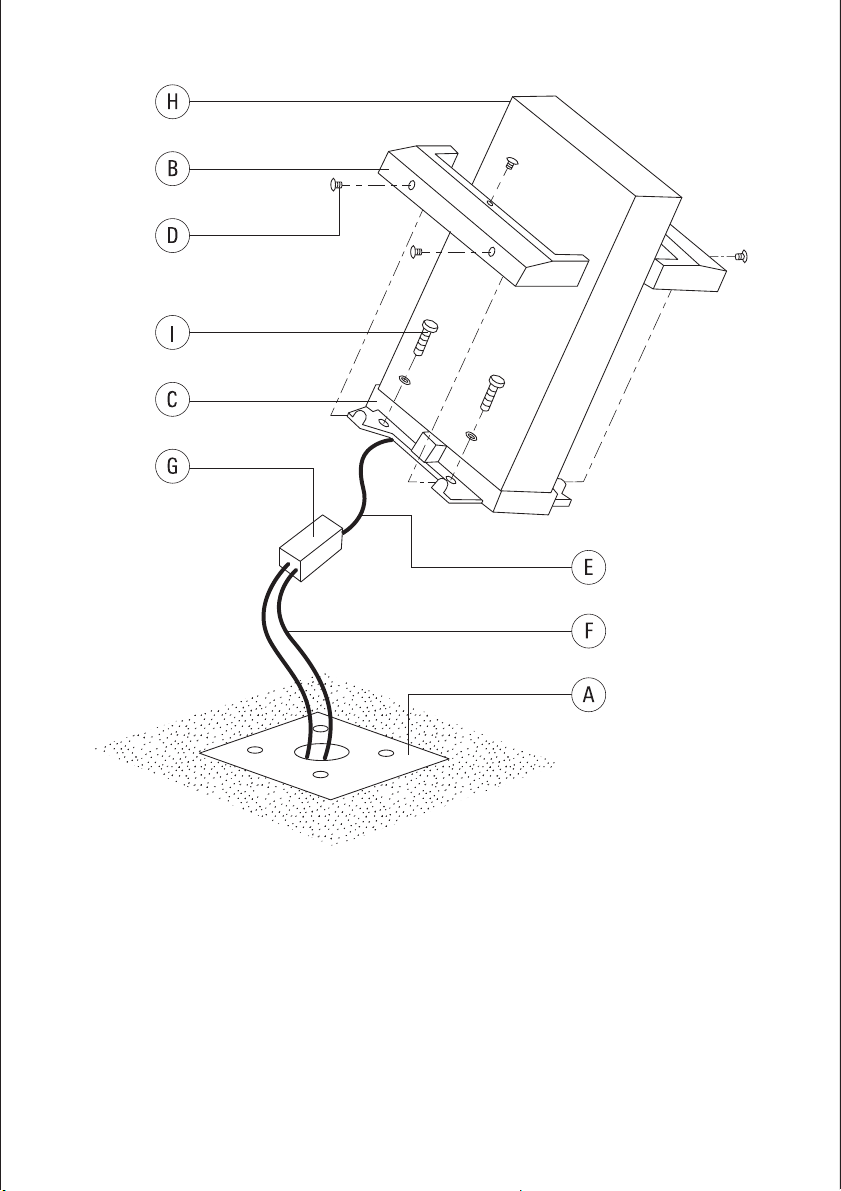

5) Connect luminaire cable E to mains supply cable F

in watertight terminal connector G (not supplied by

WE-EF). Place watertight terminal connector G and

excess cable in post H.

6) Set luminaire in position and secure by inserting

and tightening bolts I.

7) Reposition cover B and retighten countersunk

screws D.

TO9139W0219 © WE-EF 2019

Technical speciƂ cations are

subject to change.

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

info.asiapaciƂ c@we-ef.com

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

WE-EF LEUCHTEN

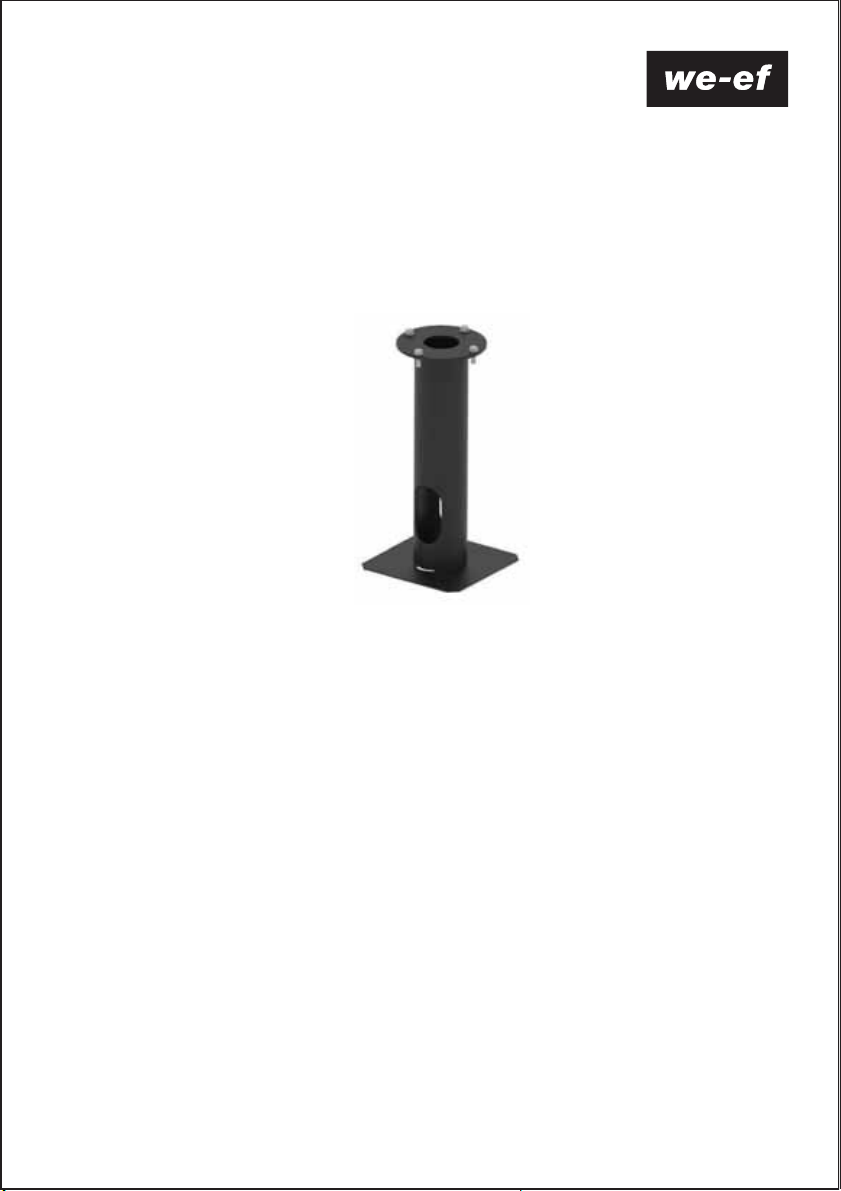

Installation and Maintenance

Instructions

Planted Root

ESV4

ESV2

ESV6

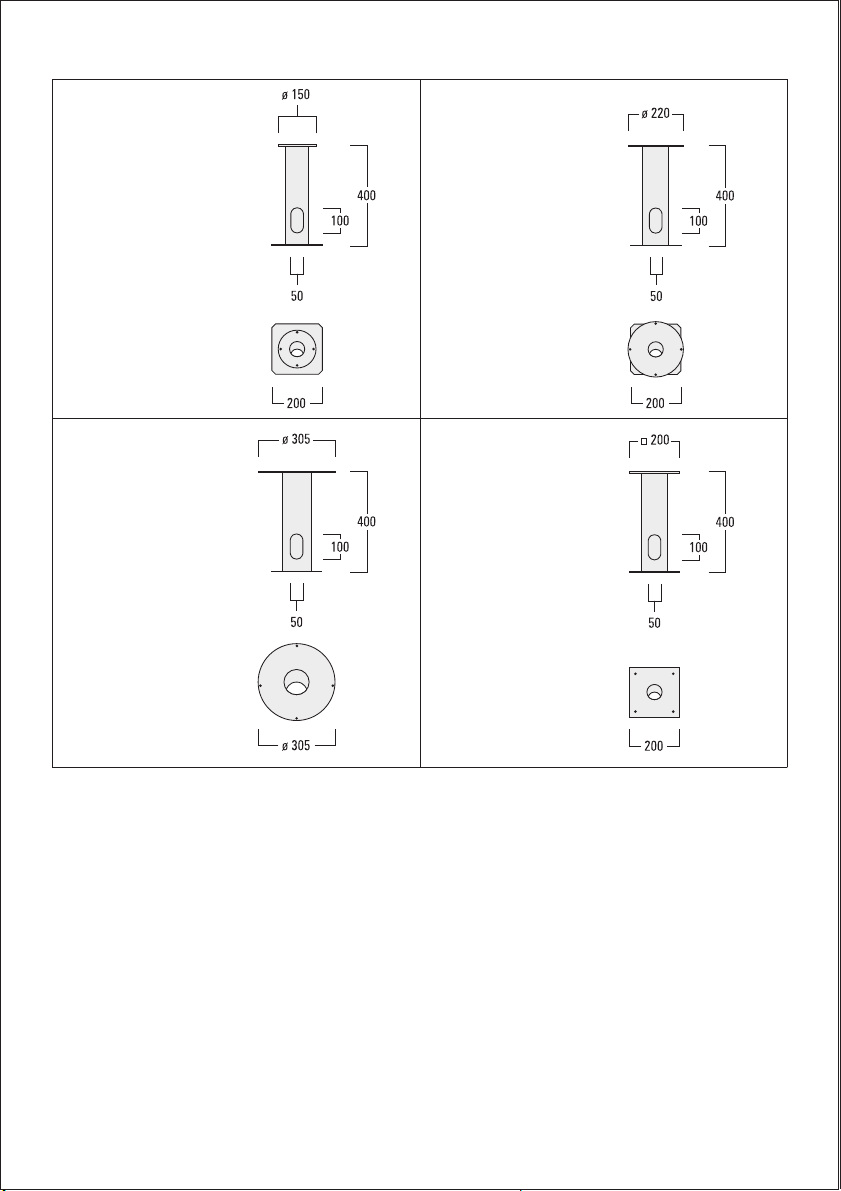

Planted Root

ESV4 300-0461

ESV4 300-0586

ESV4 300-0464

ESV4 300-0459

Suitability

1. KTX234

2. KTY234

3. ZFY230

4. GRY224

5. Short post

Suitability

1. XRY334

2. XRZ334

3. RRY334

4. RRZ334

Suitability

1. CFY259

2. GRY234

3. RRY324

4. RRZ324

5. XRY324

6. XRZ324

Suitability

1. QSI254

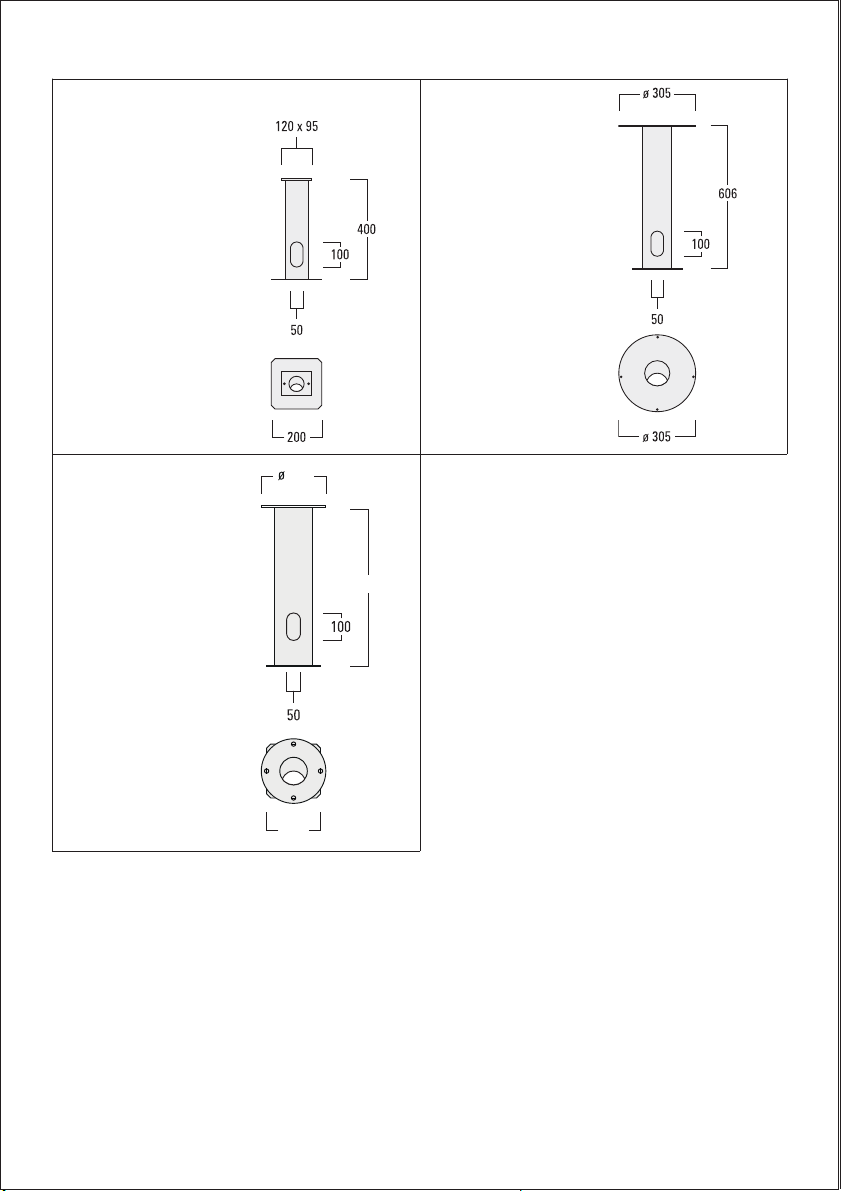

Planted Root

ESV2 300-9115

ESV6 300-0824

ESV6 300-0457

Suitability

1. PSY414/424

Suitability

1. AML-C

2. FLA461

Suitability

1. LTM440

2. LTM444

3. AMW-C

4. AMF-C

5. AMF-S

6. AML-C

240

200

600
