CABINET PARTS

For Models: M0RXEMMWW00, M0RXEMMWB00, M0RXEMMWS00

(White) (Black) (Stainless Steel)

5−09 LITHO IN U.S.A. (mjb) (psw) Part No. W10277092 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: M0RXEMMWW00, M0RXEMMWB00, M0RXEMMWS00

(White) (Black) (Stainless Steel)

W10277092

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142143

Service &

Wiring Sheet

W10270766

Energy Label

Use & Care Guide

w10249206

Bilingual

2225623 Modular Icemaker

Service Sheet

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 2189356 Clip, Grille

5 489385 Clamp, Tube

(Water Supply Line)

6 489427 Screw

7 3400504 Screw

9 489442 Screw

10 2221797 Rivet

12 549193 Clamp, Cord

13 489497 Screw

14 2254618 Hinge, Center

15 2183852 Shim, Hinge

Center

16 8281265 Screw

17 2254473 Hinge Butt

18 Fitting, Water Tube

(NOT SERVICED)

19 Hole Plug (6)

2201012 White

2183998 Black

20 Corner Filler (2)

2201014 White

2201017 Black

21 Grille

(Includes

Illus. 4 & 24)

2254386 White

2254388 Black

22 489341 Washer, Plain

23 487576 Washer, Nylon

24 2254385 Clip, Grille

25 Cover, Hinge

2213360 White

2213363 Black

26 Rail, Center

(NOT SERVICED)

27 2254578 Cover, Unit

28 Cabinet (Not a

Serviceable Part)

LINER PARTS

For Models: M0RXEMMWW00, M0RXEMMWB00, M0RXEMMWS00

(White) (Black) (Stainless Steel)

W10277092

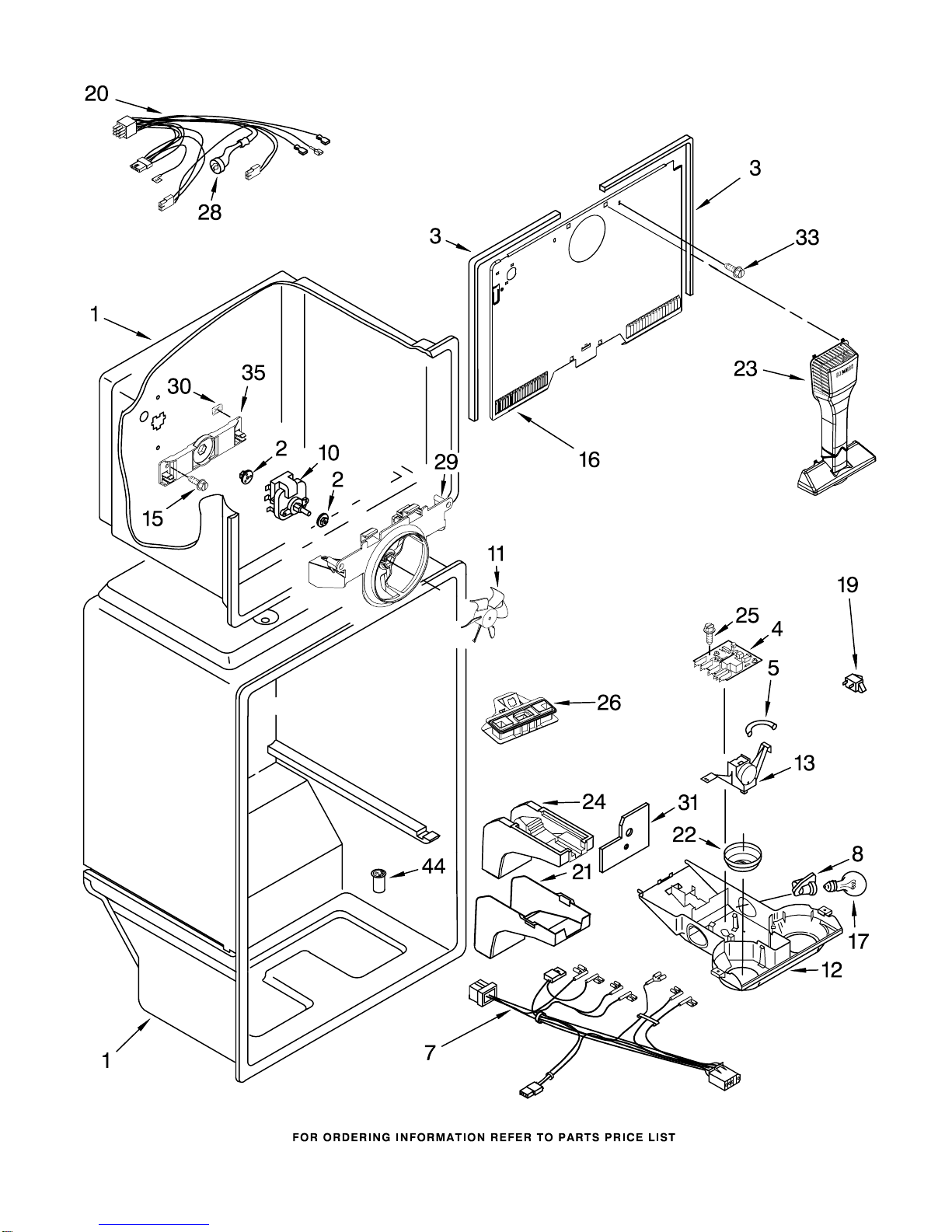

LINER PARTS

For Models: M0RXEMMWW00, M0RXEMMWB00, M0RXEMMWS00

(White) (Black) (Stainless Steel)

W10277092

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254359 Gasket, Evaporator

Cover (2)

4 2304099 Timer, Defrost

5 2204640 Thermostat Tube

Barrier

7 2310077 Wire Assembly,

Control Box

8 2162085 Socket, Light

10 2315539 Fan Motor

11 2163777 Fan Blade

W10268271

Control Box

13 2225460 Thermostat

15 488208 Screw

W10252320

Cover, Evaporator

17 2160708 Light Bulb (2)

19 1118894 Rocker Arm (2)

Switch

W10129799

Wire Assembly,

Freezer Compartment

(Includes

Illus. 28)

21 2176281 Cover, Air

Diffuser

22 2202885 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

25 8534009 Screw

26 2212439 Air Separator

Assembly

28 2321800 Defrost, BI−Metal

29 2254453 Bracket,

Fan Motor

30 2320183 Retainer−Screw

31 2204639 Shield, Heat

33 489478 Screw

35 2254454 Bracket

Evap. Fan, Rear

44 2210509 Valve

SHELF PARTS

For Models: M0RXEMMWW00, M0RXEMMWB00, M0RXEMMWS00

(White) (Black) (Stainless Steel)

W10277092

SHELF PARTS

For Models: M0RXEMMWW00, M0RXEMMWB00, M0RXEMMWS00

(White) (Black) (Stainless Steel)

W10277092

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

3 2163762 Cup, Shelf Mounting

4 2169917 Shelf, Glass

5 489478 Screw

6 2254352 Ice Bucket

7 2201105 Shelf, Cantilever

Meat Pan

(Complete)

8 2188684 Trim, Shelf Front

9 2314495 Crisper Cover

10 2201103E Shelf Assy

11 2221693 Glass, Crisper

Cover

12 2188686 Trim, Shelf Rear

13 2314477 Crisper, Support

W10266741

Shelf, Freezer

15 2218130 Pan, Crisper

(13−Inch)

(Includes 17,20)

16 2218127K Pan, Meat

17 2176222 Slide, Humidity

Control

19 2218129 Pan, Crisper

(10−Inch)

(Includes 17,20)

20 2212446 Body, Humidity

Control

21 2188690 Trim, Shelf Front

22 2188688 Trim, Shelf Rear

23 2177824 Glass, Shelf

24 2201101E Shelf Assembly,

Spillguard (2)

REFRIGERATOR DOOR PARTS

For Models: M0RXEMMWW00, M0RXEMMWB00, M0RXEMMWS00

(White) (Black) (Stainless Steel)

W10277092

REFRIGERATOR DOOR PARTS

For Models: M0RXEMMWW00, M0RXEMMWB00, M0RXEMMWS00

(White) (Black) (Stainless Steel)

W10277092

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 6 & 8)

2205395 White

2205398 Black

W10141742

Stainless Steel

4 2189202 Bracket, Door

Stop

5 489276 Screw, 8 x 1/2

6 2183003 Thimble

7 Hole Plug, Hinge

2212648 White

2212651 Black

8 Door Gasket,

Magnetic

2202874 Mist Beige

2202881 Black

9 2210566 Housing Compartment

10 2159302 Tray, Door

11 Handle

2300579W White

2221652 Black

12 2179605 Bin, Door (3)

13 2195949 Trim, Door Shelf

14 2218109 Door Compartment

15 2159312 Trim, Door Shelf

16 Hole Plug, Handle

2204837 White

2204840 Black

17 2177340 Endcap, Door Trim

18 2156006 Plug, Trim

UNIT PARTS

For Models: M0RXEMMWW00, M0RXEMMWB00, M0RXEMMWS00

(White) (Black) (Stainless Steel)

W10277092

UNIT PARTS

For Models: M0RXEMMWW00, M0RXEMMWB00, M0RXEMMWS00

(White) (Black) (Stainless Steel)

W10277092

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320188 Plate, Unit

Mounting

W10159808

Condenser

4 2315531 Heater, Defrost

5 2254250 Evaporator Assy.

6 8533961 Screw

7 2254294 Drain Pan

8 2176301 Bracket, Heater

9 2319835 Grommet−Cond(4)

10 2300638 Extension, Air

Baffle

W10204187

Strap

12 4387731 Cover

(Service Only)

13 4390624 Overload

(Service Only)

14 Grommet (4)

1100826 Production

4387558 Service

W10197428

Start−Device

Combination

(Start Relay and

Overload For

Production

Compressor Only)

16 2201184 Support Block

17 2150304 Roller (2)

18 2179826 Rivet

19 2182338 Clip, Heater

20 489373 Screw

21 3400518 Screw

W10129791

Wire Assembly

(Service Only)

23 2183454 Relay

(Service Only)

W10253005

Compressor

(Includes Items

12,13,14,22,

23,29 & 32)

29 Drier

2199167 Production

W10177049

Service

30 2155774 Clamp

32 Capacitor

2264017 Production

1118576 Service

33 2315541 Air Baffle

34 2188874 Motor, Condenser

35 2187382 Wire Assy. Unit

36 2225834 Fan Blade

38 2214924 Tube, Suction

39 2154109 Tube, Process

40 488500 Screw

41 2254574 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
