Williams Sound PPA R35-8 Manuale utente

Personal PA™Multi-Channel FM Receiver

• Model PPA R35-8

Personal PA™Multi-Channel FM Receiver

• Model PPA R35-8

ADAADA

036E 1

NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!

Description:

The PPA R35-8 FM receiver can operate up to eight channels simultaneously when used with any

Williams Sound Personal PA transmitter operating on the 72-76 MHz bandwidth. The PPA R35-8

features crystal clear audio, and is digitally synthesized controlled for rock solid tuning. Each unit

is built in a rugged impact resistant case, and and will operate up to 50 long lasting hours on two

AA alkaline batteries (not included). It also features an integral volume on/off control, LED power

and low battery indicator, channel selection knob and earphone jack. When AA NiMH recharge-

able batteries are installed (not included), up to 12 units can be charged at one time when used

with the optional CHG 3512 multi-charger.

Applications:

• Language Interpretation • Conferences • Schools • Auditoriums • Theaters • Churches

Dimensions: 4.5” H x 2.85 W x 1.2” D (115 mm x 72 mm x 30 mm)

Weight: 4.6 oz (130 g)

Color: Black

Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001),

approx. 50 hours battery life or

Two (2) AA rechargeable NiMH batteries (BAT 026), 1400

mAh, approx 32 hours battery life

Current Consumption: Nominal 40 mA

Operating Freq: 72-76 MHz*:

8 channels: 72.1, 72.3, 72.6, 72.8, 74.7, 75.4, 75.7, or 75.9

MHz. All Channels Not Available on the PPA T20 Transmitter

Intermediate Freq: 10.7 MHz

FM Deviation: +/- 75 kHz

De-emphasis: 75 uS

LED Indicator: Power: Red. Low Battery: Flashes

Sensitivity: 2 uV at 12 dB SINAD with squelch defeated

Input Overload: 20 mV

Frequency Response: 40 Hz to 15 kHz +/- 3 dB

Signal to Noise ratio: 60 dB at 100 uV

Receive Antenna: Integral with earphone/headphone cord

Audio Output: 35 mW, max 16 ohm load

Output Connector: 3.5 mm mono phone jack

Squelch: Located inside battery door. Factory set for 25 dB S/N.

Squelch may be set with JFD-7104-5 from Sprague Goodman

or any flat tipped tuning tool with tip size .095 X .016

Notes: The R35-8 is NOT field tunable. The eight channels have been

carefully selected to inhibit inter-modulation interference.

Channel frequencies are 72.1, 72.3, 72.6, 72.8, 74.7, 75.4, 75.7,

and 75.9 MHz.

Approvals: FCC, Industry Canada, RoHS, WEEE

Warranty: Five Years, Parts and Labor. 90 days on cords, earphones,

headphones, batteries, and other accessories

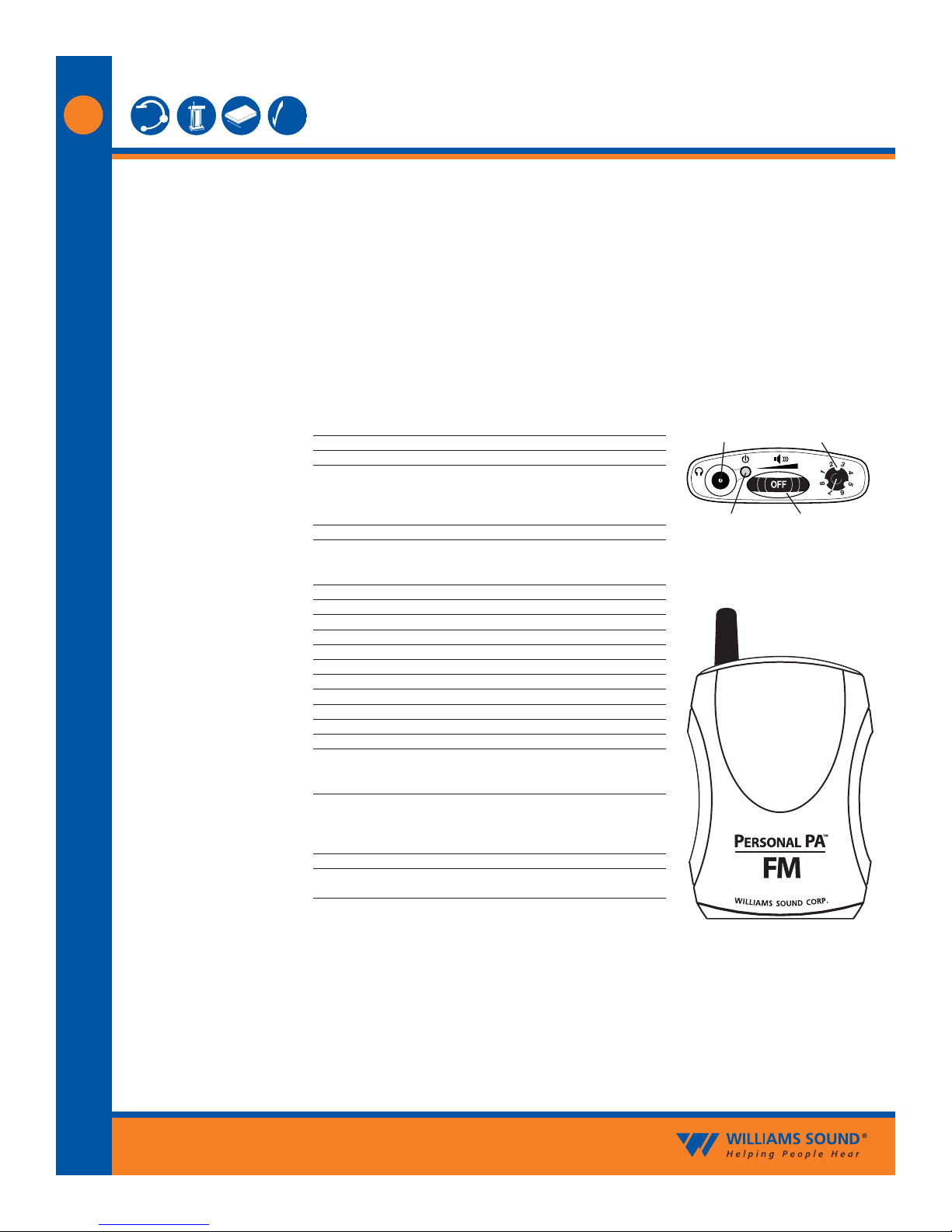

PPA R35-8 Receiver

On/Off Switch

Volume Control

Headphone

Jack

"On"/Low Battery

Indicator LED

Channel

Selector Knob

R35-8 Front

R35-8 Top

*DISCLAIMER: FCC RULES LIMIT USE OF THIS EQUIPMENT TO AUDITORY ASSISTANCE.

Personal PA™Multi-Channel FM Receiver

• Model PPA R35-8

Personal PA™Multi-Channel FM Receiver

• Model PPA R35-8

ADAADA

036E 2

NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!

The PPA R35-8 shall be a digitally synthesized eight channel receiver. The receiver shall be encased in a

black PC/ABS plastic with a hinged door on the back for battery installation.

The receiver shall be a body-pack type and include a detachable belt-clip for hands-free operation. The

receiver shall have a 3.5 mm mono phone jack and accommodate low-impedance mono earphones,

headphones and telecoil couplers. The receiver shall have a combination volume control and power

on/off rotator dial, an eight position channel select knob and a red power LED on the top bezel. The

power LED will flash to indicate low battery. There shall be a slide switch located inside the battery

compartment to select between Alkaline or NiMH rechargeable battery operation. There shall be a

squelch control located inside the battery door. There shall be drop-in charging contacts on the bottom

of the receiver.

The receiver shall be pre-programmed to eight channels between 72 and 76 MHz. The receiver shall

operate for up to 32 hours with two 1.5 volt AA NiMH rechargeable batteries and 50 hours on two

1.5 volt AA Alkaline batteries.

The R35-8 shall receive FM signals in the 72-76 MHz audio assistance band with 75 µS de-emphasis. The

receiver shall provide a maximum output of 35 mW at 16 Ohms with an earbud type earphone. The

receiver shall accept a maximum wideband deviation of ±75 kHz. The system’s electrical frequency

response shall be 40 Hz to 15 KHz ± 3dB and the signal to noise ratio shall be 60 dB at 100 µV. The

receiver shall have a sensitivity of 2 µV at 12 dB Sinad.

The receiver shall be covered by a five year parts and labor warranty, excluding earphones, headphones,

batteries and chargers.

The receiver shall be the Williams Sound Corp. model PPA R35-8.

Bid Specs:

Personal PA™Multi-Channel FM Receiver

• Model PPA R35-8

Personal PA™Multi-Channel FM Receiver

• Model PPA R35-8

ADAADA

036E 3

United States

Williams Sound Corp.

10321 W. 70th Street

Eden Prairie, MN 55344-3446

Ph: 800-328-6190 / 952-943-2252 / FAX: 952-943-2174

Email: [email protected]

Web: www.williamssound.com

Canada

Thorvin Electronics

2861 Sherwood Heights Dr. Units 36-37

Oakville, ON L6J-7K1 Canada

Ph: 800-323-6634 / 905-829-3040 / FAX: 905-829-4196

Web: www.thorvinelectronics.com

Asia, Australia, Latin America, Middle East, South Africa

International Sales Department

Williams Sound Corp.

10321 W. 70th Street

Eden Prairie, MN 55344 USA

Phone: +1 952 224 7791

Fax: +1 952 943 2174

Email: [email protected]

Web: www.williamssound.com

Contact:
