Williams Sound SoundPlus WIR 952 Guida

Williams Sound ®

Helping People Hear

MANUAL AND USER GUIDE

SoundPlus™Infrared System

Model WIR 952

Transmitter Model WIR TX295

Receiver Model WIR RX295

Williams Sound ®

Helping People Hear

CONTENTS PAGE

System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Components . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Recycling Instructions . . . . . . . . . . . . . . . . . . . . . . . 5

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . 6

WIR TX295 Transmitter . . . . . . . . . . . . . . . . 6

WIR RX295 Receiver . . . . . . . . . . . . . . . . . . 9

In Case of Difficulty . . . . . . . . . . . . . . . . . . . . . . . 11

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

System Specifications . . . . . . . . . . . . . . . . . . . . . . 14

YSTEM

VERVIEW

Thank you for purchasing the WIR 952 Infrared System from

Williams Sound Corp. Anyone needing auditory assistance to over-

come background noise, reverberation, or distance from the sound

source can benefit from the WIR 952.

You can use the WIR 952 for hearing assistance in conference rooms,

listening to the TV, or with other audio equipment. The TX295

Transmitter features an Automatic Level Control to adjust for differ-

ent audio signal levels and to maintain a comfortable listening level.

NOTE: The WIR 952 Infrared System is not recommended for

use with a PLASMA TV MONITOR.

If you have problems at anytime with the WIR 952, do not hes-

itate to call us toll-free at 1-800-843-3544.

YSTEM

OMPONENTS

Williams Sound ®

Helping People Hear

• WIR RX295 Receiver

• 1m Audio Cable with

dual RCA plugs (WCA 078)

• Two Rechargeable Batteries

(BAT AP97A)

• WIR TX295 Transmitter

• Power Supply

• TV Microphone

(MIC 084)

Williams Sound ®

Helping People Hear

SAFETY INFORMATION

Hearing Safety:

CAUTION!

This product is designed to amplify sounds to a high volume level

which could potentially cause hearing damage if used improperly.

To protect your hearing and the hearing of others:

1. Make sure the volume is turned down before putting on the ear-

phone or headphone before adjusting the volume to a comfortable

level.

2. Set the volume level at the minimum setting that you need to hear.

3. If you experience feedback (a squealing or howling sound), reduce

the volume setting and move the microphone away from the ear-

phone or headphone.

4. Do not allow children or other unauthorized persons to have

access to this product.

Battery Safety and Disposal:

CAUTION!

This product is supplied with disposable Alkaline batteries. Do

not attempt to recharge disposable batteries, which may explode,

release dangerous chemicals, cause burns, or other serious harm

to the user or product.

Williams Sound ®

Helping People Hear

Pacemaker Safety:

CAUTION!

1. Beforeusing this product with a pacemaker or other medical device,

consult your physician or the manufacturer of your pacemaker or other

medical device.

2. If you have a pacemaker or other medical device, make sure that you

are using this product in accordance with safety guidelines established

by your physician or the pacemaker manufacturer.

RECYCLING INSTRUCTIONS

Help Williams Sound protect the environment! Please take the

time to dispose of your equipment properly.

Product Recycling for Customers in the European Union:

Please do NOT dispose of your Williams Sound equipment in

the household trash. Please take the equipment to an electronics

recycling center; OR, return the product to the factory for proper

disposal.

Battery Recycling for Customers in the European Union:

Please do NOT dispose of used batteries in the household trash.

Please take the batteries to a retail or community collection point

for recycling.

8/11/05

Williams Sound ®

Helping People Hear

ETTING UP THE

TX295 T

RANSMITTER

NOTICE: THE RECHARGEABLE BATTERIES ARE SHIPPED IN A DISCHARGED

STATE. THE BATTERIES MUST BE CHARGED OVERNIGHT BEFORE USING THE

WIR 952 SYSTEM.

The WIR TX295 Transmitter may be placed on top of a TV or shelf.

Place the TX295 Transmitter where it is clearly visible from your

listening position.

Infrared light behaves like visible light, so it is blocked by solid

objects. This confines the signal to the room where the transmitter

is located. The Transmitter cannot be placed inside or behind any-

thing except glass. The maximum operating distance is approxi-

mately 30 feet (9 m).

Ideally, the TX295 Transmitter should be at ear-level height or

above. The infrared light pattern is much like a floodlight “cone” as

it leaves the transmitter, with the best reception inside the cone.

Sunlight can cause infrared interference in the form of a buzz, hiss,

or static. Thus, the system cannot be used outdoors and may not

work properly inside if a lot of direct sunlight is present. Closing

drapes or blinds will help if sunlight is a problem.

Any number of receivers may be used with the TX295 Transmitter,

but use only one transmitter in a room at the same time. Otherwise,

interference will occur.

Receiver Charging Cradle

Battery

Charging

Port

Battery

Charging

Port

Receiver

Charging

Indicator

Right

Battery

Charging

Indicator

Left

Battery

Charging

Indicator

Infrared

Transmitting

Diodes

Infrared

Transmitting

Diodes

(only for WIR

RX295 Receiver)

Williams

Sound

Williams Sound ®

Helping People Hear

Power

Input

ST = Stereo operation

L = 95 kHz operation

R = 250 kHz operation

RCA Jack (connect from TV speaker output).

STEREO operation:

Use both RIGHT and LEFT jack.

95 kHz operation:

Use LEFT jack only.

250 kHz operation

: Use LEFT jack only.

Mic

Jack

DC12V

L MIC

ST L R

TV Microphone

If an RCA connection is unavail-

able, use the provided TV micro-

phone to pickup the sound source

directly from the TV loud speak-

er as shown on right.

TX295

TX295 Transmitter (Rear View)

STEP 1: CONNECT THE TRANSMITTER POWER SUPPLY

Plug the Power Supply cord into the “DC 12V” jack 1on the back

of the TX295. Then plug the Power Supply into an AC outlet. When

the receiver is placed into the charging cradle built into the top of the

transmitter, the center charging indicator on the front of the TX295

will turn on. When the spare battery is plugged into the left or right

battery charging port on the transmitter, the corresponding charge

indicator light will turn on.

STEP 2: CONNECT THE TRANSMITTER TO THE AUDIO SOURCE

Use the Audio Cable supplied to connect the TX295 Transmitter

directly to the TV, VCR, or other equipment output jacks:

STEREO OPERATION: (RECOMMENDED FOR HIGHEST

AUDIO QUALITY): 1) Connect the RCA plugs from the TV or

VCR speaker output into the LEFT and RIGHT RCA jacks on the

TX295 transmitter 3. Next, slide the stereo/mono switch 2on

the TX295 transmitter into the “ST” position. Your transmitter is

now set for stereo operation. Lastly, you will need to adjust the

RX295 receiver for stereo transmission (see instructions on page 9).

123

Williams Sound ®

Helping People Hear

95 kHz (MONO) OPERATION:1) Connect the LEFT RCA plug

from the TV or VCR speaker output into the LEFT RCA jack on the

TX295 transmitter 3(the right jack should be left unplugged).

Next, slide the stereo/mono switch to the “L” Left position 2. The

transmitter is now set for 95 kHz operation. Lastly, you will need

to adjust the RX295 receiver for 95 kHz operation (see instructions

on page 9).

250 kHz (MONO) OPERATION:1) Connect the LEFT RCA plug

from the TV or VCR speaker output into the LEFT RCA jack on the

TX295 transmitter 3(the right jack should be left unplugged). Next,

slide the stereo/mono switch 2to the “R” Right position. The

transmitter is now set for 250 kHz operation. Lastly, you will need to

adjust the RX295 receiver for 250 kHz operation (see instructions

on page 9).

If an RCA connection is unavailable, use the provided TV

MICROPHONE 5to pickup the desired sound source. Plug in

the microphone into the Mic Jack on the rear of the TX295 trans-

mitter 4. Use the velcro strip supplied to attach the microphone

near the loudspeaker 4of your TV or stereo.

The microphone will allow you to play the TV at lower volume for

other listeners and will pick up other important sounds like the tele-

phone or doorbell ringing.

Williams Sound ®

Helping People Hear

SETTING UP THE RX295 RECEIVER

STEP 1: INSTALL THE RECEIVER BATTERIES

Insert the Rechargeable battery into the bottom of the RX295

Receiver (see page 10). Place the Receiver into the charger cradle

built into the top of the TX295 Transmitter and let charge overnight.

The spare battery can be plugged into the charging port located on

either side of the Transmitter. By keeping the spare battery charged,

you can easily swap batteries when the one in use runs out and

always have a fresh battery ready. A fully charged battery will oper-

ate the receiver for approximately 6 hours, depending on the volume

setting. The battery should be changed when you notice the sound

getting weak and noisy or if the Receiver indicator light is not on.

The batteries may be left charging when not in use.

STEP 2: USING THE WIR RX295 RECEIVER

Choose between stereo, 95 kHz or 250 kHz (mono) operation. Slide

the channel selector switch to the position for stereo. For 95 kHz

operation, slide the channel selector switch to the “A” position

(mono). For 250 kHz operation, slide the channel selector switch to

the “B” position (mono). IMPORTANT:Make sure you are operating

on the same frequency as the TX295 transmitter!

To use the system, first check to make sure your TV or Audio Source

is turned ON. Make sure the Receiver battery is fully charged. The

RX295 Receiver has an automatic on/off function. When you put the

receiver on, it turns on. When you take the receiver off, it turns off.

Rotate the Volume Control to adjust the volume to a comfortable

level.

A dual detector infrared “eye” is located on the front of the

receiver. Do not cover it up or you will lose reception. Make sure

the “SOUND PLUS” lettering is facing away from you when you

put the receiver on.

Return the Receiver to the charger when it is not in use.

ADDITIONAL RECEIVER ADJUSTMENTS

Balance Control: Use a small screwdriver to adjust the loudness

balance between the Left and Right Earphones.

Tone Controls: Use a small screwdriver to adjust the tone for the

left and right earphones.

Ear Cushions: Replacement Ear Cushions are available from your

Williams Sound dealer, Part Number EAR 031.

Williams Sound ®

Helping People Hear

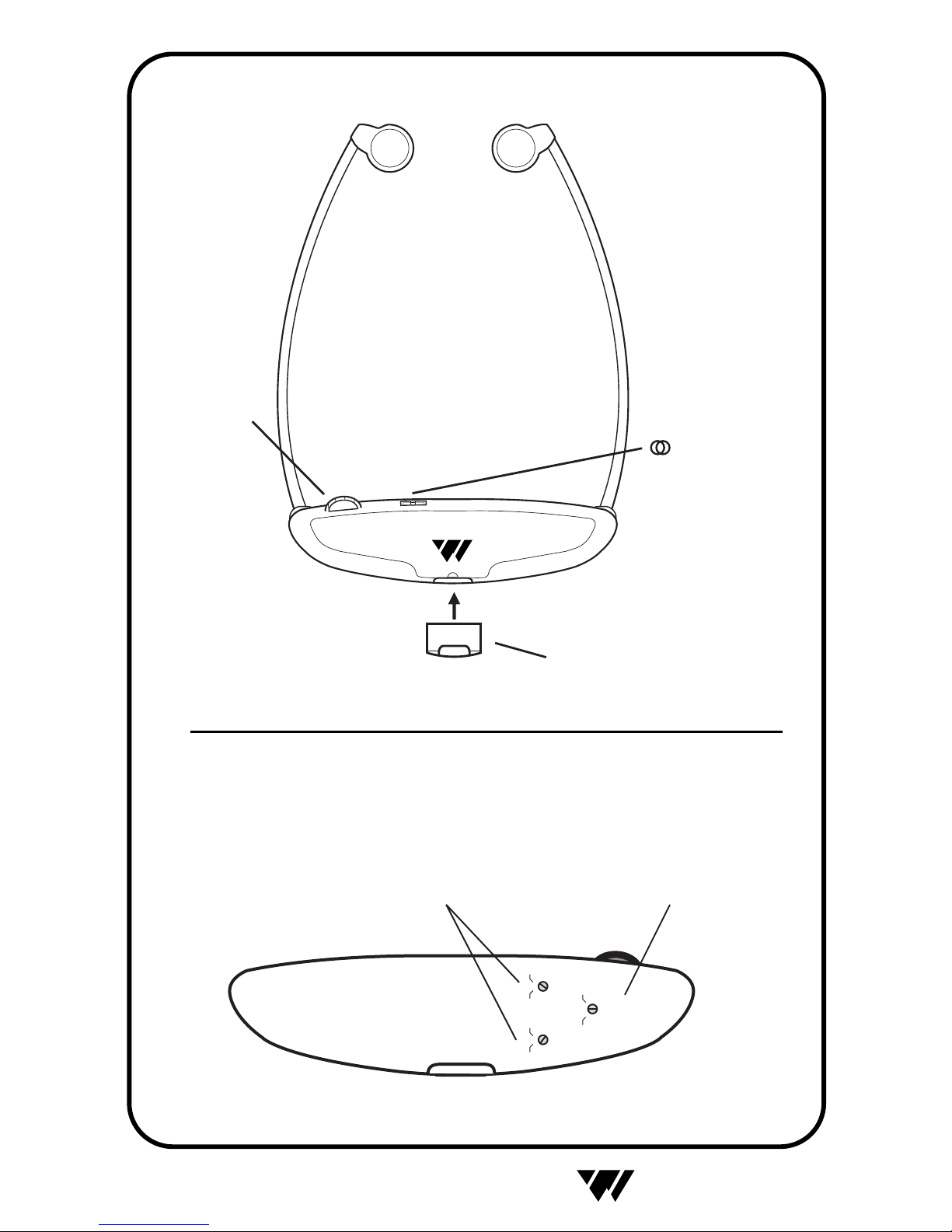

RX295 Receiver

(Front View)

Battery (BAT AP97A)

Volume

Control

Channel Selector

Sound Plus

A : 95 kHz

: Stereo

B : 250 kHz

BAL

–

RX295 Receiver (Rear View)

Tone Controls Balance Control

Altri manuali per SoundPlus WIR 952

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Williams Sound Ricevitore

Williams Sound

Williams Sound SoundPlus WIR RX22-4 Manuale utente

Williams Sound

Williams Sound PA R750 Guida all'installazione

Williams Sound

Williams Sound SoundPlus WIR RX237 Manuale utente

Williams Sound

Williams Sound Hearing Helper PFM R31 Manuale utente

Williams Sound

Williams Sound Hearing Helper PFM 350 RCH Manuale utente

Williams Sound

Williams Sound Motiva PFM 360 Guida

Williams Sound

Williams Sound TGS R30 Manuale utente

Williams Sound

Williams Sound PPA VP 37 Guida

Williams Sound

Williams Sound WIR SYS ADV Guida alla risoluzione dei problemi

Williams Sound

Williams Sound DLR 360 Manuale utente

Williams Sound

Williams Sound SoundPlus Infrared Receiver WIR RX12-4 Manuale utente

Williams Sound

Williams Sound SoundPlus Infrared Receiver WIR RX3 Manuale utente

Williams Sound

Williams Sound IR?RX20 Manuale utente

Williams Sound

Williams Sound PPA R35-8 Istruzioni per il montaggio

Williams Sound

Williams Sound T2 863 Manuale utente

Williams Sound

Williams Sound PLR BP1 Istruzioni per il montaggio

Williams Sound

Williams Sound PPA R37 Istruzioni per il montaggio

Williams Sound

Williams Sound Digi-Wave DLT 400 Manuale utente

Williams Sound

Williams Sound TGS PRO 737 Guida

Williams Sound

Williams Sound Digi-Wave DLR 400 ALK Manuale utente

Williams Sound

Williams Sound Personal PA Receiver PPA R35N Istruzioni per il montaggio

Williams Sound

Williams Sound Whisper R863 Manuale utente

Williams Sound

Williams Sound WIR TX295 Manuale utente

Williams Sound

Williams Sound SoundPlus WIR RX22-4 Istruzioni per il montaggio

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
