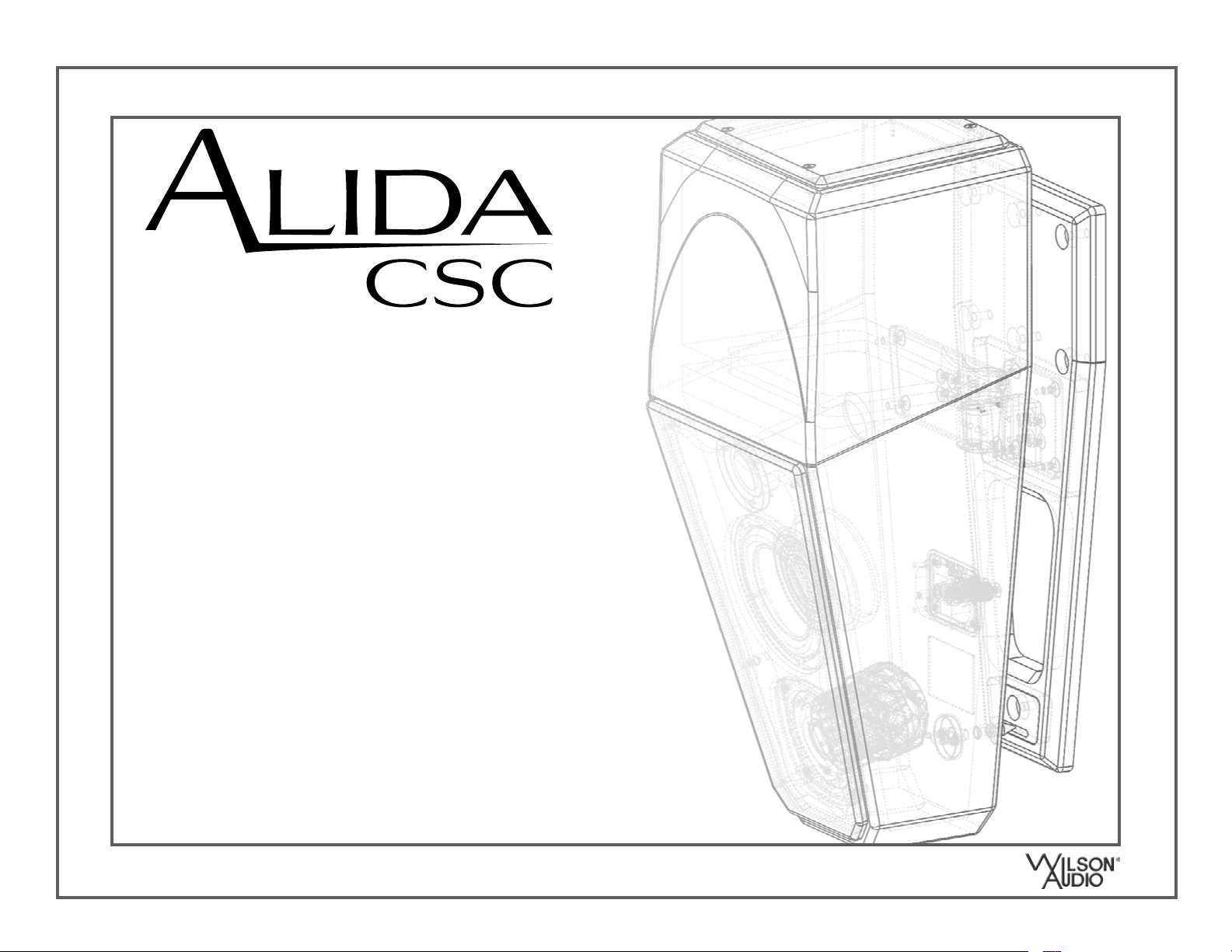

WILSON AUDIO ALIDA CSC Manuale utente

In s ta l l at I o n a n d C a r e G u I d e

• Alida CSC Installation and Care Guide • Wilson Audio

Wilson Audio® is a registered trademark of Wilson Audio Specialties, Inc.

Wilson Audio (Stylized)®, WAMM®, Master Chronosonic®, WAMM Master Subsonic®, Chronosonic XVX®,

Alexx®, Alexx V®, Alexia®, Alexia V®, Sasha DAW®, Yvette®, Sabrina®, SabrinaX®, Alida®, TuneTot®,

LōKē®, Thor’s Hammer®, Pedestal®, Wilson Audio Acoustic Diode®, Reliable Capacitor®, Rel-Cap®,

AudioCap®, AudioCapX®, WATCH®, IsoBase®, Wilson Audio Authentic Excellence®, Wilson Audiophile

Recordings LLC®, and Special Applications Engineering® are registered trademarks of Wilson Audio

Specialties, Inc.

Chronosonic XVX 4 Seasons™, Grand SLAMM™, Sasha V™, Sasha W/P™, WATT™, WATT/Puppy™, Sophia™,

Alida CSC™, Mezzo CSC™, WASAE Center™, WATCH Center™, XS™, Submerge™, WATCH Dog™, ActivXO™,

Excellence in All Things™, Certified Authentic™, It’s About Time™, WilsonGloss™, Convergent Synergy

Carbon™, QuadraMag™, X-Material™, S-Material™, and V-Material™ are trademarks of Wilson Audio

Specialties, Inc.

This manual was produced by the Wilson Audio Engineering and the Marketing Departments. The infor-

mation contained herein is subject to change without notice.

Current Revision 1.0. If you are in need of a more recent manual, please contact your Dealer or

download one at www.wilsonaudio.com.

The information in this manual is the sole property of Wilson Audio Specialties, Inc. Any reproduction,

in whole or in part, without the express written permission of Wilson Audio Specialties, Inc., is pro-

hibited. No material contained herein may be transmitted in any form or by any means, electronic or

mechanical, for any purpose, without the express written permission of Wilson Audio Specialties, Inc.

Authentic Excellence

WA Dealers

Ta b l e o f C o n T e n T s 1

Wilson Audio Specialties

Co n T e n T s

se C T i o n 1 — Wa s P s eTuP�� 5

Section 1.1—Wilson Audio Setup Procedure ........................... 6

Zone of Neutrality: Alida CSC ..................................................... 6

Section 1.2—Speaker Placement/Listening Position ................. 9

Room Shapes.............................................................................. 9

Multi-Channel Audio ................................................................. 10

Final Listening Room Setup (Voicing) .......................................... 12

se C T i o n 2 — u n C r aT i n g a l i d a CsC �� 15

se C T i o n 3 — i n s Ta l l i n g a l i d a CsC �� 19

Section 3.1—Installation Prep ............................................ 20

Adjustable Mounting System ..................................................... 20

Section 3.2—Safety Warning ................................................ 21

Mounting Surface Evaluation .................................................... 23

Table of Contents

2al i d a C s C i n s Ta l l aT i o n a n d C a r e g u i d e

Authentic Excellence

Section 3.3—Mounting Bracket to a Surface ....................... 24

Marking Location ................................................................... 24

Drilling Pilot Holes ................................................................ 24

Section 3.4—Installing Alida CSC ...................................... 25

Placing Alida CSC on Bracket ................................................... 26

Section 3.5—Connecting Speaker to Amplifier ..................... 27

Section 3.6—Locking Down the Alida CSC .......................... 28

Section 3.7—Removing the Protective Film ......................... 28

se C T i o n 4 — C a r e & f i n i s h �� 31

Section 4.1—Resistors ..................................................... 32

Mid-Woofer and Tweeter Resistors ........................................... 32

Section 4.2—Surface Care ................................................ 34

Dusting the Alida CSC ............................................................. 34

Ta b l e o f C o n T e n T s 3

Wilson Audio Specialties

Care of the Grilles ................................................................... 35

Break-in Period ......................................................................... 35

se C T i o n 5 — s P e C i f i C aT i o n s �� 37

Section 5.1—Specifications ................................................. 38

Section 5.2—Graphical Dimensions ...................................... 39

Section 5.3 —Alida CSC Phase Curve ..................................... 40

Section 5.4—Alida CSC Impedance Curve ............................... 41

se C T i o n 6 — M o u n T i n g C h a r T �� 43

se C T i o n 7 — W a r r a n T y �� 47

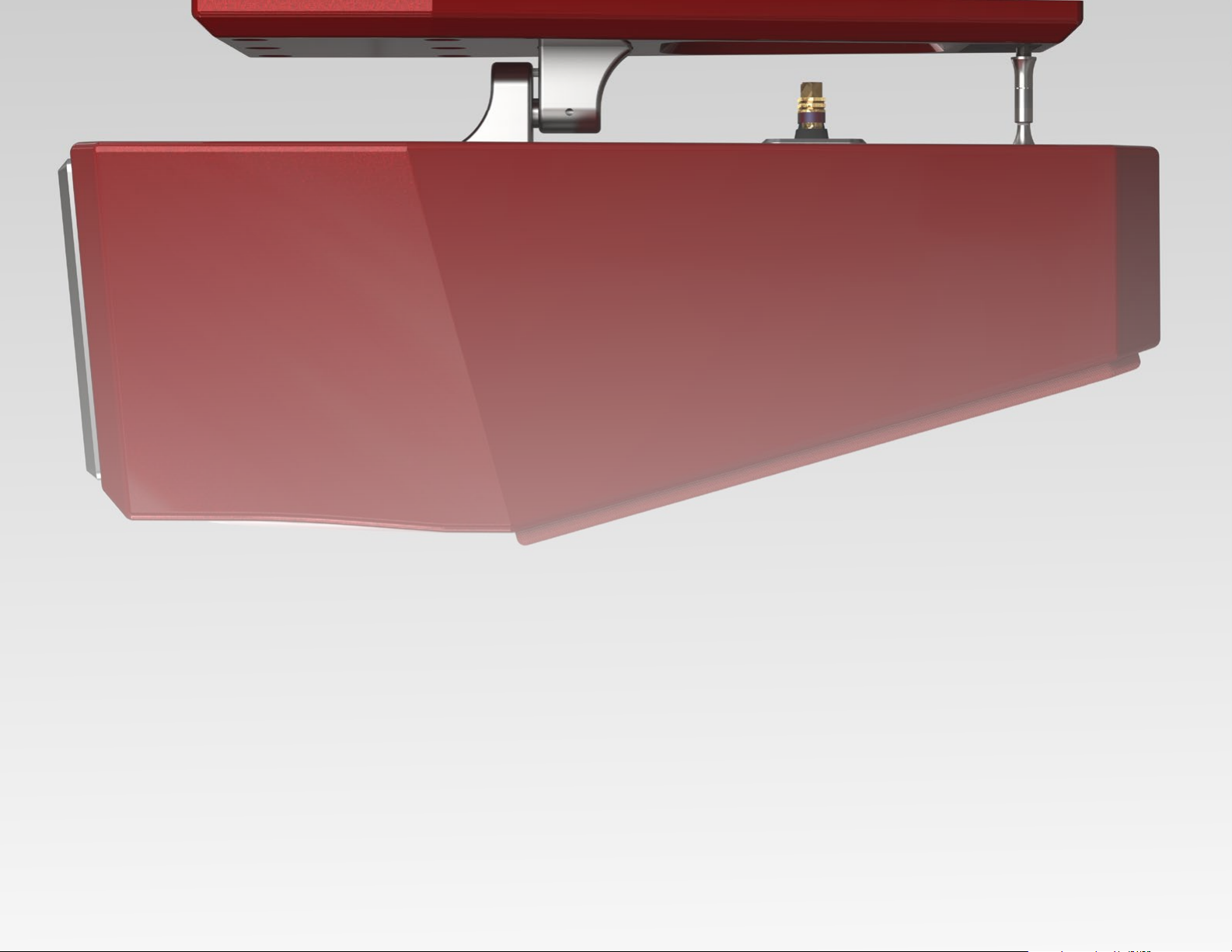

se C T i o n 1 — Wa s P s eTuP

Wilson Audio Specialties

6al i d a C s C i n s Ta l l aT i o n a n d C a r e g u i d e

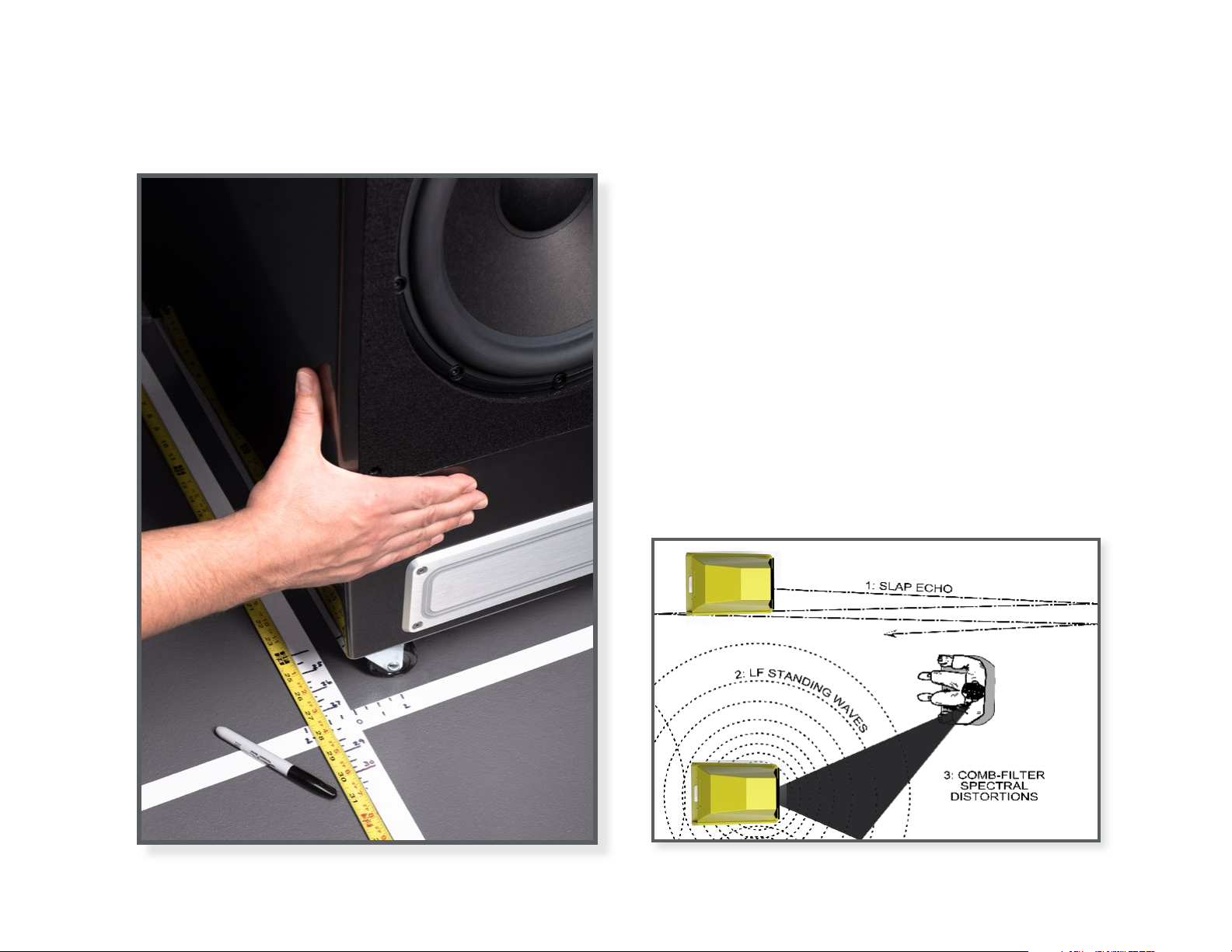

Section 1.1—Wilson Audio Setup Procedure

An instructional video outlining the Wilson Audio Setup Procedure (WASP) can be found here:

www.wilsonaudio.com/wasp The proper positioning of your new loudspeakers within your room

is critical in order to extract its formidable performance envelope. When carefully followed, the

WASP has proven to be the most effective method for setting up Wilson Audio Loudspeakers. Your

authorized Wilson Audio Dealer is trained in this process, and is the best resource for you to ensure your

Loudspeakers are setup properly.

Viewing the video is the best way to learn how to properly employ WASP for floorstanding

Loudspeakers. We have included additional instructions in this Manual for the unique nature of Alida

CSC, as a boundary-mounted Loudspeaker. WASP works equally well for front Left and Right channels,

(which are set up first) and for additional speakers such as a Center channel, boundary-mounted

channels, and/or Subwoofers.

You will need the following items:

• Tape Measure

• Known Listening Position

• Masking Tape & Pen

Zone of Neutrality: Alida CSC

The Zone of Neutrality is the Speaker location where your Loudspeakers sound most natural and

interact the least with the room. We realize that the location of your boundary-mounted Speakers is not

very flexible. Nevertheless, careful selection of the mounting location will improve the performance of

the Speakers. If you are able to be flexible as to the location of the Alida CSC on the wall, you will be

able to more fully optimize their sound. To find the best Zone for placement, do as follows:

Authentic Excellence

WASP Video

se C T i o n 1 � 1 —W i l s o n a u d i o s e T u P P r o C e d u r e 7

Wilson Audio Specialties

1. Carefully stand on a ladder or a chair against the wall in the general location where

you would like to place the Alida CSC. Position your head at the highest point possible

for mounting the Alida CSC. Speaking in a moderately loud voice, and at a constant

volume, project your voice out into the room. By moving slowly down the rungs of the

ladder you move your voice vertically.

2. As you move down the wall, (you will need to have another listener seated in the lis-

tening position to aid you in the evaluation), listen to how the voice “frees up” from

the added bass energy imparted by the ceiling boundary.

3. When you hear the voice “free up” from this artifact, place a piece of tape on the wall

to mark this location.

4. As you move lower, you will hear where your voice begins to interact with the floor.

Put a piece of tape in this location. You have a good vertical range in which to opti-

mize the best possible placement of your Alida CSCs.

5. Repeat the procedure while moving away from the side walls. Again, listen for your

voice to lose the added bass energy from the wall behind you and continue until there

is an obvious interaction with the opposite wall in front of you. Complete each speaker

location individually.

What you should have at the end of this procedure are two rectangles on the wall (usually nearer

the corners), which is your Zone of Neutrality for each channel. By installing your Alida CSCs in this gen-

eral area, you ensure getting the most performance and musical satisfaction.

Note: The more reflective or “live” sounding the room is, the more difficult it will be to detect the

changes in your voice. Thus, you may have to repeat this process until the Zones have been deter-

mined.

8a l i d a C s C i n s Ta l l aT i o n a n d C a r e g u i d e

Authentic Excellence

When carefully followed, the WASP has proven

to be the most effective method for setting up

Wilson Audio loudspeakers.
