XYZprinting 3D Food Printer

User Manual

Model : 3C10A

P 1 V1

English

P 2 V1

XYZprinting 3D Food Printer User Manual

Contents

1. Introducing the Product ............................................................................................ 3

1-1 Product appearance ............................................................................................4

1-2 Accessories..............................................................................................................5

1-3 Specifications ......................................................................................................... 5

2. Introducing product operations ............................................................................. 6

2-1 My Recipe ................................................................................................................ 8

2-2 Printing from the USB drive ...........................................................................10

2-3 Printing from the PC .........................................................................................11

2-4 Settings ...................................................................................................................12

2-5 Cartridge loading demonstration - cookie dough ................................15

3. Reminders .....................................................................................................................16

4. Safety regulations ......................................................................................................17

P 3 V1

XYZprinting 3D Food Printer User Manual

　　Technology is no longer limited to labs or factories. People of all ages, including

children, can now enjoy the fun made possible by technological developments.

　　 XYZprinting has continued to make remarkable achievements in the field of 3D

printing. In the past 2 years, we have successfully introduced 3D printing technologies

to family settings. In 2015, XYZprinting released food printers never seen before in the

market. 3D printing technology can now be used to print different food ingredients

through an easy to use interface. XYZprinting 3D Food Printer allows users to simply

press a few buttons and create innovative work that integrates digital information

with a diverse selection of materials that may include clay or edible ingredients. XYZ-

printing 3D Food Printer is not only capable of creating materials in the desired shape

and form; it can also be used for post-production processing and decorations. Inbuilt

sensors allow the printer to accurately measure the item's height and print the materi-

als directly upon the item. Users may print different materials in a variety of colors on

the object to enhance visual aesthetics.

　　The principle of 3D printing is to extrude materials from the cartridge in a

three-dimensional space, generating layers stacked upon each other to build the de-

sired form. Users can download pictures from the cloud database. Alternatively, they

may also use their own 3D graphics software to create their favorite images. Since the

emergence of this technology, digital technology enthusiasts will be able to demon-

strate their skills by actually creating their designs.

　　XYZprinting has identified market opportunities and lifestyle applications offered

by 3D printing technology, releasing a number of novel 3D printing products that

emphasize convenience and diversity. Our products extend to personal, family, and

educational settings. With the help of printing technology, everyone can become a

designer and creator. We hope that in the not too distant future, the once exclusive

space-age technology of 3D printing will become an integral part of every household.

1. Introducing the Product

P 4 V1

XYZprinting 3D Food Printer User Manual

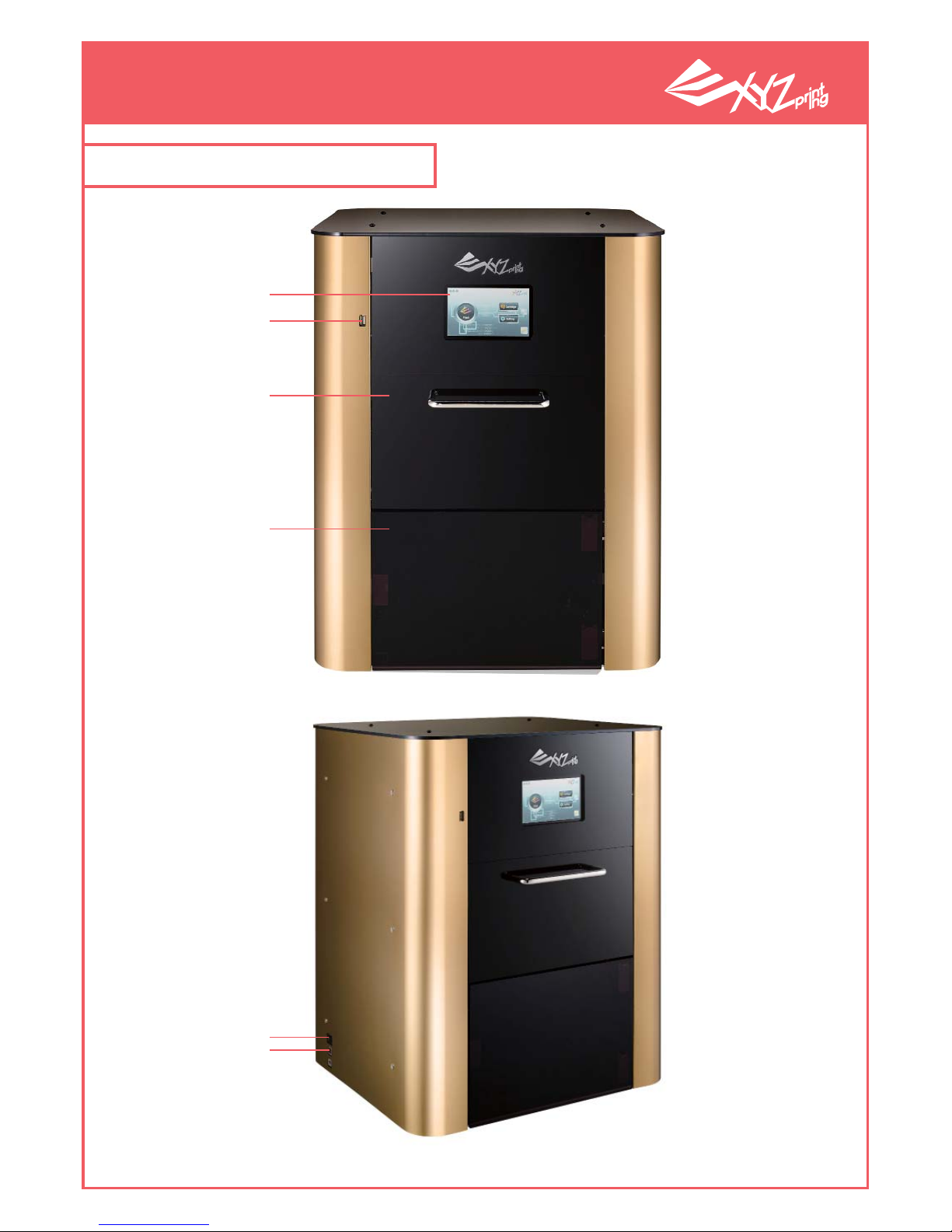

USB port

Touchscreen

Cartridge chamber

Printing chamber

Power switch

USB port

1-1 Product appearance

P 5 V1

XYZprinting 3D Food Printer User Manual

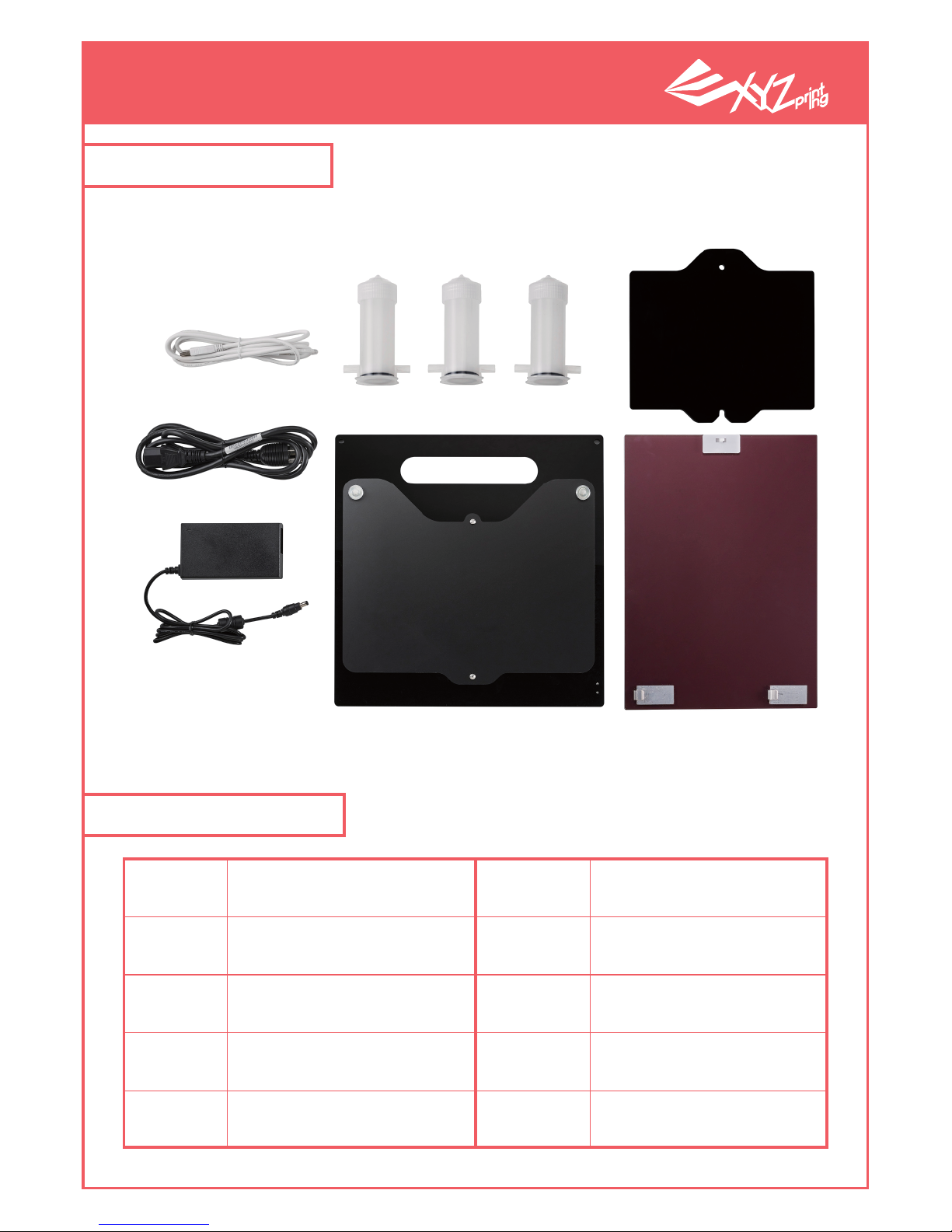

Cartridge x3, Screw cap with 1

mm, 2 mm, and 4 mm

diameters (3 of each)

Material plate

(printing bed)

Tray

Transformer

Power cord

USB cable

Printing

chamber cover

1-2 Accessories

1-3 Specifications

Printer

dimension

Printing

method

Extruder

diameter

Operations

Connection

Maximum

printing

dimension

Printing

thickness

Software

System

support

File format

150 x 200 x 150 mm

0.8-3.2mm

Foodware

Win 7/Win 8

STL and XYZ format (.3wf)

471 x 480 x 610 mm

Pressure injection, multiple

cartridge model 100 cc*3

1 / 2 / 4 mm (adjustable)

5" touchscreen

USB 2.0

P 6 V1

XYZprinting 3D Food Printer User Manual

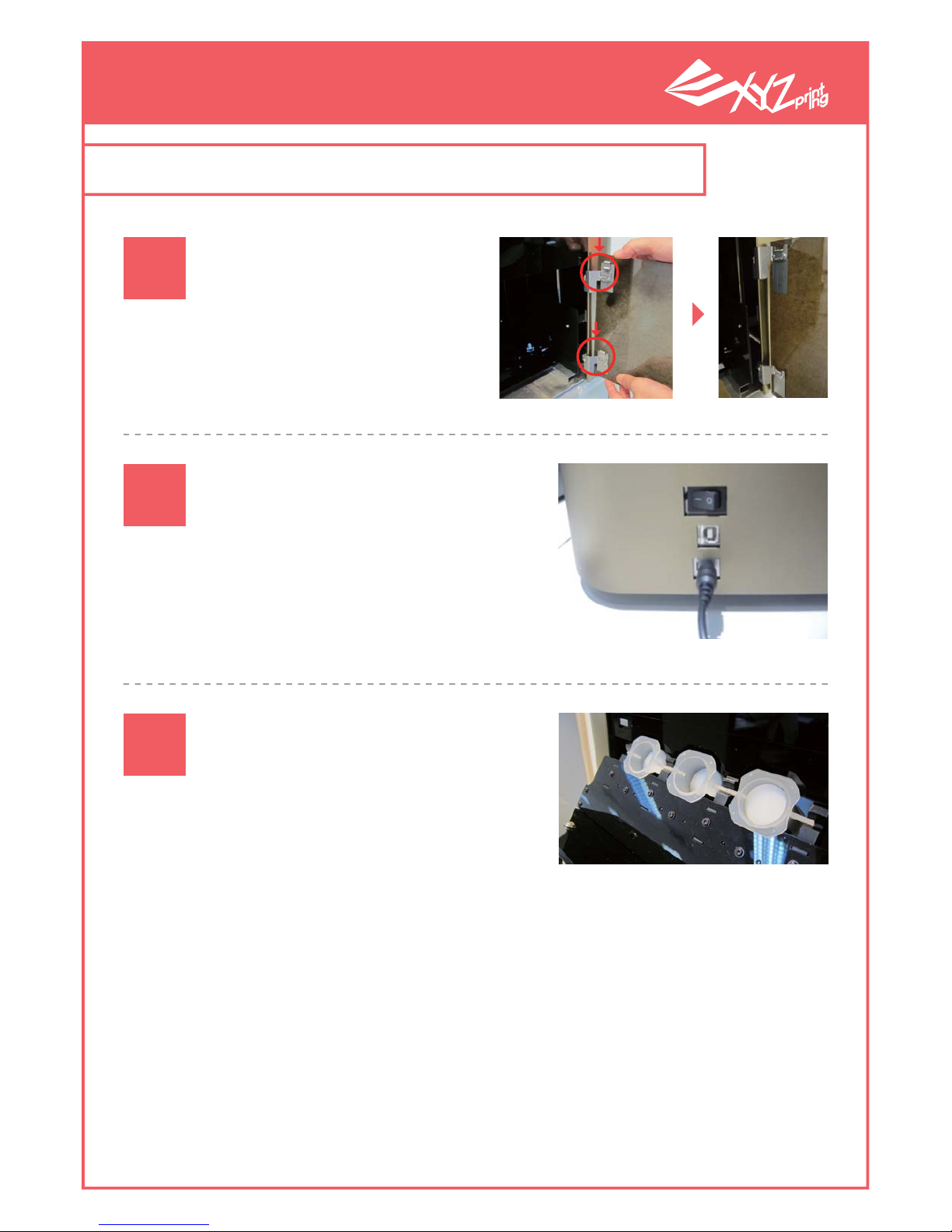

The power switch is located at the

side of the printer near the bottom.

Please make sure that the printer is

placed on a stable platform before

plugging it into a power source and

switching it on.

This printer model is capable of

being loaded with 3 cartridges for

3 different material types. Opening

the cover of the cartridge chamber

will reveal 3 slots numbered 1, 2, and

3 from right to left. Cartridges must

be loaded in a proper sequence. You

must start loading from slot 1 before

proceeding to the slot on the left.

If the cartridges are not installed in

this particular sequence (1 to 3), the

carrier will be unable to retrieve the

cartridge (such conditions may arise

when: Only 1 cartridge is placed

in slot 2 or slot 3 while slot 1 is left

empty).

Plug in the power socket

and switch on the printer

The printing chamber cover

is provided together with the

printer. Please refer to the

picture and install the cover

securely.

Install the printing

chamber cover

Installing the cartridges

in the cartridge chamber

2. Introducing product operations

03 1

P 7 V1

XYZprinting 3D Food Printer User Manual

When printing, place the lining paper

on the material plate. The user may also

use double-sided tape to temporarily

secure and smoothen the lining paper.

Note! Unevenness of the lining paper

will severely affect printing quality.

Placing the lining paper

on the material plate

●Cartridges that have been detect-

ed by the printer will be colored

to provide easy identification. This

shows that the printer has already

detected the cartridge.

Please refer to the steps below to combine the material plate and tray

and load them into the printing chamber.

Loading the material plate and tray

Place the material

plate in the center

of the tray (the ori-

enting hole must be

pointing outside).

Orient the tray so

that it becomes

horizontal and slide

it into the printing

chamber (please

make sure that the

tray can slide back

and forth smoothly

on the rolling rail)

Please slide the front

edge of the tray

diagonally so that it

makes contact with

the rolling wheel.

●Once the cartridge has been in-

stalled, return to the Main Screen

to check if the printer has detected

the cartridge.

Check if the printer has

detected the cartridge

P 8 V1

XYZprinting 3D Food Printer User Manual

Confirm the picture displayed on the

screen and press the print icon dis-

played at the bottom right corner.

Press the Print Icon

My Recipe

Select the option of "My Recipe" and

click on the picture of your desired

printing project. If you want to print

from a USB drive, please enter the

file name and skip to Step 14.

Print data can be derived from 3 sources:

●My Recipe

●USB

●Computer connection (for printing

using computer connections, please

refer to the software manual)

Select "My Recipe"

Return to the Main Screen and

press "Make" to start your printing

project.

Select "Make" from the

touchscreen

2-1 My Recipe

P 9 V1

XYZprinting 3D Food Printer User Manual

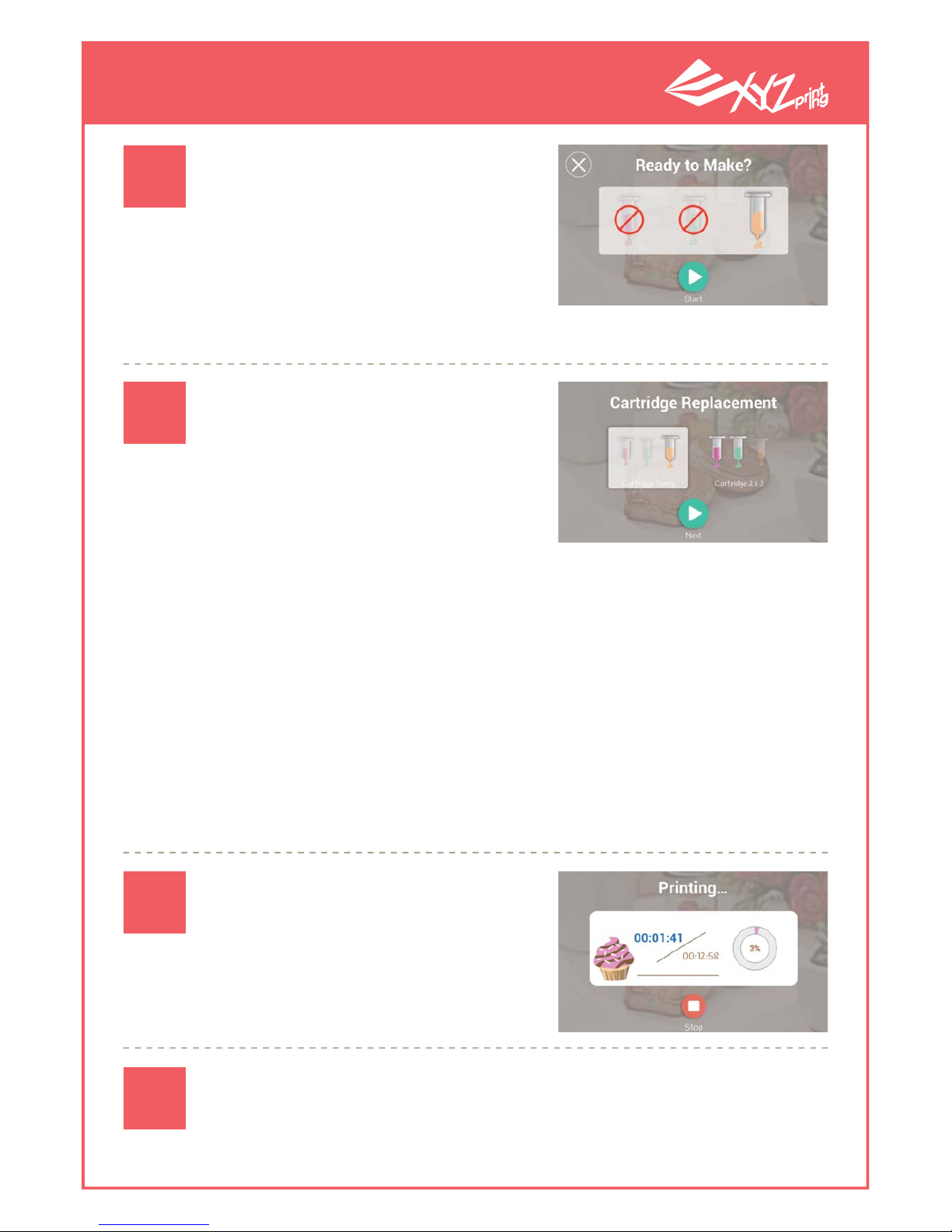

Before pressing the button to initiate

printing, please check that: 1. The car-

tridges have been installed in the slots;

2. The lining paper has been placed

upon the material plate; 3. There are no

cartridges on the moving platform.

When materials run out during the

printing process, the user may use the

Cartridge Replacement option to use

materials from "Cartridge 1 Only" or

"Cartridge 2&3".

"Cartridge 1 Only": The printer will

return the spent cartridge to the car-

tridge chamber. The user may take out

the spent cartridge and place a new

cartridge in slot 1. The printer will then

load a new cartridge and continue

printing.

"Cartridge 2&3": The printer will return

Cartridge 1 to its slot in the cartridge

chamber and automatically load car-

tridges from slot 2 and slot 3 accord-

ingly to continue printing.

The touchscreen shall display printing

time, remaining time, and percentage

progress.

Press "Start" to confirm

printing or "X" at the top left

corner to cancel the printing.

"Cartridge Replacement"

option

Start printing

After printing is complete, wait for the cartridge to be

returned to its original location before retrieving the

finished product.

P 10 V1

XYZprinting 3D Food Printer User Manual

Enter "My Recipe" folder

and click on the "pen and

paper" icon at the top right

corner to start editing

The "Option" screen will be

displayed. Select the "Add"

or "Remove" icons to add

or remove files respectively

from your USB.

Insert your USB drive.

"USB" will be shown in the

Main Screen

Ensure that the USB is successfully

read (an arrow will be displayed at

the bottom of the USB when suc-

cessfully read)

2-2 Printing from the USB drive
