LS9 Editor

Owner’s Manual

Description of menus and buttons

In the event that menu and button names on a Windows

system are different from those on a Mac, this manual

uses the Windows menu and button names followed by the

Mac menu and button names in parentheses.

LS9 Editor Owner’s Manual

Overview of LS9 Editor

LS9 Editor enables you to remotely control the Yamaha LS9 mixing console and to save the parameter settings on

your computer. To use LS9 Editor, you must ﬁrst perform the following operations:

1 Start and conﬁgure Studio Manager.

2 Start and conﬁgure LS9 Editor.

3 Synchronize LS9 Editor with your LS9 console (

➥

p.8).

For more information on using Studio Manager, refer to the Studio Manager Owner’s Manual.

Conﬁguring LS9 Editor

You must conﬁgure the following settings for each open Editor.

•Before you make the following settings, you must make settings for the DME-N Network Driver (Windows)

or the Network-MIDI Driver (Mac) and select the MIDI port in the Setup window of Studio Manager.

•To open an editor, double-click the icon for the desired editor in the Studio Manager window.

❏

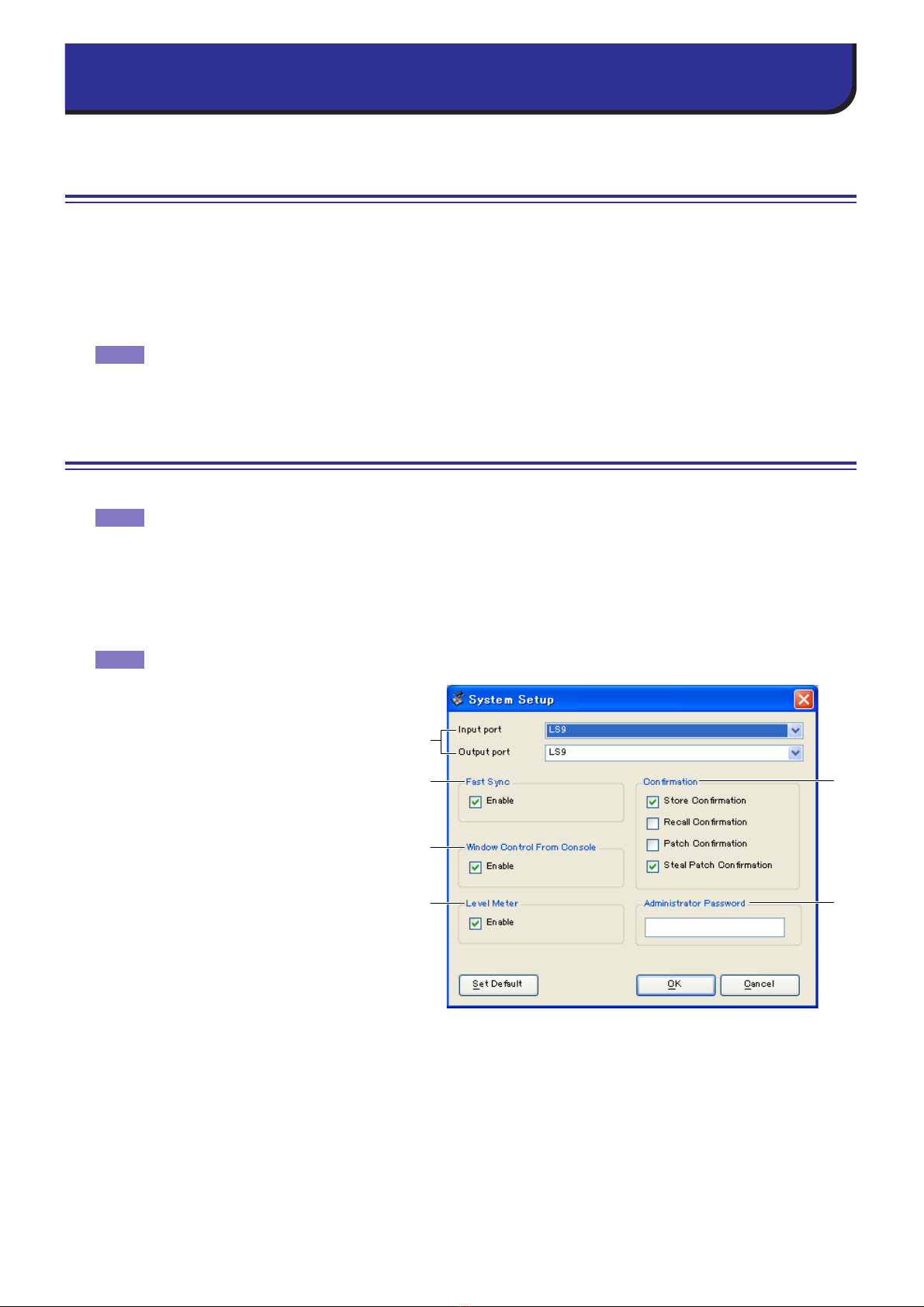

System Setup

To open the System Setup window, choose [System Setup] from the [File] menu.

Be sure to specify the Input port and Output port.

Input port/Output port

From the ports you speciﬁed in Studio Man-

ager, select the ports that the editor will use

to communicate with the LS9 console.

Fast Sync

This allows synchronization to be speed up,

reducing the time required. This check box

enables/disables this function. You should

disable this if synchronization errors occur

while this functions enabled.

Window Control from Console

Allows the LS9 Editor windows to be opened

and closed remotely using the USER

DEFINED KEYS of the LS9 console. The

check box enables/disables these operations.

Level Meter

By disabling the meter function you can reduce the processing load caused by screen drawing and communica-

tion. This check box enables/disables the level meter function.

Conﬁrmation

These check boxes specify whether a conﬁrmation dialog box will be displayed when you store (Store Conﬁrma-

tion), recall (Recall Conﬁrmation), patch (Patch Conﬁrmation), or patch in a way that would affect an existing

patch (Steal Patch Conﬁrmation).

Administrator Password

Enter the Administrator password that was speciﬁed on the LS9 console. If this password is not entered correctly,

it will not be possible to synchronize from LS9 Editor to the LS9 console.

Getting Started

NOTE

LS9 Editor Owner’s Manual

❏

Mixer Setup

To open the Mixer Setup window, choose [Mixer Setup] from the [File] menu.

ModelSelect

Here you can specify the model of LS9 console. This is set automatically when the Editor synchronizes with the

LS9 console.

Mix Bus Setup

Here you can make settings relating to the MIX buses.

Signal Type:

This speciﬁes whether each two adjacent odd-numbered/even-numbered MIX buses will be used

as MONO x2 or STEREO.

Bus Type/Pre Fader Send Point:

Speciﬁes whether the Send Point of each two adjacent odd-numbered/

even-numbered MIX buses will be VARI (PRE EQ), VARI (PRE FADER), or FIXED.

Pan Link:

This is valid only when the Signal Type is STEREO and the BUS TYPE is VARI; when enabled, the

PAN setting sent to the stereo MIX bus will be linked with the PAN to the STEREO bus.

Matrix Bus Setup

Here you can make settings relating to the MATRIX buses.

Signal Type:

This speciﬁes whether each two adjacent odd-numbered/even-numbered MATRIX buses will be

used as MONO x2 or STEREO.

LS9 Editor Owner’s Manual

❏

Creating a user key

To open the Create User Key window, choose [Create User Key] from the [File] menu.

This creates a user key (with “.L9U” ﬁle name extension) that can be read from a USB storage device by the LS9

console to automatically set user-speciﬁc parameters.

User Name

Specify the name of the user. You can enter up to eight single-byte characters of alphabet and numerals.

Comment

Enter a comment for each user. You can enter up to thirty-two single-byte alphanumeric characters.

Password

Enter a password that will be used when this user key is read by the LS9 console. You can enter up to eight single-

byte alphanumeric characters. Uppercase and lowercase are distinguished.

Re-Enter Password

Enter the password once again as a safeguard against mistaken entry.

POWER USER

Specify whether this user is a power user. Power users can use the LS9 console to create or edit a user authentica-

tion key with a speciﬁed user level.

Administrator Password

Enter the Administrator password that was speciﬁed on the LS9 console. This is not required if no Administrator

password has been speciﬁed on the LS9 console, but if this password is incorrect you will be asked to enter it when

the user key is read.

ACCESS PERMISSION

In this area, specify the parameters that this user will be allowed to operate.

2465

O P

LS9 Editor Owner’s Manual

CH OPERATION

INPUT, ST IN, MIX, MATRIX, ST/MONO:

Select the channels whose parameters will be operable.

HA:

Change the operating privileges for the head amp gain and phantom power of the selected channels.

PROCESSING:

Change the operating privileges for overall signal processing parameters (except for fader

and [ON] key) of the selected channel. For the speciﬁc parameters included in PROCESSING, refer to the

appendix of the LS9 owner’s manual.

FADER/ON:

Change the operating privileges for the pan/balance, fader, channel on, send on/off, and send

level of the selected channels.

Set All:

Turn on HA, PROCESSING, and FADER/ON for all channels.

Clear All:

Turn off HA, PROCESSING, and FADER/ON for all channels.

Set by One Click:

If this button is on, HA, PROCESSING, and FADER/ON will all be turned on when you

select a channel. If all are already on, all will be turned off.

SCENE LIST

STORE/SORT:

Change the operating privileges for scene store and sort operations.

RECALL:

Change the operating privileges for scene recall operations.

LIBRARY LIST

STORE/CLEAR:

Change the operating privileges for library store and clear operations.

RECALL:

Change the operating privileges for library recall operations.

FILE LOAD

USER SETUP:

Change the operating privileges for loading user-deﬁned keys and preferences when loading a

ﬁle.

SYSTEM SETUP MONITOR SETUP:

Change the operating privileges for loading system setup and moni-

tor setup settings when loading a ﬁle.

CURRENT SCENE:

Change the operating privileges for loading the current scene when loading a ﬁle.

SCENE LIST:

Change the operating privileges for loading the scene list when loading a ﬁle.

LIBRARY LIST:

Change the operating privileges for loading the library list when loading a ﬁle.

CURRENT SCENE

INPUT PATCH:

Change the operating privileges for input patch operations.

INPUT NAME:

Change the privileges for editing the input names.

OUTPUT PATCH:

Change the operating privileges for output patching.

OUTPUT NAME:

Change the privileges for editing the output names.

BUS SETUP:

Change the operating privileges for buses.

RACK:

Change the operating privileges for rack operations.

MUTE GROUP ASSIGN:

Change the privileges for assigning mute groups.

MUTE GROUP MASTER: Change the operating privileges for enabling/disabling mute groups.

MMONITOR SETUP

OSCILLATOR: Change the operating privileges for oscillator settings.

TALKBACK: Change the operating privileges for talkback settings.

NSYSTEM SETUP

MIXER SETUP: Change the privileges for making mixer setup settings.

OUTPORT SETUP: Change the privileges for making outport setup settings.

MIDI: Change the privileges for making MIDI settings.

OCreate

Creates the user key.

PCancel

Closes the window.

LS9 Editor Owner’s Manual

Working with Sessions

All of your console’s mix settings in LS9 Editor, including Scene and library data, are called Sessions.

The following table describes how to handle Sessions.

When you save a session in the window of an editor, the settings of only that editor will be saved in a ﬁle. Session ﬁles

saved by LS9 Editor have a ﬁlename extension of “.YSE”. Files in which only the LS9 console data is saved (ﬁlename

extension “.L9A”) can also be handled, allowing you to use a USB storage device to exchange data with the LS9 con-

sole.

If you save a Session in the Studio Manager window, all selected Editor settings are saved in a ﬁle with a ﬁle extension

of “.YSM.”

Undo/Redo Function

In LS9 Editor, you can cancel the latest operation (Undo) and also cancel the cancellation of the latest operation

(Redo). If you perform an Undo operation twice in a row, you can cancel the two most-recent operations. If you per-

form an Undo operation three times in a row, you can cancel the three most-recent operations. In this way, you can

cancel multiple recent operations. The following table describes how to use the Undo/Redo function.

Please note, however, that after you perform one of the following operations, you cannot successfully undo or redo

any previous operation:

•Operations on the LS9 console

•Quitting Studio Manager

•Synchronizing with the LS9 console

•Session operations

You cannot Undo or Redo the following operations:

• Edits in the Setup window

• Synchronization

• Opening and closing the windows

• Resizing or moving the windows

There are certain other operations that cannot be undone, depending on the function.

For library or scene operations, Undo/Redo applies only to the single most recent operation. You cannot

undo any operations prior to this. Undo/Redo in these windows is available only using the [UNDO] button

within the respective window. Even if you perform a scene recall from the Master window, you cannot use

a shortcut or menu operation to undo the recall.

Creating a new Session Choose [New Session] from the [File] menu.

Opening a previously saved Session Choose [Open Session] from the [File] menu.

Saving the current Session Choose [Save Session] from the [File] menu.

Saving the current Session with a new name Choose [Save Session As...] from the [File] menu.

Undo Choose [Undo] from the [Edit] menu.

Redo Choose [Redo] from the [Edit] menu.

NOTE

LS9 Editor Owner’s Manual

Window operations

You can select and open each window from the [Win-

dows] menu. For the Overview window and Rack win-

dow, use the sub-menu to select the channels or library

you want to see.

You can choose Tile or Cascade to arrange the windows within the editor.

In the Library window or Scene window, click the tabs

located at the top of the window to switch between

pages.

●Cascade

●Tile

LS9 Editor Owner’s Manual

Synchronizing LS9 Editor

When LS9 Editor starts up, the parameter settings on the console and the parameter settings in LS9 Editor may be

different. Therefore, you must ﬁrst match the parameter settings on the console with those in LS9 Editor. This oper-

ation is called “synchronization.” Follow the steps below to synchronize LS9 Editor.

1 Select [Synchronization], then [Re-synchronize].

The following window opens.

2 Select whether you want to transfer your settings to LS9 Edi-

tor, or vice versa.

At this time, the All Libs option determines whether or not Scene and

Library data is synchronized.

PC ➔ Console: Transfers the current parameter settings in LS9 Editor to your console.

Console ➔PC: Transfers the current parameter settings of your console to the LS9 Editor.

3 Click [OK].

Do not operate the console while synchronization is in progress.

• If you use the “Total Recall” function in Studio Manager, all selected Editors in Studio Manager are synchronized

with the corresponding devices.

•If you synchronize using PC -> Console, and the console contains data that is set to “read-only,” a dialog box will ask

you whether you want to copy the read-only data to LS9 Editor.

If this data is not copied, console data that is set to read-only status will not be synchronized.

Ofﬂine Edit Function

If you do not want to synchronize your console with LS9 Editor, select [Ofﬂine Edit] from the [Synchronization]

menu. To apply your off-line edits to your console, select [Re-Synchronize] from the [Synchronization] with the PC

-> Console option to synchronize the console with LS9 Editor.

The Ofﬂine Edit function is also activated when you click the [ONLINE]/[OFFLINE] button in the Sync window.

Some effect parameters in the console change their displayed values depending on the sampling fre-

quency. If you switch LS9 Editor from OFFLINE to ONLINE, displayed parameter values may change

because LS9 Editor loads the sampling frequency from the console and updates the display.

Basic operation of controllers

You can operate the controllers in the following ways.

❏Knobs

•Drag

•Click, and then use the up/down/left/right cursor keys

•Click, and then use the PageUp/PageDown keys (greater change than the cursor keys)

•Click, and then Home sets to far left

•Click, and then End sets to far right

•<Ctrl>(< >)+click sets to default value

For send knobs etc., sets to –∞regardless of the default value.

•<Ctrl>(< >)+<Shift>+click sets to nominal

For send knobs etc., sets to nominal regardless of the default value.

NOTE

LS9 Editor Owner’s Manual

❏Faders

•Drag

•Click, and then use the up/down cursor keys (or left/right cursor keys for horizontal faders)

•Click, and then use the PageUp/PageDown keys (greater change than the cursor keys)

•Click, and then Home sets to maximum value

•Click, and then End sets to minimum value

•<Ctrl>(< >)+click sets to default value

For channel faders etc., sets to –∞regardless of the default value.

•<Ctrl>(< >)+<Shift>+click sets to nominal

For channel faders etc.,sets to nominal regardless of the default value.

❏Numerical displays only

•Click and drag up/down

•Click, and then use the up/down cursor keys

•Click, and then use the PageUp/PageDown keys (greater change than the cursor keys)

•Click, and then Home sets to maximum value

•Click, and then End sets to minimum value

•<Ctrl>(< >)+click sets to default value

❏Bar graphs

•Drag

•<Ctrl>(< >)+click sets to –∞

•<Ctrl>(< >)+<Shift>+click sets to nominal

LS9 Editor Owner’s Manual

In the Master window you can synchronize settings with the LS9 console, recall scenes, and access the Overview win-

dow. To open this window, choose [Master] from the [Windows] menu, or assign [LS9 EDITOR CONTROL]-[MAS-

TER] to a USER DEFINED KEY on the LS9 console, and execute that function.

❏CHANNEL SELECT

This indicates the number and name of the channel to which your operations will apply. To

switch channels, you can either click the [SELECT] button and choose from the list that

appears, or you can click the left/right arrow-shaped channel select buttons. You can use

the channel name text box to edit the name.

This is linked with the [SEL] keys on the LS9 itself.

You can change the icon by right-clicking (<control> key + clicking) it, or change the back-

ground color by left-clicking.

The background color you specify here will also be the background color for the channel

name in the Overview window.

❏SYNC

This indicates the status of connection and synchronization between LS9 Editor and the LS9.

A[ONLINE]/[OFFLINE] button

The ONLINE/OFFLINE status will alternate each time you click this button.

This has the same function as [Synchronization] menu ➔[Ofﬂine Edit]. (➥p.8)

This indicator is shown when LS9 Editor is correctly connected

to the LS9 itself. In this state, the parameters of LS9 Editor and

the LS9 itself are linked.

This indicator is shown when LS9 Editor and the LS9 itself are

not connected, or when there is a problem with the connection,

or when Ofﬂine Edit is selected. In this state, the parameters of

LS9 Editor and the LS9 itself are not linked.

Master window

1 2

Altri manuali per LS9-16

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Yamaha Software

Yamaha

Yamaha MOTIF RACK XS Editor Manuale utente

Yamaha

Yamaha M7CL StageMix V1.5 Manuale utente

Yamaha

Yamaha YC-3B Manuale utente

Yamaha

Yamaha 01V96 Manuale utente

Yamaha

Yamaha 03DVEK Manuale utente

Yamaha

Yamaha mLAN Driver Manuale utente

Yamaha

Yamaha MOTIF6 Voice Editor Manuale utente

Yamaha

Yamaha AE041 Manuale utente

Yamaha

Yamaha Sound Editor ver. 2.10 Manuale utente

Yamaha

Yamaha mLAN Patchbay Manuale utente

Yamaha

Yamaha CobraNet MY16-CII Manuale utente

Yamaha

Yamaha CL3 Manuale utente

Yamaha

Yamaha MOTIF RACK Music System Manuale utente

Yamaha

Yamaha EZ-220 Page Turner Manuale utente

Yamaha

Yamaha LS9-16 Manuale utente

Yamaha

Yamaha Clavinova CVP-309 Manuale utente

Yamaha

Yamaha PM1D Manager V2 Istruzioni e ricette

Yamaha

Yamaha AE041 Manuale utente

Yamaha

Yamaha A3000 Manuale utente

Yamaha

Yamaha QS1-WD Manuale utente

Yamaha

Yamaha PM5D Manuale utente

Yamaha

Yamaha Card Filer Manuale utente

Yamaha

Yamaha Acoustic Manuale utente

Yamaha

Yamaha LS9 Editor Manuale utente

Manuali Software popolari di altre marche

COMPRO

COMPRO COMPROFM Manuale utente

Muratec

Muratec OFFICEBRIDGE ONLINE Manuale utente

Oracle

Oracle Contact Center Anywhere 8.1 Manuale utente

Adobe

Adobe 65007312 - Photoshop Lightroom Manuale

Avaya

Avaya NULL One-X for RIM Blackberry Manuale utente

HP ProLiant BL420c Manuale utente

PS Audio

PS Audio PowerPlay Manuale del proprietario

Brady

Brady LOCKOUT PRO 3.0 Manuale di servizio

Avaya

Avaya Interaction Center Manuale utente

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuale

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuale utente

Oracle

Oracle Application 9i Manuale utente

Acer

Acer RDM Manuale utente

Canon

Canon Vixia HF21 Manuale utente

Canon

Canon ZR950 Manuale utente

Samsung

Samsung Auto Backup Manuale utente

Polycom

Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuale utente
