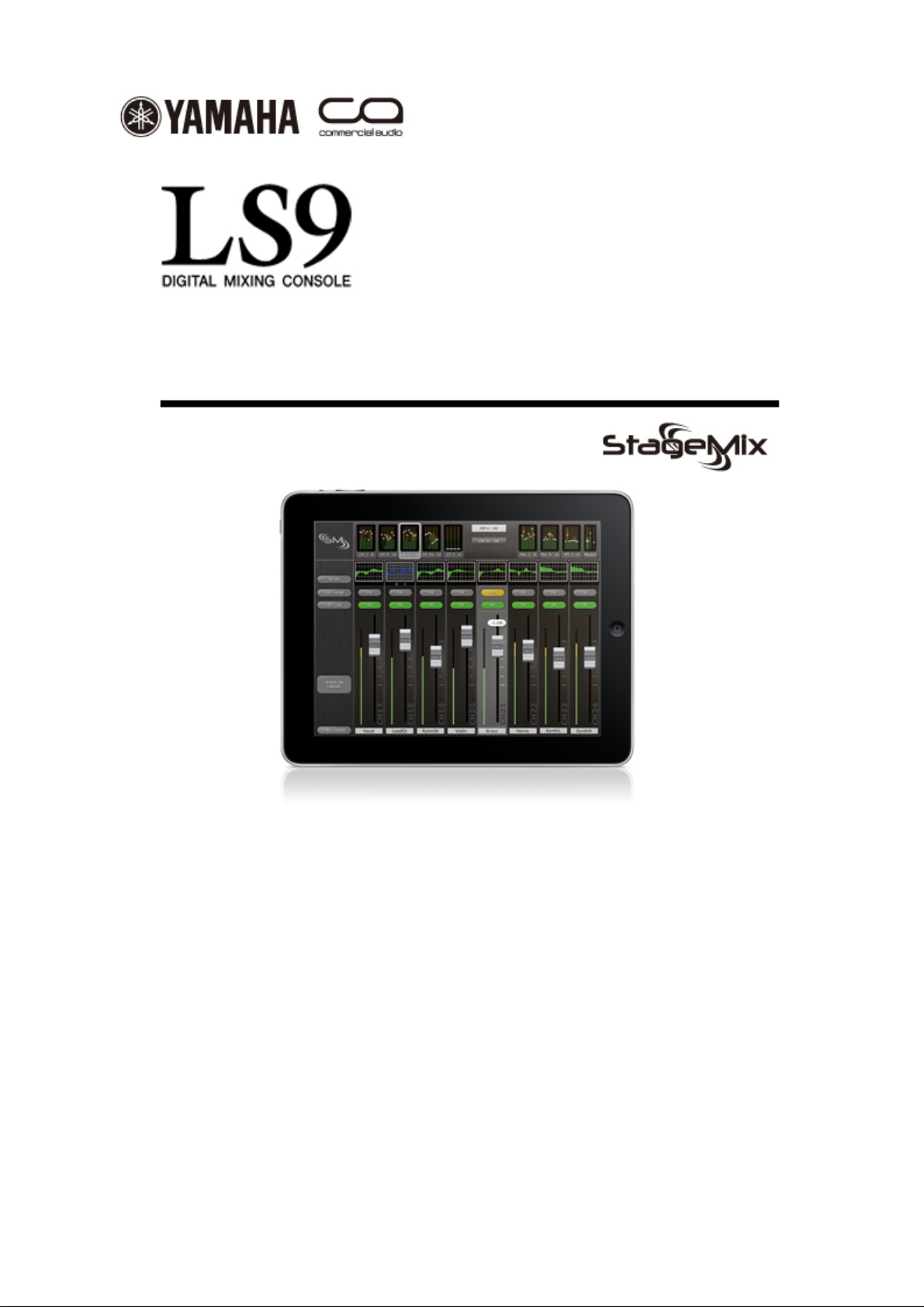

LS9 StageMix User Guide

Welcome:

Thank you for downloading the “LS9 StageMix” iPad app for the Yamaha LS9-16 and

LS9-32 digital mixing consoles.

StageMix provides remote control of LS9 functions via a simple, intuitive

graphical interface from anywhere within wireless range. The software has

been specifically designed to allow engineers to adjust monitor mixes from

the performers’ positions on stage, directly controlling mix parameters via the

iPad rather than having to rely on verbal directions to a second engineer.

The result is better mixes in less time: a huge advantage during high-pressure

pre-show setup. StageMix does not provide remote control of all LS9

parameters, but is focused on the requirements for adjusting monitor mixes on

stage.

Yamaha Commercial Audio LS9 StageMix V1.0 User Guide

Page 2

CONTENTS

Page

1.0 System Requirements 4

2.0WiFiSettings 4

3.0 Getting Started 5

3.1 LS9 Network Setup 5

3.2 iPad WiFi Settings 5

3.3 StageMix Setup 6

3.3.1 OFFLINE DEMO Mode 7

3.3.2 Configure StageMix to Work with an LS9 7

3.3.3 Select a Mixer and Begin Working 8

4.0 StageMix Operation 9

4.1 Mixer Window 9

4.1.1 Channel Bank Navigation 9

4.1.2 Layer Navigation 9

4.1.3 Channel Names and Colors 10

4.1.4 Faders 10

4.1.5 Channel ON 10

4.1.6 CUE 11

4.1.7 Master Bank 11

4.2 SETUP 12

4.2.1 Fader Delay 12

4.2.2 Filled EQ Graph 12

4.2.3 Set EQ band to 0dB with Double-Tap 12

4.2.4 Channel Select – StageMix Follows Console 12

4.2.5 Channel Select – Console Follows StageMix 12

4.3 Long Faders 13

4.4 SENDS ON FADERS 14

4.4.1 Mix Sends ON 15

4.5 EQ Editing 16

4.6 Parametric EQ Editing Screen 17

4.6.1 HPF 18

4.6.2 EQ Bands 1 & 4 19

4.6.3 EQ ON 19

4.6.4 EQ FLAT, EQ DEFAULT 19

4.7 Graphic EQ Editing Screen 20

4.7.1 Navigation in the GEQ Overview Section 20

4.7.2 Rack Position 20

4.7.3 GEQ Type 21

4.7.4 Editing GEQ Bands 21

4.7.5 Navigation in the GEQ Editing Section 21

4.7.6 GEQ ON 21

4.7.7 GEQ FLAT 21

4.7.8 Copy/Paste 21

Yamaha Commercial Audio LS9 StageMix V1.0 User Guide

Page 3

5.0 Troubleshooting 22

5.1 No Wi-Fi Available 22

5.2 Connection Error 22

5.3 Connection Lost 23

5.4 Graphic EQ Doesn’t Affect the Sound 23

5.5 Problems Moving Multiple Faders 24

Special Notices

• The software and this Owner’s Manual are the exclusive copyrights of Yamaha

Corporation.

• Copying of the software or reproduction of this manual in whole or in part by any

means is expressly forbidden without the written consent of the manufacturer.

• Yamaha makes no representations or warranties with regard to the use of the

software and documentation and cannot be held responsible for the results of the use

of this manual and the software.

• The company names and product names in this Owner’s Manual are the

trademarks or registered trademarks of their respective companies.

• The screen displays as illustrated in this Owner’s Manual are for instructional

purposes, and may appear somewhat different from the screens which appear on

your computer.

• Future upgrades of application and system software and any changes in

specifications and functions will be announced separately.

• Apple, the Apple logo, and iPad are trademarks of Apple Inc., registered in the U.S.

and other countries.

• Windows® is the registered trademark of Microsoft® Corporation.

Yamaha Commercial Audio LS9 StageMix V1.0 User Guide

Page 4

1.0 System Requirements

•Apple iPad (any model)

•Yamaha LS916 or LS9-32 digital mixing console

•WiFi access point (preferably with 802.11n, 5GHz capability, though 2.4GHz

and 802.11g will also work)

•CAT5 cable (to connect LS9 to WiFi access point)

2.0 WiFi Settings

Configure the WiFi access point, following the manufacturer’s instructions. No

special settings are needed, but using security such as WPA is highly recommended,

to prevent unwanted devices from joining the network. Here are some suggested

settings to assist less experienced WiFi users:

1. Give the wireless network a name (this is the “SSID”).

2. Choose a security mode (such as WPA) and password.

3. Select the wireless mode (802.11g or n).

4. In the case of “n”, select the wireless band (2.4 or 5GHz).

5. If available, enable “Auto Channel Selection” so the wireless channel with the

least interference will be selected.

802.11n networks at 5GHz are preferred because they allow faster communication

between the iPad and the WiFi access point. Practically, this could result in more

accurate level metering with the StageMix app. Also, with 802.11n being a new

standard, it is less prone to interference from other wireless networks. Using a WiFi

access point with 2 or more external aerials is recommended to increase potential

signal range. Booster aerials could be connected for a further increase in

performance.

Yamaha Commercial Audio LS9 StageMix V1.0 User Guide

Page 5

3.0 Getting Started

3.1 LS9 Network Setup

I. Connect the WiFi access point to the LS9’s network port via a CAT5 cable.

Note that a cross-over cable will be needed with older access points that don’t

have the “auto MDIX” function. Most recent devices will support “auto MDIX”,

in which case a straight CAT5 cable can be used.

II. Note the IP address and MAC address of the LS9 - they will need to be

entered into the iPad later. They can be found in the console as follows:

Press the [SETUP] button on the LS9 to access the MISC SETUP screen

3.2 iPad WiFi Settings

The iPad needs to be given a static IP address in the same range as the LS9’s

IP Address.

a. Open the iPad “Settings” menu

b. Select “Wi-Fi”, and choose the correct network

c. Press the blue circle with the white arrow to the right of the selected

network to edit the IP address.

Yamaha Commercial Audio LS9 StageMix V1.0 User Guide

Page 6

d. Select [Static].

e. Write an IP Address similar to the one for the LS9, but with just the last

number different. (For example, if LS9 is 192.168.0.128, give an

address to the iPad such as 192.168.0.127).

f. Enter “255.255.255.0” for the Subnet Mask.

g. Press the iPad’s Home button to exit the Settings menu.

3.3 StageMix Setup

Launch the “LS9 StageMix” App

The “Select Mixer” screen will appear. From this screen, you can do any of

the following things:

•Access the OFFLINE DEMO mode to explore the features and user

interface of LS9 StageMix.

•Configure StageMix to work with an LS9 console.

•Select an LS9 console that has already been configured to work with your

iPad and begin using StageMix.

Yamaha Commercial Audio LS9 StageMix V1.0 User Guide

Page 7

3.3.1 OFFLINE DEMO

If [OFFLINE DEMO] is pressed in the “Select Mixer” screen, all the functions of

StageMix will operate independently of any mixing console. It is a useful way

to demonstrate and learn how to use the app without the need for a mixer.

Level meters will not work in this mode.

3.3.2 Configure StageMix to Work with an LS9

i. Press [ADD MIXER] to open the following screen:

ii. Tap on the blank Name field and enter a name for your LS9 using the

iPad’s onscreen keyboard.

iii. Enter the LS9 IP address noted in 3.1. The default IP Address may not

need to be changed but confirm this in the Network Setup screen of the

LS9 console (refer to 3.1). If you need to modify the IP Address in

StageMix, make sure you include the dots between the sets of numbers

(as shown above).

Yamaha Commercial Audio LS9 StageMix V1.0 User Guide

Page 8

iv. Enter the LS9 MAC address noted in 3.1. When entering the MAC

Address, the colons between sets of characters will be automatically

added by StageMix.

v. Select the Model of LS9 console from the choices of LS9-32 or LS9-16.

vi. Press the [ADD MIXER] button at the bottom of the screen

3.3.3 Select a Mixer and Begin Working

If your iPad has been configured to work with an LS9 console, select the mixer

from the list and press [CONNECT]. (The model of mixer (LS9-32 or LS9-16)

will appear in smaller text below the mixer’s name.)

The message “Syncing With LS9…” will appear while StageMix is obtaining

parameters from the console. This process will normally take about 10 seconds.

After this process is complete, the Mixer window will appear and StageMix is

ready to be used.

If StageMix cannot connect with your LS9, refer to the Troubleshooting section

(5.0) at the end of this document for possible solutions.

Yamaha Commercial Audio LS9 StageMix V1.0 User Guide

Page 9

4.0 StageMix Operation

4.1 Mixer Window

The main page of the StageMix is called the “Mixer” window. It shows the EQ

curve, CUE and ON buttons, fader and level meters, and channel names and

colors for eight adjacent channels.

Across the top of the screen, level meters and faders are displayed in blocks

for mono Input Channels 1-32, Stereo Input Channels 1-4, Mix and Matrix

busses, and the Master Stereo and Mono busses. This is the

“Navigation/Meter Bridge”.

4.1.1 Channel Bank Navigation

Press any of the “Navigation/Meter Bridge” blocks to select which bank of

channels is viewed and controlled in the fader strips below.

4.1.2 Layer Navigation

Press the [CH 1-32] or [CH 33-64] button to make those banks of channels

available in the first four blocks in the “Navigation/Meter Bridge”.

The Layer Navigation button displays black text on a white background to

indicate the active Layer.

Note: these buttons do not appear when using an LS9-16 console as only

channels 1-32 are available in the first four blocks.

Yamaha Commercial Audio LS9 StageMix V1.0 User Guide

Page 10

4.1.4 Faders

Each fader has its channel number displayed on its cap. The fader cap

must be touched to allow the level to be adjusted. The fader will not

“jump” or “ramp” to a new position on the slider. When a fader cap is

touched, its background will lighten and its current dB value will be

displayed. Using the iPad’s multi-touch facility, up to eight faders can

be moved simultaneously.

4.1.5 Channel ON

Press [ON] to change the on/off status of the channel. The button is

green when the channel is on. When a channel is off, its name and

level meter will go dim, and its fader position shown in the

“Navigation/Meter Bridge” will also go dim.

4.1.3 Channel Names and Colors

The channel names are

obtained from the LS9 mixer.

They cannot be edited in

StageMix. The names are

dimmed if the channel is

switched off. A bar above

each channel name displays

the color for each channel as

assigned in the LS9.

Altri manuali per LS9 Editor

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Yamaha Software

Yamaha

Yamaha M7CL StageMix V1.5 Manuale utente

Yamaha

Yamaha Arp Manuale utente

Yamaha

Yamaha FIRESTATION Istruzioni operative

Yamaha

Yamaha Audio Manuale utente

Yamaha

Yamaha mLAN Patchbay Manuale utente

Yamaha

Yamaha mLAN mLAN Driver Manuale utente

Yamaha

Yamaha FIRESTATION MLAN PATCHBAY Manuale utente

Yamaha

Yamaha RS7000 Ver.1.2 Istruzioni per l'installazione e il funzionamento

Yamaha

Yamaha MOTIF XF Manuale utente

Yamaha

Yamaha MOTIF-RACK ES Manuale utente

Yamaha

Yamaha PM5D Manuale utente

Yamaha

Yamaha M7CL StageMix V1.5 Manuale utente

Yamaha

Yamaha Acoustic Manuale utente

Yamaha

Yamaha Clavinova CVP-210 Manuale utente

Yamaha

Yamaha MOTIF XS6 Manuale utente

Yamaha

Yamaha CS6R Manuale utente

Yamaha

Yamaha PM1D Manager V2 Guida all'installazione

Yamaha

Yamaha 03DVEK Manuale utente

Yamaha

Yamaha 01V96 Manuale utente

Yamaha

Yamaha Loopfactory AN200 Manuale utente

Yamaha

Yamaha PM1D Manager V2 Manuale utente

Yamaha

Yamaha DME Designer Manuale utente

Yamaha

Yamaha DME-N Manuale utente

Yamaha

Yamaha YC-3B Manuale utente

Manuali Software popolari di altre marche

COMPRO

COMPRO COMPROFM Manuale utente

Muratec

Muratec OFFICEBRIDGE ONLINE Manuale utente

Oracle

Oracle Contact Center Anywhere 8.1 Manuale utente

Adobe

Adobe 65007312 - Photoshop Lightroom Manuale

Avaya

Avaya NULL One-X for RIM Blackberry Manuale utente

HP ProLiant BL420c Manuale utente

PS Audio

PS Audio PowerPlay Manuale del proprietario

Brady

Brady LOCKOUT PRO 3.0 Manuale di servizio

Avaya

Avaya Interaction Center Manuale utente

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuale

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuale utente

Oracle

Oracle Application 9i Manuale utente

Acer

Acer RDM Manuale utente

Canon

Canon Vixia HF21 Manuale utente

Canon

Canon ZR950 Manuale utente

Samsung

Samsung Auto Backup Manuale utente

Polycom

Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuale utente
