SPX2000 Editor Owner’s Manual

❏

Special Notices

•The software and this owner’s manual are the exclusive copyrights of Yamaha Corporation.

•Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden

without the written consent of the manufacturer.

•Copying of the commercially available music sequence data and/or digital audio ﬁles is strictly prohibited except

for your personal use.

•Yamaha makes no representations or warranties with regard to the use of the software and documentation and

cannot be held responsible for the results of the use of this manual and the software.

•The screen displays as illustrated in this owner’s manual are for instructional purposes, and may appear some-

what different from the screens which appear on your computer.

•Future upgrades of application and system software and any changes in speciﬁcations and functions will be

announced separately.

•The company names and product names in this Owner’s Manual are the trademarks or registered trademarks of

their respective companies.

YAMAHA PRO AUDIO GLOBAL SITE

http://www.yamahaproaudio.com/

Contents

Getting Started . . . . . . . . . . . . . . . . 2

Conﬁguring the Editor . . . . . . . . . . . . 2

Synchronizing SPX2000 Editor . . . . . . 3

Ofﬂine Edit Function . . . . . . . . . . . . . 4

Working with Sessions . . . . . . . . . . . . 4

Undo/Redo Function . . . . . . . . . . . . . 4

Using SPX2000 Editor Windows . . . 5

Library Window. . . . . . . . . . . . . . . . . . 5

Effect Editor Window. . . . . . . . . . . . . . 7

REV-X Window . . . . . . . . . . . . . . . . . . 9

Appendix . . . . . . . . . . . . . . . . . . . . 11

Keyboard Shortcuts. . . . . . . . . . . . . . 11

Compatibility of “.D2E” library ﬁles. . 11

*Speciﬁcations and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves

the right to change or modify products or speciﬁcations at any time without prior notice. Since speciﬁcations,

equipment or options may not be the same in every locale, please check with your Yamaha dealer.

SPX2000 Editor Owner’s Manual

SPX2000 Editor enables you to remotely control the SPX2000 unit and to save the effects on your computer.

To use SPX2000 Editor, you must follow these steps:

> Start Studio Manager.

> Conﬁgure the SPX2000 Editor.

> Synchronize SPX2000 Editor with your SPX2000 unit.

For more information on using Studio Manager, refer to the Owner’s Manual for Studio Manager.

Conﬁguring the Editor

You must conﬁgure the following settings for each open Editor.

❏

System Setup

To open the Setup window, choose [System Setup] from the [File] menu.

Be sure to specify the Input port and Output port.

Input port/Output port :

These pop-up menus are used to select the ports through which SPX2000 Editor

will communicate with your SPX2000 unit.

Specify a MIDI port in the Studio Manager before selecting the Input port/ Output port.

EDITOR ID :

SPX2000 Editor can control any one of up to eight SPX2000 Professional Multi-Effect Processors,

each with its own exclusive ID. Select the ID of the SPX2000 unit you want to control.

You must set the Editor ID to the same ID number as you specified in your SPX2000 unit.

Conﬁrmation :

These options determine whether or not a conﬁrmation dialog box appears when storing or

recalling.

Description of menus and buttons

In the event that menu and button names on the Windows system are different from those on the Macintosh sys-

tem, this manual uses the Windows menu and button names followed by the Macintosh menu and button names

in parentheses.

Getting Started

NOTE

Getting Started

Using SPX2000

Editor Windows

Appendix

SPX2000 Editor Owner’s Manual

❏

Input Signal Setup

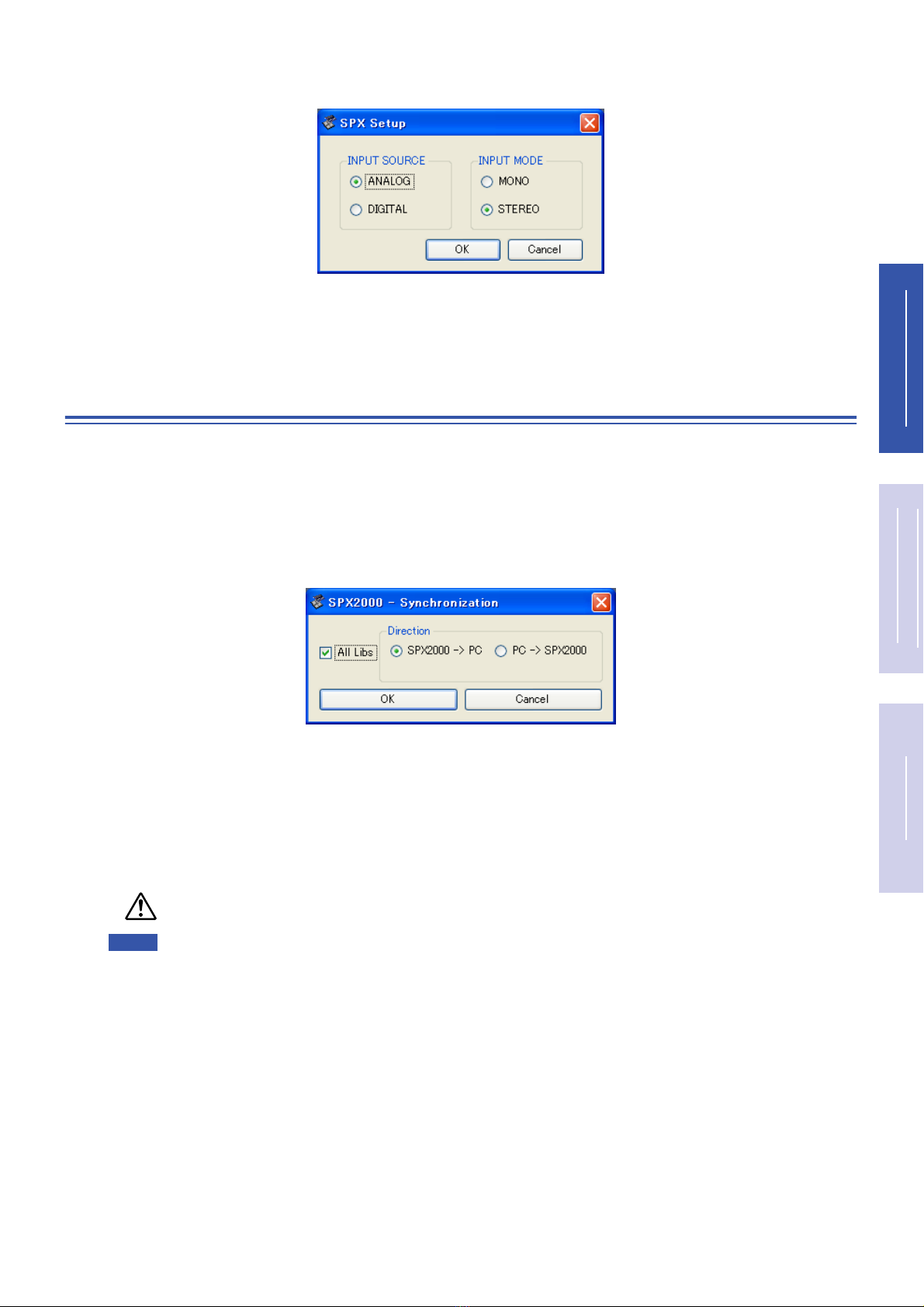

To open the Input Signal Setup window, choose [SPX Setup] from the [File] menu.

Input Source :

Select a input source: Analog or Digital

Input Mode :

Select a input mode: Monaural or Stereo

Synchronizing SPX2000 Editor

When SPX2000 Editor starts up for the ﬁrst time, the parameter settings on the SPX2000 unit and the parameter set-

tings in SPX2000 Editor be different. Therefore, you must ﬁrst match the parameter settings on the SPX2000 unit

with those in SPX2000 Editor. This operation is called “synchronization.” Follow the steps below to synchronize

SPX2000 Editor.

Choose [Re-synchronize] from the [Synchronization] menu.

The following window opens.

Select whether you want to transfer your settings to SPX2000 Editor, or vice versa.

At this time, the [All Libs] option determines whether or not Library data is synchronized.

[PC -> SPX2000] :

Transfers the settings of the current SPX2000 Editor Session to your SPX2000 unit.

[SPX2000 -> PC] :

Transfers the settings of your SPX2000 unit to the current SPX2000 Editor Session.

Click [OK].

Do not operate the SPX2000 unit while synchronization is in progress.

•If you use the “Total Recall” function in Studio Manager, all selected Editors in Studio Manager are

synchronized with the corresponding devices.

•If the operation lock setting is enabled on the SPX2000 unit, parameters that are blocked will not

change on the SPX2000 unit when you operate SPX2000 Editor; this means that the parameter

settings in SPX2000 Editor and in the SPX2000 unit itself may not match.

For details on the settings that are blocked, refer to the SPX2000 owner’s manual.

NOTE

Getting StartedAppendix Using SPX2000

Editor Windows

SPX2000 Editor Owner’s Manual

Ofﬂine Edit Function

If you do not want to synchronize your SPX2000 unit with SPX2000 Editor, select [Ofﬂine Edit] from the [Synchro-

nization] menu. The Ofﬂine Edit function is also activated when you click the [ONLINE]/[OFFLINE] button in the

Effect Editor window.

To apply your off-line edits to your SPX2000 unit, synchronize the SPX2000 unit with SPX2000 Editor.

Some parameters in the SPX2000 unit change their displayed values depending on the sampling

frequency. If you switch SPX2000 Editor from OFFLINE to ONLINE, displayed parameter values may

change because SPX2000 Editor loads the sampling frequency from the SPX2000 unit and updates

the display.

Working with Sessions

All of the settings in SPX2000 Editor, including the library data, are collectively called a “Session.” The following table

describes how to handle Sessions.

If you save a Session in the SPX2000 Editor window, only that Editor’s settings are saved in a ﬁle with a ﬁle extension

of “.SPX”.

If you save a Session in the Studio Manager, all selected Editor settings are saved in a ﬁle with a ﬁle extension of

“.YSM”.

Undo/Redo Function

In SPX2000 Editor, you can cancel the latest operation (Undo) and also cancel the cancellation of the latest operation

(Redo). If you perform an Undo operation twice in a row, you can cancel the two most-recent operations. If you per-

form an Undo operation three times in a row, you can cancel the three most-recent operations. In this way, you can

cancel multiple recent operations. The following table describes how to use the Undo/Redo function.

To cancel (i.e., Undo) the most recently-performed operation in the Library window, click the [Undo]

button in the Library window. You cannot execute [Undo]/[Redo] commands from the [Edit] menu.

For details, refer to page 5.

Please note, however, that after you perform one of the following operations, you cannot successfully undo or redo

any previous operation:

•Closing Studio Manager

•Synchronizing your console or device with Studio Manager

•Creating a new Session

•Opening and closing a Session

•Saving a Session

•Recalling a effect

You cannot Undo or Redo the following operations:

• Edits in the Setup window

• Synchronization

• Opening and closing the windows

• Resizing the windows

Creating a new Session

Choose [New Session] from the [File] menu.

Opening a previously saved Session

Choose [Open Session] from the [File] menu.

Saving the current Session

Choose [Save Session] from the [File] menu.

Saving the current Session with a new name

Choose [Save Session As...] from the [File] menu.

Undo

Choose [Undo] from the [Edit] menu.

Redo

Choose [Redo] from the [Edit] menu.

NOTE

Getting StartedAppendix Using SPX2000

Editor Windows

SPX2000 Editor Owner’s Manual

Library Window

The Library window enables you to manage libraries (parameter settings for each effect). In addition, libraries can be

saved to disk on your computer as Library ﬁles.

To open the Library window, choose [Library] from the [Windows] menu.

The Library window consists of two panes. The pane on the left, called the [FILE] section, displays the contents of the

SPX2000 Editor library ﬁle. The pane on the right, called the [INTERNAL DATA] section, displays the Effect list of

the SPX2000 unit.

You can copy and sort the items (effects) in the list by dragging them between the panes. Within the same pane, you

can copy an effect by dropping it on top of another effect, and you can sort effects by dropping an effect between two

effects. Effects can be swapped by holding down the <Shift> key while dragging. In all cases, the contents of the des-

tination effect are overwritten. To edit a effect title, click the title, then type. To select multiple effects, click effects

you want to choose while holding down <Shift> key or <Ctrl> key (< >).

File name

This is the ﬁle name of the currently open Library ﬁle.

[OPEN] button

This button is used to open Library ﬁles.

DM2000/02R96/DM1000/01V96 library files with the “.D2E” extension can also be opened, but

some ﬁles may not be compatible with SPX2000 Editor. (see page 11)

Using SPX2000 Editor Windows

2 54

6 7 6 7

)

NOTE

Getting StartedAppendix Using SPX2000

Editor Windows

SPX2000 Editor Owner’s Manual

[CLOSE] button

This button is used to close the currently open Library ﬁle.

[SAVE] button

This button is used to save the currently open Library ﬁle.

You should normally save files with the “.SPE” extension. If you want to save a file in a form that can

be opened by the DM2000/02R96/DM1000/01V96, you should save it with the “.D2E” extension.

[SAVE AS] button

This button is used to save the currently open Library ﬁle with a different name.

You should normally save files with the “.SPE” extension. If you want to save a file in a form that can

be opened by the DM2000/02R96/DM1000/01V96, you should save it with the “.D2E” extension.

TITLE

This column displays the effect titles.

PROTECT

This column displays padlock icons for protected effects. It also displays an (read-only) icon for preset data.

[FILE] section

This section displays the contents of the SPX2000 Editor library ﬁle.

[INTERNAL DATA] section

This section displays the effect list of the SPX2000 unit.

If the OFFLINE indicator is selected by the [ONLINE]/[OFFLINE] button in the Effect Editor window,

SPX2000 Editor is not synchronizing with the SPX2000 unit. Therefore, this section does not display

the SPX2000 unit’s correct setting.

Bank select buttons

Click one of the [PRESET/CLASSIC/USER] buttons to see the effects that are stored in the corresponding bank.

[STORE] button

This button stores the current settings into the selected effect (location).

[RECALL] button

This button is used to recall the selected effect.

If you recall an effect from the FILE section of the Library window, the display background color in the

SPX2000 unit and the LCD color in SPX2000 Editor may differ. In this case, copy the effect into the

INTERNAL DATA section, and then recall it.

[CLEAR] button

This button clears the selected effect from the list.

[UNDO] button

This button undoes the last recall, store, copy, clear, sort, titling, protect or color select operation.

Note: In the Library window, you can undo only the most recent operation. You cannot undo any operations per-

formed prior to the most recent operation.

LCD color select

This lets you change the background color of the SPX2000 unit’s display for each effect that is recalled. You can

change the background color only for USER bank effects. You can choose one of ﬁve colors.

[PROTECT] button

This button is used to protect or unprotect the selected effect.

NOTE

)

NOTE

Getting StartedAppendix Using SPX2000

Editor Windows

7SPX2000 Editor Owner’s Manual

Effect Editor Window

The Effect Editor window lets you edit effect parameters.. To open the Effect Editor window, choose [Effect Editor]

from the [Windows] menu.

Effect select section

The EFFECT NAME, TYPE, and IN/OUT are the name, type and I/O conﬁguration of the effect

recalled to the currently selected effects processor. To edit the EFFECT NAME, click it and type. The [LIBRARY]

button opens the Library window.

[COMPARE] button/indicator

The [COMPARE] button will light when you edit a parameter after recalling an effect. To compare the result of

your editing with the un-edited effect settings, click the lit [COMPARE] button. (The indicator at left will light.)

The [COMPARE] button and indicator will go dark when you store or recall an effect.

•If you recall an effect from the FILE section of the Library window, pressing the [COMPARE] button

will compare that effect with the effect prior to recall.

• While you are comparing the result of your editing with the un-edited effect settings, other

operations in SPX2000 Editor cannot be performed.

[ONLINE]/[OFF LINE] button

Repeatedly clicking this button toggles between online and ofﬂine status.

If SPX2000 Editor is not connected or is not communicating with the SPX2000 unit, clicking this

button will not switch the SPX2000 unit from ofﬂine to online.

: This indicator is displayed when SPX2000 Editor is connected to the SPX2000 correctly. If the con-

nection is correct, the SPX2000 Editor parameters will work in unison with the SPX2000 unit parameters.

: This indicator is displayed when SPX2000 Editor is not connected or is not communicating with the

SPX2000 unit, or when you have selected Ofﬂine Edit. If the connection is incomplete, the SPX2000 Editor

parameters will not work in unison with the SPX2000 unit parameters.

89)

567

3 421

NOTE

Getting StartedAppendix Using SPX2000

Editor Windows

8SPX2000 Editor Owner’s Manual

LCD color

For each effect that is recalled, this indicates the background color of the SPX2000’s display. For USER bank

effects, you can use [LCD color select] in the Library window to change the background color.

[IN] button

This button is used to set the metering position to the effects processor’s inputs.

[OUT] button

This button is used to set the metering position to the effects processor’s outputs.

Level Meters

SPX2000 Editor displays the effect input level or output level.

Effect parameter section

This section contains the various effects controls, buttons, and displays. Its layout depends on the selected effect

type.

[MIX BALANCE] knob

This knob enables you to adjust the balance between the wet and dry signals. When set to 0, only the dry signal is

heard. When set to 100, only the wet signal is heard.

[BYPASS] button

This button is used to bypass the currently selected effects processor.

PLAY/REC section

This window is displayed only if the FREEZE/FREEZE A/

FREEZE B effect type is selected. To begin recording (sam-

pling), click the REC button and then click the PLAY button.

The progress bar lets you to check the currently recording

position. To play back the recorded sample, click the PLAY

button.

TEMPO section

The TEMPO parameter is displayed only if an effect type that includes the TEMPO parameter is selected. Select

one of the three buttons below to choose how the TEMPO parameter will be set.

[VALUE ONLY] : You can set the TEMPO parameter by

using the rotating knob.

[MIDI CLK] : You can set the TEMPO parameter by using

the rotating knob and by MIDI clock messages from an exter-

nal device.

[TAP] : You can set the TEMPO parameter by using the rotat-

ing knob or the [TAP TEMPO] button.

[TAP TEMPO] : Repeatedly click the [TAP TEMPO] button

to set the TEMPO parameter to the corresponding interval.

SOLO section

This window is displayed only if the effect type M.BAND

DYNA is selected. The SPX2000 unit will output only bands

that are turned ON. If you turn all three buttons to ON, all

bands will be output.

)

PLAY button

Progress bar

REC button

VALUE ONLY button

Rotating knob

TAP TEMPO button

TAP button

MIDI CLK button

Getting StartedAppendix Using SPX2000

Editor Windows

9SPX2000 Editor Owner’s Manual

REV-X Window

When a REV-X effect is recalled, one of the three windows REV-X HALL, REV-X ROOM, or REV-X PLATE will be

displayed. If a REV-X effect is recalled, you can also display the REV-X window by selecting [REV-X] from the [Win-

dow] menu.

• The REV-X windows are only for REV-X effects. If the recalled effect is not a REV-X effect, these

windows won’t be displayed.

•If you change a parameter setting in the REV-X window, the setting in the Effect Editor window will

change accordingly.

EFFECT TYPE

The effects type appears here.

[OPEN/CLOSE]

Click here to open or close the parameter window.

[Reverb Time]

Duration of time over which the reverberation decays to silence. Higher values extend the reverberation. Drag the

icon to change the value.

[Initial Delay]

Duration of time between sound input and the start of reverberation. Higher values delay the start of reverbera-

tion. Drag the icon to change the value.

[Decay]

Shape of reverberation envelope. Reverberation characteristics are determined by the value. Drag the icon to

change the value.

[Room Size]

Size of space. Higher values simulate larger spaces. This value is linked with the Reverb Time value. When you

change this value, the Reverb Time value changes. Drag the icon to change the value.

[Diffusion]

Density and spread of reverberation. Higher values increase the density and enhance the spread. Drag the icon

to change the value.

NOTE

)

(

)!7

Getting StartedAppendix Using SPX2000

Editor Windows

10 SPX2000 Editor Owner’s Manual

[HPF]

This ﬁlter cuts the low frequency range of the reverberation. The range below the frequency speciﬁed by this value

is cut. This ﬁlter does not affect the original source sound. Drag the icon to change the value.

[LPF]

This ﬁlter cuts the high frequency range of the reverberation. The range above the frequency speciﬁed by this

value is cut. This ﬁlter does not affect the original source sound. Drag the icon to change the value.

[Hi Ratio]

Length of reverberation in the high frequency range. The reverberation duration of the high frequency range is

expressed as a ratio relative to Reverb Time. Drag the icon to change the value.

[Lo Ratio]

Length of reverberation in the low frequency range. The reverberation duration of the low frequency range is

expressed as a ratio relative to Reverb Time. Drag the icon to change the value.

[Low Freq]

Frequency value that serves as the basis for the Lo Ratio value. The frequency band below this value is affected by

the Lo Ratio parameter setting. Drag the icon to change the value.

Filter Frequency Response Curve

The curve changes depending on the HPF and LPF values.

Reverberation images

These images represent the high-range (10kHz), mid-range (1kHz), and low-range (100Hz) reverberation. These

images change shape depending on the parameter values. The vertical axis represents the level; the horizontal axis

represents reverb time; the shape represents the envelope.

Reverb time curve

This curve represents the high-range (10kHz), mid-range (1kHz), and low-range (100Hz) reverb time. The curve

changes depending on the Reverb Time, Hi Ratio, and Lo Ratio parameter values.

[Auto Zoom] button

Click the button to automatically adjust the time axis (horizontal axis).

Time Axis Set button

Use this button to specify the time duration (in seconds) as displayed by the time axis (horizontal axis).

[](Zoom Out) button

Click this button to increase the time value (in seconds) as displayed by the time axis (horizontal axis).

As a result, the display zooms out on the horizontal axis.

[](Zoom In) button

Click this button to decrease the time value (in seconds) as displayed by the time axis (horizontal axis).

As a result, the display zooms in on the horizontal axis.

[INPUT]/[OUTPUT] Level meter

SPX2000 Editor displays the effect input level or output level. Use the [IN]/[OUT] buttons in the Effect Editor

window to switch between input and output level metering.

[MIX] slider

This slider enables you to adjust the mix balance of the dry and wet (effect) sounds. When the balance is 0%, only

the dry sound is output. When the balance is 100%, only the wet sound is output.

)

(

Getting StartedAppendix Using SPX2000

Editor Windows

Altri manuali per SPX2000 Editor

Indice

Altri manuali Yamaha Software

Yamaha

Yamaha Add-On Effects Manuale utente

Yamaha

Yamaha LS9 Editor Manuale utente

Yamaha

Yamaha TOOLS for MY16-mLAN Manuale utente

Yamaha

Yamaha IMX644 Manager Manuale utente

Yamaha

Yamaha DSP5D Editor Manuale utente

Yamaha

Yamaha EZ-220 Page Turner Manuale utente

Yamaha

Yamaha TOOLS for TYROS Manuale utente

Yamaha

Yamaha 02R96 Version 2 Manuale

Yamaha

Yamaha QS1-WD Manuale utente

Yamaha

Yamaha DM 2000 Version 2 Manuale utente

Yamaha

Yamaha Add-On Effects Manuale utente

Yamaha

Yamaha Add-On Effects Manuale utente

Yamaha

Yamaha Studio Manager v.2 Manuale utente

Yamaha

Yamaha mLAN Patchbay Manuale utente

Yamaha

Yamaha DM 1000 Manuale utente

Yamaha

Yamaha Sound Editor ver. 2.10 Manuale utente

Yamaha

Yamaha Extension Manuale utente

Yamaha

Yamaha M7CL StageMix V1.5 Manuale utente

Yamaha

Yamaha RS7000 Ver.1.2 Istruzioni per l'installazione e il funzionamento

Yamaha

Yamaha MOTIF RACK XS Editor Manuale utente

Yamaha

Yamaha A4000 Manuale utente

Yamaha

Yamaha M7CL StageMix V1.5 Manuale utente

Yamaha

Yamaha AE041 Manuale utente

Yamaha

Yamaha QY70 Manuale utente

Manuali Software popolari di altre marche

COMPRO

COMPRO COMPROFM Manuale utente

Muratec

Muratec OFFICEBRIDGE ONLINE Manuale utente

Oracle

Oracle Contact Center Anywhere 8.1 Manuale utente

Adobe

Adobe 65007312 - Photoshop Lightroom Manuale

Avaya

Avaya NULL One-X for RIM Blackberry Manuale utente

HP ProLiant BL420c Manuale utente

PS Audio

PS Audio PowerPlay Manuale del proprietario

Brady

Brady LOCKOUT PRO 3.0 Manuale di servizio

Avaya

Avaya Interaction Center Manuale utente

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuale

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuale utente

Oracle

Oracle Application 9i Manuale utente

Acer

Acer RDM Manuale utente

Canon

Canon Vixia HF21 Manuale utente

Canon

Canon ZR950 Manuale utente

Samsung

Samsung Auto Backup Manuale utente

Polycom

Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuale utente
