Yamaha Add-On Effects Manuale utente

What are Add-On Effects?

Add-On Effects are software packages that install additional high-quality effects programs on

digital consoles.

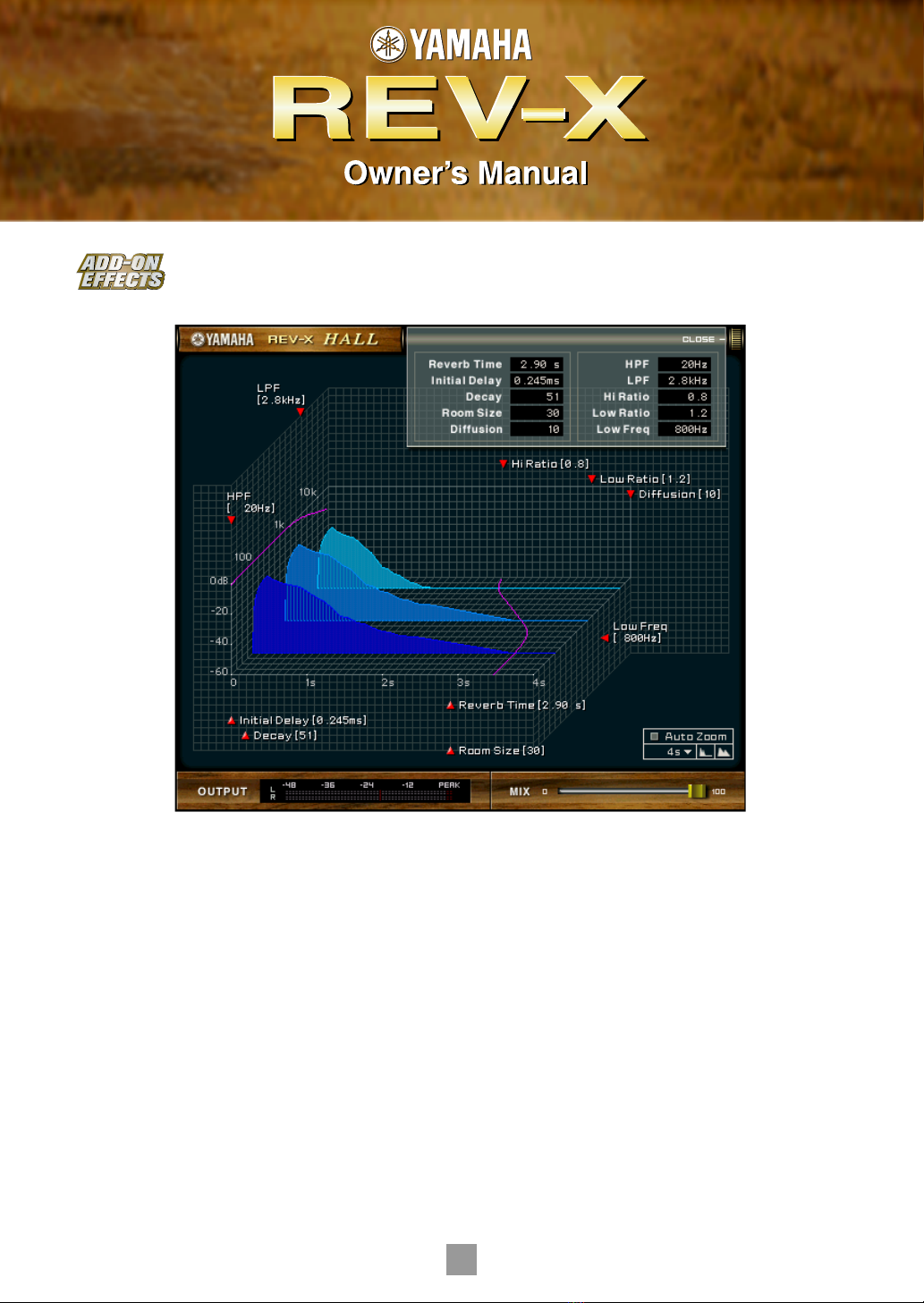

Studio Manager REV-X Window

What is REV-X?

REV-X is an Add-On Effects package that consists of a reverb algorithm developed by Yamaha. It provides a

high-density, richly reverberant sound quality, with smooth attenuation, spread and depth that work together to

enhance the original sound. You can choose one of three programs to suit the acoustic sound field and your

intentions: REV-X Hall, REV-X Room, and REV-X Plate.

Special Notices

• Copying of the commercially available music sequence data and/or digital audio files is strictly prohibited except for your personal use.

• The software and this Owner’s Manual are exclusive copyrights of Yamaha Corporation.

• Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written

consent of the manufacturer.

• Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held

responsible for the results of the use of this manual and the software.

• The screen displays as illustrated in this Owner’s Manual are for instructional purposes, and may appear somewhat different from

the screens which appear on your computer.

• The company names and product names in this Owner’s Manual are the trademarks or registered trademarks of their respective

companies.

Installing REV-X

See the Add-On Effects Installation Guide for more information on installing REV-X.

Using REV-X

As with other effects, you can recall and edit the REV-X programs on the console or Studio Manager. The basic

operation is as follows:

Select one of the internal effects processors.

Patch the signal to and from the currently selected effects processor.

Locate the Effects Library page.

Select REV-X Hall, REV-X Room or REV-X Plate.

Recall the selected effect.

Locate the Effects Edit page.

Set the parameters. (See the “Part Names and Functions” section for more information on REV-X

parameters.)

The procedure for recalling and editing REV-X varies depending on the console you are using.

Refer to the Owner’s Manual that came with your console for more information.

Editing Parameters in Studio Manager

In Studio Manager, editable parameters appear in both the REV-X window and the Generic Editor window.

Basically, the REV-X window enables you to edit REV-X specific parameters, and the Generic Editor window

enables you to edit parameters common to the REV-X and other Effects.

Refer to the Studio Manager Owner’s Manual for your console for more information regarding the Generic

Editor window.

Studio Manager Generic Editor Window

Part Names and Functions

Studio Manager REV-X Window

Console screen (This is a DM2000 screen.)

)

º ¡

&*(

3 4 ) !

7 6 5 @

8 9

In the following section:

Functions marked with are available in Studio Manager.

Functions marked with are available on the console.

EFFECT NAME

The effects name appears here.

[OPEN/CLOSE]

Click here to open or close the parameter window.

[Reverb Time]/[REV TIME]

Duration of time until the reverberation attenuates and stops. Higher values extend the reverberation.

In Studio Manager, drag the icon to change the value.

The range is from 0.3s through 30.0s. However, the range varies depending on the

Room Size

setting.

[Initial Delay]/[INI.DLY]

Duration of time between sound input and the start of reverberation. Higher values delay the start of

reverberation.

In Studio Manager, drag the icon to change the value.

The range is from 0.0ms through 125.0ms.

[Decay]/[DECAY]

Shape of reverberation envelope. Reverberation characteristics are determined by the value.

In Studio Manager, drag the icon to change the value.

The range is from 0 through 53.

Studio Manager

Console

Studio Manager Console

3 4 ) !

7 6 5 @

8 9

)

Studio Manager

Studio Manager Console

[Room Size]/[ROOMSIZE]

Size of space. Higher values simulate larger spaces.

This value is linked with the

Reverb Time

value. When you change this value, the

Reverb Time

value

changes.

In Studio Manager, drag the icon to change the value.

The range is from 0 through 28.

[Diffusion]/[DIFF.]

Density and spread of reverberation. Higher values increase the density and enhance the spread.

In Studio Manager, drag the icon to change the value.

The range is from 0 through 10.

[HPF]

This filter cuts the low frequency range of the reverberation. The range below the frequency specified by this

value is cut. This filter does not affect the original source sound.

In Studio Manager, drag the icon to change the value.

The range is Thru to 8.00kHz.

[LPF]

This filter cuts the high frequency range of the reverberation. The range above the frequency specified by this

value is cut. This filter does not affect the original source sound.

In Studio Manager, drag the icon to change the value.

The range is 1.00kHz to Thru.

[Hi Ratio]/[HI.RATIO]

Length of reverberation in the high frequency range. The reverberation duration of the high frequency range

is expressed as a ratio relative to

Reverb Time

In Studio Manager, drag the icon to change the value.

The range is from 0.1 through 1.0.

[Lo Ratio]/[LO.RATIO]

Length of reverberation in the low frequency range. The reverberation duration of the low frequency range is

expressed as a ratio relative to

Reverb Time

In Studio Manager, drag the icon to change the value.

The range is from 0.1 through 1.4.

3 4 ) !

7 6 5 @

8 9

)

Studio Manager Console

)

Studio Manager Console

[Low Freq]/[LO.FREQ.]

Frequency value that serves as the basis for the Lo Ratio value. The frequency band below this value is

affected by the Lo Ratio parameter setting.

In Studio Manager, drag the icon to change the value.

nThe range is from 22.0Hz through 18.0kHz.

Filter Frequency Response Curve

The curve changes depending on the HPF and LPF values.

Reverberation images

These images represent the high-range (10kHz), mid-range (1kHz), and low-range (100Hz) reverberation.

These images change shape depending on the parameter values. The vertical axis represents the level; the

horizontal axis represents reverb time; the shape represents the envelope.

Reverb time curve

This curve represents the high-range (10kHz), mid-range (1kHz), and low-range (100Hz) reverb time.

The curve changes depending on the Reverb Time, Hi Ratio, and Lo Ratio parameter values.

3 4 ) !

7 6 5 @

8 9

)

Studio Manager Console

)

Studio Manager

[Auto Zoom] button

Click the button to automatically adjust the time axis (horizontal axis).

Time Axis Set button

Use this button to specify the time duration (in seconds) as displayed by the time axis (horizontal axis).

[](Zoom Out) button

Click this button to increase the time value (in seconds) as displayed by the time axis (horizontal axis).

As a result, the display zooms out on the horizontal axis.

[](Zoom In) button

Click this button to decrease the time value (in seconds) as displayed by the time axis (horizontal axis).

As a result, the display zooms in on the horizontal axis.

[OUTPUT] meter/Level meter

Studio Manager displays the Effects output level.

On the console, you can select the input level or output level to be displayed using the METER: [IN][OUT]

switch.

[MIX] slider/[MIX BALANCE] control

These controls enable you to adjust the mix balance of the dry and wet (effect) sounds.

When the balance is 0%, only the dry sound is output. When the balance is 100%, only the wet sound is output.

nThe range is from 0 through 100%.

&* (

Studio Manager

(

Studio Manager

ºº

Studio Manager Console

* (

Studio Manager

Console

U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation

312IP-01A0
