Zavio F1100 Manuale utente

Zavio F1100 / F1105 Quick Installation Guide

Please follow the installation steps below to set up F1100 / F1105 IP Camera.

Check the package contents against the list below. See P.1

Physical overview. See P.1

Install the hardware and connect all cables. See P.2

Microsoft OS: Use the software CD to install Intelligent IP Installer.See P.2

Access the IP Camera using Intelligent IP Installer. See P.2

Mac OS using Safari Browser. See P.4

Light environment setting. See P.5

Change the Web Interface into your preferred language. See P.5

Use IP Camera via Mobile Phone. See P.5

Wireless Setting(For F1105). See P.5

Application of IP Camera. See P.6

For more information, please check the User Manual available in the Software CD or you can download the

latest software from http://www.zavio.com

Package Contents

Physical overview

Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for

10 seconds to set the settings back to factory default.

Note: F1105 with a build-in antenna.

Camera

F1100 / F1105 IP Camera

Quick Installation Guide

Brief product information and quick installation

Software CD

IP Surveillance Software

Intelligent IP Installer

User Manuals

EZVuu Installation Wizard

Language Packs

Mounting Bracket

(1) screws, (2) plastic wall anchors, and (3) camera bracket

Adaptor

5V DC, 1A

Install the hardware and connect all cables

a. Wall mounting and Ceiling mounting

1. Use the 3 supplied screws to fix the base plate to a flat surface.

2. Loosen the lock ring to adjust the desired angle of the camera.

3. Tighten the lock ring.

b. Connect cables and power supply

b1. Wire Connection

1. Connect the power adaptor to the IP Camera.

2. Use a standard RJ-45 network cable to connect the IP Camera

to the Network connection

b2. Wireless Connection (F1105)

1. Connect power adaptor to the IP Camera.

2. Connect to Wi-Fi.

Microsoft OS:Use the software CD to install Intelligent IP Installer

Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these

steps to install the firmware.

Select “Intelligent IPInstaller”and follow the installation process to complete the installation.

Access the IP Camera using Intelligent IP Installer

1. Before using Intelligent IP Installer, please check two settings.

a. Browser’s Internet Properties →Security

→Default Level

b. Browser’s Internet Properties →Privacy

→Uncheck Pop-up Blocker

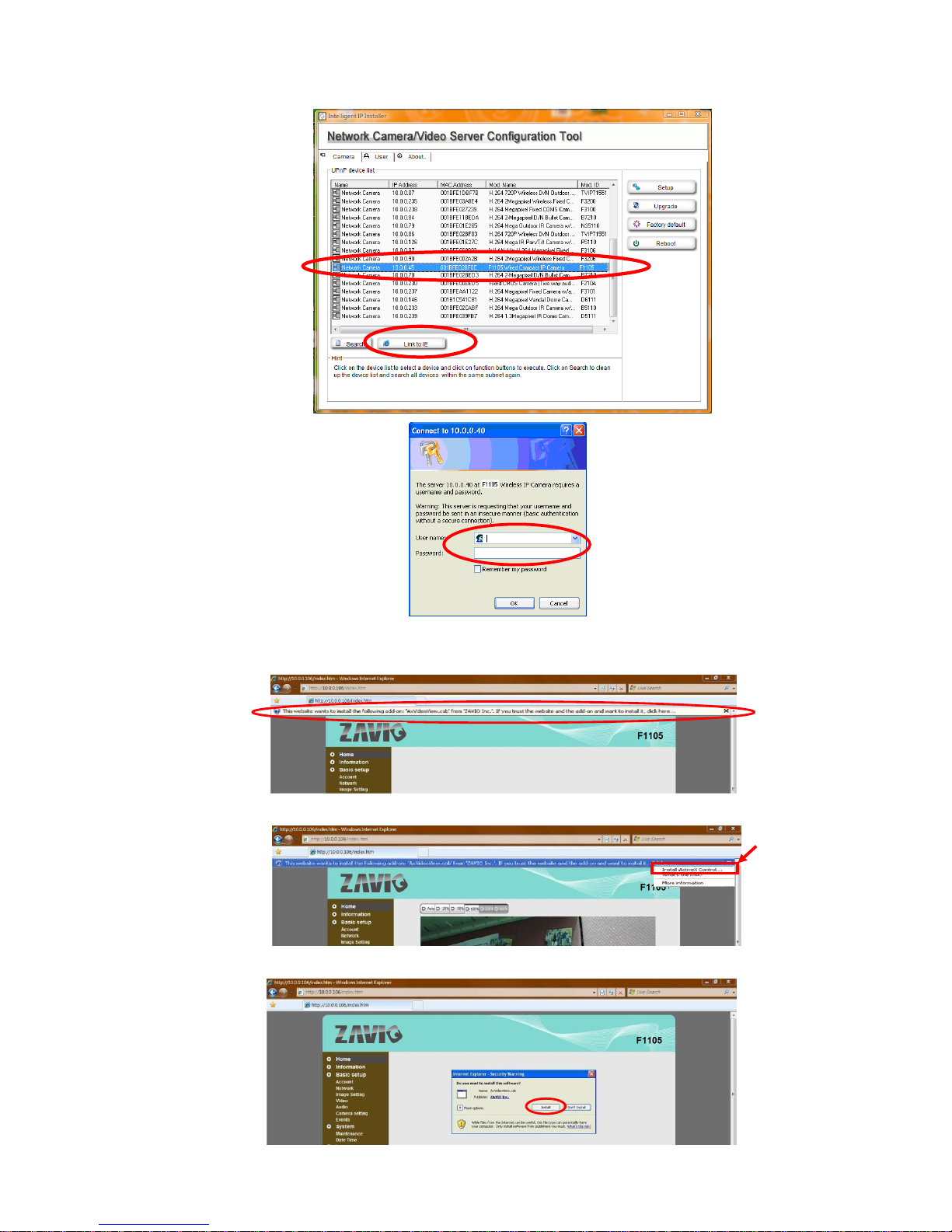

2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active

camera and video server devices. Select the relevant IP camera from the list and click Link to IE.

4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar:

This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’.

5. Click the information bar, and select Install ActiveX control.

6. Click Install.

3. Enter your Username and Password

to login to the IP Camera.

(Default is admin / admin)

Mac OS using Safari Browser

7. Live video displays in the centre of your web browser.

1. Select Safari icon

4. The monitor image will be displayed in your

browser.

2. Click Bonjour function and select the camera

you wish to access.

3. Enter name and password to login to the IP

camera. (Default is admin / admin)

3. Enter name and password to login to the IP

camera. (Default is admin / admin)

Lighting environment setting

The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the

lighting environment of your country.

Go to “Basic setup→Video”, choose the environment setting you wish.

Change the Web Interface into your preferred language

The languages options are on the left side of the setting screen, please select one and the web interface will

change into your preferred language.

Use IP Camera via Mobile Phone

1. Using IPCamera via iPhone

Select Safari function →Enter IP address in the web link →enter username and password (default value

admin/admin)

2. Mobile phone viewing- 3G Mobile Phone Streaming Viewing

For 3G mobile phone viewing, please type “ rtsp://<IP>:<PORT>/video.mjpg ”into your 3G web media

player.

<IP> is the IP address of your IP camera;

<PORT> is the RTSP port of your IP camera (Default value is 554.)

Example: rtsp://100.10.10.1:554/video.mjpg

Wireless Setting( For F1105)

Power the IP Camera and connect an Ethernet network cable to the IP Camera’s LAN port. Using Intelligent

IP Installer and entering the camera’s setting page.

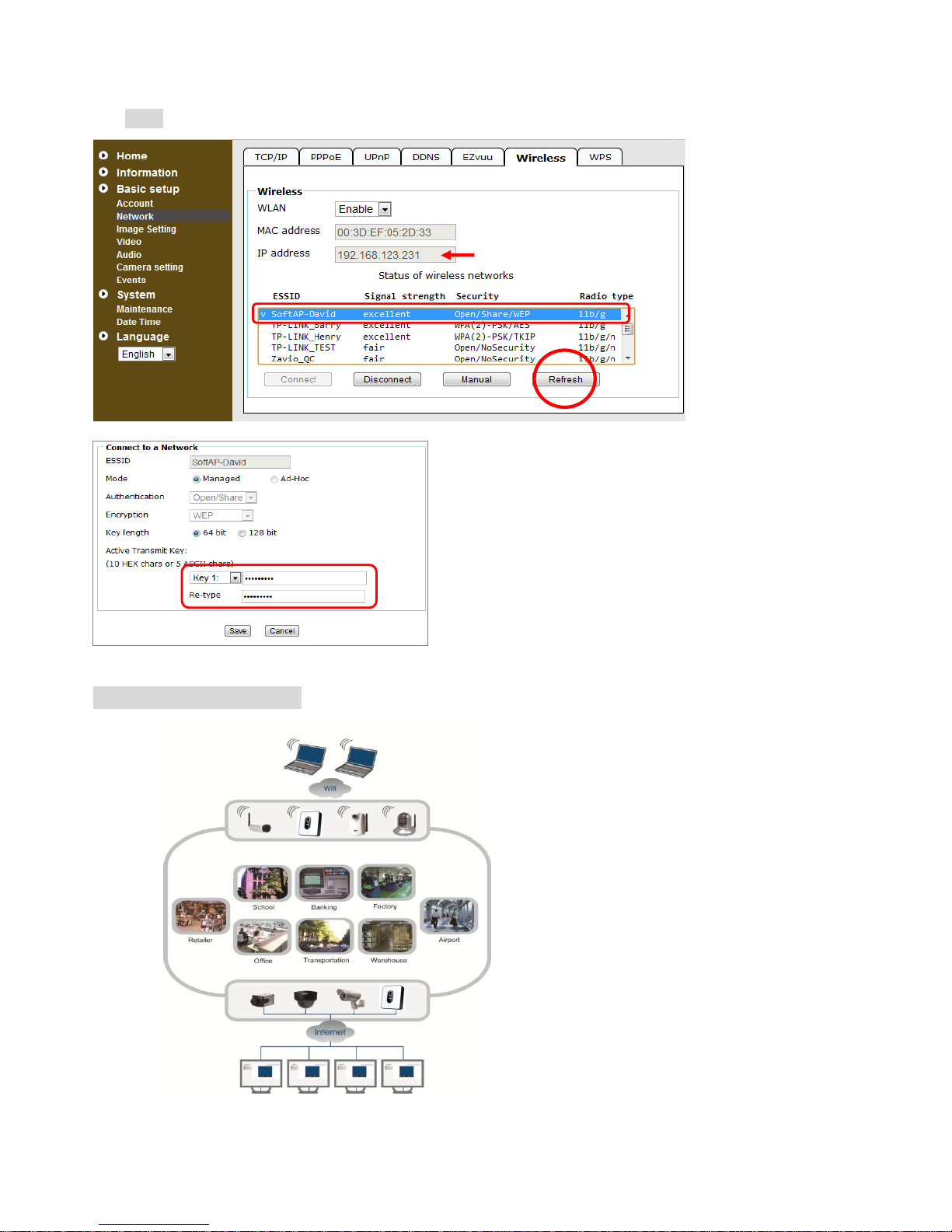

Please go to “Basic setup →Network →Wireless”, set the WLAN option to “Enable”

1. Click Refresh and choose the Access Point you wish to connect.

2. Use DHCP (default) to connect through a dynamic IP or click Manual to assign a static IP for the wireless

connection.

3. Enter the password within the Active transmit key field if required.

4. Click “Save”to apply settings. The Wireless IP address appears in the IP address field.

Note: The wireless private IPaddress can be found in Intelligent IP Installer.

Application of IP Camera

Wireless IP address
