V111T Video Server
Hardware User Manual
-Contents-
CHAPTER 1. SAFETY INSTRUCTION.......................................................................................................................2
CHAPTER 2. INTRODUCTION....................................................................................................................................4
CHAPTER 3. PACKAGE CONTENTS.........................................................................................................................5
CHAPTER 4. PHYSICALDESCRIPTION...................................................................................................................6
4.1 FRONT VIEW............................................................................................................................................................6
4.2 BACK VIEW..............................................................................................................................................................7
CHAPTER 5. BASIC CONNECTION...........................................................................................................................8
CHAPTER 5. BASIC CONNECTION...........................................................................................................................9
V111T User Manual
2
Hardware User Manual
Chapter 1. Safety Instruction
Before you use this product
This product has been designed with safety in mind. However, the electrical products can cause
fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to
heed the following.
Legal Caution
Video and audio surveillance can be forbidden by laws that vary from country to country. Check the
laws in your local region before using this product for surveillance purposes.
Don't open the housing of the product
Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage
or other hazards.
Don't use the accessories not recommend by the manufacturer
Heed the safety precautions
Be sure to follow the general safety precautions and the “Operation Notice.”
Operation Notice - Operating or storage location
Avoid operating or storing the camera in the following locations:
Extremely hot or cold places
(Operating temperature: -20 °C to + 50 °C [-22 °F to 122°F] )
Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)
Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)
Close to sources of strong magnetism
Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters
Locations subject to strong vibration or shock
V111T User Manual
3
In case of a breakdown
In case of system breakdown, discontinue use and contact your authorized dealer.
In case of abnormal operation
If the unit emits smoke or an unusual smell,
If water or other foreign objects enter the cabinet, or
If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2
Contact your authorized dealer or the store where you purchased the product.
Transportation
When transporting the camera, repack it as originally packed at the factory or in materials of equal
quality.
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Cleaning
Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be
removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.
Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the
surface.
V111T User Manual
Chapter 2. Introduction
The V111T is a full-function 1-channel video server offering Power over Ethernet (PoE), RS-485
for PTZ control, digital inputs / outputs for external alarm or sensor and its incredibly stable and
powerful firmware
Key Features:
Power over Ethernet IEEE 802.3af Class 0 suppliers power to the camera via the network
RS-485 for PTZ (Pan / Tilt / Zoom) control
Digital Input / Output Port for External Alarm & Sensor
Simultaneous MPEG-4 and Motion JPEG video stream
Excellent Image Quality with up to flexible 30 fps in Full D1 Resolution
Synchronized Two-way Audio
Optimal Synchronization of Audio and Video
Mobile Phone Streaming Live Video through 3GPP / ISMA / RTSP
Mobile Phone Live Image through 2.5 WAP
Multi-level Password Protection for Restricting Camera Access
Built-In Multi-Window Motion Detection
Video Buffer makes the Streaming Smoother
UPnP and Bonjour for Fast and Easy Installation
DDNS Supported
Bundled 16 Channel Surveillance Software
User-friendly & Multi-lingual UI
4
V111T User Manual
Chapter 3. Package Contents

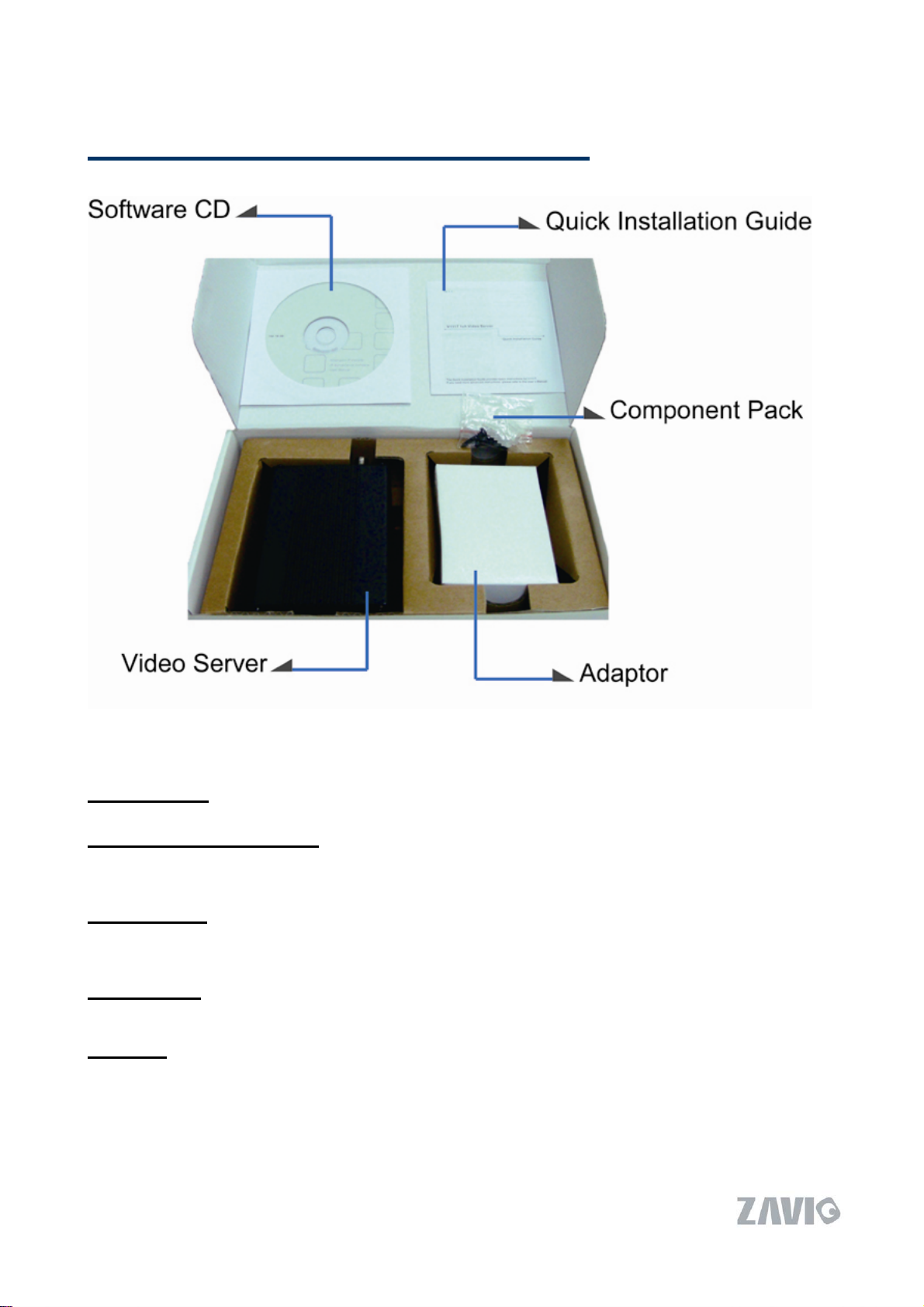

Video Server- V111T Video Server
Quick Installation Guide -To provide brief product information and quick installation and
wireless setting
Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and
Language Packs
Screw Pack - Applied screws to fix the video server to a flat surface.
Adaptor - 12V DC, max 2.6W
5
V111T User Manual
Chapter 4. Physical Description
4.1 Front View
Video In-To support one channel video input for easy use
Video Out -To support one channel video output for easy use
I / O Terminal Connector (1~4 Pin) –1 Input / 1 Output to support External Alarm and
Sensor used for motion detection, event triggering and alarm notification…etc.
RS-485(5~6 Pin) - For Pan/ Tilt Control
Line Out- To support audio out with earphones or speakers for two way audio
Mic In- To support audio in with Microphone for two way audio
6
V111T User Manual
4.2 Back View

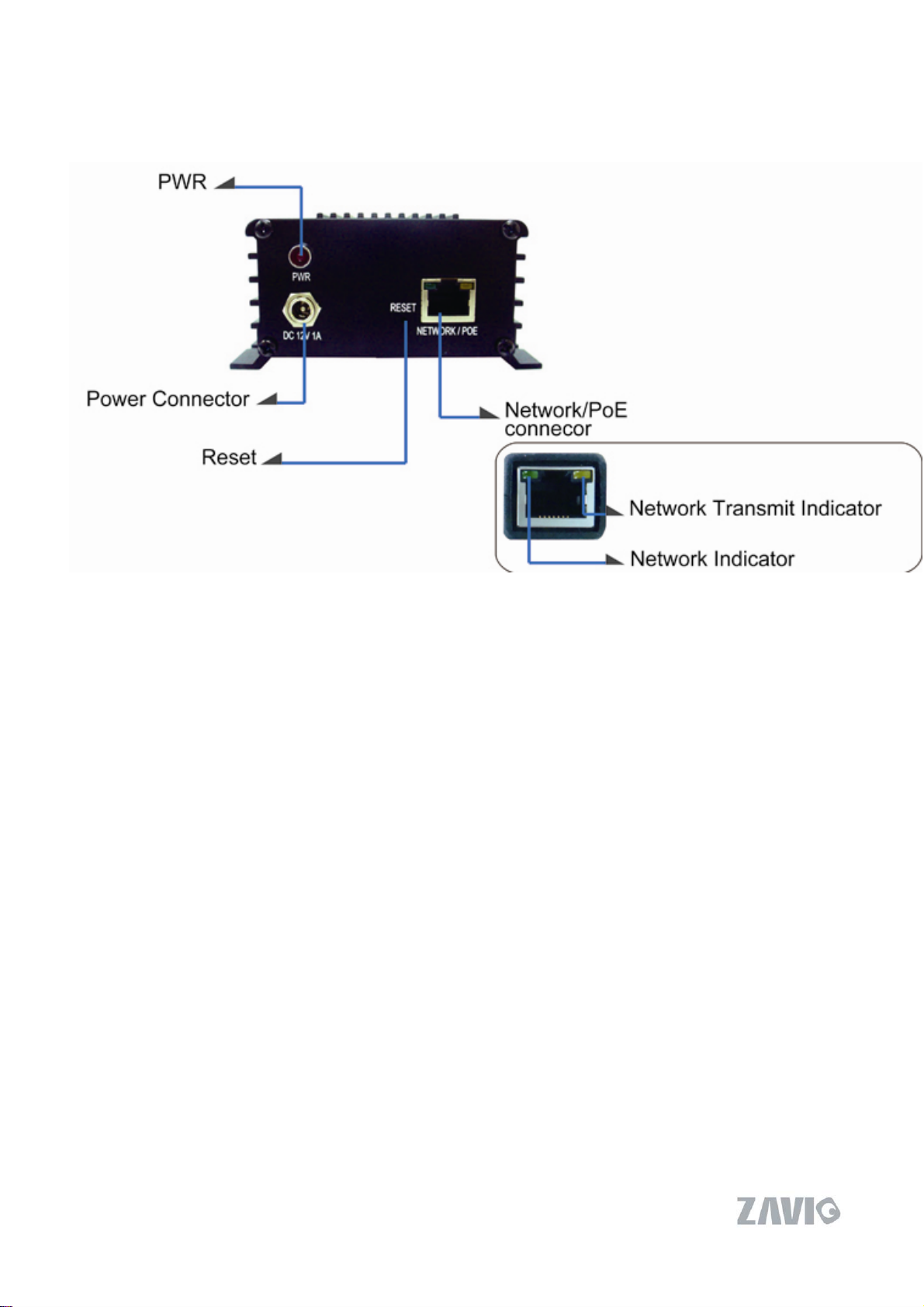

PWR-Power LED will light up after the IP Camera completed the boot process
Power Connector - For connection of 12V DC input
Reset - When the device is empowered, press the Reset Button to reboot the device, or hold
the Reset Button for 10 seconds to set the device settings back to factory default
Network Connector - For connection to the Ethernet via RJ-45 standard with PoE
Network Indicator (Green Light) - Green light will light up after the IP Camera
connected with network and IP Camera completed the boot process.
Network Transmit Indicator (Yellow Light) – Yellow light will light up when the data
is transmitting via internet.
7
V111T User Manual

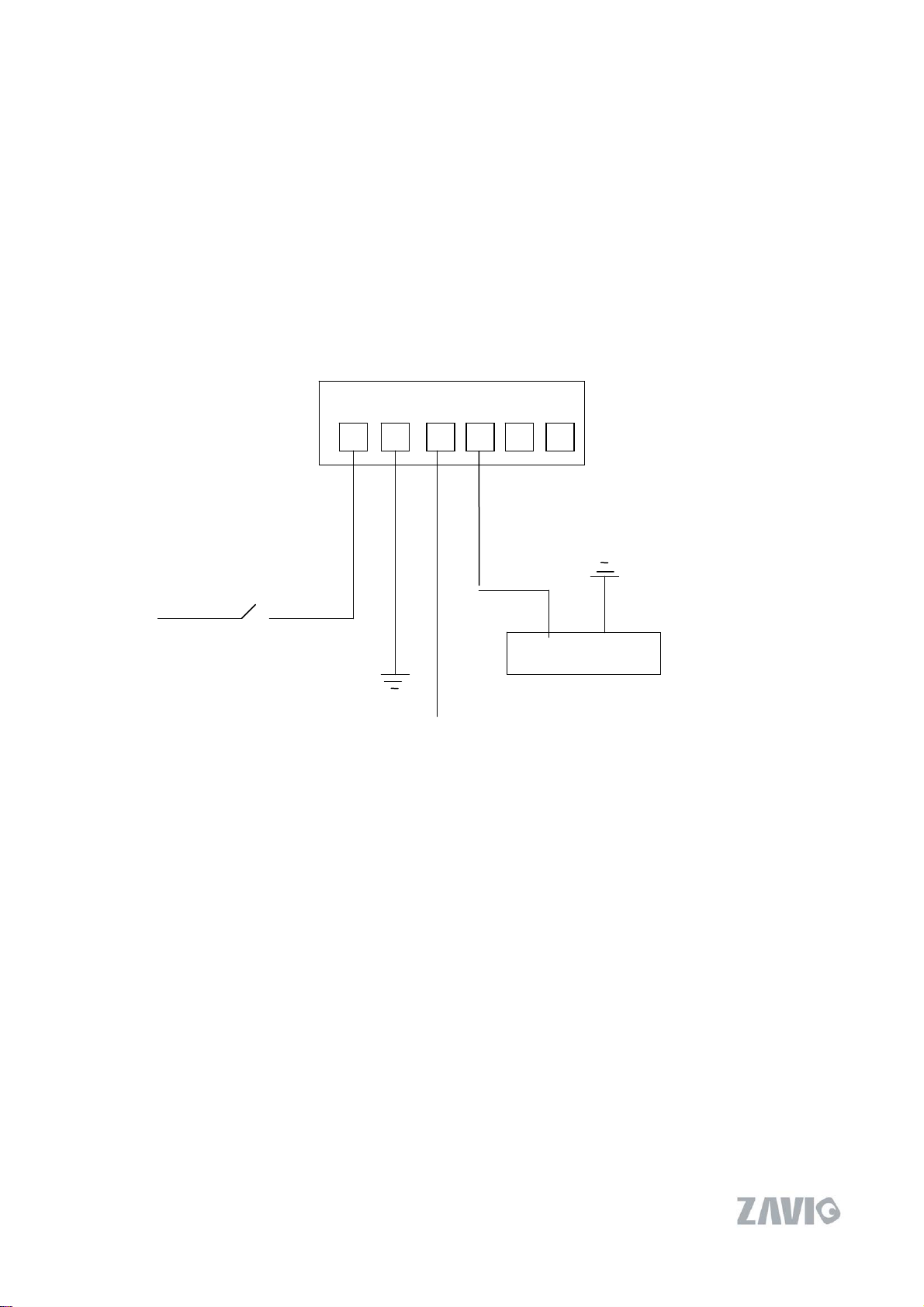

Terminal connector diagram
Please refer the following illustration below for connection method.
RS+485
D+ D- COM NO RS-485
Ground
12V
Max. 30W
Ground
Alarm out device
Switch
12V
8
V111T User Manual
Chapter 5. Basic Connection
A video server makes it possible to move forward a network video system without having to discard
existing analog equipment. It brings new functionality to analog equipment and eliminates the need
for dedicated equipment such as coaxial cabling, monitor and DVRs. You can see the basic
connection of video server below.
9
