Battery Analyzer MST-8000 +
Instructions
Zeus Technology Co., Ltd. Shenzhen
2
1.Appearance..................................................................................................................................... 3
2.The Boot.......................................................................................................................................... 4
3.Functional Test................................................................................................................................5
a.Battery test...................................................................................................................................5
b.Starting System Test................................................................................................................... 7
c.Charging System Test................................................................................................................. 7
d.Maximum load test..................................................................................................................... 8
5.System Settings............................................................................................................................... 9
a. Language Settings....................................................................................................................... 9
b. Time Set........................................................................................................................................9
Zeus Technology Co., Ltd. Shenzhen
3
I. Appearance

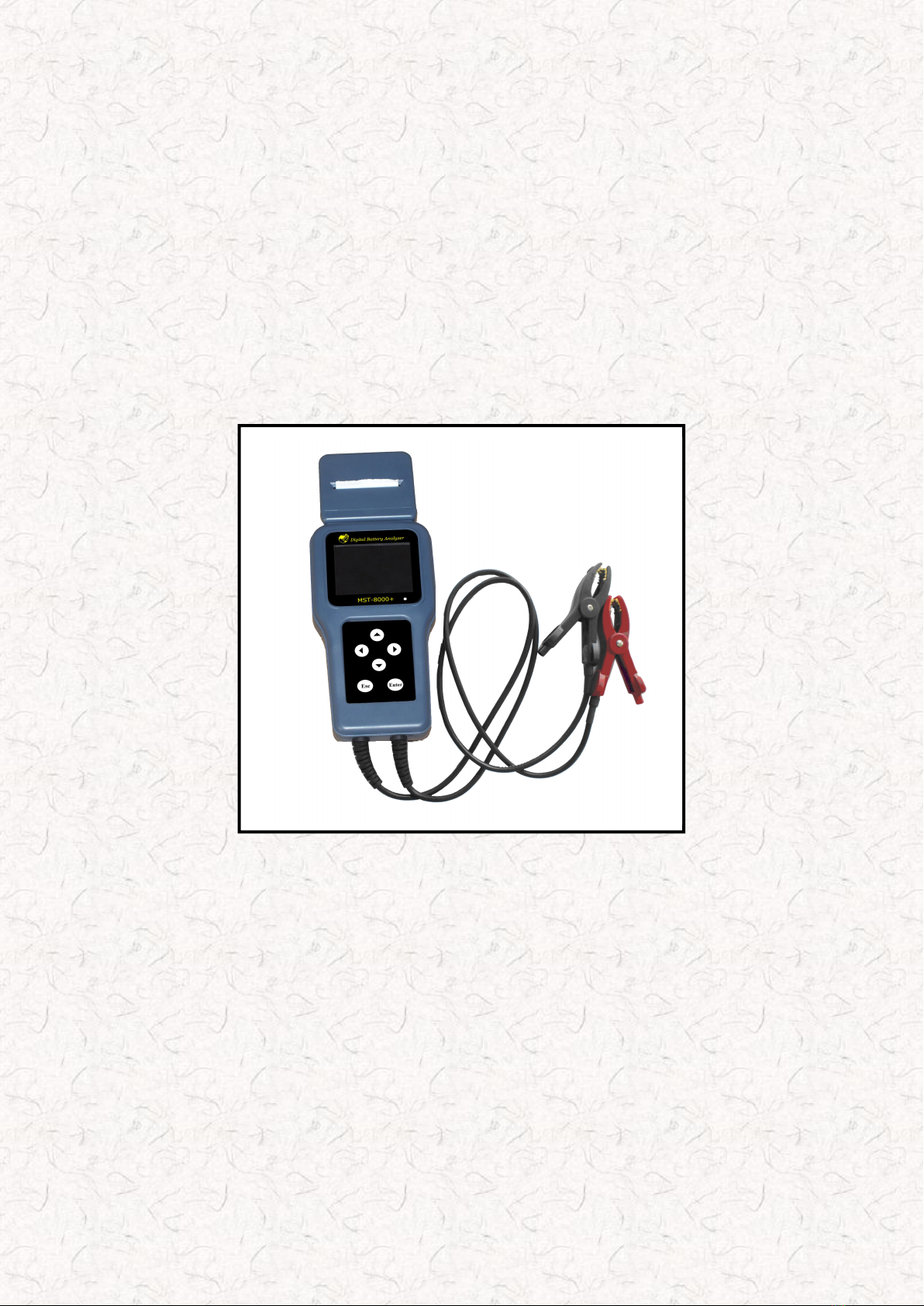

1. Storage battery tester host
2. Display Interface: Using 320 *
240 color LCD screen that can
display different functions and
measurement data
3 Left ◀: Switch pages or set of
data
4 Right ▶: Switch pages or set of
data
5 on the key ▲: Selection function
or set of data
6 down key ▼: Selection function
or set of data
7 Escape key (Esc):. Exit current
page or return to the previous level
8 OK key (Enter): OK option or
enter the next level
9 detachable printer module: print
test results and related information
(including test time and test
models).
Note: If you need to use the printer,
you must install the printer before
the host boot. If the printer is in the
process of loading operations after
power is unprintable
Zeus Technology Co., Ltd. Shenzhen
4
2.The boot
1. connecting wiring and battery battery tester between. Red clip connect the
battery positive, black clip connect the battery negative. If red or black clip
clip connection is not reliable, the following diagram interface 1.0 and Figure
1.1 shows, there is a problem at this time need to disconnect to reconnect to
clip.
2.wiring to normal after device initialization is successful, the
display will automatically boot interface (as shown below), press any
key to continue.
图2.0
图2.1
图2.2
Zeus Technology Co., Ltd. Shenzhen
5
3.Functional testing
a. Battery Test
After the normal boot, press any key to enter the main menu, as shown in
Figure 3.1.0.
Press "▲ ▼" button, select "1 battery test" press <Enter> key to enter the
next one, if the battery voltage is too low (less than 11.5V) will be prompted
interface (Figure 3.1.1), press <Enter> key to continue measuring, <Esc> key
to abandon measurement. If the battery voltage is normal, it will go directly
to the battery type selection screen (Figure 3.1.2). On the subject of battery
type battery by selecting the corresponding option.
Press <Enter> key to enter the next one. Enter battery specifications set
value (Figure 3.1.3).
"▲" setpoint plus 5
"▼" setpoint minus 5
"◀" set value minus 100
"▶" set value plus 100
After setting the setpoint press <Enter> key to start the measurement. Will be
displayed after the measurement test results shown in Figure 3.1.4
图3.1.0
Zeus Technology Co., Ltd. Shenzhen
6
If the test result lower right corner of the interface with an icon of the printer,
press <Enter> key to print the test results, you can enter the test results before
printing models, the interface shown in Figure 3.1.5. Enter up to 16.
"▲ ▼" to select the character you want to enter. (You can enter letters, numbers,
there is a small part of the sign)
"◀ ▶" Select the digits to enter
When you're finished, press <Enter> to save the print, <Esc> key does not save
print. 3.1.6 print result shown in Fig.
Note:
1, before the test, ensure that the engine does not start, all electronic devices have
been turned off.
2, after the car running for some time, not immediately tested, because the
battery voltage is slightly higher than normal available, open headlights, etc. 2 to
3 minutes, before they can properly test.
图3.1.3
图3.1.4
图3.1.5
图3.1.6
Zeus Technology Co., Ltd. Shenzhen
7
b.Starter system test
In the main menu (Figure 3.1.0) Select option 2 (starter system testing), and
press <Enter> key to enter the starter system test interface (Figure 3.2.0 below).
prompted display interface to operate. After starting the engine to wait around
for about 15 seconds to read the test data (minimum voltage value). For 12V
systems. If the minimum voltage value is greater than 9.6V, then start the system
normally. If less than 9.6V, shows the battery voltage is too low to start, check
that the relevant part of the connection points, lines, and starters. If the 24V
system, the minimum voltage 19.2V places as a reference boundaries. Test
result print operations can refer battery test results printing operation.
c.Charging System Test
In the main menu (Figure 3.1.0) Select option 3 (charging system test), press
<Enter> key to enter the charging system test, then the operation prompt
interface (Figure 3.3.0 below) will appear.
图3.2.0
图3.3.1
图3.3.0
Zeus Technology Co., Ltd. Shenzhen
8
Prompted interface prompts:
1, first start the car, the car starts to wait for about 15 seconds, to ensure
stable operation of the engine has been
2, press <Enter> to start testing, enter the test screen (Figure 3.3.1)
3, the engine speed is gradually increased to 2000r / min. The device records
the minimum and maximum charging voltage value in this process.
4, the end of the test, reading the test results.
Test Data Analysis
1, the voltage is normal charging system is 13.3 ~ 15 v.
Two, if more than 15 v, please check the car's regulator. If less than 13 v,
please check the connections, lines and alternators.
Note: If the 24v system, the reference voltage value can be multiplied by
two.
test result print operations can refer battery test results printing
operation.
d.Maximum load test
In the main menu (Figure 3.1.0) Select option 4 (maximum load test), and press
<Enter> key to enter the maximum load test operation prompt interface (Figure
3.2.0 below).
Follow the prompts, first open all the electrical equipment, and then start the
engine after waiting for about 15 seconds waiting for the stable operation of the
engine press <Enter> to start testing, intrusion detection interface (Figure 3.4.1).
Check the minimum voltage, if the minimum voltage <12.8V, then the load
may be a problem, check the generator belt, or whether there is a short circuit
wire.
图3.4.0
图3.4.1
Zeus Technology Co., Ltd. Shenzhen
9
5.System Settings
a. Language Settings
In the main menu (Figure 3.1.0) Select option 5 (System Settings), then press
<Enter> key to enter system settings selection interface (shown in Figure
3.5.0).
Select the language setting, press <Enter> key to enter the language selection list
(Figure 3.5.1, Figure 3.5.2 below), available in English, Portuguese, Spanish,
French, German, Italian, Russian, Simplified Chinese , Japanese, Turkish,
Traditional Chinese total of 11 kinds to choose from. Use the arrow keys "▲ ▼
◀ ▶" select the corresponding language, press <Enter> key to confirm to
change the language.
b. Time setting
In the System Settings menu (Figure 3.5.0), select the time setting press
<Enter> key to enter the time setting interface (Figure 3.5.3)
(YYYY.MM.DD) to date, (HH: MM: SS) last minutes and seconds
图3.5.1
图3.5.2
图3.5.3
Zeus Technology Co., Ltd. Shenzhen
10
arrow keys "◀ ▶": Select the object to change.
"▲ ▼": adjust the value.
Press <Enter> to save the changes after modify, press <Esc> key to discard
changes
