LEGAL INFORMATION

The contents of this document are protected by copyright laws and international

treaties. Any reproduction or distribution of this document or any portion of this

document, in any form by any means, without the prior written consent of ZTE

CORPORATION is prohibited. Additionally, the contents of this document are

protected by contractual confidentiality obligations.

All company, brand and product names are trade or service marks, or registered

trade or service marks, of ZTE CORPORATION or of their respective owners.

This document is provided “as is”, and all express, implied, or statutory warranties,

representations or conditions are disclaimed, including without limitation any implied

warranty of merchantability, fitness for a particular purpose, title or non-

infringement. ZTE CORPORATION and its licensors shall not be liable for damages

resulting from the use of or reliance on the information contained herein.

ZTE CORPORATION or its licensors may have current or pending intellectual property

rights or applications covering the subject matter of this document. Except as

expressly provided in any written license between ZTE CORPORATION and its

licensee, the user of this document shall not acquire any license to the subject matter

herein.

The contents of this document and all policies of ZTE CORPORATION, including

without limitation policies related to support or training are subject to change without

notice.

Revision History

Date Revision No. Serial No. Description

2009-05-11 R1.1 sjzl20085610 Revision: add functions in Chapter 4

2008-11-18 R1.0 sjzl20085610 First edition for version 8.0

Contents

Safety Instructions................................................................. i

During Installation and Application.......................................................i

For Service.......................................................................................ii

Chapter 1................................................................................1

Introduction...........................................................................1

Overview......................................................................................... 1

Packing List..................................................................................... 1

Indicators........................................................................................ 2

Ports and Keys................................................................................. 3

System Requirements...................................................................... 4

Chapter 2................................................................................5

Product Installation...............................................................5

Hardware Connections...................................................................... 5

Default Settings............................................................................... 6

Computer Configuration ................................................................... 7

Checking Computer Configuration.................................................................. 7

Configuring TCP/IP........................................................................................ 7

Chapter 3................................................................................9

Configuration Preparation.....................................................9

Logging into Web Configuration Page................................................. 9

Viewing Device Status...................................................................... 9

ZXV10 W300 Wireless ADSL Router User Manual

Chapter 4 ............................................................................. 10

Network Configuration........................................................ 10

Creating WAN Connection................................................................10

Wireless Configuration.....................................................................14

Configuring WLAN Basic Parameters ............................................................14

Configuring WLAN Security Parameters........................................................15

Configuring Multiple SSIDs...........................................................................18

Checking Associated Device.........................................................................19

Configuring Access Control List.....................................................................19

Chapter 5 ............................................................................. 20

Application Configuration.................................................... 20

Configuring UPnP............................................................................20

Configuring DMZ Host .....................................................................20

Chapter 6 ............................................................................. 21

Troubleshooting .................................................................. 21

Appendix A........................................................................... 22

WLAN Configuration............................................................ 22

Safety Instructions

During Installation and Application

Use the power adapter included in this package. Other power

adapters may make the device unable to work normally or even

damage the device.

Pay attention to the load of the power socket and power cable. The

overloading power socket or broken power cable may cause

electric shock or fire. It is recommended to check the cables

periodically and replace the broken one immediately.

Appropriate space for heat dissipation is required to prevent the

product from overheating.

Keep the product away from heat sources. Avoid the product

working in high-temperature or direct sunshine environment.

Keep the product away from moisture or vapor. Do not splash any

fluid on the product.

Do not place the product on any unstable surface.

Power off and unplug this product carefully when it is not in use or

before cleaning. Pay attention to the high temperature on the

power adapter’s surface.

Wait for at least 15 seconds between powering off and re-powering

on of the device.

Do not block the heat dissipation opening of the product.

If the product is not used for a long period of time, unplug the

power cord.

ZXV10 W300 Wireless ADSL Router User Manual

For Service

Do not attempt to disassemble, repair, or open this product, which

will lose the warranty services. Contact qualified service personnel in

case of problems, especially under the following conditions:

The power socket or cable is damaged.

Liquid is splashed into the product.

The product is exposed to rain or water.

The product does not work normally when the operating

instructions are followed.

The product is dropped or struck, causing the product damaged.

Caution: Please make no modification to the device.

Confidential and Proprietary Information of ZTE CORPORATION 1

Chapter 1

Introduction

Overview

W300 is a home and SOHO oriented wireless broadband router

integrating ADSL, AP and LAN Switch. It provides triple-play services

such as Internet data, voice access, and video access. W300

provides priority access for different services with sophisticated ATM-

based and IP-based QoS to meet different requirements for high-

speed Internet access, IPTV Video on Demand (VoD), live-broadcast

access and voice access. Wireless encryption and built-in firewall

prevent unauthorized users from accessing the network, ensuring

the security of legal users accessing the wired and wireless networks.

W300 supports TR-069 protocol for allowing overall remote network

management.

Note: ZTE CORPORATION reserves the right to modify technical

specifications in this manual without any notification in advance.

Packing List

The package box for a W300 includes the following components, as

shown in Table 1.

ZXV10 W300 Wireless ADSL Router User Manual

2 Confidential and Proprietary Information of ZTE CORPORATION

TABLE 1PACKING LIST

Component Quantity

ZXV10 W300 Wireless ADSL Router 1

External splitter 1

Power adapter 1

Telephone line 1

Straight-through Ethernet cable 1

Warranty card 1

ZXV10 W300 Wireless ADSL Router User Manual 1

Note: Components actually delivered depend on the service

provider. If any component is missing or damaged, contact the

service provider immediately. Please keep the packing box and

components well in case of replacement.

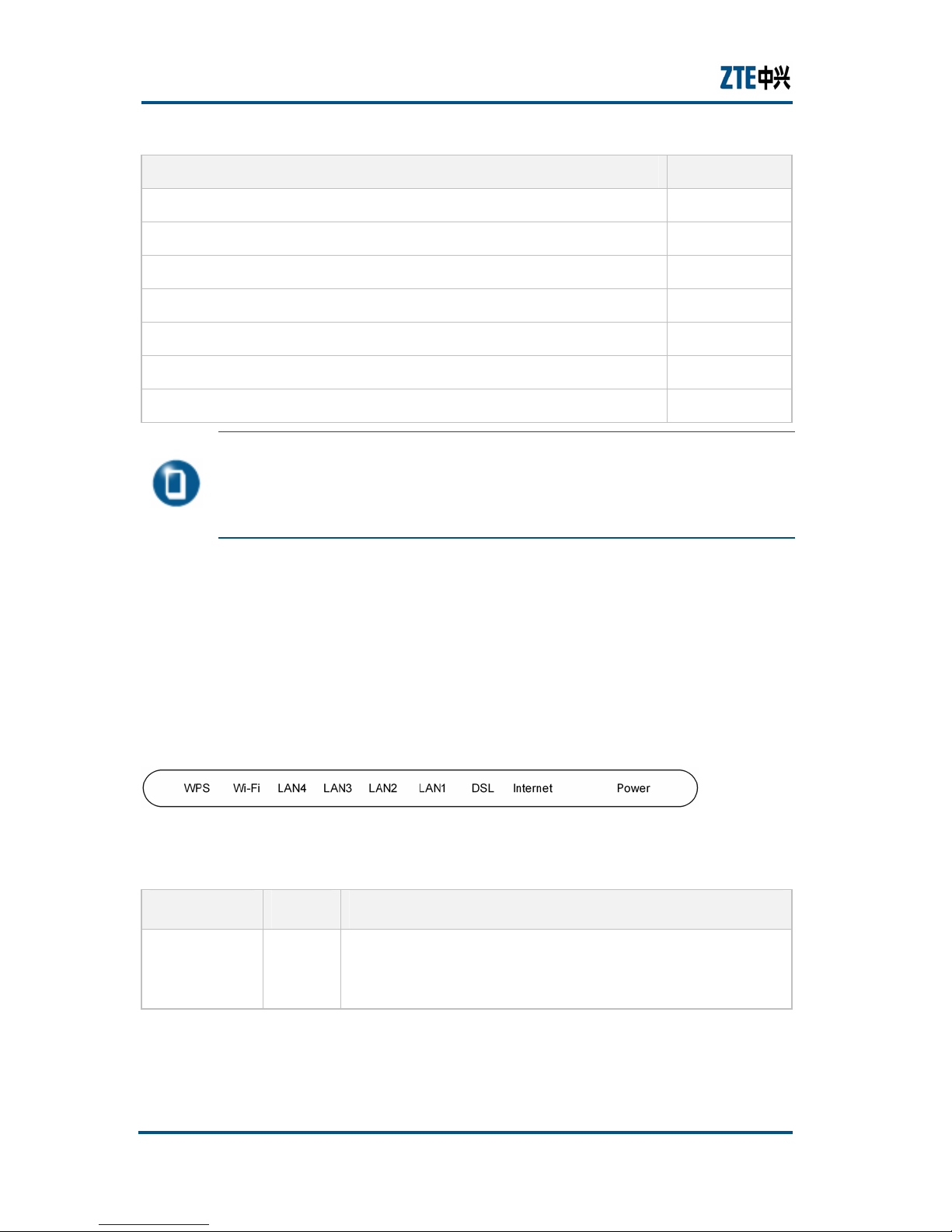

Indicators

There are nine indicators on the front panel of W300, indicating the

running status of the device, as shown in Figure 1. The meanings of

these indicators are described in Table 2.

FIGURE 1INDICATORS ON THE FRONT PANEL

TABLE 2DESCRIPTIONS OF THE INDICATORS

Indicator Color Description

Power Green

Steady on: The power is connected and switched on.

Off: The power has not been connected or it fails to

function.

Chapter 1 - Introduction

Confidential and Proprietary Information of ZTE CORPORATION 3

Indicator Color Description

Internet Green

Steady on: the connection is established and the IP

address is allocated. In multi-WAN connection mode,

it indicates that the default routing WAN connection is

established.

Flashing: Data is transmitting. The flashing frequency

indicates the LAN traffic.

Off: The device is not powered on; ADSL link is not

established; ADSL is operating in Bridge mode; IP or

PPP link is abnormal.

DSL Green

Steady on: ADSL link is established.

Flashing: ADSL link is establishing.

Off: ADSL link is not established.

LAN1

LAN2

LAN3

LAN4

Green

Steady on: The LAN connection is established but no

data transferring.

Flashing: Data is transmitting. The flashing frequency

indicates the LAN traffic.

Off: The device is not powered on or the LAN

connection has not been established.

Wi-Fi Green

On: The wireless port is enabled.

Flashing: Data is transmitting. The flashing frequency

indicates the WLAN traffic.

Off: The device is not powered on or the wireless port

is disabled.

WPS Green

On: The wireless terminal device is connected

through WPS successfully. The indicator turns off five

minutes later.

Slowly flashing: The wireless terminal device is

connecting with W300 through WPS.

Quickly flashing: There is an error when the wireless

terminal is connecting to W300 through WPS

Off: There is no wireless terminal device connected to

W300 through WPS or the wireless terminal device

has been connected to W300 through WPS for more

than five minutes.

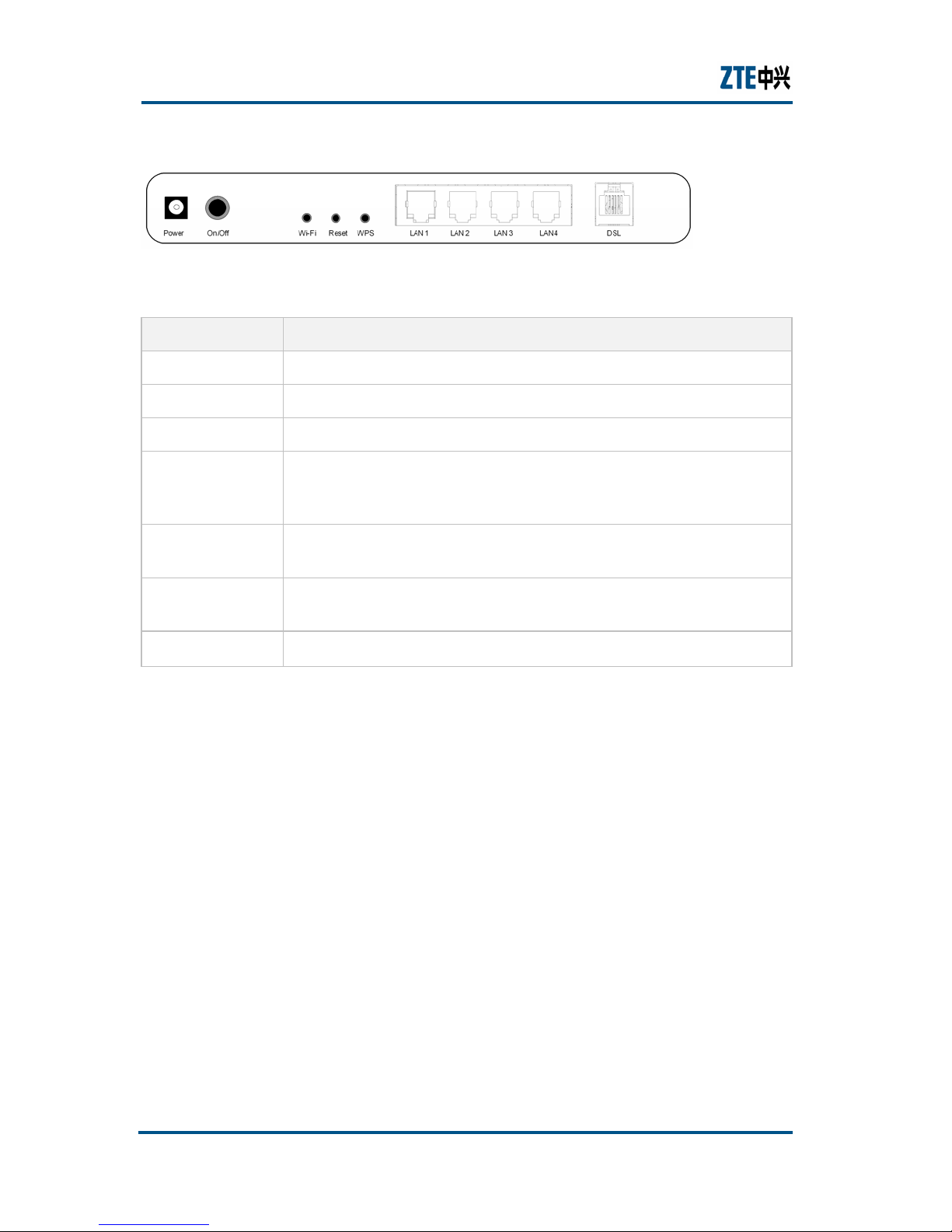

Ports and Keys

There are ten ports and buttons on the rear panel of W300, as

shown in Figure 2. These ports and buttons are described in Table 3.

ZXV10 W300 Wireless ADSL Router User Manual

4 Confidential and Proprietary Information of ZTE CORPORATION

FIGURE 2REAR PANEL

TABLE 3DESCRIPTIONS OF THE PORTS AND BUTTONS

Identification Description

POWER Connected to the companion power adapter.

On/Off Power switch

Wi-Fi WLAN switch

Reset When W300 is in operating status, pressing this button for more

than 5 seconds will restore the device default settings and then

the device will reboot automatically.

WPS To enable WPS function and establish a secure transmitting

channel for the wireless terminal devices.

LAN1~ LAN4 Connected to PC’s network interface card (NIC) or other network

device via RJ-45 cable.

DSL Connected to the ADSL line or splitter via RJ-11 telephone line.

System Requirements

System requirements for the W300 router are as follows:

The user has already subscribed the ADSL service. The service

provider shall provide at least one legal IP address (allocated

either statically or dynamically).

One or more PCs with 10/100M Ethernet Network Interface Card

(NIC).

For wireless access, an external or built-in 802.11b/g wireless

adapter is required.

To configure the system via the Web page based interface, you

need a Web browser such as the Internet Explorer (version6.0 or

above), Netscape (version7.2 or above).

Altri manuali per ZXV10 W300

Indice

Altri manuali Zte Router di rete

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
