ZyXEL Communications PoE-80 Manuale utente

PoE-80

Eight-port Power over Ethernet Hub

User’s Guide

Version 1.06

April 2004

PoE-80 User’s Guide

Table of Contents

Copyright ............................................................................................................................................ 3

Federal Communications Commission (FCC) Interference Statement.............................................. 3

Information for Canadian Users.......................................................................................................... 4

ZyXEL Limited Warranty..................................................................................................................... 5

Syntax Conventions in this Guide ...................................................................................................... 6

Customer Support .............................................................................................................................. 6

1 About Your PoE-80.......................................................................................................................... 9

1.1 Key Features............................................................................................................................. 9

1.2 Packaging List........................................................................................................................... 9

2 Hardware and Installation.............................................................................................................. 10

2.1 Desktop Installation................................................................................................................. 10

2.2 Rack-mounted Installation ...................................................................................................... 10

2.3 Rear Panel Connections ......................................................................................................... 11

2.4 Front Panel Connections ........................................................................................................ 12

2.5 Front Panel LEDs.................................................................................................................... 12

3 Software Utility Installation ............................................................................................................ 12

3.1 Starting the Utility.................................................................................................................... 15

4 Removing the Utility....................................................................................................................... 15

5 Managing the PoE-80.................................................................................................................... 17

5.1 System Setup & Control.......................................................................................................... 17

5.2 System Information ................................................................................................................. 18

5.3 Port Specific Control ............................................................................................................... 19

5.4 Parametric Information............................................................................................................ 21

6 Troubleshooting............................................................................................................................. 21

7 Specifications ................................................................................................................................ 22

7.1 DATA OUT PoE Injector RJ-45 Port Pin Assignments........................................................... 23

PoE-80 User’s Guide

The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a

retrieval system, translated into any language, or transmitted in any form or by any means, electronic,

mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written

permission of ZyXEL Communications Corporation.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or software

described herein. Neither does it convey any license under its patent rights nor the patent rights of others.

ZyXEL further reserves the right to make changes in any products described herein without notice.

This publication is subject to change without notice.

Trademarks

Trademarks mentioned in this publication are used for identification purposes only and may be properties of

their respective owners.

Federal Communications Commission (FCC)

Interference Statement

This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause undesired

operations.

This equipment has been tested and found to comply with the limits for a CLASS B digital device pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy, and if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications.

PoE-80 User’s Guide

If this equipment does cause harmful interference to radio/television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Notice 1

Changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

Certifications

1. Go to www.zyxel.com.

2. Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.

3. Select the certification you wish to view from this page.

Information for Canadian Users

The Industry Canada label identifies certified equipment. This certification means that the equipment meets

certain telecommunications network protective, operation, and safety requirements. The Industry Canada

does not guarantee that the equipment will operate to a user's satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of

the local telecommunications company. The equipment must also be installed using an acceptable method of

connection. In some cases, the company's inside wiring associated with a single line individual service may

be extended by means of a certified connector assembly. The customer should be aware that the compliance

with the above conditions may not prevent degradation of service in some situations.

PoE-80 User’s Guide

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by

the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may

give the telecommunications company cause to request the user to disconnect the equipment.

For their own protection, users should ensure that the electrical ground connections of the power utility,

telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution

may be particularly important in rural areas.

Caution

Users should not attempt to make such connections themselves, but should contact the appropriate electrical

inspection authority, or electrician, as appropriate.

Note

This digital apparatus does not exceed the class A limits for radio noise emissions from digital apparatus set

out in the radio interference regulations of Industry Canada.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or

workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon

proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials,

ZyXEL will, at its discretion, repair or replace the defective products or components without charge for

either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to

proper operating condition. Any replacement will consist of a new or re-manufactured functionally

equivalent product of equal value, and will be solely at the discretion of ZyXEL. This warranty shall not

apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to

abnormal working conditions.

NOTE

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This

warranty is in lieu of all other warranties, express or implied, including any implied warranty of

merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect

or consequential damages of any kind of character to the purchaser.

To obtain the services of this warranty, contact ZyXEL's Service Center for your Return Material

Authorization number (RMA). Products must be returned Postage Prepaid. It is recommended that the unit be

insured when shipped. Any returned products without proof of purchase or those with an out-dated warranty

will be repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for parts and labor.

All repaired or replaced products will be shipped by ZyXEL to the corresponding return address, Postage

Paid. This warranty gives you specific legal rights, and you may also have other rights that vary from country

to country.

PoE-80 User’s Guide

Online Registration

www.zyxel.com for global products, or at www.us.zyxel.com for North American products.

Syntax Conventions in this Guide

The PoE-80 Eight-port Power over Ethernet Hub may be called the “PoE-80”, “the power injector” or “the

system” in this guide.

Customer Support

When you contact your customer support representative please have the following information ready:

Please have the following information ready when you contact customer support (see the next page for

contact information).

• Product model and serial number.

• Warranty Information.

• Date that you received your device.

• Brief description of the problem and the steps you took to solve it.

PoE-80 User’s Guide

SUPPORT E-MAIL TELEPHONE1WEB SITEMETHOD

LOCATION

SALES E-MAIL FAX1FTP SITE

REGULAR MAIL

[email protected]m.tw +886-3-578-3942 www.zyxel.com

www.europe.zyxel.com

ftp.zyxel.com

WORLDWIDE

sales@zyxel.com.tw +886-3-578-2439 ftp.europe.zyxel.com

ZyXEL Communications Corp.

6 Innovation Road II

Science Park

Hsinchu 300

Taiwan

[email protected]m +1-800-255-4101

+1-714-632-0882

www.us.zyxel.comNORTH

AMERICA

sales@zyxel.com +1-714-632-0858 ftp.us.zyxel.com

ZyXEL Communications Inc.

1130 N. Miller St.

Anaheim

CA 92806-2001

U.S.A.

[email protected] +49-2405-6909-0 www.zyxel.deGERMANY

sales@zyxel.de +49-2405-6909-99

ZyXEL Deutschland GmbH.

Adenauerstr. 20/A2 D-52146

Wuerselen

Germany

+33 (0)4 72 52 97 97FRANCE [email protected]

+33 (0)4 72 52 19 20

www.zyxel.fr ZyXEL France

1 rue des Vergers

Bat. 1 / C

69760 Limonest

France

[email protected] +34 902 195 420SPAIN

sales@zyxel.es +34 913 005 345

www.zyxel.es ZyXEL Communications

Alejandro Villegas 33

1º, 28043 Madrid

Spain

[email protected] +45 39 55 07 00 www.zyxel.dkDENMARK

sales@zyxel.dk +45 39 55 07 07

ZyXEL Communications A/S

Columbusvej 5

2860 Soeborg

Denmark

[email protected] +47 22 80 61 80 www.zyxel.noNORWAY

sales@zyxel.no +47 22 80 61 81

ZyXEL Communications A/S

Nils Hansens vei 13

0667 Oslo

Norway

[email protected] +46 31 744 7700 www.zyxel.seSWEDEN

sales@zyxel.se +46 31 744 7701

ZyXEL Communications A/S

Sjöporten 4, 41764 Göteborg

Sweden

[email protected] +358-9-4780-8411 www.zyxel.fiFINLAND

sales@zyxel.fi +358-9-4780 8448

ZyXEL Communications Oy

Malminkaari 10

00700 Helsinki

Finland

1“+” is the (prefix) number you enter to make an international telephone call.

PoE-80 User’s Guide

1 About Your PoE-80

The PoE-80 Eight-port Power over Ethernet Hub is an eight-port power injector, designed for use

with 10/100 BaseT Ethernet networks. The PoE-80 injects DC power through the unused twisted-

wires (pairs 4/5 and 7/8) of a standard 8-pin CAT 5 cable. This allows increased flexibility in the

locating of power over Ethernet (PoE) enabled devices by eliminating the need for a nearby power

source.

1.1 Key Features

 Eight RJ-45, 10/100 Mbps PoE-enabled ports

 Ensures a constant power supply to PoE-enabled devices.

 Automatically detects if connected devices are PoE-enabled to avoid sending power to non-

PoE devices.

 Supports power management

 Control, status, and parameters manageable per port

 Remote power feeding up to 100 meters

 Centralized power distribution

 Protection against short circuits

 Accepts a wide range of AC power input

 Automatically updates management information.

1.2 Packaging List

The following items come with your PoE-80.

 This User’s Guide

 One power cord

 One console cable

 One Ethernet cable

 Rack mount kit

PoE-80 User’s Guide

2 Hardware and Installation

Do not block the device’s rear panel fans or the side panel ventilation

holes. Leave space between devices when stacking.

2.1 Desktop Installation

Step 1. Set the PoE-80 upside-down on a sturdy level space with a power outlet nearby.

Step 2. Make sure there is enough clearance around the PoE-80 to allow air circulation and the

attachment of cables and the power cord.

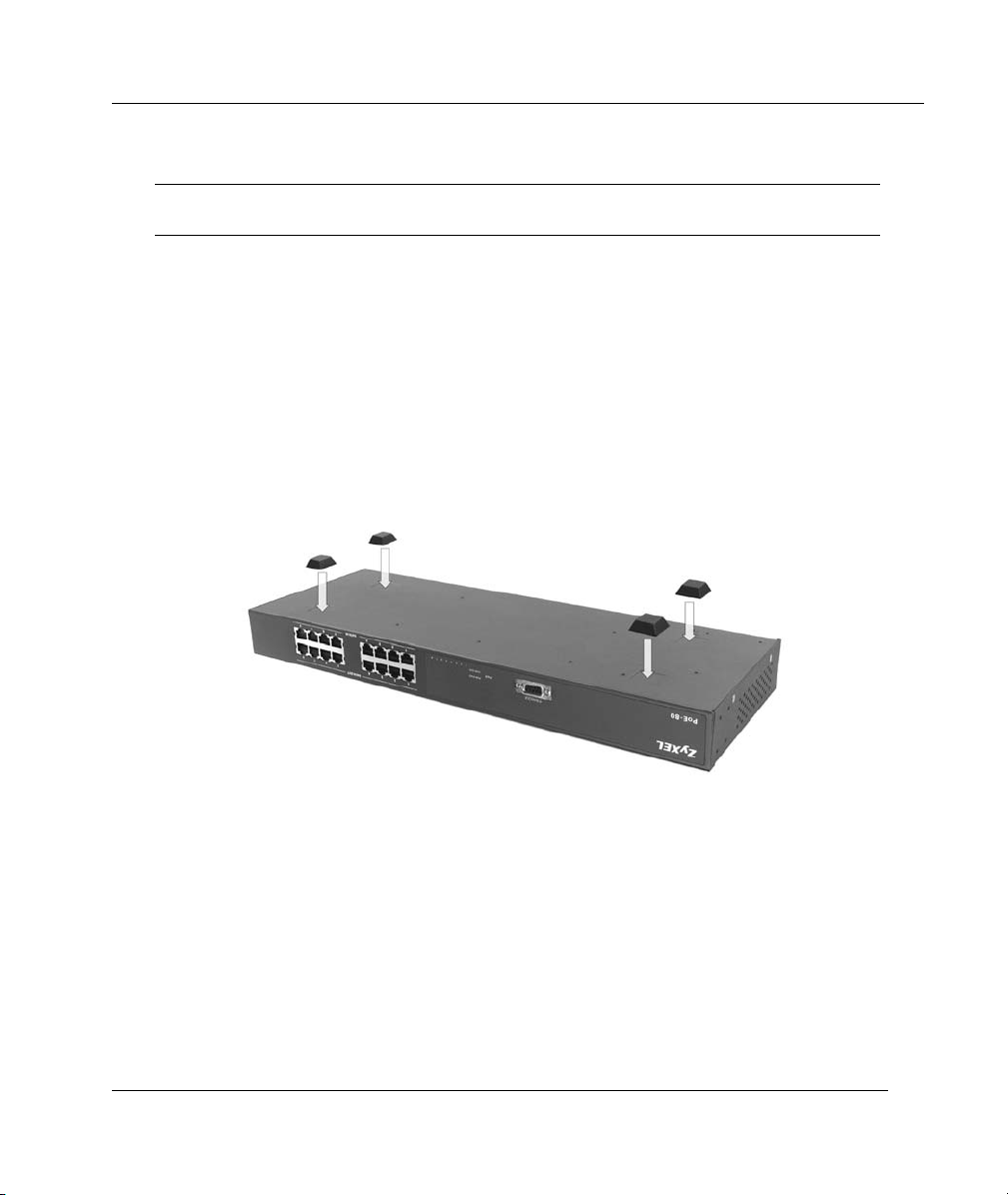

Step 3. Remove the adhesive backing from the supplied rubber feet.

Step 4. Attach the rubber feet to each corner on the bottom of the PoE-80. These rubber feet help

protect the PoE-80 from shock or vibration and ensure space between devices when

stacking.

Step 5. Turn the PoE-80 right-side up after you attach the rubber feet.

2.2 Rack-mounted Installation

The PoE-80 can be mounted on an EIA standard size, 19-inch rack or in a wiring closet with other

equipment. Follow the steps below to mount your PoE-80 on a standard EIA rack using the included

rack-mounting kit.

Step 1. Align one bracket with the holes on one side of the PoE-80 and secure it with the bracket

screws. Similarly, attach the other bracket.

Indice

Altri manuali ZyXEL Communications Interruttore

ZyXEL Communications

ZyXEL Communications GS-105A Manuale utente

ZyXEL Communications

ZyXEL Communications XGS-4526 Manuale utente

ZyXEL Communications

ZyXEL Communications ES-305 Manuale utente

ZyXEL Communications

ZyXEL Communications ExtraSmart ES-1552 Manuale di istruzioni

ZyXEL Communications

ZyXEL Communications Dimension ES-116P Manuale utente

ZyXEL Communications

ZyXEL Communications DES-5004 Manuale di istruzioni

ZyXEL Communications

ZyXEL Communications XS-3900-48F Manuale utente

ZyXEL Communications

ZyXEL Communications Dimension ES-3148 Manuale utente

ZyXEL Communications

ZyXEL Communications GS1900-8 Manuale utente

ZyXEL Communications

ZyXEL Communications ES-105S Manuale utente

ZyXEL Communications

ZyXEL Communications IES-1000 - ANNEXE 7 Manuale utente

ZyXEL Communications

ZyXEL Communications DIMENSION ES-1016A Manuale utente

ZyXEL Communications

ZyXEL Communications GS1300 Series Manuale utente

ZyXEL Communications

ZyXEL Communications EM-422/EM-412 Manuale utente

ZyXEL Communications

ZyXEL Communications Dimension ES-3124PWR Manuale utente

ZyXEL Communications

ZyXEL Communications PMG2006-T20A Manuale utente

ZyXEL Communications

ZyXEL Communications XGS-4728F Manuale utente

ZyXEL Communications

ZyXEL Communications GS1350 Series Manuale utente

ZyXEL Communications

ZyXEL Communications GS1100 Series Manuale utente

ZyXEL Communications

ZyXEL Communications GS1900 Series Manuale utente

ZyXEL Communications

ZyXEL Communications XGS-4528F Manuale utente

ZyXEL Communications

ZyXEL Communications XS1930-12HP Manuale utente

ZyXEL Communications

ZyXEL Communications ES-108E Manuale utente

ZyXEL Communications

ZyXEL Communications MES3500 Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
