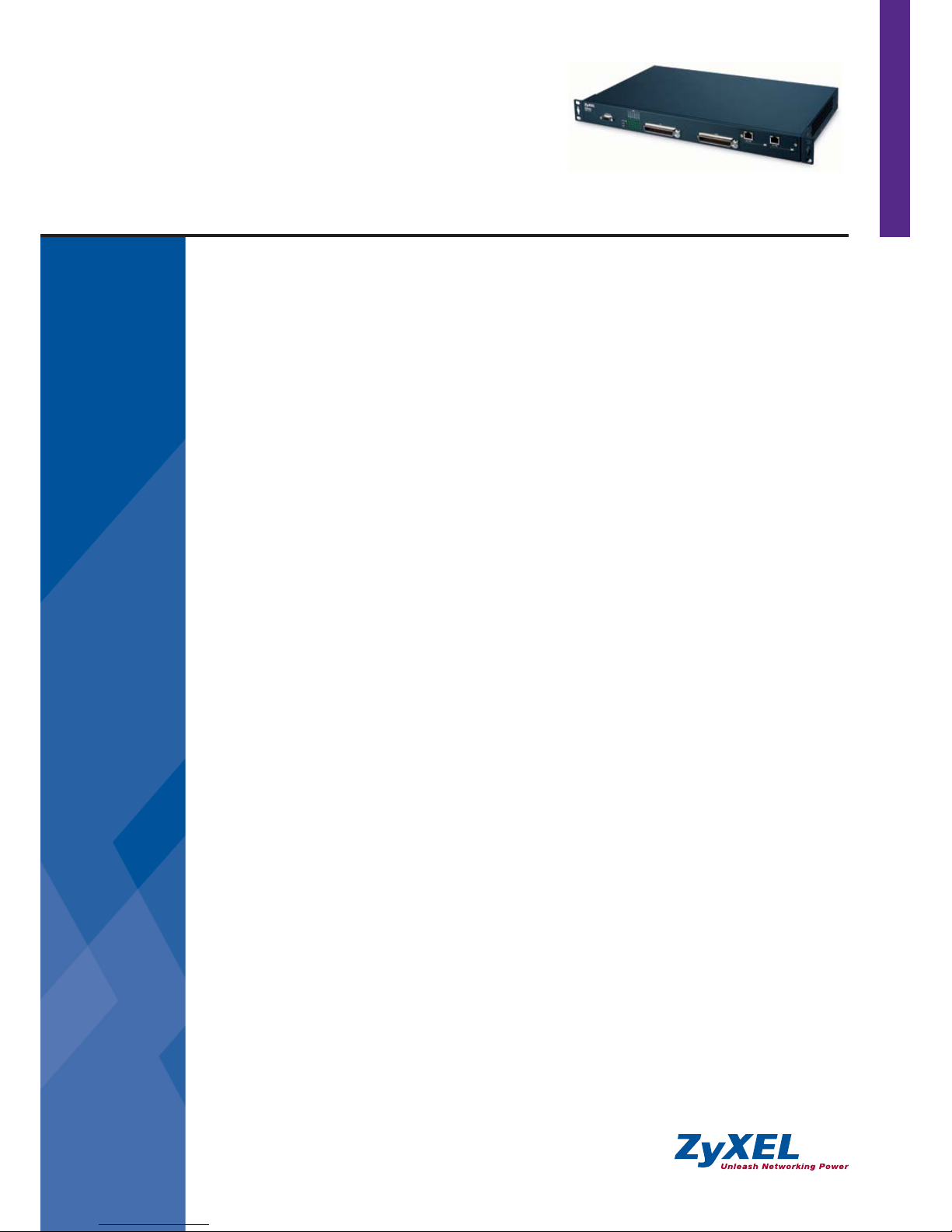

ZyXEL Communications VES-1124

Vision VES-1124

Recently, Ethernet has been more widely used for access applications, transport, and backbone infrastructure.

More service providers are adopting Ethernet as the first mile (EFM) in their FTTB/C deployments. Among different EFM

technologies, EFM over copper is filling the bandwidth gap between high-speed, Metro fiber networks and low-

bandwidth, copper-based services. It utilizes existing copper wires, thus giving service providers a cost-effective solution

today, tomorrow, and beyond. Furthermore, EFM uses mature Ethernet technology that allows seamless connectivity

between enterprise Ethernet LANs and the WAN.

As influential as EFM, Ethernet over VDSL has changed the fundamental economics of broadband services for the last mile

and the MTU market. With Ethernet over VDSL, small to medium sized corporations can receive the same high

bandwidth services as large companies. Additional benefits include the ability to enjoy the video, data, and voice

services, which VDSL allows, eliminating the limitations of low bandwidth. VDSL delivers cost-effective, high-bandwidth

broadband access to enterprise campus and multi-tenant buildings (commercial buildings, residential buildings, hotels,

and etc.) without new wiring.

ZyXEL’s VES-1124 is a 24-port VDSL switch based on Quadrature Amplitude Modulation (QAM) and the latest Ethernet

technologies. The VES-1124 aggregates traffic from ZyXEL’s Prestige 841-25 QAM-based VDSL CPE, and multiplexes data

traffic into two 10/100Base-Tx uplinks that connect to any third-party Ethernet switch or WAN router. The built-in

POTS/ISDN splitter splits and sends the voice traffic to the PSTN. The VES-1124 supports up to 15Mbps for both

downstream and upstream, extending Ethernet service up to distances of 1.5km.

The IEEE 802 standard-based firmware provides a rich set of features and ensures interoperability with equipment from

other vendors. In addition, the firmware includes many advanced features such as bandwidth management, 802.1X,

IGMP snooping, broadcast storm control, and MAC address filtering, which enhance service differentiation, network

security and bandwidth utilization.

With a broad array of fully integrated, advanced technologies, the VES-1124 together with the Prestige 841-25 enable

service providers and system administrators to affordably build up full service networks and to make all kinds of media-

rich applications possible.

24-port QAM 2-band VDSL Switch

Vision VES-1124

24-port QAM 2-band VDSL Switch

Benefits

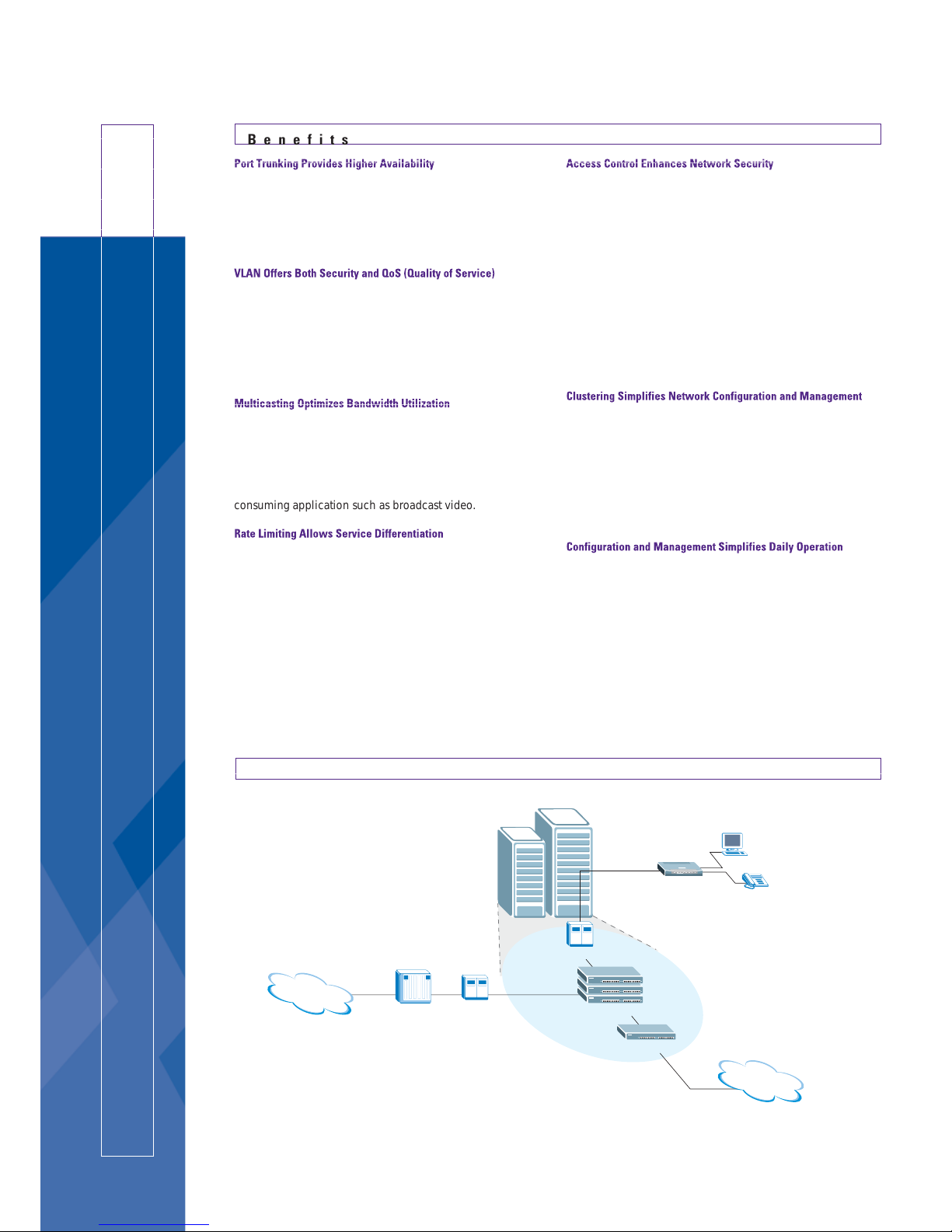

Application Diagram

Port Trunking Provides Higher Availability

TheVES-1124 supports IEEE 802.3ad with load distribution

control and fail over recovery. The VES-1124 distributes traffic

to each trunk port based on the source and destination MAC

addresses, and thus balances the traffic load.

VLAN Offers Both Security and QoS (Quality of Service)

The VLAN feature in the VES-1124 offers the benefits of both

security and performance. VLAN provides better security by

isolating traffic between different users. Different services can

be tagged and mapped into different priority queues. Thus,

Quality of Service can be achieved and improved.

Multicasting Optimizes Bandwidth Utilization

The IGMP snooping feature only forwards traffic to

subscribers who request multicast traffic. This prevents the

unnecessary forwarding of multicast traffic to all subscribers,

thereby optimizing bandwidth utilization for bandwidth-

consuming application such as broadcast video.

Rate Limiting Allows Service Differentiation

In order to fulfill the needs of different customers, service

providers need a network infrastructure that combines

guaranteed performance and flexibility in service

provisioning. Rate limiting on both Ethernet and VDSL ports

allow service providers to offer tiered service.

Access Control Enhances Network Security

The VES-1124 supports not only 802.1x port-based access

control for subscriber authentication, but also allows system

administrators to define a limited number of MAC addresses

that can access the network from a particular port.

This feature denies unauthorized devices from accessing and

communicating through the switch, highly enhancing network

security. An additional access control feature is the capability

to limit the number of users (MAC addresses) that can access

the network simultaneously on a per-port basis, allowing the

service provider to offer flexible billing plans.

Clustering Simplifies Network Configuration and Management

The clustering management design enables system

administrators to configure and manage up to 24 units of the

VES-1124 through a single IP address. This enables service

providers to start with a minimal initial investment and add

more equipment as customers increase. Network expansion

can be accomplished without increasing management efforts.

Configuration and Management Simplifies Daily Operation

The VES-1124 also offers service providers extensive

management capabilities. The Web-based management

interface of the VES-1124 offers an easy-to-use platform,

independent management, and configuration options.

The VES-1124 supports SNMP and MIBs, both of which can

be managed via standard-based management software.

In addition to remote management capabilities, a console port

is available for local management.

MDF

PBX

Internet

Prestige 841-25

L2 Siwtch

VES-1124

PSTN

Features

General

Uplink Interface

•Two 10/100 Ethernet ports

•RJ-45 connector

VDSL Interface

•24-port VDSL

•One Telco 50 connector to CPE

•VDSL complies with 10BaseS, G.997, G.998

•Ethernet over VDSL

•Maximum transmission rate 18Mbps upstream,

16Mbps downstream

•Power back-off algorithm

•Rate Adaptation

•Support VDSL profile setup

POTS/ISDN Interface

•Built-in POTS/ISDN splitter

•24-port POTS

•One Telco 50 connector to PBX or CO

Performance & Management

Switching

•Switching fabric: 8.8Gbps

•Non-blocking

•Frame size: 1522 bytes

•Forwarding frame: 802.3, 802.1q, Ethernet II,

PPPoE

•Prevent the forwarding of corrupted packets

•Pause frame disposal

Ethernet

•Support 802.3/3u/3x

•Back pressure flow control for half duplex

•Flow control for full duplex (802.3x)

Rate Limiting

•Ethernet at 100Kbps increment

•VDSL at 100Kbps increment

VLAN

•Port-based VLAN

•Tag-based VLAN

•No. of VLAN IDs: 4K

•No. of static VLAN entries: 256

•GVRP

Port Trunking

•Static port trunking for bandwidth aggregation

•Support 802.3ad

QoS

•802.1p

•2 queues

STP

•802.1d

•802.1w

Multicast

•Support IGMP snooping

•Broadcast storm control

Bridging

•6K MAC addresses

•MAC address filtering

•MAC counting

Access Control

•802.1x

Scalability

•Up to 24

System Control

•Alarm/Status Surveillance

Automatic alarm and status report

Alarm/event history

LED indication for alarm and system status

•Performance monitoring

Line rate

•Configuration

VLAN setting

VDSL line rate setting (bandwidth control)

Software upgrade and download via console,

Web and FTP

Default configuration

BOOTP/DHCP client

•Security and Memory Backup

Support login authorization and

security levels

Provides non-volatile memory to back-up

system database

Keep previous system parameters

during re-booting

Self diagnostic

Network Management

•Interface: RS-232C (DB-9) for command

line interface

•SNMP manageable

•Status display and event report from web-

based management

•RMON groups 1, 2, 3, 9 (history, statistics,

alarms, and events)

•Support Telnet

•Provide fault, performance, configuration, and

security managements

•Single IP management

MIBs

•SNMP MIB II (RFC1213)

•RFC1493

•RFC1757

•RFC2674

•Private MIB

Specifications

Hardware Specification

LED and Switch

•Power: on, off

•System

Light off: System not ready or failed

Light on: System ready and running ok

Light flashing: System booting

•Alarm: on, off

•VDSL

Light on: Link on

Light flashing: Snd/Rcv

Light off: link is down or no connection

•Ethernet

Green light: 10M Ethernet

Orange light: 100M Ethernet

Light off: Ethernet not ready or failed

Light on: Ethernet link ok; color will indicate

if 10 or 100M LAN is on

Light flashing: Snd/Rcv

•Power switch for power on or off

Power

•100 ~ 240VAC, 50/60Hz

Physical Specification

Dimensions

•440(L) x 300(D) x 44.5(H) mm

•Rack mountable enclosure

Operating Environment

Temperature

•Operating: -5ºC ~ 60ºC

•Storage: -25ºC ~ 70ºC

Humidity

•5% ~ 90% (non-condensing)

Certification

EMC

•FCC Part 15 Class A

•CE-EMC Class A

Safety

•UL60950-1

•CSA60950-1

•EN60950 -1

•IEC60950-1

•ITU-T K.21 (Version 2000)

65-100-112402

Vision VES-1124

24-port QAM 2-band VDSL Switch

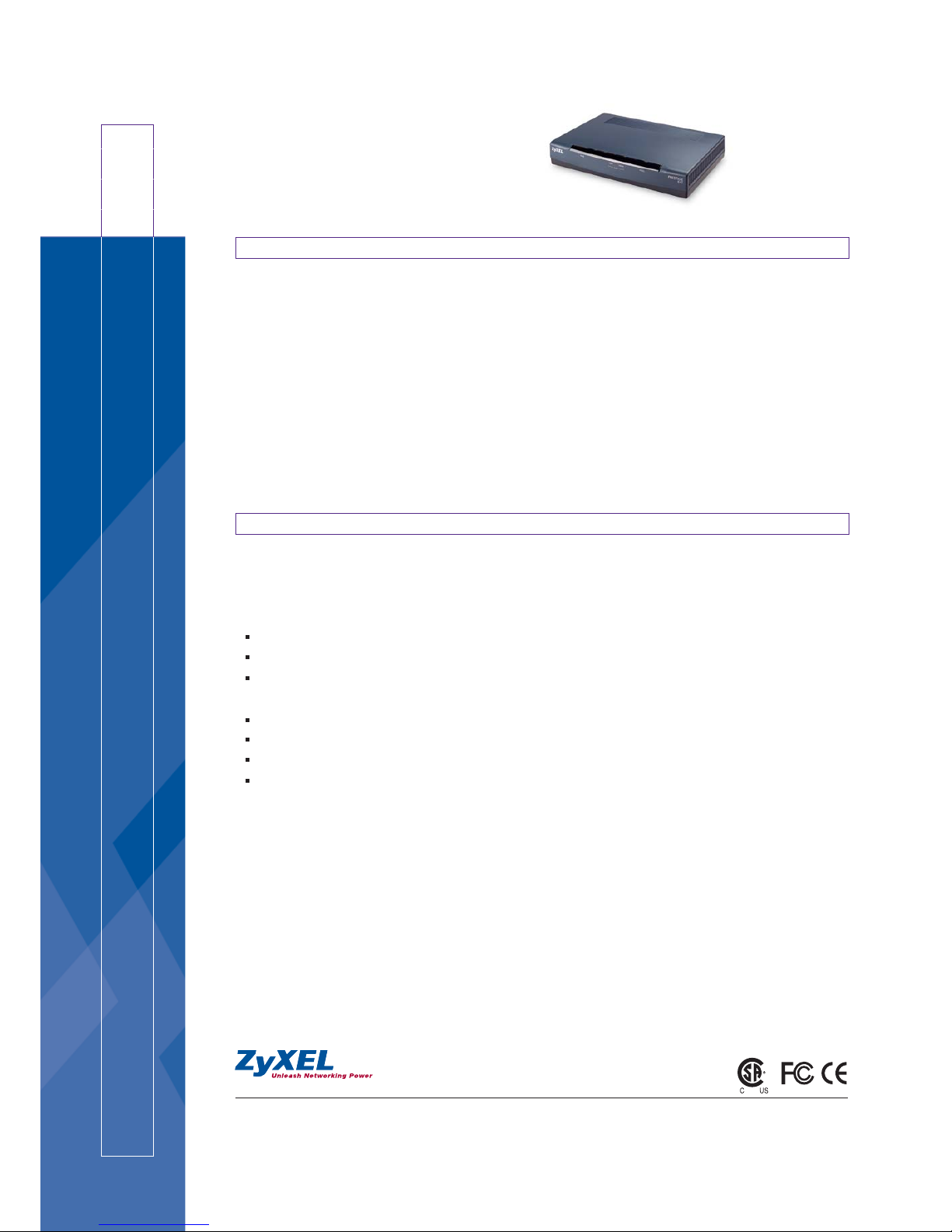

Prestige 841-25

Compatible CPE

Features

VDSL Interface

• One RJ-11 connector

• Ethernet over VDSL

• Transmission rate: 5, 10, 15Mbps for

symmetric/asymmetric

• Power back-off algorithm

POTS/ISDN Interface

• One RJ-11 connector

• POTS/ISDN splitter built-in

• 4-wire POTS support

Ethernet Interface

• One 10/100 Ethernet port

• RJ-45 connector

System Control

• Firmware upgrade from VES-1124

• Plug and play

Network Protocols

• IEEE 802.3/3u/3x

• Flow control in full duplex mode

• Back pressure in half duplex mode

• Transparent bridging

Specifications

Hardware Specification

LED and Switch

•Power: Light on & off: System on or off

•VDSL

Light on: Link on

Light flashing: link active

Light off: link is down or no connection

•Ethernet

Green light: 10M Ethernet

Orange light: 100M Ethernet

Light off: Ethernet not ready or failed

Light on: Ethernet link ok; color indicates

if 10 or 100M LAN is on

•Light flashing: Snd/Rcv

Power

•110V or 240VAC, 50/60Hz

Physical Specification

Dimensions

•181(L) x 128(D) x 30(H) mm

•Standalone box

Operating Environment

Temperature

•Operating: 0ºC ~ 50ºC

•Storage: -25ºC ~ 70ºC

Humidity

•10% ~ 90% (non-condensing)

Certification

EMC

•FCC Part 15 Class B

• CE-EMC Class B

Safety

•UL60950-1

•CSA60950-1

•EN60950 -1

•IEC60950-1

•ITU-T K.21 (Version 2000)

Copyright©2004 ZyXEL Communications Corporation. All rights reserved. ZyXEL, the ZyXEL logo are registered trademarks of ZyXEL Communications Corp. Other trademarks and service names referenced are properties of their respective holders. All specifications are subject to change without notice.

Corporate Headquarters

ZyXEL Communications Corp.

Tel: +886-3-578-3942

Fax:+886-3-578-2439

Email: [email protected]

http://www.zyxel.com

http://www.zyxel.com.tw

Denmark

Tel: +45 39 55 07 00 Fax: +45 39 55 07 07

Email: [email protected]

http://www.zyxel.dk

Finland

Tel: +358-9-4780 8400 Fax: +358-9-4780 8448

Email: [email protected]

http://www.zyxel.fi

France

Tel: +33 (0)4 72 52 97 97 Fax: +33 (0)4 72 52 19 20

Email: [email protected]

http://www.zyxel.fr

Germany

Tel: +49 2405 6909 0 Fax: +49 2405 6909 99

Email: [email protected]

http://www.zyxel.de

North America

Tel: +1-800-255-4101, +1-714-632-0882

Fax: +1-714-632-0858

Email: [email protected]

http://www.us.zyxel.com

Norway

Tel: +47 22 80 61 80 Fax: +47 22 80 61 81

Email: [email protected]

http://www.zyxel.no

Spain

Tel: +34 902 195 420 Fax: +34 913 005 345

Email: [email protected]

http:// www.zyxel.es

Sweden

Tel: +46 31 744 7700 Fax: +46 31 744 7701

Email: [email protected]

http://www.zyxel.se

Altri manuali per VES-1124 -

Questo manuale è adatto per i seguenti modelli

Altri manuali ZyXEL Communications Interruttore

ZyXEL Communications

ZyXEL Communications MGS3750-28F Manuale utente

ZyXEL Communications

ZyXEL Communications Dimension ES-4124 Manuale utente

ZyXEL Communications

ZyXEL Communications Dimension ES-3024 Manuale utente

ZyXEL Communications

ZyXEL Communications XS1930-12F Manuale utente

ZyXEL Communications

ZyXEL Communications PLA-470 - V3.0.5 Manuale utente

ZyXEL Communications

ZyXEL Communications GS-105A Manuale utente

ZyXEL Communications

ZyXEL Communications ExtraSmart ES-1552 Manuale utente

ZyXEL Communications

ZyXEL Communications ZyXEL Dimension GS-1008 Manuale utente

ZyXEL Communications

ZyXEL Communications PMG5318-B20A Manuale utente

ZyXEL Communications

ZyXEL Communications XGS-4728F Manuale utente

ZyXEL Communications

ZyXEL Communications GS3700 Series Manuale utente

ZyXEL Communications

ZyXEL Communications XGS1250-12 Manuale utente

ZyXEL Communications

ZyXEL Communications XGS1010-12 Manuale utente

ZyXEL Communications

ZyXEL Communications 2108 Series Manuale

ZyXEL Communications

ZyXEL Communications 2108 Series Manuale

ZyXEL Communications

ZyXEL Communications GS1200-5HP v2 Manuale utente

ZyXEL Communications

ZyXEL Communications GS-3012F/3012 Manuale utente

ZyXEL Communications

ZyXEL Communications GS1920 Series Manuale utente

ZyXEL Communications

ZyXEL Communications AES-100 Manuale utente

ZyXEL Communications

ZyXEL Communications IES-1000 - ANNEXE 7 Manuale utente

ZyXEL Communications

ZyXEL Communications PMG1006-B20A Manuale utente

ZyXEL Communications

ZyXEL Communications Dimension Ethernet Switches Manuale utente

ZyXEL Communications

ZyXEL Communications GS-105B Manuale utente

ZyXEL Communications

ZyXEL Communications MES-2110 Manuale

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente

ZyXEL Communications VES-1124 - Manuale utente

Manuali Interruttore popolari di altre marche
