Multifunction Power Meter (DIN Rail)

Manual

Panel Description

Dimensions & Installation

AUX Power

CPM-12D Manual

Description

CPM-12D din rail mounting power meter with high accuracy measurement for single phase

and three-phase system.

Measuring all basic parameters ; V, I, P, Q, kWh, kVarh etc..

Standard with RS485 Modbus RTU communication port, front LCD display with buttons for

programming.

Auto wiring change via software

(Note)

CE and FCC approved

Note: Auto wiring change have certain condition limit, please refer to operation manual for further details.

Description

(Note)

V/A/DM

HARM./THD

P/Q/S/PF/Sum.

Energy

ENTER

TOU

87.5

Unit: mm

91.5

1A Fuse

AC85~264V

EMC Fliter

245

AUX.Power

Terminal blocks:

AWG 28~12 (0 2~2.5mm ).2

TPPO+ + P-

181716151413

Pulse Output RS485 Communication port

Terminal blocks:

AWG 28~12(0.2~2.5mm )

181716151413

RS485

Distance Max 1200M.:

Terminator:120 300 /0.25W~Ω

(ΩStandard:150 )

V/A/DM

HARM./THD

P/Q/S/PF/Sum.

Energy

ENTER

1234 56789101112

24232221

19181716151413

AUX.Power

RS485

PO+TP+

I12 I21 I22 I31 I32

PE V1 V2 V3 VN

TOU

P-

I11

Enter /Quickly index: Voltage / Current

Shift /Quickly index: THD

Up /Quickly index: Power parameters

Down /Quickly index: Energy parameters

Voltage and current connection

(CT secondary side distinguishes 1A/5A and 333mV)

1P2W 0~1A/5A)(

1P3W 0~1A/5A)(

1P2W 0~333mV)(

1P3W 0~333mV)(

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

NL2

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

NL2

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

Voltage and current connection

3P3W w/o PT

3CT(0~1A/5A)

2CT(0~1A/5A)

1CT(0~1A/5A)

3CT(0~333mV)

2CT(0~333mV)

1CT(0~333mV)

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

3P3W 2PT

3CT(0~1A/5A)

2CT(0~1A/5A)

1CT(0~1A/5A)

3CT(0~333mV)

2CT(0~333mV)

1CT(0~333mV)

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V1 V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

Voltage and current connection

3P4W w/o PT

3CT(0~1A/5A)

1CT(0~1A/5A)

3CT(0~333mV)

1CT(0~333mV)

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V1 N

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V1 N

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V1 N V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V1 N

3P4W3PT

3CT(0~1A/5A)

1CT(0~1A/5A)

3CT(0~333mV)

1CT(0~333mV)

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V1 N V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V1 N

V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V1 N V2 V3

123456789101112

V1 V2 V3 VN

24232221

19181716151413

I11 I31

I12 I21 I22 I32

V1 N

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

SOURCE

LOAD

Main display

Correct?

A-1~A-7

B-1 B-3~

C-1~C-3

E-1~E-5

F-1~F3

G-1

YES

Parameter setting class

D-1~D-2

Max / Min display

Voltage、Current、Demand、

Voltage/current unbalance display

Harmonic display

Summary、Power、Phase angle display

Energy、CO2、Date、Run time display

Max/Min display Voltage/ Current/ Power/

Harmonics/ Demand)

(

A-0 GENERAL

B-0 RS485

C-0 PULSE OUTPUT

D-0 ENERGY

E-0 DATE & TIME

F-0 DEMAND

G-0 INITIAL

Display

Models and versions

Switching max / min display

CPM 12D-

VER V1.0

SUMMARY-0

VLNavg Iavg

Psum PFavg

IMP 9999999.9kWh

PASS CODE

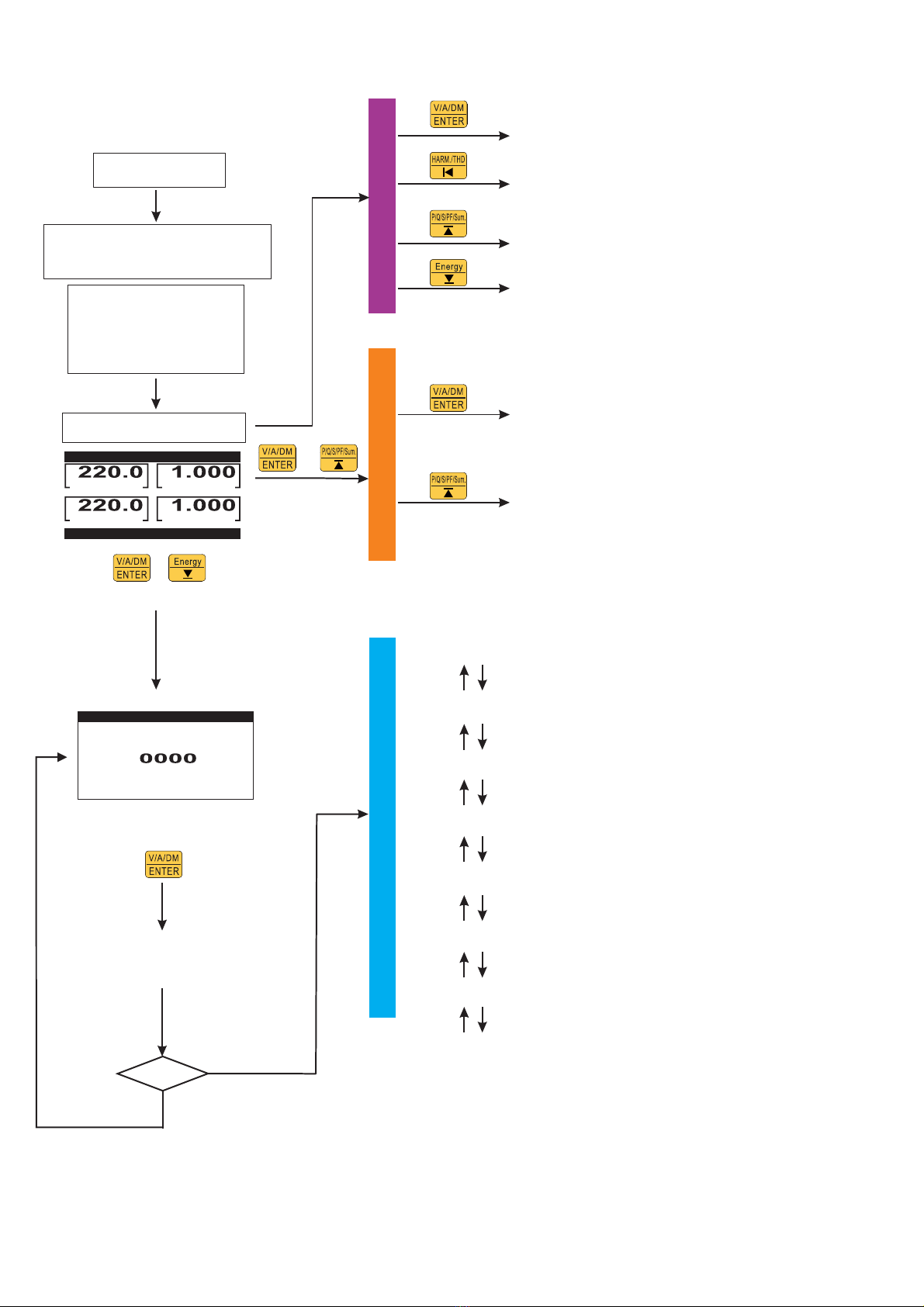

Operational flow chart:

Power on

Input password

Defult:1000

General operating class

Press▲ ▼Press

A-0 INPUT GROUP

Press▲ ▼Press

POWER DEMAND

W VAR

CURRENT

I1 I2

I3 Iavg

IN 100.0A

Current & Neutral

current

Press

Each line voltage Current load bar

graph

Each phase voltage

Voltage/Current/Demand display

Current demand

Voltage/

Current unbalance

Back to each

phase voltage

Total harmonic display

System type:

1P2W 1P3W//

3P4W1CT/

3P4W3CT

Current harmonic &

Average current

harmonic

System type:

3P3W1CT/

3P3W2CT/

3P3W3CT/

Each line voltage

harmonic & Average

line voltage

harmonic

Each phase voltage

harmonic & Average

phase voltage

harmonic

Current harmonic &

Average current

harmonic

Power demand

VOLTAGE L-L

U12 U23

U31 Uavg

IMP 9999999.9kWh

VOLTAGE L-N

V1 V2

V3 Vavg

IMP 9999999.9kWh

CURRENT BAR

IAVG

50%

120%

100%

CURRENT DEMAND

I1 I2

I3 Iavg

UNB LANCEA

UI%%

VOLTAGE THD

V1 V2

V3 Vavg

CURRENT THD

I1 I2

I3 Iavg

VOLTAGE THD

U21 U23

Uavg

CURRENT THD

I1 I2

I3 Iavg

Press

CURRENT ANGLE

I1-V1 I2-V1

I3-V1

L-N VOLTAGE ANGLE

V1-V1 V2-V1

V3-V1

POWER FACTOR

PF1 PF2

PF3 PFavg

Summary、Power、Phase angle display

Summary 2-

Line voltage

Current

Active power PF

IMP active energy

Summary-3

Active power/

Reactive power/

Total apparent

power/ PF

Summary 4-

Active power/

Reactive power/

Total apparent power/

Frequency

Each phase

apparent power/

Apparent energy

Each phase reactive

power/

IMP reactive energy

Each phase active

power/

IMP active energy

Each phase power

factor/

Average power factor

Phase voltage angle

V1-V1

V2 V1-

V3 V1-

Line voltage angle

V12-V12

V23 V12-

V31-V12

Current phase angle

I1 V1(V12)-

I2-V1(V12)

I3-V1(V12)

Back to Summary-0

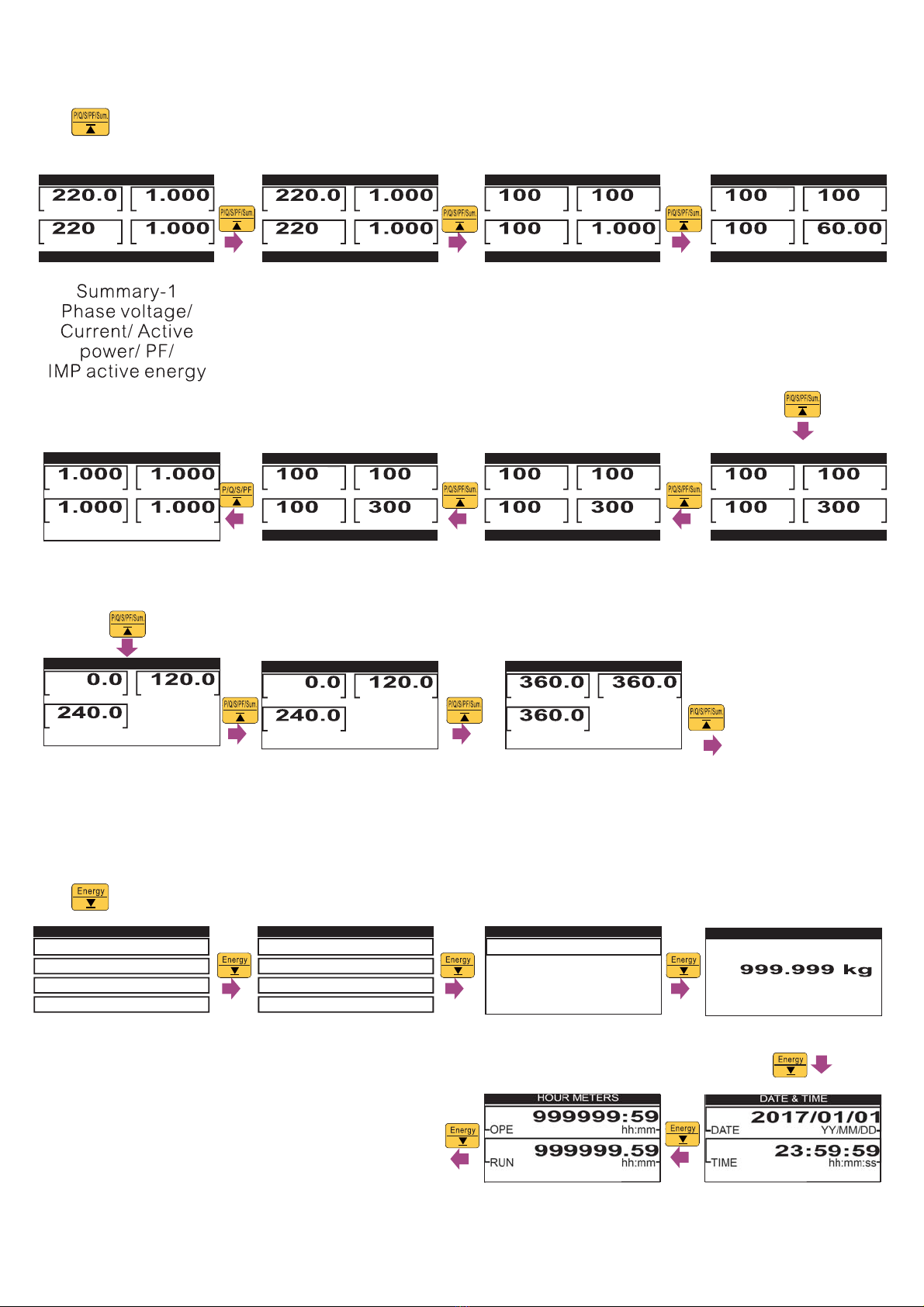

Energy and Time display

IMP/ EXP/ Total active /

Net active energy

IMP/ EXP/ Total

reactive /

Net reactive energy

Total apparent

energy

CO2

Operation time/

Running time Time

start at current of

secondary side >1%

(

)

Back to active energy

Date and Time

SUMMARY-1

VLNavg Iavg

Psum PFavg

IMP 9999999.9kWh

SUMMARY-2

VLLavg Iavg

Psum PFavg

IMP 9999999.9kWh

SUMMARY-3

Psum Qsum

Ssum PFavg

W VAR

IMP 9999999.9kWh

SUMMARY-4

Psum Qsum

Ssum Freg

W VAR

IMP 9999999.9kWh

C2O EMISSION

APPARENT POWER

S1 S2

S3 Ssum

VA VA

9999999.9kVAh

REACTIVE POWER

Q1 Q2

Q3 Qsum

VAR VAR

VAR

IMP 9999999.9kVARh

VAR

ACTIVE POWER

P1 P2

P3 Psum

IMP 9999999.9kWh

L-L VOLTAGE ANGLE

V12-V12 V23-V12

V31-V12

ACTIVE ENERGY

9999999.9

IMP

EXP

9999999.9

TOT

NET

kWh

REACTIVE ENERGY

9999999.9

IMP

EXP

9999999.9

TOT

NET

kVARh

APPARENT ENERGY

9999999.9

TOT kVAh

Press

Max current demand Max power demand

Min power demand

MAX FREQUENCY

Freq Hz

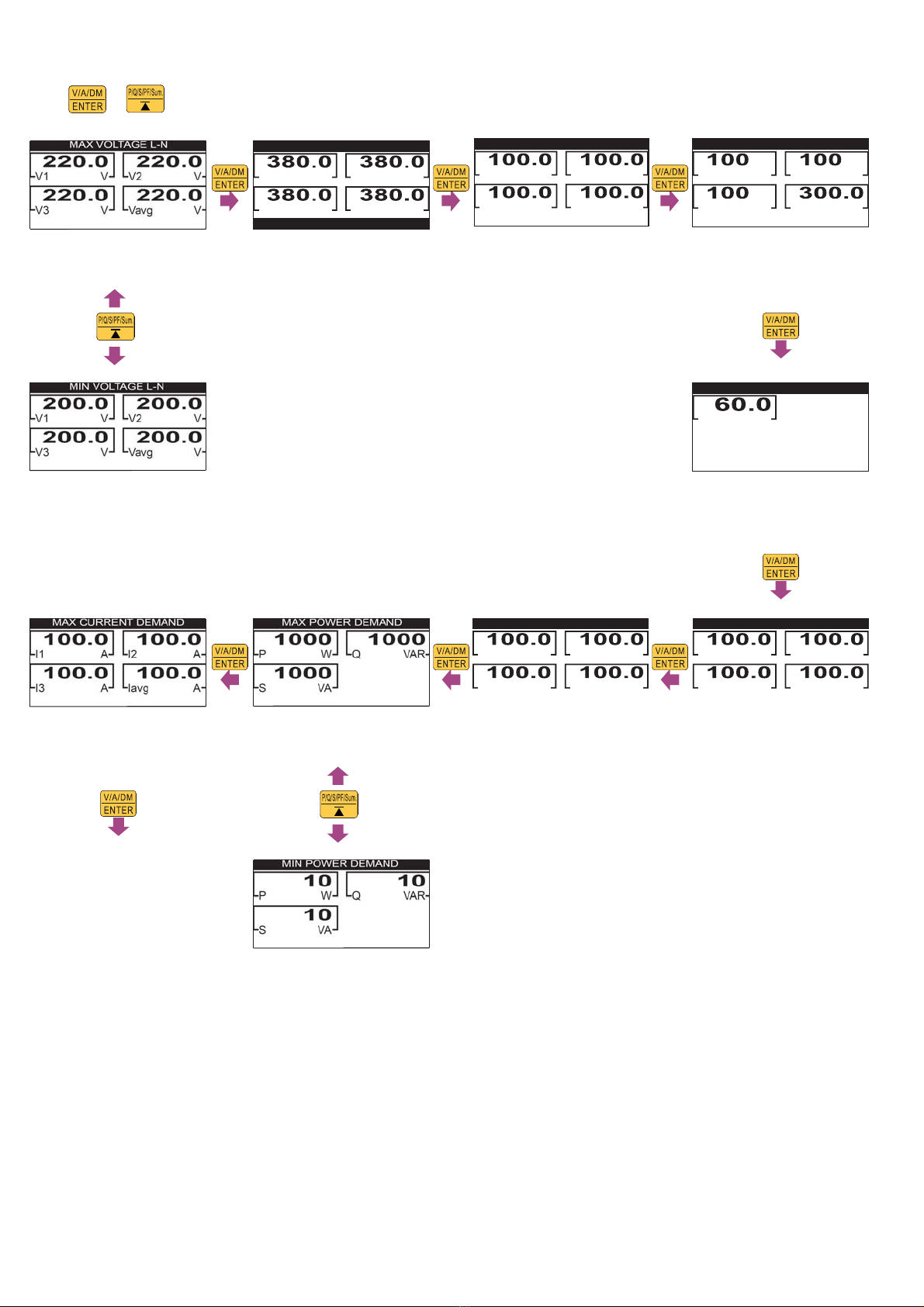

Max/Min display

Max phase voltage

Min phase voltage

Max line voltage

MAX VOLTAGE L-L

U12 U23

U31 Uavg

IMP 9999999.9kWh

MAX CURRENT

I1 I2

I3 Iavg

MAX POWER

SP avgF

WVAR

Max current Max power

Max frequency

MAX THD OF VOLTAGE

V1 V2

V3 Vavg

Max THD of voltage

MAX THD OF CURRENT

I1 I2

I3 Iavg

Max THD of current

Back to

Max phase

voltage

Press

System information

System information inquiry

Wiring information

Device information

Basic parameter

R 485 parameterS

SYSTEM INFO

R 485 PARAMETERS

WIRING INFO

C 2 EMISSIONO

TOU DATA

DEVICE INFO

BASIC PARAMETER

(Press

2 sec)

BASIC PARAMETER

PT/PRI: 500V

PT/SEC: 500V

CT/PRI: 5A

ENERGY: 0.1 kWh

SYSTEM: 3P4W3CT

CT SEC 5A/:

R 485S PARAMETER

BAUDRATE: 115200

PARITY: N.8.1

ADDRESS: 001

WIRING INFO

V2 I2

V3 I3

V1 I1

CO2emission

C 2 EMISSIONO

WEIGHT: 999.999kg

RATIO: 0.638kg

DEVICE INFO

VERSION: 1.V2

MODEL: M-CP D12

SYSTEM INFO

R 485 PARAMETERS

WIRING INFO

C 2 EMISSIONO

TOU DATA

DEVICE INFO

EVENT LOG

OUTPUT RS485+PO:
