1 ADAM-375 3-Wire Series Startup Manual

ADAM-3750 3-Wire Series DIO Slave Modules

Startup Manual

• DIN rail mounting (L-124 x W-72 x H-53 mm)

• Max. 20 Mbps transfer rate

• 3-Wire terminal board for actuator/sensor

• Easy installation with RJ45 phone jack and LED diag-

nostic

• Serial interface: half duplex RS-485 with transformer iso-

lation

• Cable Type: CAT5 UTP/STP Ethernet cable

• Surge Protection: 10 kV

• Transmission Speed: 2.5 Mbps, 5 Mbps, 10 Mbps and

20 Mbps

• On-line module insertion and removal

• IO Isolation Voltage: 2.5 kVrms

• Input Impedance: 2.4 KΩ/ 0.5 W

• Input Current: ±10mA(Max)

• Output Types: NPN/PNP open collector Darlington tran-

sistors

• Switch Capacity: each output channel is 60 mA at 24

VDC

• Response Time: On to Off, about 180 µs; Off to On,

about 1.2 µs

• Power Supply: +18 VDC to +30 VDC

Consumption: 3 W typical

• Working Temperature: 0 to 60° C

Features Specifications

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eAutomation

For technical support and service, please visit our

support website at:

http://service.advantech.com.tw/eservice/

This manual is for ADAM-3750 3-Wire Series.

Part No. 2003000800 1st Edition

August 2004

ADAM-3750 3-Wire Series DIO Slave Modules

2 ADAM-375 3-Wire Series Startup Manual

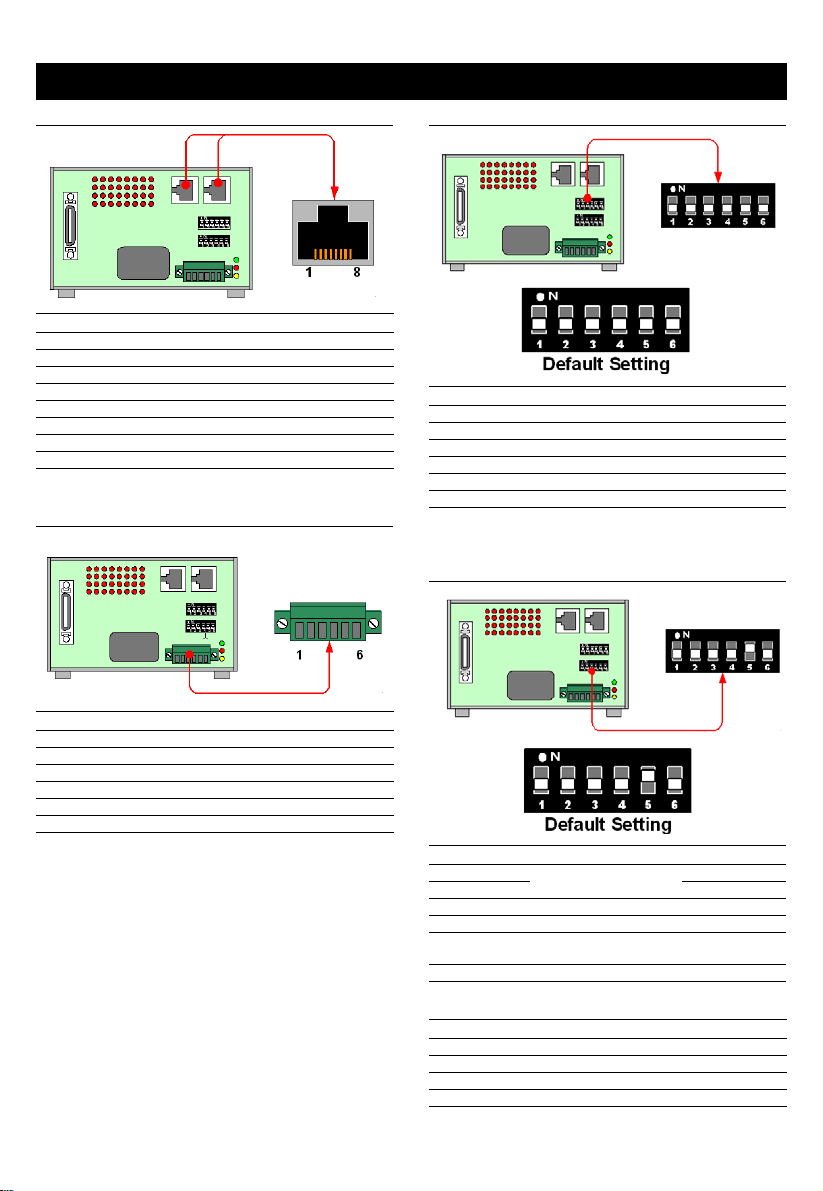

Communication Connector (RJ45)

External Power Input Connector

ID Setting DIP Switch

Note:

Node Number=32xA5+16xA4+8xA3+4xA2+2xA1+A0

Configuration Setting

Note: TD and BK are reserved

Note: default system clock = 80 MHz

Common Connector Pin Definitions

Pin Label Description

1NC FG

2NC FG

3 RS485+ RS485+

4NC FG

5NC FG

6 RS485- RS485-

7NC FG

8NC FG

Pin Label Description

1 24V DC 24V

2 GND DC 24V Ground

3 FG Field Ground

4 24V DC 24V

5 GND DC 24V Ground

6 FG Field Ground

Switch Label ON OFF

1A5 1 0

2A4 1 0

3A3 1 0

4A2 1 0

5A1 1 0

6A0 1 0

Switch Label Description ON OFF

1 B1 *Baud-Rate Setting 1 0

2B0 10

3 *TD Time-Out Status Latch Enable Disable

4 TM Watchdog Mode Enable Enable

5 *BK Break & Rescan Commu-

nication

Enable Disable

6 TR Terminate Resistance Enable Disable

B0 B1 Baud-Rate Setting

OFF OFF 1/4 System Clock

OFF ON 1/8 System Clock

ON OFF 1/16 System Clock

ON ON 1/32 System Clock

ADAM-375 3-Wire Series Startup Manual 3

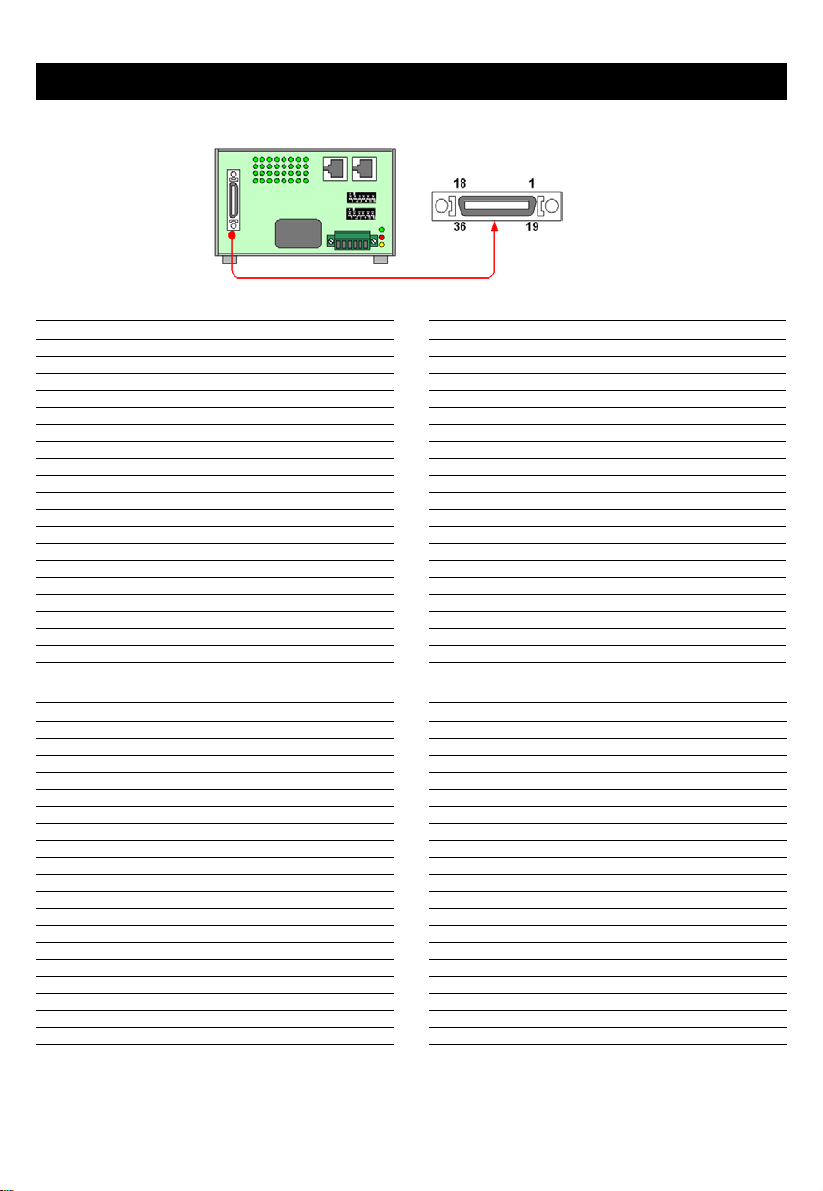

Specific Connector Pin Definitions

ADAM-3752

Pin Label Pin Label

1 IN_00 19 IN_20

2 IN_01 20 IN_21

3 IN_02 21 IN_22

4 IN_03 22 IN_23

5 IN_04 23 IN_24

6 IN_05 24 IN_25

7 IN_06 25 IN_26

8 IN_07 26 IN_27

9GND 27GND

10 GND 28 GND

11 IN_10 29 IN_30

12 IN_11 30 IN_31

13 IN_12 31 IN_32

14 IN_13 32 IN_33

15 IN_14 33 IN_34

16 IN_15 34 IN_35

17 IN_16 35 IN_36

18 IN_17 36 IN_37

ADAM-3758

Pin Label Pin Label

1 IN_00 19 IN_20

2 IN_01 20 IN_21

3 IN_02 21 IN_22

4 IN_03 22 IN_23

5 IN_04 23 IN_24

6 IN_05 24 IN_25

7 IN_06 25 IN_26

8 IN_07 26 IN_27

9GND 27GND

10 GND 28 GND

11 IN_10 29 OUT_30

12 IN_11 30 OUT_31

13 IN_12 31 OUT_32

14 IN_13 32 OUT_33

15 IN_14 33 OUT_34

16 IN_15 34 OUT_35

17 IN_16 35 OUT_36

18 IN_17 36 OUT_37

ADAM-3756

Pin Label Pin Label

1 IN_00 19 OUT_20

2 IN_01 20 OUT_21

3 IN_02 21 OUT_22

4 IN_03 22 OUT_23

5 IN_04 23 OUT_24

6 IN_05 24 OUT_25

7 IN_06 25 OUT_26

8 IN_07 26 OUT_27

9GND 27GND

10 GND 28 GND

11 IN_10 29 OUT_30

12 IN_11 30 OUT_31

13 IN_12 31 OUT_32

14 IN_13 32 OUT_33

15 IN_14 33 OUT_34

16 IN_15 34 OUT_35

17 IN_16 35 OUT_36

18 IN_17 36 OUT_37

ADAM-3754

Pin Label Pin Label

1 OUT_00 19 OUT_20

2 OUT_01 20 OUT_21

3 OUT_02 21 OUT_22

4 OUT_03 22 OUT_23

5 OUT_04 23 OUT_24

6 OUT_05 24 OUT_25

7 OUT_06 25 OUT_26

8 OUT_07 26 OUT_27

9GND 27GND

10 GND 28 GND

11 OUT_10 29 OUT_30

12 OUT_11 30 OUT_31

13 OUT_12 31 OUT_32

14 OUT_13 32 OUT_33

15 OUT_14 33 OUT_34

16 OUT_15 34 OUT_35

17 OUT_16 35 OUT_36

18 OUT_17 36 OUT_37
