MIO-6250 Startup Manual 1

MIO-6250 MIO/160 Module with 3 LANs

Startup Manual

The most flexible interface for Embedded

Applications

Today is an embedded world, but many standard

embedded single board computers cannot 100% meet

application specifications because they are not flexible

enough to expand and develop the system.

A system design short cut

Module I/O160 (MIO/160) is an open pin definition

interface from Advantech. The MIO/160 interface inte-

grates the most popular data buses into a high-density

160-pin connector, including, PCI, USB, DVO, SMBus,

LPC, and AC97. With MIO/160, board engineers can

speed up system project design and expand the sys-

tem easily.

Before you begin installing your card, please make sure

that the following materials have been shipped:

If any of these items are missing or damaged, contact

your distributor or sales representative immediately.

• Chipset: Onboard 3 Realtek RTL8139DL 10/100BaseT

Fast Ethernet Controllers

• Ethernet Port: 3 RJ-45 connector

• LAN bypass: Supports LAN bypass function on LAN 2

and LAN 3 by GPO pins.

• Ethernet disable: LAN port can be disable by onboard

switch.

• LED indicator:

Active (Tx/Rx) LED: The LED lights "Blinking Orange"

when the respective port is successfully connected to

an Ethernet port.

Link (10/100 Mbps) LED: The LED lights "Solid Green

On" when the respective port is successfully connected

to 10/100Mbps Ethernet network device of the ports.

Mechanical and Environmental

• Dimensions (L x W): 102mm x 70mm

• Operating Temperature: 0 ~ 60°C operation

• Operating Humidity: 0%~90% relative humity, non-con

densing

• Power Supply Voltage: 5V

• Power Requirements: 5V @100mA

• 3 Fast Ethernet ports

• LAN by pass function

• Ethernet disable function

Introduction Specifications

Packing list

• 1 MIO-6250

• 1 Startup manual

• 1 CD ROM for MIO-6250 Driver/Utility

• 1 screw kit

- copper stud x 4 pcs p/n: 1930000058

- screw x 4 pcs p/n: 1935030500

• 1 Mini Jumper kit (black)

- mini jumper x 10 pcs p/n: 1653302122

Note 1: Acrobat Reader is required to view any PDF

file. Acrobat Reader can be downloaded at:

www.adobe.com/products/acrobat/

readstep2.html(Acrobat is a trademark of

Adobe.)

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the MIO-6250 series Rev. A1.

Part No. 2006625000 1st Edition

May 2006

Features

MIO-6250 MIO/160 Module with 3 LANs

2 MIO-6250 Startup Manual

Connectors on the board link it to external devices, such

as hard disk drives, a keyboard or expansion bus connec-

tors. In addition, the board has a number of jumpers that

allow you to configure your system to suit your applica-

tion.

The table below lists the function of each of the jumpers

and connectors.

Component Placement

Jumpers & Connectors

Connectors

Label Function

CN1 LAN-1 Connector

CN2 LAN-3 Connector

CN3 LAN-2 Connector

JP1 Relay ON/OFF Jumper

JP2 Relay ON/OFF Control Jumper

SW1 LAN Chip Enable/ Disable Select

CN1 LAN-1 Connector Type: RJ-45

Pin Pin name Pin Pin name

1 LAN1TX+ 2 LAN1TX-

3 LAN1RX+ 4 LAN1RTXCT

5LAN1TXCT 6LAN1RX-

7 LAN1RXCT 8 LAN1RXCT

9GND 10GND

11 LAN-1 LED VCC 12 LAN-1 ACT LED

13 LAN-1 LED VCC 14 LAN-1 LINK LED

*low active

CN2 LAN-3 Connector Type: RJ-45

Pin Pin name Pin Pin name

1 LAN3TX+ 2 LAN3TX-

3 LAN3RX+ 4 LAN3RTXCT

5 LAN3TXCT 6 LAN3RX-

7 LAN3RXCT 8 LAN3RXCT

9GND 10GND

11 LAN-3 LED VCC 12 LAN-3 ACT LED

13 LAN-3 LED VCC 14 LAN-3 LINK LED

*low active

CN3 LAN-2 Connector Type: RJ-45

Pin Pin name Pin Pin name

1 LAN2TX+ 2 LAN2TX-

3 LAN2RX+ 4 LAN2RTXCT

5 LAN2TXCT 6 LAN2RX-

7 LAN2RXCT 8 LAN2RXCT

9GND 10GND

11 LAN-2 LED VCC 12 LAN-2 ACT LED

13 LAN-2 LED VCC 14 LAN-2 LINK LED

*low active

JP1: Relay ON/OFF Select *: Default Value

Pin Function

2-3 Relay ON * (Default)

1-2 Relay ON/OFF By GPIO

NC Relay OFF

JP2: Relay ON/OFF Select *: Default Value

Pin Function

2-3 GPIO Control

1-2 Auto ON * (Default)

SW1: LAN Chip Enable/ Disable Select *: Default Value

Pin Function

SW1-1 (on/off) LAN-1 Enable*/ Disable

SW1-2 (on/off) LAN-2 Enable*/ Disable

SW1-3 (on/off) LAN-3 Enable*/ Disable

SW1-4 (on/off) NC

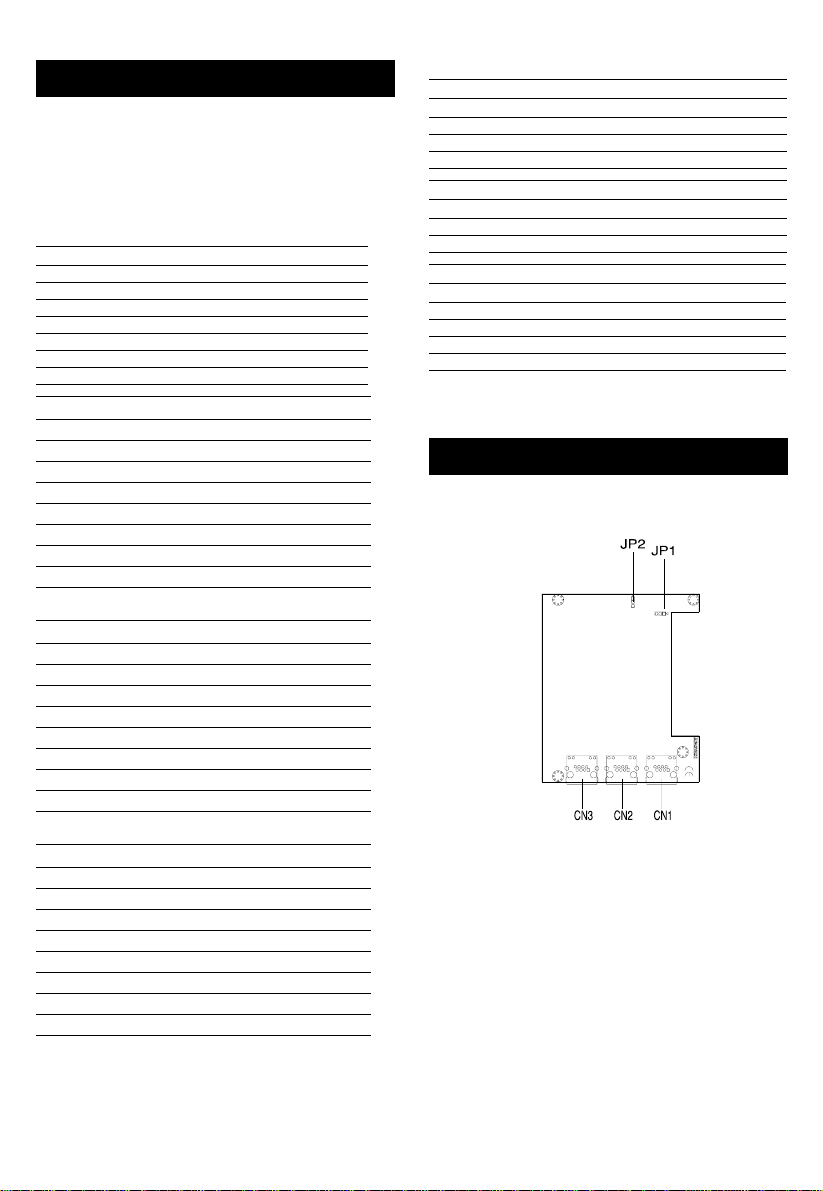

Board Layout

MIO-6250 Startup Manual 3

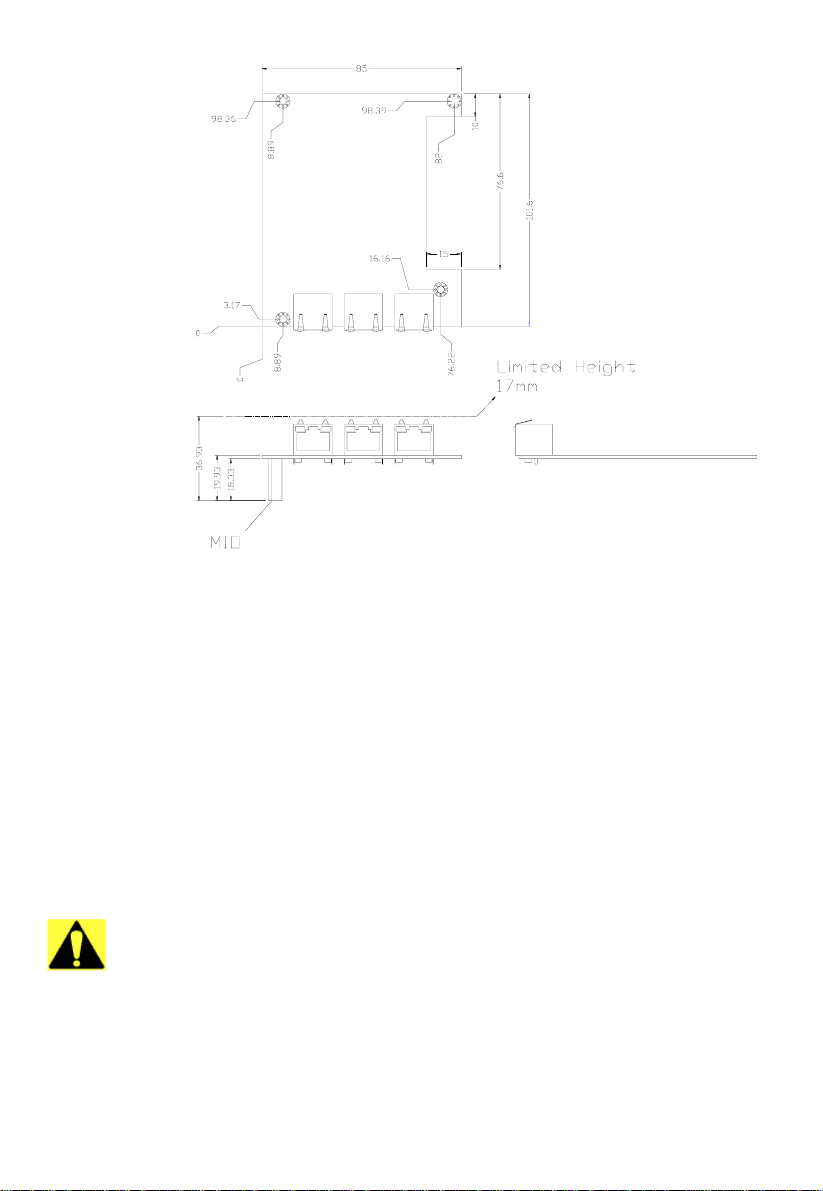

Dimensions

FCC This device complies with the requirements in part 15 of the FCC rules: Operation is subject to the fol-

lowing two conditions:

1.This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undes-

ired operation

This equipment has been tested and found to comply with the limits for a Class A digital device, pur-

suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of

this device in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his/her own expense. The user is advised that any equipment

changes or modifications not expressly approved by the party responsible for compliance would void

the compliance to FCC regulations and therefore, the user's authority to operate the equipment.

Caution!

Achtung!

There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge,

force open, or heat the battery. Replace the battery only with the same or equivalent type recom-

mended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
