98910770500 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. 98910770500 Flex I/O

2. 4 x M3 screw P/N: 1930005673-11

3. 1x 4x GbE PoE FIO cover PN: 1960094142N001

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note:  AcrobatReaderisrequiredtoviewanyPDFle.

Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

The driver of 98910770500 is provided on 98910770500

product page. Please download it and install.

98910770500 4x GbE PoE Advanced Flex I/O

Startup Manual

General

98910770500: 4x GbE PoE Flex I/O

• Support 4x GbE PoE

• Chipset: 1x Intel i350 Ethernet controller

• Interface : B/B connector, 1x PCIe x4 for Intel i350

• LAN speed: 10/100/1000 Mbps

• PoE Output Power: Max. 10W per port (Total Max. 40W),

802.3.af PoE Compliant

• SupportPoEon/o󰀨control

• PoE LED Status Indicators:

- PoE power on, status normal: LED On

- PoE power status abnormal (port over load, port short

circuit, port failed at startup): LED 0.8Hz Blink

-PoEpowero󰀨:LEDO󰀨

Supports Model: MIC-770

* Q SKU only.

• Operating Temperature: -10 ~ 40° C with 0.7 m/sec air ow:

with Industrial SSD

• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)

• Relative Humidity: 95% @ 40° C (non-condensing)

Mechanical and Environmental

• Dimensions (L x W): 169 x 156 mm

• Net Weight: 0.09 Kg

P/N Connector Function

98910770500 RJ45 CH1~4

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditons:

1. This device may not cause harmful interference;

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://advt.ch/MIC7FIO000

This manual is for the 98910770500 Series Rev. A1.

Part No. 2041077020

Printed in China

1st Edition,

July 2020

Specications

Connectors

Software Installation

Declaration of Conformity

2 98910770500 Startup Manual

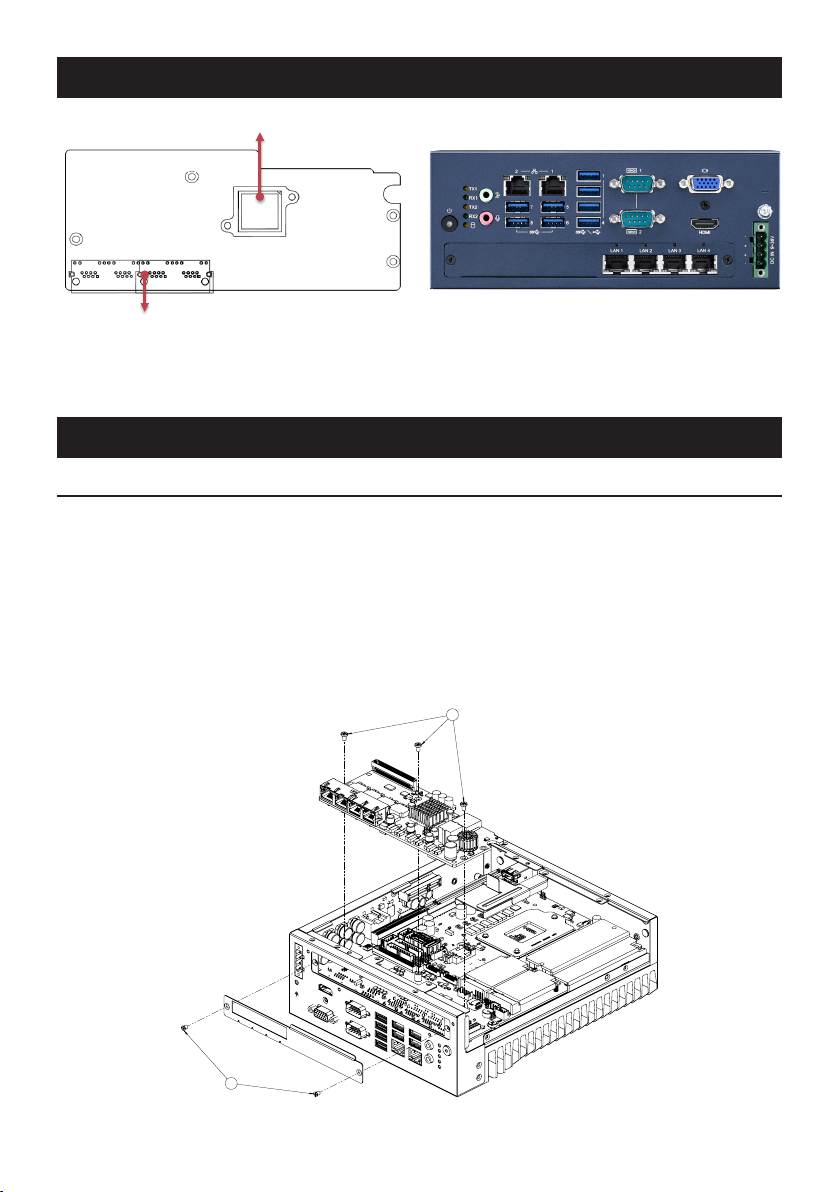

Board Layout

Figure 1: Board Connectors Locations

Note: 4x GbE PoE only occupy one system I/O port.

4x GbE PoE Flex I/O Installation

98910770500 is supported by MIC-770*.

*Q SKU only..

Preparation:

Disassemble the bottom cover and 2x front FIO covers from MIC-770.

Disassemble HDD tray from MIC-770.

Assemble Advanced Flex I/O:

1. Assemble the PoE FIO cover.

2. Align 96910770500 B/B connector (male) to the B/B connector (female) on MIC-770 main board. Then assemble

96910770500 with 3x M3 screws.

Figure 3: PoE FIO Installation

Intel i350

PoE

Assembly Process
