Agilent Technologies E4440A Guida rapida

Installation Note

Part Number E4440-90597 Supersedes: E4440-90569

Printed in USA June 2005

Agilent Technologies

E4440A Spectrum Analyzer

Option BAB, APC 3.5 Input Connector

Retrofit Kit

Notice.

The information contained in this document is subject to change without notice.

Agilent Technologies makes no warranty of any kind with regard to this material, including

but not limited to, the implied warranties of merchantability and fitness for a particular

purpose. Agilent Technologies shall not be liable for errors contained herein or for

incidental or consequential damages in connection with the furnishing, performance, or use

of this material.

Installation Note E4440-90597 3

Option BAB Hardware Retrofit Kit

Introduction

The Option BAB retrofit kit provides all the parts and instructions necessary to install

the APC 3.5 input connector into the Agilent E4440A spectrum analyzer. The Option

BAB is licensed for one instrument model number/serial number combination. The kit

will only function on the instrument it was ordered for.

NOTE 1. The installation of this kit requires that some re-adjustment and

performance testing be performed in order to assure the new option is

functioning properly. This installation note includes a list of required

adjustments and performance tests. Completing the list of required

performance tests does not guarantee the instrument meets all

specifications.

NOTE 2. The instrument end user must determine whether they need a full

instrument calibration following the installation of the kit. If full

calibration is required, arrangements regarding the level of calibration

must be made between the end user and the calibration provider.

Products Affected: PSA E4440A

Serial Numbers: US00000000/US99999999

MY00000000/MY99999999

To Be Performed By: (X) Agilent Service Center

(X) Personnel Qualified by Agilent

( ) Customer

Estimated Installation Time:

Estimated Adjustment and Verification Time for

Hardware Kit following Installation:

45 Minutes

3 Hours (see note 1)

Additional Recommended Task Agilent recommends that a full calibration be

performed toverifyinstrumentspecifications.

(see note 2)

4Installation Note E4440-90597

Option BAB Hardware Retrofit Kit

Contents

Tools Required

❏T-20 Torx driver

❏T-10 Torx driver

❏5/16-inch open end wrench

❏Calibration software. Latest software information and downloads available at

http://www.agilent.com/find/calibrationsoftware

❏Test equipment supported by the calibration software.

❏PSA Series Spectrum Analyzer and Service Guide. This manual is available as part of

the E4440AU, E4443AU, or E4445AU Option OBW kits.

❏Microsoft Windows based personnel computer

❏Windows XP Professional, Windows 2000

Quantity Description Agilent Part

Number

1 Option Upgrade Entitlement Certificate ---

1 Installation Note this note

2Screws, M3x0.5 8mm-LG

(Crest Washer-Pan Head-TORX) 0515-0372

1 APC 3.5 Input Connector Assembly

The input connector assembly is made up of:

W7, Input Cable semi-rigid

Input connector, APC 3.5

Bracket, APC 3.5

Nut, connector mounting

E4440-60335

Installation Note E4440-90597 5

Installation Procedure

1. Perform the following procedures in order:

a. Remove the instrument outer case.

b. Remove the instrument top brace.

c. Drop the front frame.

d. Install the Option BAB retrofit kit.

e. Install the front frame, instrument top brace, and outer case.

f. Install the option designator key.

g. Perform the performance tests.

For assistance at any time during this procedure, get in touch with your nearest Agilent

Technologies Sales and Service Office. To find your local Agilent office access the

following URL:

http://www.agilent.com/find/assist

Remove the Outer Case

CAUTION If the instrument is placed on its face during any of the following

procedures, be sure to use a soft surface or soft cloth to avoid damage to

the front panel, keys, or input connector.

1. Disconnect the instrument from ac power.

2. Refer to Figure 1. Remove the two handles on the sides of the instrument as shown.

Use the T-20 driver to loosen the screws that attach each handle (1). Remove the

handles.

3. Remove the four bottom feet (2). Lift up on the tabs on the feet, and slide the feet in

the direction indicated by the arrows.

4. Remove the four screws (3) that hold the rear feet (4) in place.

5. Pull the instrument cover (5) off toward the rear of the instrument.

6Installation Note E4440-90597

Installation Procedure

Figure 1 Instrument Outer Case Removal

Installation Note E4440-90597 7

Installation Procedure

Remove the Top Brace

1. Refer to Figure 2. Use the T-10 driver to remove the top screws (3) (one screw is

under the security label), and the side screws (2) attaching the top brace (1) to the

deck.

2. Remove the top brace from the deck.

Figure 2 Top Brace Removal

8Installation Note E4440-90597

Installation Procedure

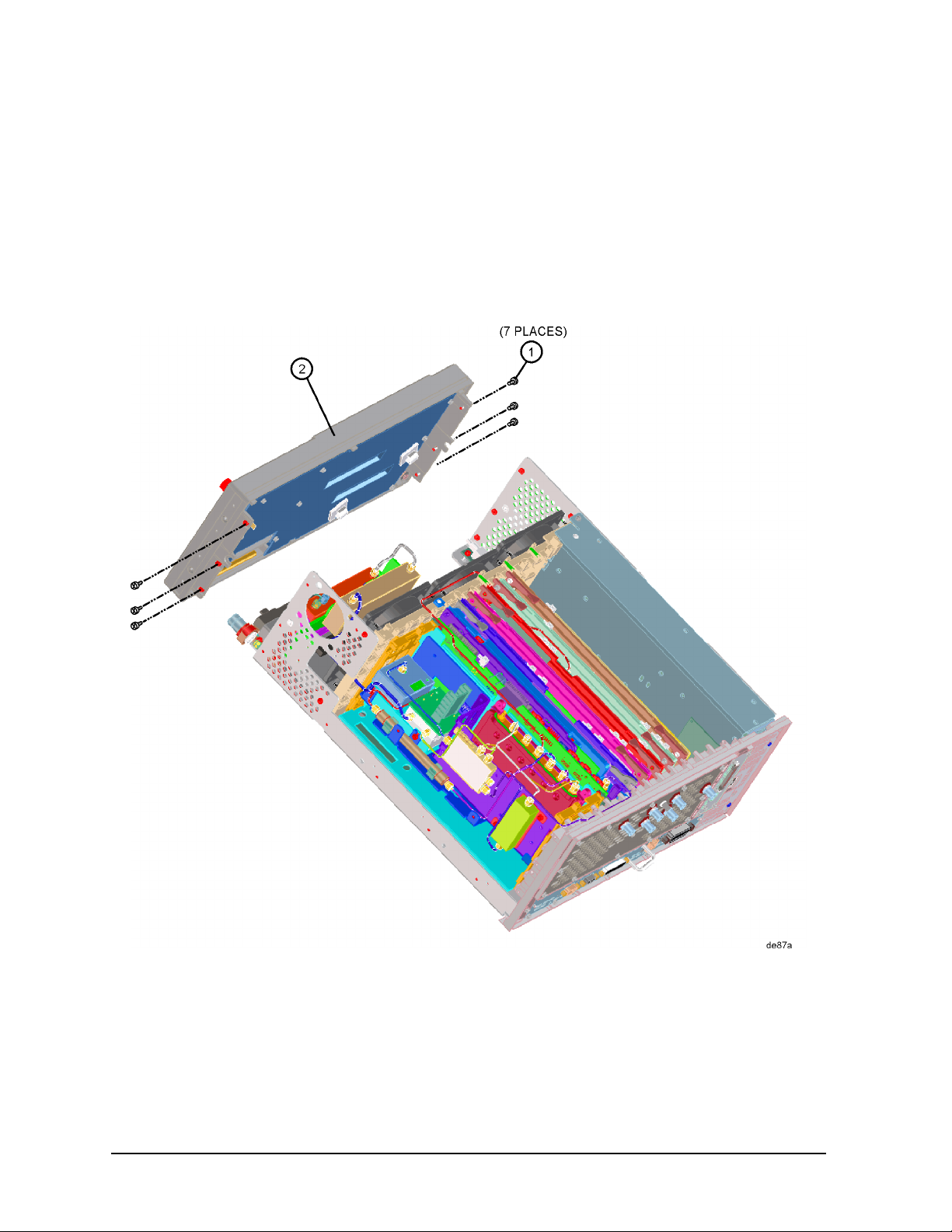

Drop the Front Frame

1. Refer to Figure 3. Using the T-10 driver, remove the 7 screws (1) that attach the

front frame assembly (2) to the deck.

2. Pull the front frame off of the deck until it is disengaged from the disc drive.

3. At this point, the front frame can be placed flat on the bench for service while still

attached to the instrument.

Figure 3 Front Frame Removal

Installation Note E4440-90597 9

Installation Procedure

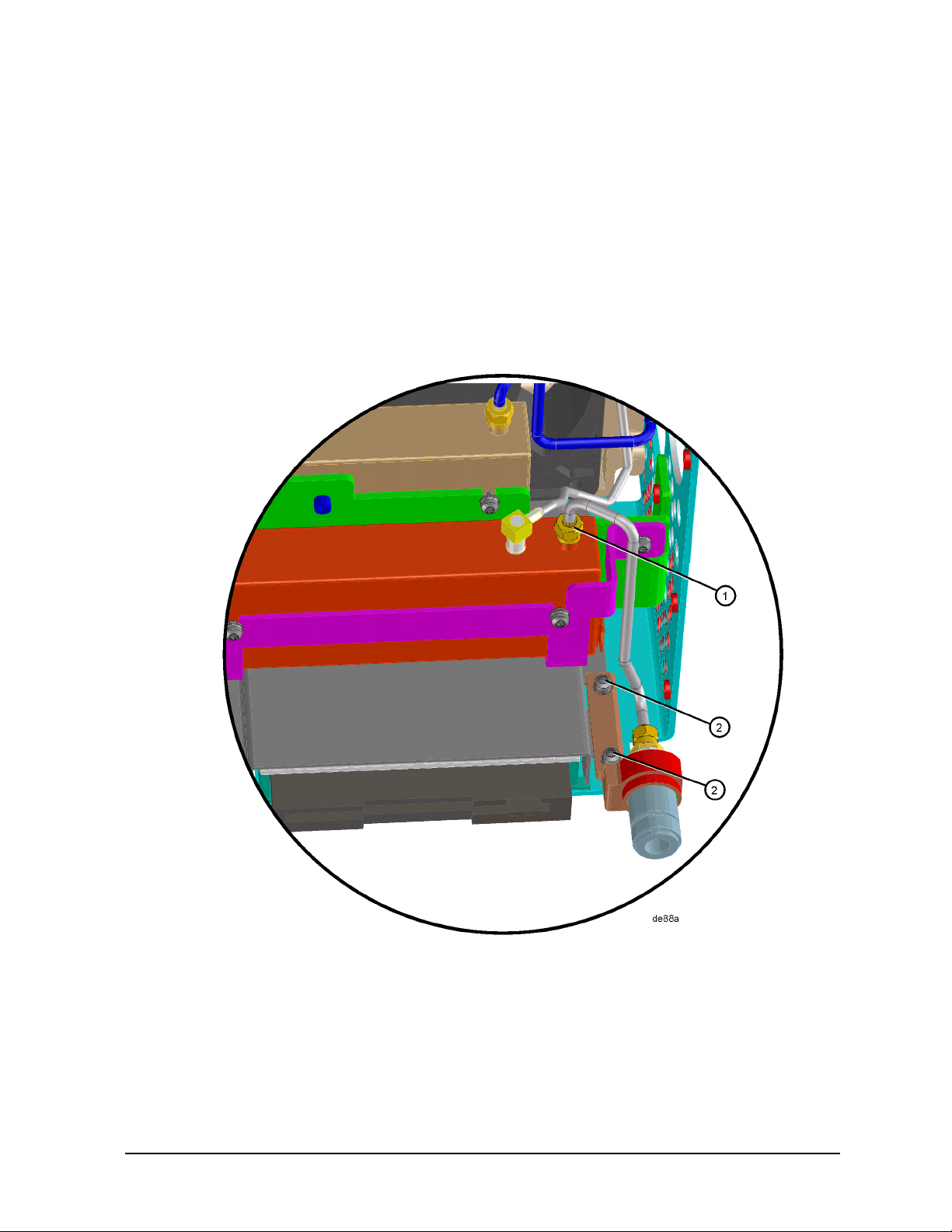

Remove the RF Input Connector

1. Refer to Figure 4. Using a 5/16 inch wrench, disconnect the semi-rigid cable (1) from

the A14 attenuator.

2. Using the T-10 driver, remove the 2 screws (2) that secure the input connector

bracket to the deck.

3. Remove the connector and bracket from the instrument.

Figure 4 Remove Connector and Cable

10 Installation Note E4440-90597

Installation Procedure

Install the Option BAB RF Input Connector

1. Remove the APC 3.5 input connector assembly from the kit.

2. Loosen, but don’t remove the semi-rigid cable that is attached to the input connector

assembly.

3. Install the connector assembly into the instrument. Attach the semi-rigid cable to the

A14 attenuator, but don’t tighten

4. Using the T-10 driver, install the 2 screws from the kit that secure the input

connector bracket to the deck. Torque to 9 inch pounds.

5. Using a 5/16 inch wrench, tighten the semi-rigid cable at the attenuator and the

input connector. Torque to 10 inch pounds.

Replace the Front Frame

1. Position the front frame on the deck using the alignment bosses on the deck.

Remember to tuck the ribbon cable under the fans when pushing the frame onto the

deck. This will insure proper airflow to cool the instrument.

2. Using the T-10 driver, replace the 7 screws that secure the front frame to the deck.

Torque to 9 inch pounds.

Replace the Top Brace and Outer Case

1. Refer to Figure 2. Carefully position the top brace on the deck. The alignment pin at

the center of the web/fan assembly must mate with the alignment hole on the top

brace. Make sure that no coaxial cables will get pinched underneath the brace.

2. Use the T-10 driver to replace and tighten the top screws first; then replace the side

screws. Torque to 101 Ncm (9 in-lb).

3. Refer to Figure 1. Slide the instrument cover back onto the deck from the rear. The

seam on the cover should be on the bottom. Be sure the cover seats into the gasket

groove in the front frame.

4. Replace the four rear feet onto the rear of the instrument. Torque to 236 Ncm (21

in-lb).

5. Use the T-20 driver to replace the handles. Torque to 236 Ncm (21 in-lb).

6. Replace the four bottom feet by pressing them into the holes in the case and sliding

them in the opposite direction of the arrows until they click into place. Note that the

feet at the front have the tilt stands.

Turn the Instrument On

Plug in the instrument and apply power. Continue with the next procedure to install the

option designator and license keyword for this option.
