Agilent Technologies U1731C Manuale utente

Agilent Technologies

Verify that you received the following items in the shipment of

your LCR meter:

✔One pair of alligator clip test leads

✔One 9 V alkaline battery

✔Printed copy of the U1731C/U1732C/U1733C

Quick Start Guide

✔Printed copy of the Certificate of Calibration

If any item is missing or damaged, keep the shipping materials

and contact the nearest Agilent Sales Office.

NOTE The descriptions and instructions in this guide apply to the

U1731C, U1732C, and U1733C handheld LCR meters.

The model U1733C appears in all illustrations.

All related documents and software are available for download

at www.agilent.com/find/hhTechLib.

Quick Start Guide

Agilent

U1731C/U1732C/U1733C

Handheld LCR Meter

U1731C/U1732C/U1733C Handheld LCR Meter

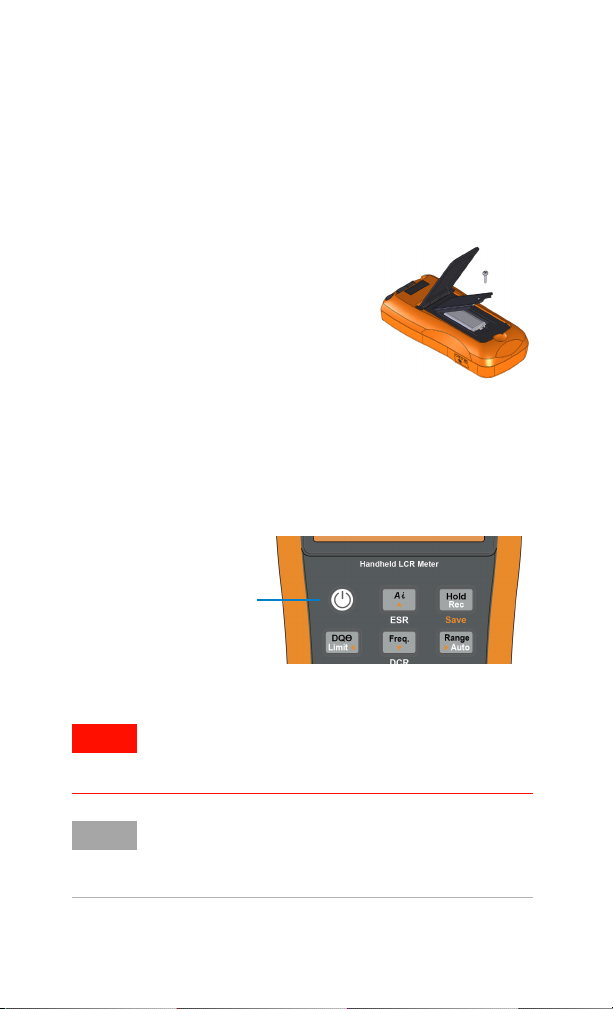

Install the Batteries

2 U1731C/U1732C/U1733C Quick Start Guide

Install the Batteries

Your LCR meter is powered by a single 9 V alkaline battery

(included with the shipment).

1Turn the LCR meter OFF and remove

the test leads from the terminals.

2Lift the tilt stand and loosen the

screw with a suitable Phillips

screwdriver.

3Remove the battery cover and

observe the polarity markings.

4Insert the battery and replace the

battery cover and screw.

Turn On the LCR Meter

To power ON your LCR meter, press the power-on button once.

Power-on button

WARNING To avoid damage to the device, do not exceed the input

limit. Do not apply voltage to the input terminals.

Discharge the capacitor before testing.

NOTE Your LCR meter is capable of remote data logging. To use this

feature, you will need an IR-USB cable (U5481A, purchased

separately) and the Agilent GUI Data Logger Software (down-

loadable from www.agilent.com/find/hhTechLib).

U1731C/U1732C/U1733C Handheld LCR Meter

The LCR Meter at a Glance

U1731C/U1732C/U1733C Quick Start Guide 3

The LCR Meter at a Glance

Display screen

Keypad

Input terminals/socket

IR communication port

Battery cover

Tilt stand

External power

(Lift the tilt stand for access)

adapter input jack

(+12 VDC)

NOTE The external AC to DC power adapter input jack requires an

input voltage of +12 VDC.

U1731C/U1732C/U1733C Handheld LCR Meter

Understanding the Keypad

4 U1731C/U1732C/U1733C Quick Start Guide

Understanding the Keypad

Legend Key response when pressed for:

Less than 1 second More than 1 second

Turns the LCR meter on or off -

Starts or stops the auto identi-

fication mode

Enables or disables the ESR

(equivalent series resistance)

mode[1]

Holds or releases the present

reading on the display

Starts or stops the static

recording mode

Switches between dissipation

factor (D), quality factor (Q),

and phase angle (θ) measure-

ment

Enables or disables the limit

comparison mode

Selects a test frequency

Enables or disables the DCR

(direct current resistance)

mode[2]

Disables autoranging and sets

a manual range Enables autoranging

Switches between impedance

(Z), inductance (L), capacitance

(C), and resistance (R) mea-

surement

Toggles between parallel and

series circuit mode

Enables the tolerance mode

Turns the backlight display on

or off[3] or disables the toler-

ance mode (if tolerance is

enabled)

Sets the null/relative mode

Enters the open/short calibra-

tion mode for selected range

and test frequency

[1] Autoranging only. ESR mode exits to capacitance (C) measurement by default.

[2] Applicable for U1733C model only. DCR mode exits to inductance (L) measure-

ment by default.

[3] Applicable for U1732C and U1733C models only.

ESR

Rec

Hold

Save

Limit

DQO

DCR

Freq.

Auto

Range

P S

ZLCR

Tol%

Cal

Null

U1731C/U1732C/U1733C Handheld LCR Meter

Performing LCR Measurements

U1731C/U1732C/U1733C Quick Start Guide 5

Performing LCR Measurements

Auto Identification (Ai)

Press the button to automatically identify and select an

appropriate primary measurement function (L, C, or R), second-

ary measurement function (D, Q, or θ), and measurement mode

(parallel or series) for the device-under-test.

LCR measurement steps

NOTE The LCR meter powers up in the Ai mode by default. is

shown on the left of the display screen when the Ai mode is

enabled.

•flashes when the LCR meter is identifying a measure-

ment function and mode.

•Press again while is shown to exit the Ai mode.

Device-Under-Test

(DUT)

P S

ZLCR

Freq.

Surface Mount

Device (SMD)

SMD Tweezer

U1731C/U1732C/U1733C Handheld LCR Meter

Performing LCR Measurements

6 U1731C/U1732C/U1733C Quick Start Guide

Secondary (D/Q/θ) measurements

Inductance (L) measurements

Capacitance (C) measurements

Resistance (R) measurements

Limit

DQO

Inductor

Capacitor

Resistor

Contacting Agilent

To obtain service, warranty or technical assistance, contact us at the fol-

lowing phone numbers:

•United States Call Center: 800-829-4444

•Canada Call Center: 877-894-4414

•China Call Center: 800-810-0189

•Europe Call Center: 31-20-547-2111

•Japan Call Center: (81) 426-56-7832

For other countries, contact your country’s Agilent support organization.

A list of contact information for other countries is available on the Agilent

Web site: www.agilent.com/find/assist

Safety Notices Safety Information

This meter is safety-certified in compliance

with the following safety and EMC require-

ments:

• IEC61010-1:2001/EN61010-1:2001

(Second Edition)

• IEC 61326-1:2005/ EN 61326-1:2006

• Canada: ICES/NMB-001:Issue 4, June

2006

• Australia/New Zealand: AS/NZS

CISPR11:2004

Safety Symbols

CAUTIONCAUTION A CAUTION notice denotes

a hazard. It calls attention

to an operating procedure,

practice, or the like that, if

not correctly performed or

adhered to, could result in

damage to the product or

loss of important data. Do

not proceed beyond a CAU-

TION notice until the indi-

cated conditions are fully

understood and met.

WARNING A WARNING notice

denotes a hazard. It calls

attention to an operating

procedure, practice, or the

like that, if not correctly

performed or adhered to,

could result in personal

injury or death. Do not pro-

ceed beyond a WARNING

notice until the indicated

conditions are fully under-

stood and met.

Earth (ground) terminal

Equipment protected

throughout by double insula-

tion or reinforced insulation

Caution, risk of electric

shock

Caution, risk of danger (refer

to the instrument manual for

specific Warning or Caution

information)

For further safety information details, refer to the

Agilent U1731C/U1732C/U1733C Handheld LCR Meter User’s Guide.

Agilent Technologies

Assurez-vous d’avoir reçu les articles suivants avec la livraison

de votre mesureur LCR :

✔Une paire de conducteurs à pinces crocodiles

✔Une pile alcaline 9 V

✔Un exemplaire imprimé du U1731C/U1732C/U1733C

Guide de mise en route

✔Un exemplaire imprimé du certificat d’étalonnage

Au cas où un article serait manquant ou endommagé, conservez le

matériel livré et contactez le bureau de vente Agilent le plus proche.

NOTE Les descriptions et instructions contenues dans ce guide

s’appliquent aux U1731C, U1732C, U1733C et Mesureur LCR

portable.

Le modèle U1733C apparaît dans chaque illustration.

Tous les documents et logiciels associés peuvent être

téléchargés depuis le site www.agilent.com/find/hhTechLib.

Guide de mise en route

Agilent

U1731C/U1732C/U1733C

Mesureur LCR portable

U1731C/U1732C/U1733C Mesureur LCR portable

Installation des batteries

2 Guide de mise en route U1731C/U1732C/U1733C

Installation des batteries

Votre mesureur LCR est alimenté par une seule pile alcaline

9 V (livrée avec le produit).

1Arrêtez le mesureur LCR et retirez

les câbles de test des bornes.

2Soulevez le socle inclinable et

desserrez la vis à l’aide d’un

tournevis cruciforme approprié.

Retirez le capot du compartiment de

batterie et repérez les marques de polarité

4Insérez la pile et remettez en place

le capot du compartiment de

batterie et la vis.

Mettez le mesureur LCR en marche

Pour mettre en marche votre mesureur LCR, appuyez une fois

sur le bouton de mise en marche.

Bouton de mise en

marche

AVERTISSEMENT

Ne dépassez pas les limites d’entrée : vous risqueriez

d’endommager l’appareil. N'appliquez pas de tension aux

bornes d'entrée. Déchargez le condensateur avant les tests.

NOTE

Le mesureur LCR vous permet de journaliser des données à

distance. L'utilisation de cette fonctionnalité nécessite un câble

IR-USB (U5481A, vendu séparément) et le logiciel de

journalisation Agilent GUI Data Logger Software (téléchargeable

depuis le site www.agilent.com/find/hhTechLib).

U1731C/U1732C/U1733C Mesureur LCR portable

Le mesureur LCR en bref

Guide de mise en route U1731C/U1732C/U1733C 3

Le mesureur LCR en bref

(+12 Vcc)

Écran

Clavier

Port de communication

infrarouge (IR)

Socle inclinable

Couvercle de compartiment de pile

(soulevez le socle inclinable pour y accéder)

Prise d'entrée de l'adaptateur

d'alimentation externe

NOTE La prise d'entrée pour adaptateur CA - CC nécessite une

tension d'entrée de +12 Vcc.

Bornes d'entrée/fiche

Altri manuali per U1731C

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Agilent Technologies Strumento di misura

Agilent Technologies

Agilent Technologies FieldFox N9923AN Manuale utente

Agilent Technologies

Agilent Technologies E4980A Manuale utente

Agilent Technologies

Agilent Technologies U1461A Manuale utente

Agilent Technologies

Agilent Technologies ENA Series Manuale utente

Agilent Technologies

Agilent Technologies 4294A Manuale utente

Agilent Technologies

Agilent Technologies 8560E Manuale utente

Agilent Technologies

Agilent Technologies ADM series Manuale utente

Agilent Technologies

Agilent Technologies 4263B Manuale utente

Agilent Technologies

Agilent Technologies OmniBER OTN Series Manuale di installazione e funzionamento

Agilent Technologies

Agilent Technologies PNA Series Istruzioni operative

Agilent Technologies

Agilent Technologies U2722A Manuale utente

Agilent Technologies

Agilent Technologies 54600-Series Manuale utente

Agilent Technologies

Agilent Technologies OmniBER OTN Series Manuale utente

Agilent Technologies

Agilent Technologies 4155C Manuale di installazione

Agilent Technologies

Agilent Technologies 490 Manuale utente

Agilent Technologies

Agilent Technologies Cary 8454 Manuale utente

Agilent Technologies

Agilent Technologies 490 Micro GC Manuale utente

Agilent Technologies

Agilent Technologies FieldFox N9923A Manuale utente

Agilent Technologies

Agilent Technologies FRG-700 Manuale utente

Agilent Technologies

Agilent Technologies 4339B Manuale utente

Agilent Technologies

Agilent Technologies Agilent 4396B Manuale utente

Agilent Technologies

Agilent Technologies 34134A Manuale utente

Agilent Technologies

Agilent Technologies 86082A Manuale utente

Agilent Technologies

Agilent Technologies CrossLab CS Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
