Allen-Bradley ArmorBlock Series Manuale

Wiring Diagrams

ArmorBlock WeldBlock 2-Port Ethernet

Self-configurable with QuickConnect

CatalogNumbers1732E-16CFGM12QCWR,1732E-16CFGM12P5QCWR

Parts List

Your package contains one 1732E ArmorBlock™ WeldBlock module and these

pinout guide wiring instructions.

For complete installation instructions, refer to the Module Publication Number

table and visit http://www.rockwellautomation.com/literature/.

I/O Connectors

Micro-style 5-Pin Selectable Point Connector

Module Publication Number

1732E ArmorBlock 2-Port Ethernet Modules with QuickConnect 1732E-IN010

WARNING: HOT SURFACE. RISK OF BURN.

ATTENTION: Two sets of mounting holes are used to mount the module

directly to a panel or machine. Mounting holes accommodate #8 (M4) pan

head screws. The torque specification is 1.13 Nm (10 lb-in.).

1 2

(View into connector)

Pin 1 Sensor source voltage

Pin 2 Input B or Output B

Pin 3 Return

Pin 4 Input A or Output A

Pin 5 PE

44807

2ArmorBlock WeldBlock 2-Port Ethernet Self-configurable with QuickConnect

Publication 1732E-WD005C-EN-P - May 2013

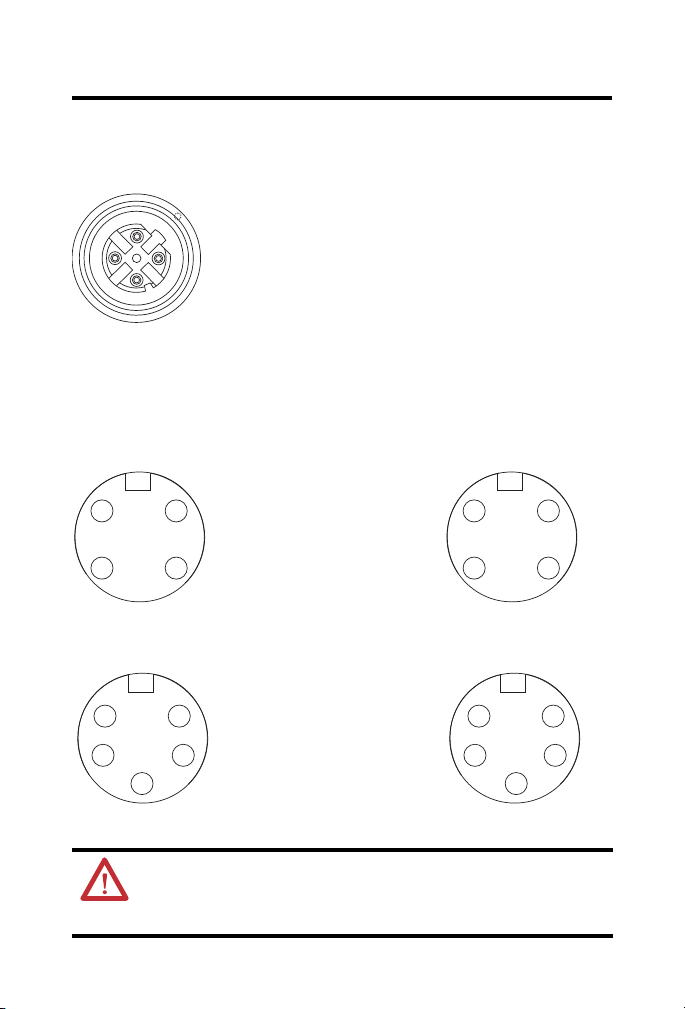

EtherNet/IP Connector

D-Code Micro Network Female Connector

Auxiliary Power Connector

Mini-style 4-Pin Receptacles

Mini-style 5-Pin Receptacles

TIP

The ground for both module power and output power are shared.

ATTENTION: This equipment is considered Group 1, Class A industrial

equipment according to IEC/CISPR 11. Without appropriate precautions,

there may be difficulties with electromagnetic compatibility in residential

and other environments due to conducted and radiated disturbance.

(View into connector 1)

Pin 1 M12_Tx+

Pin 2 M12_Rx+

Pin 3 M12_Tx-

Pin 4 M12_Rx-

Pin 5 Connector shell

shield GND

45793

(View into connector 2)

Pin 1 M12_Rx+

Pin 2 M12_Tx+

Pin 3 M12_Rx-

Pin 4 M12_Tx-

Pin 5 Connector shell

shield GND

4 2

3 1

44809

(View into receptacle)

Pin 1 Output power+

Pin 2 Sensor/MDL power+

Pin 3 Sensor/MDL power-

Pin 4 Output power-

45677

Male Input Female Output

46199

(View into receptacle)

Pin 1 Output power-

Pin 2 Sensor/MDL power-

Pin 3 Protective Earth

Pin 4 Sensor/MDL power+

Pin 5 Output power+

46200

Male Input Female Output

ArmorBlock WeldBlock 2-Port Ethernet Self-configurable with QuickConnect 3

Publication 1732E-WD005C-EN-P - May 2013

Specifications

Environmental Specifications

Attribute Value

Temperature, operating IEC60068-2-1 (Test Ad, Operating Cold),

IEC60068-2-2, (Test Bd, Operating Dry Heat),

IEC 60068-2-14 (Test Nb, Operating Thermal Shock):

-20...60 °C (-4…140 °F)

Temperature, ambient, max 60 °C (140 °F)

Voltage, operating 12…30V DC

Output current, per port 0.5 A

Enclosure type rating Meets IP65/66/67/69K (when marked), and Type 4X Indoor

Use Only, with receptacle dust caps or cable termination

Certifications

Certification (when

product is marked)(1)

(1) See the Product Certification link at http://www.rockwellautomation.com/products/certification/ for

Declaration of Conformity, Certificates, and other certification details.

Value

c-UR-us UL Recognized Industrial Control Equipment, certified for US and

Canada. See UL File E322657.

CE European Union 2004/108/EC EMC Directive, compliant with:

EN 61326-1; Meas./Control/Lab., Industrial Requirements

EN 61000-6-2; Industrial Immunity

EN 61000-6-4; Industrial Emissions

EN 61131-2; Programmable Controllers (Clause 8, Zone A & B)

C-Tick Australian Radiocommunications Act, compliant with:

AS/NZS CISPR 11; Industrial Emissions

EtherNet/IP ODVA conformance tested to Ethernet/IP specifications.

KC Korean Registration of Broadcasting and Communications

Equipment, compliant with:

Article 58-2 of Radio Waves Act, Clause 3

Rockwell Automation Support

Rockwell Automation provides technical information on the Web to assist you in using

its products. At http://www.rockwellautomation.com/support/, you can find technical

manuals, a knowledge base of FAQs, technical and application notes, sample code and

links to software service packs, and a MySupport feature that you can customize to

make the best use of these tools.

For an additional level of technical phone support for installation, configuration, and

troubleshooting, we offer TechConnect support programs. For more information,

contact your local distributor or Rockwell Automation representative, or visit

http://www.rockwellautomation.com/support/.

Installation Assistance

If you experience a problem within the first 24 hours of installation, please review the

information that's contained in this manual. You can also contact a special Customer

Support number for initial help in getting your product up and running.

New Product Satisfaction Return

Rockwell Automation tests all of its products to ensure that they are fully operational

when shipped from the manufacturing facility. However, if your product is not

functioning and needs to be returned, follow these procedures.

Allen-Bradley, Rockwell Automation, ArmorBlock and TechConnect are trademarks of Rockwell Automation, Inc.

Trademarks not belonging to Rockwell Automation are property of their respective companies.

United States 1.440.646.3434

Monday – Friday, 8 a.m. – 5 p.m. EST

Outside United States Please contact your local Rockwell Automation representative for any

technical support issues.

United States Contact your distributor. You must provide a Customer Support case number

(see phone number above to obtain one) to your distributor in order to

complete the return process.

Outside United States Please contact your local Rockwell Automation representative for the return

procedure.

Publication 1732E-WD005C-EN-P - May 2013 PN-205442
