DEMO MANUAL SCP-LT8362-S-EVALZ

Rev. 0

DESCRIPTION

Demonstration circuit SCP-LT8362-S-EVALZ features the

LT 8 3 6 2 in a SEPIC configuration. It operates with a switch-

ing frequency of 2MHz and has an output voltage of 12V.

Like all boards in the Signal Chain Power series, this board

is designed to be easily plugged into other SCP boards to

form a complete signal chain power system, enabling fast

evaluation of low power signal chains. To evaluate this

board, some universal SCP hardware is required, namely:

SCP-INPUT-EVALZ SCP-FILTER-EVALZ

SCP-OUTPUT-EVALZ SCP-1X2BKOUT-EVALZ

SCP-1X5BKOUT-EVALZ SCP-5X1-EVALZ

SCP-THRUBRD-EVALZ

To properly evaluate SCP series demo boards, you will

need the SCP Configurator companion software. SCP

Configurator can help you choose the right board and to-

pology for your design.

Note that this Demo Manual does not cover details im-

portant to the operation and configuration regarding the

LT8362. Please refer to the LT 8 3 6 2 d ata s h e e t for a com-

plete description of the part.

Design files for this circuit board are available.

All registered trademarks and trademarks are property of their respective owners.

Table 1.

Performance Summary

SYMBOL

PARAMETER

NOTES

MIN

TYP

MAX

UNITS

IN(MAX)

Max Input Voltage

OUT(MAX)

Max Output Voltage

OUT(MAX)

Max Output Current

BOARD IMAGE

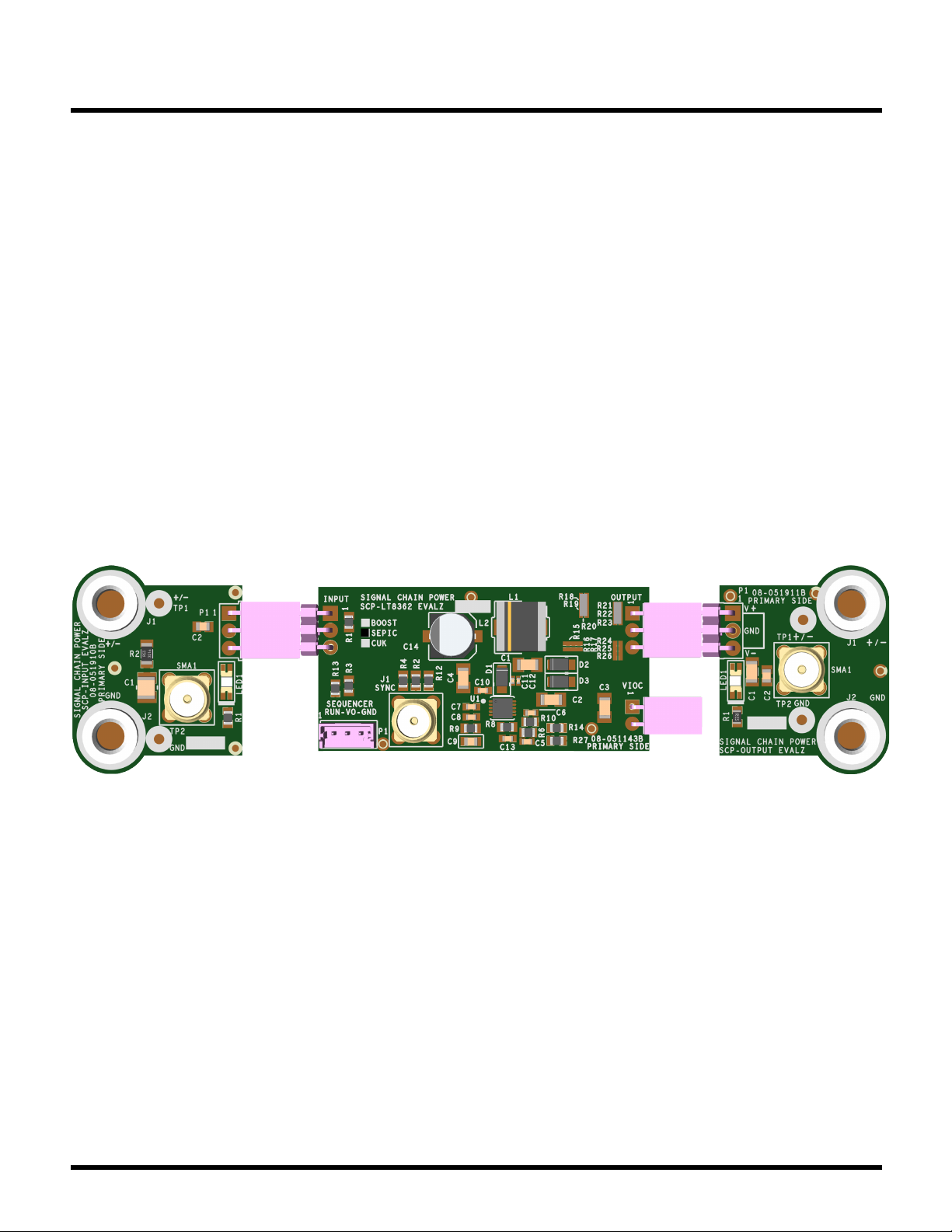

Figure 1. SCP-LT 8 3 6 2 -S-EVALZ Board

DEMO MANUAL

SCP-LT8362-S-EVALZ

Signal Chain Power

LT8362 Low I

SEPIC Converter

DEMO MANUAL SCP-LT8362-S-EVALZ

Rev. 0

QUICK START PROCEDURE

Demonstration circuit

SCP-LT8362-S-EVALZ

is easy to

set up to evaluate the performance of any SCP hard-

ware configuration.

1. The SCP-LT8362-S-EVALZ ships with a default output

voltage of 12V. To c h a n g e t h e o u t p u t v o l t a g e , s e e “ C o n -

figuration Settings” section, and modify the board ac-

cordingly. Be sure to check for open connections or sol-

der shorts after making any modifications.

2. Connect the SCP-INPUT-EVALZ and SCP-OUTPUT-

EVALZ boards to the SCP-LT8362-S-EVALZ (refer to

Figure 2) and connect the input board to a voltage

source, V

SOURCE

. Connect the output board to a volt-

meter or dynamic load. Slowly raise the input voltage

until the SCP-LT8362-S-EVALZ powers up into regula-

tion and sweep V

SOURCE

through the desired range of

operation.

NOTE: Make sure that the input voltage is always within

spec. If using a dynamic load to measure output volt-

age, make sure the load is initially set to zero.

3. Check for proper output voltage. The output should be

regulated at the programmed value (±5%).

4. Once the proper output voltage is established, power

off V

SOURCE

and similarly test other boards in the SCP

system until all elements have been individually verified

prior to assembling into the final circuit configuration.

NOTE: When measuring the input or output voltage rip-

ple, use the optional SMA connector locations available

on the input, output, 1

5, 1

2, and 5

1 breakout

boards. Avoid using the test point connections with

long scope leads.

Figure 2. Proper Measurement Equipment Setup (Use SMA connectors for Measuring Input or Output Ripple)

DEMO MANUAL SCP-LT8362-S-EVALZ

Rev. 0

CONFIGURATION SETTINGS

Demonstration circuit SCP-LT8362-S-EVALZ features the

LT 8 3 6 2 i n a SEPIC configuration. It operates with a switch-

ing frequency of 2MHz and has an output voltage of 12V.

The output of the SCP-LT8362-B-EVALZ is resistor-pro-

grammable from 5V to 48V. The board can be also config-

ured to drive VIOC-capable LDO regulators.

OUTPUT VOLTA G E PROGRAMMING

Table 2.

Resistor Selection Guide for Common Output Voltages

OUT

(V)

R6 (Ω)

R8 (Ω)

5.0

24.3K

11.5K

6.0

31.6K

11.5K

7.0

115K

34.0K

8.0

102K

25.5K

9.0

118K

25.5K

10.0

105K

20.0K

11.0

107K

18.2K

12.0

71.5K

11.0K

13.0

97.6K

13.7K

14.0

78.7K

10.2K

15.0

115K

13.7K

16.0

102K

11.3K

17.0

162K

16.9K

18.0

205K

20.0K

19.0

150K

13.7K

20.0

115K

10.0K

21.0

243K

20.0K

22.0

255K

20.0K

23.0

226K

16.9K

24.0

140K

10.0K

25.0

215K

14.7K

30.0

442K

24.9K

35.0

287K

13.7K

40.0

255K

10.7K

45.0

374K

13.7K

48.0

309K

10.7K

EN/UVLO PIN CONFIGURATION

The EN/UVLO pin is tied to the optional SCP Run/Se-

quence header P1. To create a harness for this function,

use Molex part # 0510650300 with crimp pin # 50212-

8000.

To use an active run signal, use a 1.00M for either pull-up

or pull-down resistors R1 and R3, short R13 with 0

, and

use the drive signal from connector P1.

If precision UVLO operation is desired, program enable di-

vider R5 and R6 such that:

The LT8330 has an accurate 1.60V threshold which places

the part into under voltage lockout. The hysteresis thresh-

old on the rising edge is typically 80mV and scales by the

factor:

VOLTAGE INPUT-TO-OUTPUT CONTROL (VIOC)

IMPLEMENTATION

To implement the VIOC function for this regulator, set R27

to 0

. Refer to the “Configuration Settings” section in the

Demo Manual for the LDO board and use the following

configuration for this board.

Table 3.

VIOC Cross-Reference Designators

VIOC SETTING REFERENCES

BOT

TOP

MAX

OUT

Reference Designators

R14

SINK

is the current through R

MAX

, typically 15µA, so R

BOT

should be sized such that the divider current runs a mini-

mum of 100µA to minimize the I

SINK

error term.

VOUT =1 .6 VFBX 1+R6

⎛

⎝

⎜⎞

⎠

⎟

R6 =1 0 k −1 0 0 k,nominal

R5 =R6 VIN −1 .6 0 VTH

1 .6 0 VTH

⎛

⎝

⎜⎞

⎠

⎟

VHYST =80mV R5 +R6

⎛

⎝

⎜⎞

⎠

⎟

VL DOIN −VL DOOUT =VVIOC =1 .6 0 VFB

RBOT +RTOP

RBOT

⎛

⎝

⎜⎞

⎠

⎟

VMAX

( )

LDOIN =1 .6 0 VFB

RBOT +RTOP +RMAX

RBOT

⎛

⎝

⎜⎞

⎠

⎟+ISINKRMAX

DEMO MANUAL SCP-LT8362-S-EVALZ

Rev. 0

MODE PIN CONFIGURATION

The SCP-LT8362-B-EVALZ is configured by default for

Burst Mode at light loads for efficiency. The MODE pin can

also be configured to burst with spread spectrum, if de-

sired. The table below shows the various configurations

possible with the MODE pin.

Table 4.

Settings for MODE Pin Configuration

MODE

R12

Burst Mode

Open

Burst/Spread Spectrum

100k

Open

Pulse Skip

Open

Pulse Skip/Spread Spectrum

Open

Clock Sync/Pulse Skip

Open

If the clock synchronization option is desired, the SCP-

LT8362-B-EVALZ can be driven from an external source

via the optional SMA connector J1.

DEMO MANUAL SCP-LT8362-S-EVALZ

Rev. 0

PARTS LIST

ITEM

QTY

REFERENCE

PART DESCRIPTION

MANUFACTURER/PART NUMBER

PCB

ANALOG DEVICES 08_051143b

CAP MULTILAYER CER, X7R

TAIYO YUDEN HMK316B7105KL-T

C11, C12

CAP CER 0.1UF 50V 10% X5R 0402

YAGEO CC0402KRX5R9BB104

C14

CAP ALUM 33UF 50V 20% 6.6X6.6MM

UNITED CHEMI CON

EMVH500ADA330MF80G

C2, C4

CAP CER 10UF 50V X5R 1206

SAMSUNG CL31A106MBHNNNE

CAP MLCC 1206 (Note 1)

N/A

C5, C8, C13

CAP MLCC 0603 (Note 1)

N/A

CAP CER X7R

WURTH ELEKTRONIK885012000000

C7, C10

CAP CER 1UF 50V 10% X5R 0603

SAMSUNG CL10A105KB8NNNC

CAP CER X7R, GENERAL PURPOSE

WURTH ELEKTRONIK885012000000

D1, D2

DIO SCHOTTKY (Note 1)

N/A

DIO SCHOTTKY BARRIER RECTIFIER, 2A

DIODES INCORPORATED DFLS260-7

INPUT

CONN-PCB MALE HEADER 3POS 2.54MM PITCH R/A GOLD

SULLINS PBC03SBAN

CONN-PCB STRAIGHT SMA PCB DIE CAST (Note 1)

TE CONNECTIVITY LTD 5-1814832-1

IND POWER WIREWOUND 1.25A, 0.146OHM DCR

WURTH ELEKTRONIK74489430068

IND POWER (Note 1)

N/A

OUTPUT

CONN FEMALE 3POS 2.54MM PITCH R/A GOLD

SULLINS PPPC031LGBN-RC

CONN-PCB 3POS HEADER WIRE TO BRD WAFER ASSY STRAIGHT

2MM PITCH (Note 1)

MOLEX 53253-0370

RES THICK FILM CHIP, GENERAL PURPOSE

YAGEO RC0805JR-071ML

R10

RES PRECISION THICK FILM CHIP

PANASONIC ERJ-6ENF2002V

R2, R12, R27

RES THICK FILM 0805 (Note 1)

N/A

R3, R13

RES THICK FILM 0805 (Note 1)

N/A

R4, R14

RES STANDARD THICK FILM CHIP JUMPER, FOR AUTOMOTIVE

VISHAY CRCW08050000Z0EA

RES PRECISION THICK FILM CHIP

PANASONIC ERJ-6ENF1004V

RES SMD 154K OHM 0.1% 1/8W 0805, AUTOMOTIVE

PANASONIC ERA-6AEB1543V

RES PRECISION THIN FILM CHIP

VISHAY PAT0805E4022BST1

IC LOW IQ BOSS/SEPIC/INVERTING CONVERTER WITH 2A, 60V

LINEAR TECHNOLOGY LT8362EDD#PBF

VIOC

CONN FEMALE 2POS 2.54MM PITCH R/A GOLD

SULLINS PPPC021LGBN-RC

Note 1.

These items are not stuffed (DNI).

DEMO MANUAL SCP-LT8362-S-EVALZ

Rev. 0

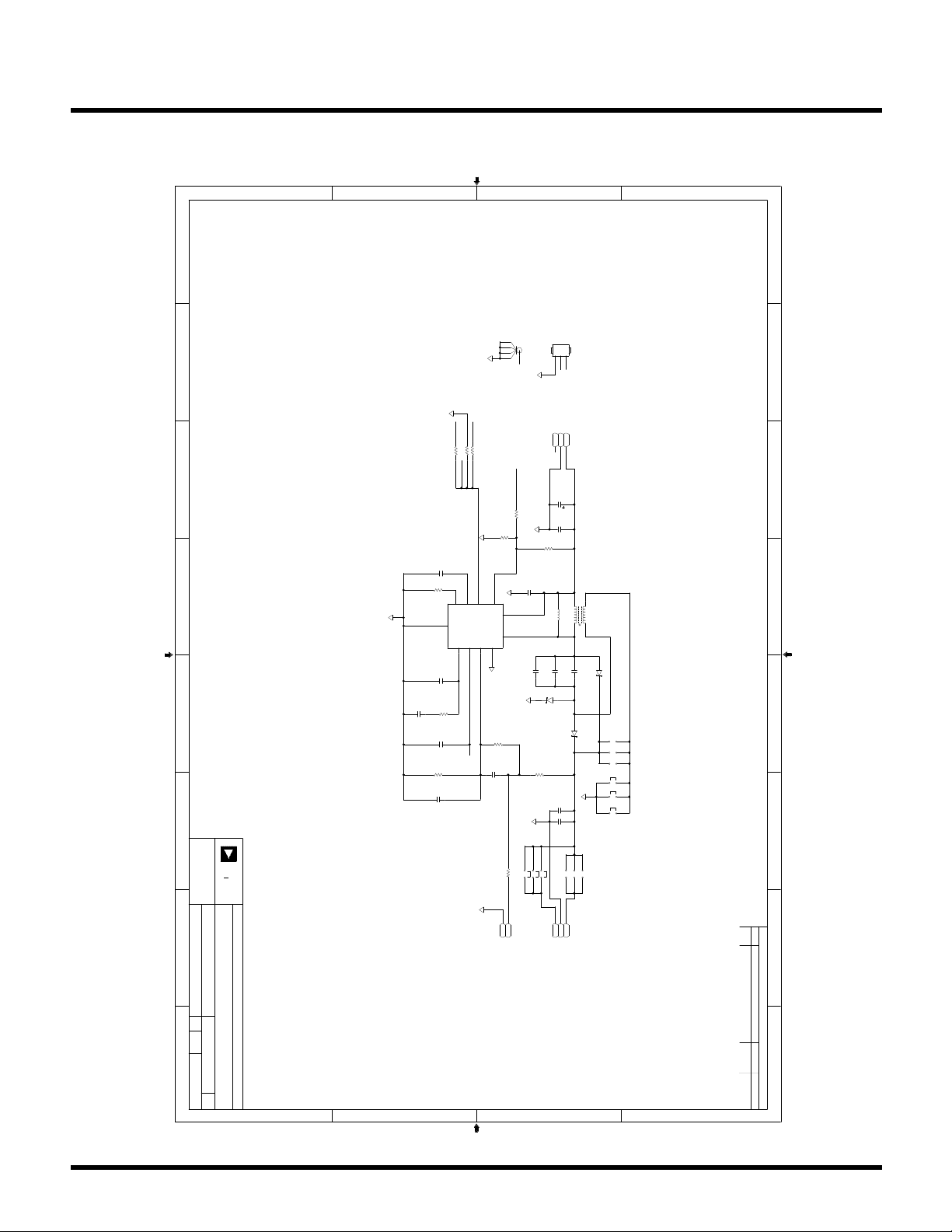

SCHEMATIC DIAGRAM

JTAG

PULSE SKIPPING

PULSE SKIPPING/SSFM

LT8362 SEPIC

FEMALE

GND

BURST/SSFM-100KOHMBURST-0OHM;

SYNC

GND

MALE

5-1814832-1

53253-0370

0.22 UF

DNI

1UF

50V

50V0. 1UF

DFLS260-7

DNI

10UF 10 UF

50V

PPPC031LGBN-RC

PPPC021LGBN-RC

DNI

1MEG

6.8UH

10 UF

1MEG

TBD0805

DNI

33UF

TBD0805

PBC03SBAN

DNI0

DNI

TBD0603154K

1UF

50V

40.2K

1.5NF

25V

DNI

TBD0603

20K

25V

0DNI

DNIDFLS260-7

DNI

DFLS260-7

100V1UF

DNI

LT8362EDD#PBF

J VIERNES

02_051143 B

1:1

HW TYPE : SCP EVAL-Z

Product(s): LT8362

: LT8362

<DESIGN_VIEW>

3 4

6.8UH50V50 V

C12

C11

R15

C3 C2

R2 4

R2 5 OU TPUT

R2 6

R2 2

R2 1

R2 3

VIOC

R20R19R18R17R16

R27

R1 4

C14

R1 3

INPUT

C1 3R8

R 10

R1 2

C1 0

OUT

SYNC

RUN VO-

VO+

RUN

SYNC

INTVCC

OUT

VIOC

V+

INTVCC

PAD

1 0

AGND

AGN D

GND

SYN C/MODE

FBX

BIAS

INTVCC

VIN

EN/U VLO

AGN D

AGND

AGN D

AGND

AGN D

THIS DRAWING IS THE PROPERTY OF ANALOG DEVICES INC.

IN PART, OR USED IN FURNISHI NG INFORMATION TO OTHERS,

OR FOR ANY OTHER PURPOSE DETRIMENTAL TO THE INTERESTS

THE EQUIPMENT SHOWN HEREON MAY BE PROTECTED BY PATENTS

IT IS NOT TO BE REPRODUCED OR COPIED, IN WHOLE OR

DRAWING NO.

SCALE

SIZE

REV

SHEET

APPROVED

DESCRIPTION

REVISIONS

OL G

OWNED OR CONTROLLED BY OWNED ANALOG DEVICES.

OF ANALOG DEVICES.

SCHEMATIC

PTD ENGI NEER

DESIGN VI EW

REV DATE

DEMO MANUAL SCP-LT8362-S-EVALZ

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Speciﬁcations

subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

DEMO MANUAL SCP-LT8362-S-EVALZ

Rev. 0

1/21

www.analog.com

ESD Caution

ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection

circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.

Legal

Terms and Conditions

using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms

and

conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluat

ion

Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”

)

and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants

Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands

and

agrees that the Evaluation Board is provided for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license

granted

is expressly made subject to the following additional limitations: Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board; and (ii) permit any

Third

Party to access the Evaluation Board. As used herein, the term “Third Party” includes any entity other than ADI, Customer, their employees, afﬁliates and in-house consultants. The Evaluation Board

NOT sold to Customer; all rights not expressly granted herein, including ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall

all

be considered the conﬁdential and proprietary information of ADI. Customer may not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation

use of the Evaluation Board or termination of this Agreement, Customer agrees to promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble,

decompile

or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any occurred damages or any modiﬁcations or alterations it makes to the Evaluation Board, including but not

limited

to soldering or any other activity that affects the material content of the Evaluation Board. Modiﬁcations to the Evaluation Board must comply with applicable law, including but not limited to the

RoHS

Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION

LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS” AND ADI MAKES NO WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALL

DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO,

THE

IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS. IN NO EVENT WILL ADI AND IT

LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF THE EVALUATION BOARD,

INCLUDING

BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE AMOUNT OF

ONE

HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable United

States

federal laws and regulations relating to exports. GOVERNING LAW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of

Massachusetts

(excluding conﬂict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby

submits

to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Analog Devices Hardware per computer

Analog Devices

Analog Devices EZ-KIT Lite ADSP-BF537 Manuale utente

Analog Devices

Analog Devices Linear LT3383 Guida rapida alla configurazione

Analog Devices

Analog Devices ADSP-BF53x Blackfin Manuale di servizio

Analog Devices

Analog Devices Linear LTC3114-1 Guida rapida alla configurazione

Analog Devices

Analog Devices HSC-ADC-EVALA-SC Manuale utente

Analog Devices

Analog Devices LTC6955 Guida rapida alla configurazione

Analog Devices

Analog Devices VisualDSP++ 5.0 Manuale utente

Analog Devices

Analog Devices MicroConverter ADuC824 Manuale utente

Analog Devices

Analog Devices ADAU1961 Manuale utente

Analog Devices

Analog Devices ADSP-219 Series Guida all'applicazione

Analog Devices

Analog Devices ADSP-21261 SHARC Guida all'applicazione

Analog Devices

Analog Devices ADP8860SHIELD-EVALZ Manuale utente

Analog Devices

Analog Devices EVAL-ADAQ8088EBZ Manuale utente

Analog Devices

Analog Devices Blackfin Manuale utente

Analog Devices

Analog Devices AD9866 Manuale utente

Analog Devices

Analog Devices ADSP-BF53x EZ-Extender 1 Manuale utente

Analog Devices

Analog Devices HPUSB Manuale utente

Analog Devices

Analog Devices ADSP-2186 Manuale utente

Analog Devices

Analog Devices Linear ADI Power LT1964 Guida rapida alla configurazione

Analog Devices

Analog Devices AD9830 Manuale utente

Analog Devices

Analog Devices MICROCONVERTER ADUC812 Manuale utente

Analog Devices

Analog Devices ADSP-BF561 EZ-KIT Lite Manuale utente

Analog Devices

Analog Devices ADICUP3029 Manuale utente

Analog Devices

Analog Devices EZ-KIT Lite ADSP-21364 Guida utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
