INSTALLATION MANUAL 1110315
Parts List
2Light mounting bracket
2Hex cap screw, M6
2Flat washer, M6
10 Set screw, M5
2Hex key, 2.5mm
1Hex key, 5mm
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Photo
Torque Specifications
M5 bolt 1.8 ft-lbs.
M6 bolt 3 ft-lbs.
Use above torque setting unless otherwise noted
Level of Difficulty
Easy
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Product Registration and Warranty
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •1110 315 -I NS- R A •PAGE 2

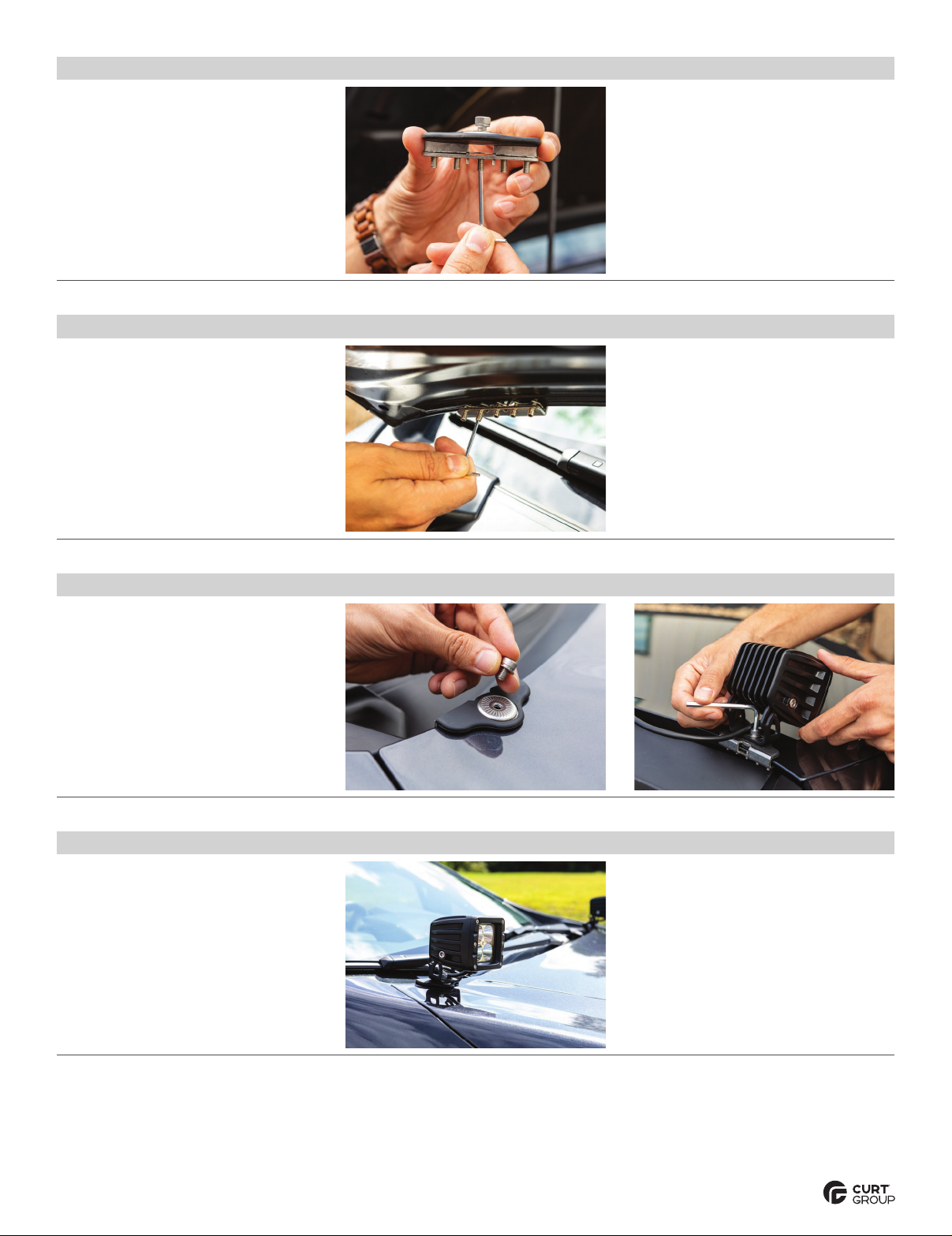

Step 1
Using the 2.5mm hex key, loosen the
five set screws to fully open the
light mounting bracket.
Step 4
Tighten all hardware to the
recommended torque specifications
listed on the first page of this manual.
With the mounting bracket installed,
periodic inspections should be
performed to ensure all mounting
hardware remains tight.
Congratulations on the installation of
your new ARIES light mounting brackets.
Step 2
Place the light mounting bracket into the
desired position on the vehicle. Using the
2.5mm hex key, tighten the five set screws
to secure the bracket onto the vehicle.
Step 3
Place the light onto the mounting bracket.
Using the 5mm hex key, secure the light using
the M6 hex Cap Screw and M6 flat washer.
